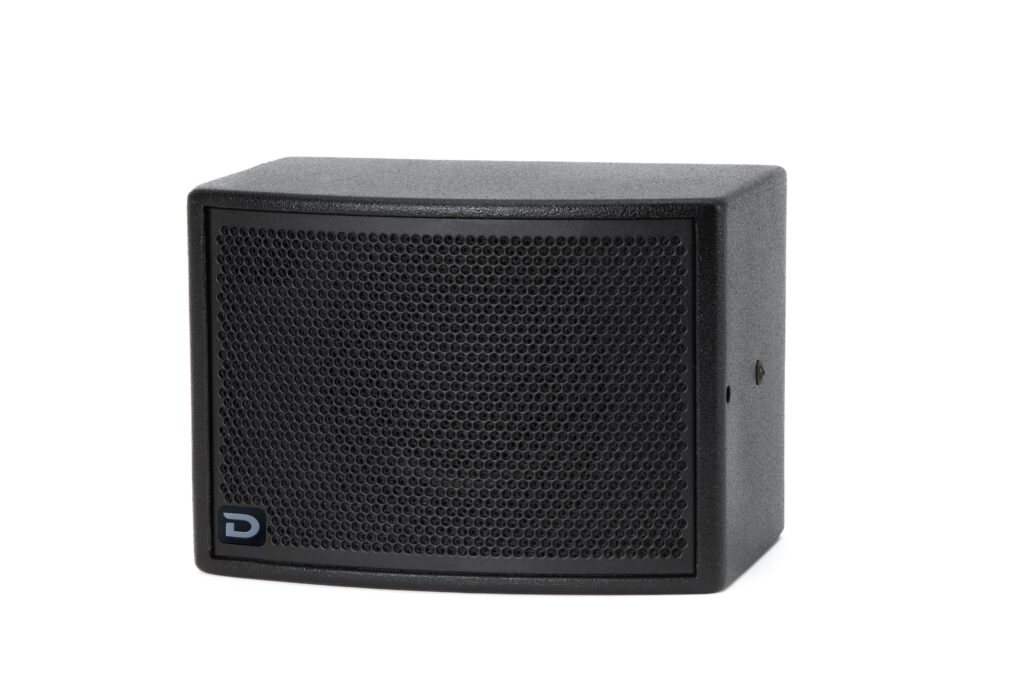

AXS5

Ideal for Small-to-Medium Environments

The AXS5 is a compact, linear-response loudspeaker engineered to deliver accurate and consistent output from a small-format enclosure. Utilizing a coaxial 1″ high-frequency driver paired with a coated 5″ low-to-mid transducer, the AXS5 employs a high-power crossover network optimized for stability, thermal reliability, and minimal phase distortion. This driver and crossover combination ensures dependable performance even under demanding operating conditions.

Designed for bars, restaurants, retail spaces, and other small-to-medium environments, the AXS5 provides uniform coverage and smooth tonal balance, making it well-suited for foreground music, distributed audio, and auxiliary fill applications. The system’s extended and controlled frequency response also enables effective full-range standalone operation.

Performance Specifications

Operating Mode
Passive single channel – 16 Ohm
Operating Range
60Hz – 19kHz
Coverage Pattern
80° Conical
Transducers
5″ / 1″ coaxial
Power Handling
120W
Sensitivity
89 dB SPL (1 W / 1 m)
Output
95 dB cont. / 110 dB max

Physical Specifications

Connections

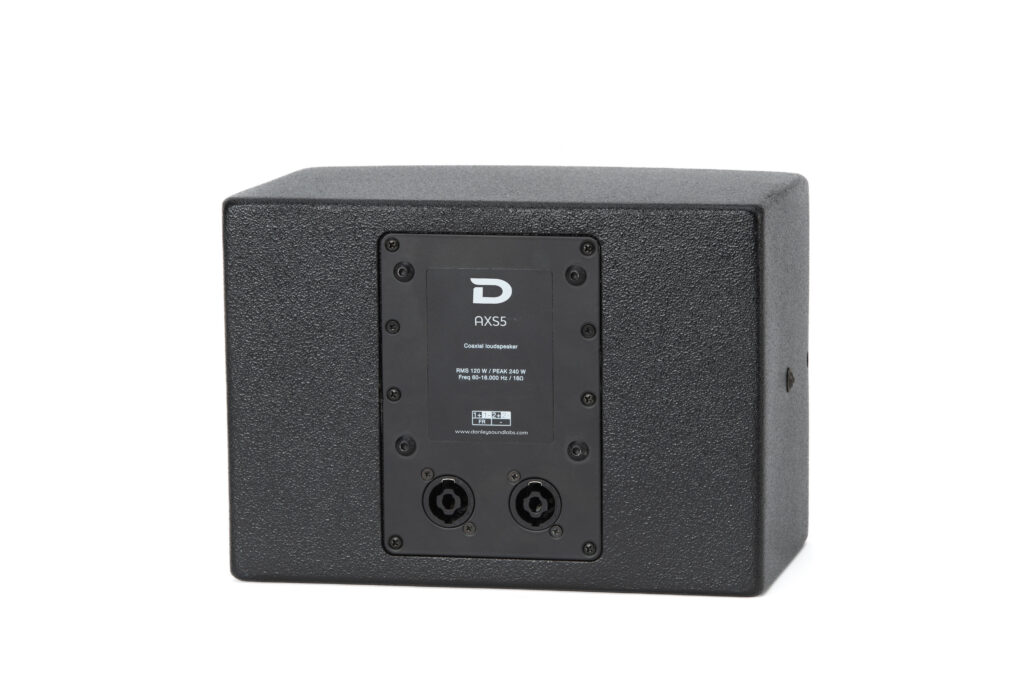

Dual Neutrik NL4
Mounting / Suspension Points

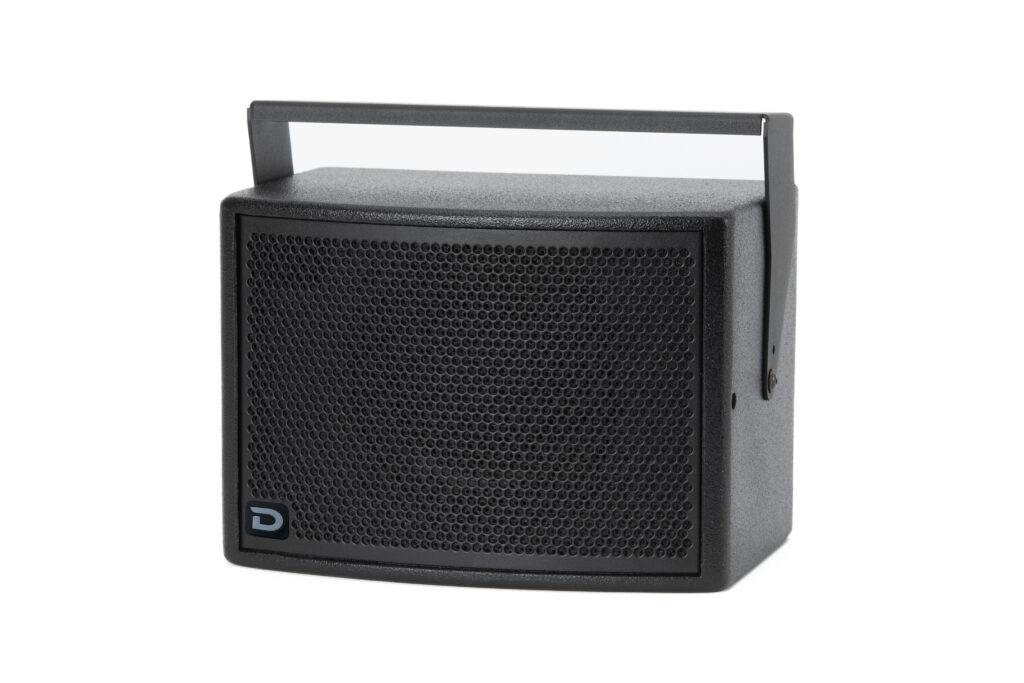

M5, U-Bracket included
Dimensions
H x W x D / 6.9″ x 9.85″ x 6.9″ / 175 mm x 250 mm x 175 mm
Weight
8.4 lbs / 3.8 kg
Finish
Black enclosure with matte black grille / White enclosure with matte white grille
Enclosure
12 mm 6-ply Baltic Birch
The AXS Family of Loudspeakers

Compact and Powerful

The AXS Family of loudspeakers and subwoofers provides compact audio at a competitive price point. Perfect for smaller installations like those for bars, restaurants, and other hospitality use cases, the AXS Family is perfect for the integrator looking for big sound in a tiny package.
