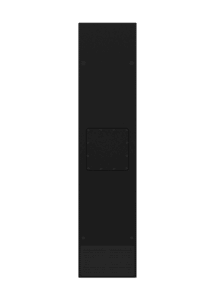

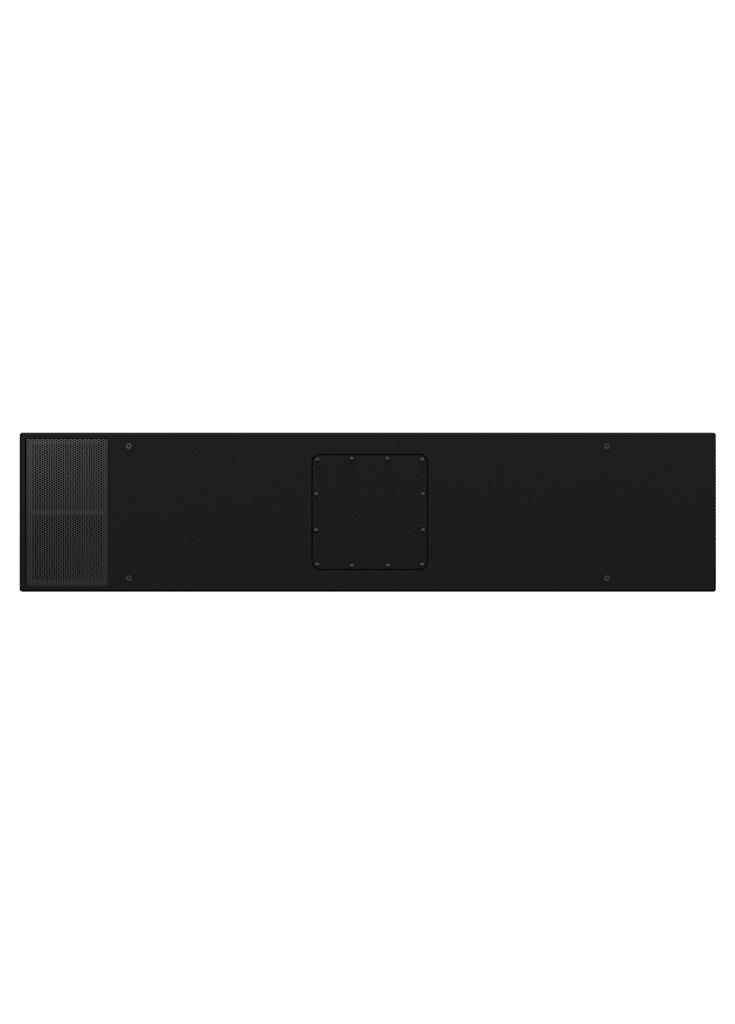

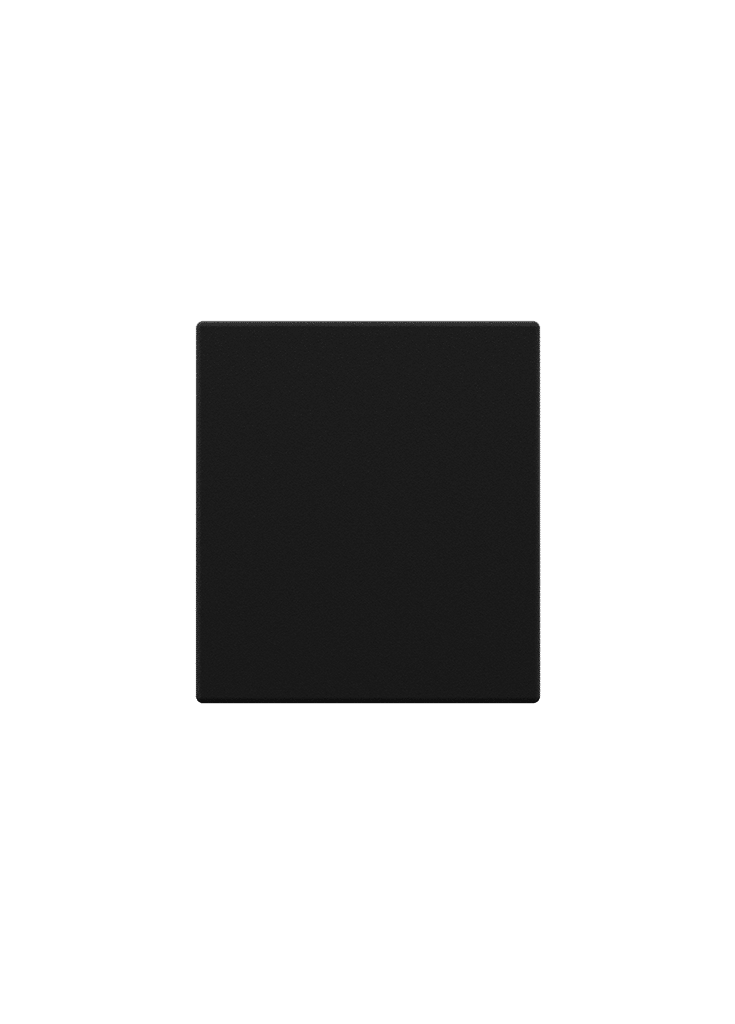

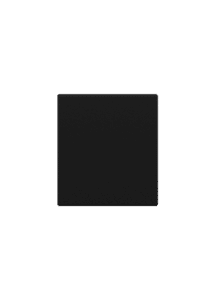

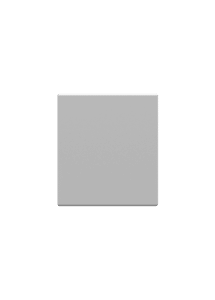

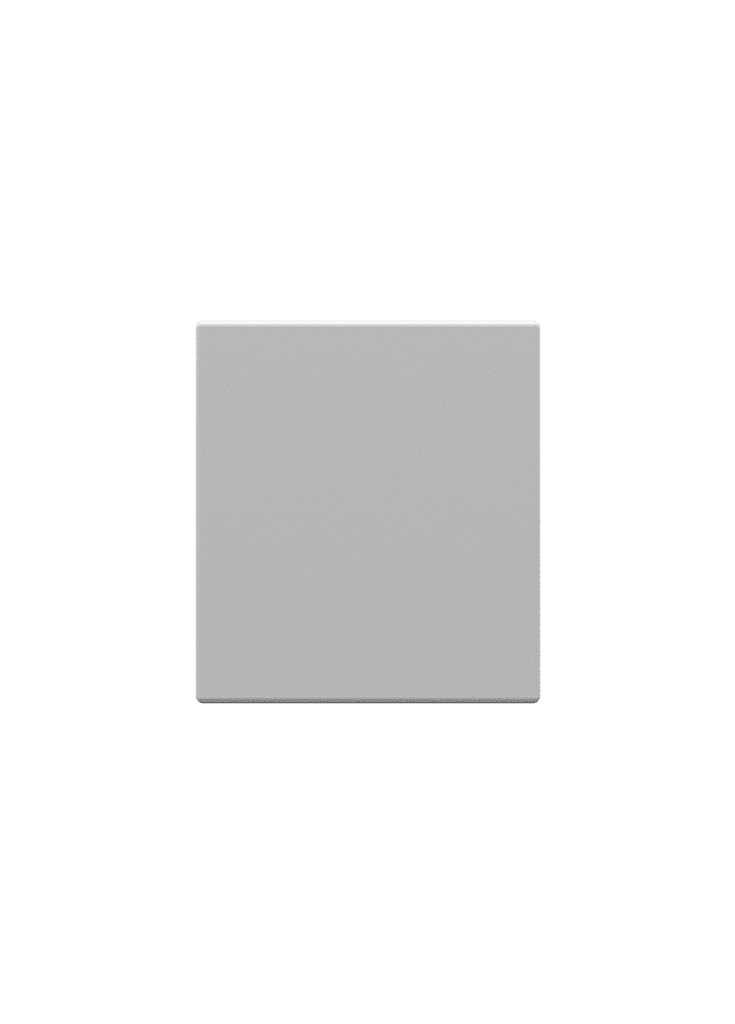

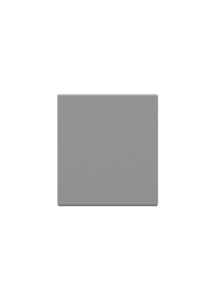

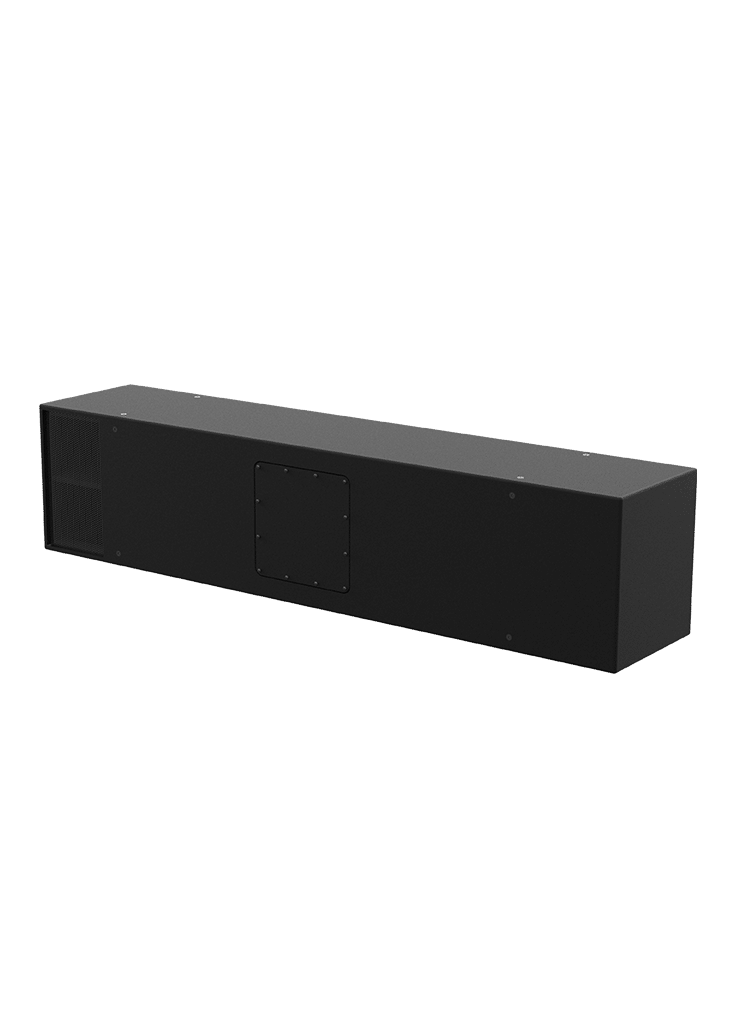

The “Tower of Power”

DTS20

DTS20

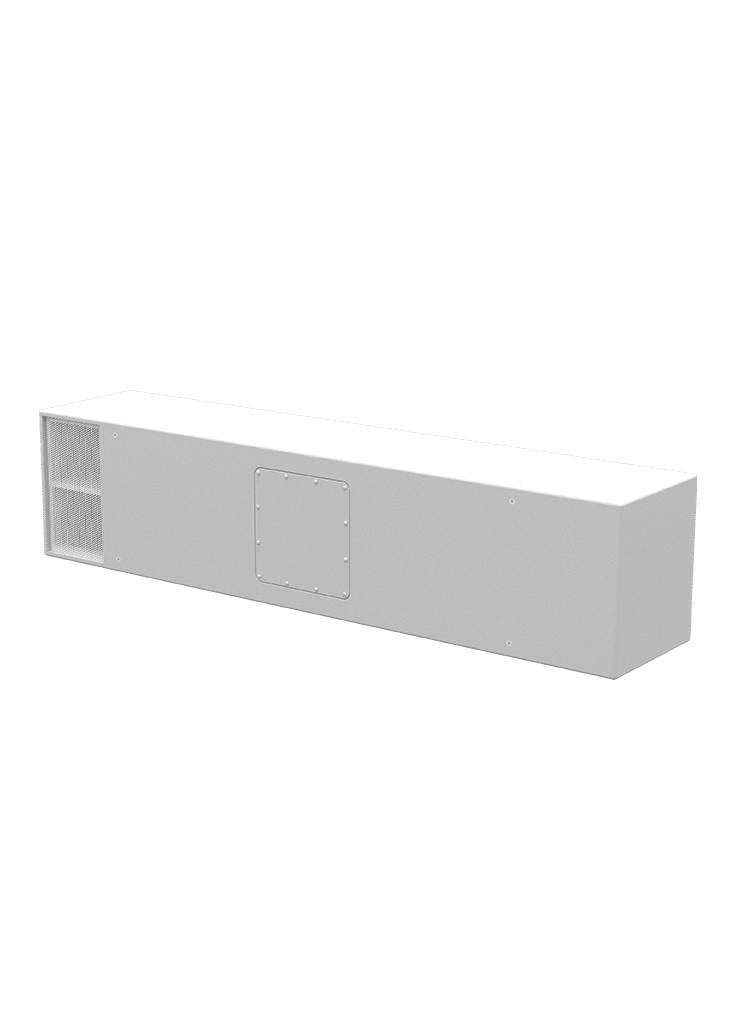

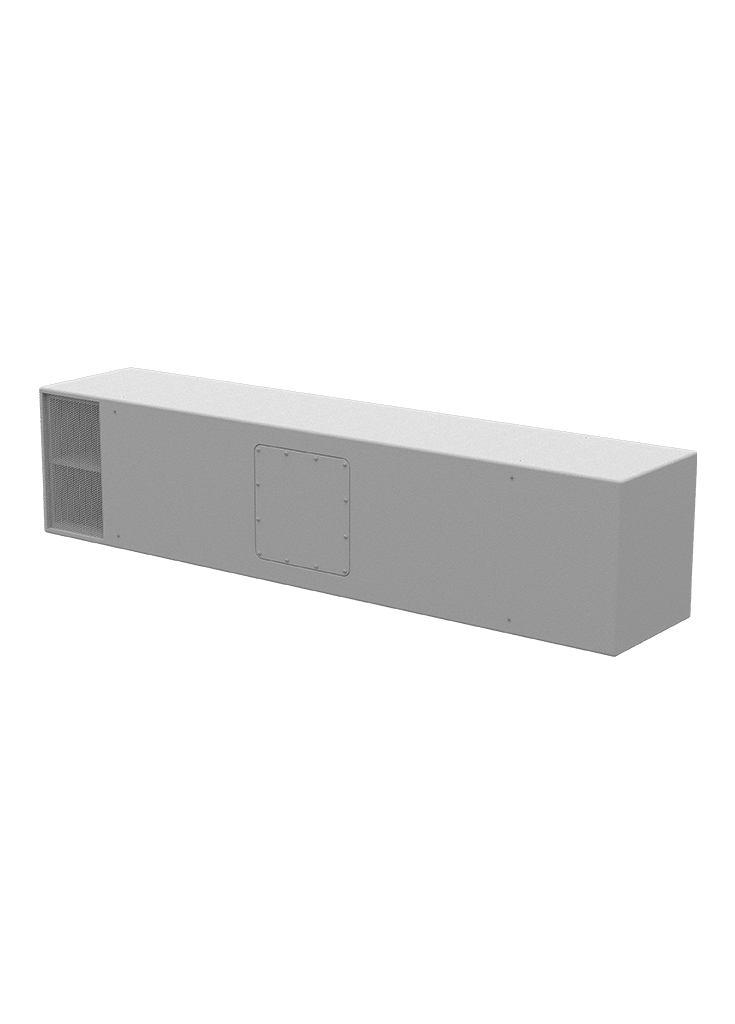

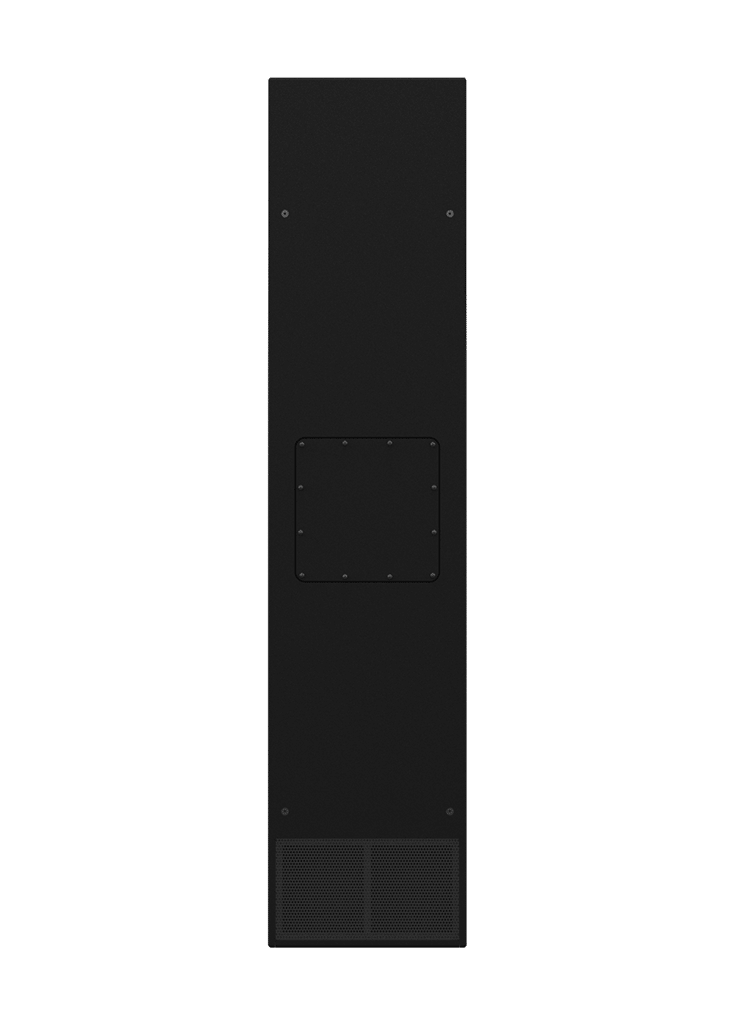

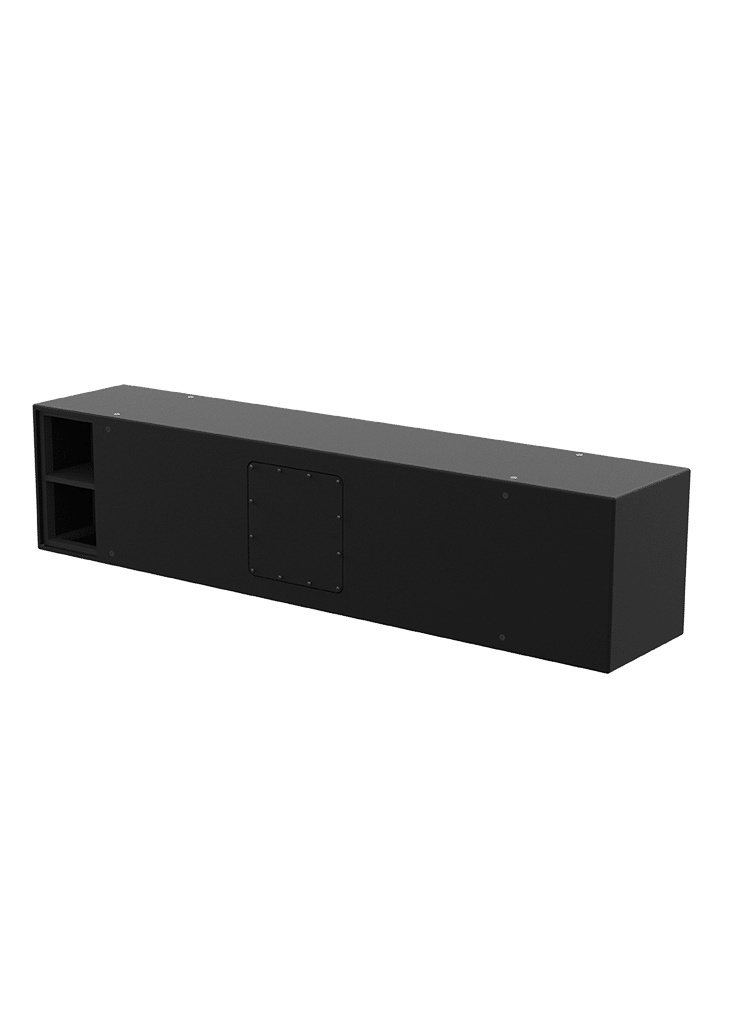

This subwoofer has earned the nickname “Tower of Power” because it is simply the most powerful, lowest frequency reproducing subwoofer on the planet. Offering solid output down to 16 Hz, single digit distortion, and incomparably low group delay, the DTS20 is in a class by itself. In fact, it is the perfect choice for ultra-high-end home theatres, industrial/ military/research facilities, commercial cinemas, mastering facilities, electronic organ reproduction, and commercial surround sound recording/playback. The Tower of Power also features removable covers that allow two different options for the location of the acoustical output – all of which will be determined by the installation orientation you choose.

Product Specifications

Operating Frequency Range
18 Hz- 100 Hz -3dB
16 Hz -10dB
Continuous Output
122 dB SPL
Peak Output
128 dB SPL
Sensitivity
95 dB SPL (2.83 Volts into rated Z, at 1 meter) measured in half space
Magnitude Response
18 Hz – 100 Hz
Driver Complement
one 12″ long excursion woofer
Dimensions
87.5 x 18 x 20 inches
Weight
220 lbs
Rated Impedance
8 Ohms
Power Rating
500 W continuous
1,000 W program
Danley Products

Cinema-Grade Subs

Danley Sound Labs subwoofers always bring a punch. Products like the DTS20 and its counterpart the DTS10 are great solutions for cinema, commercial and home theatre applications.
