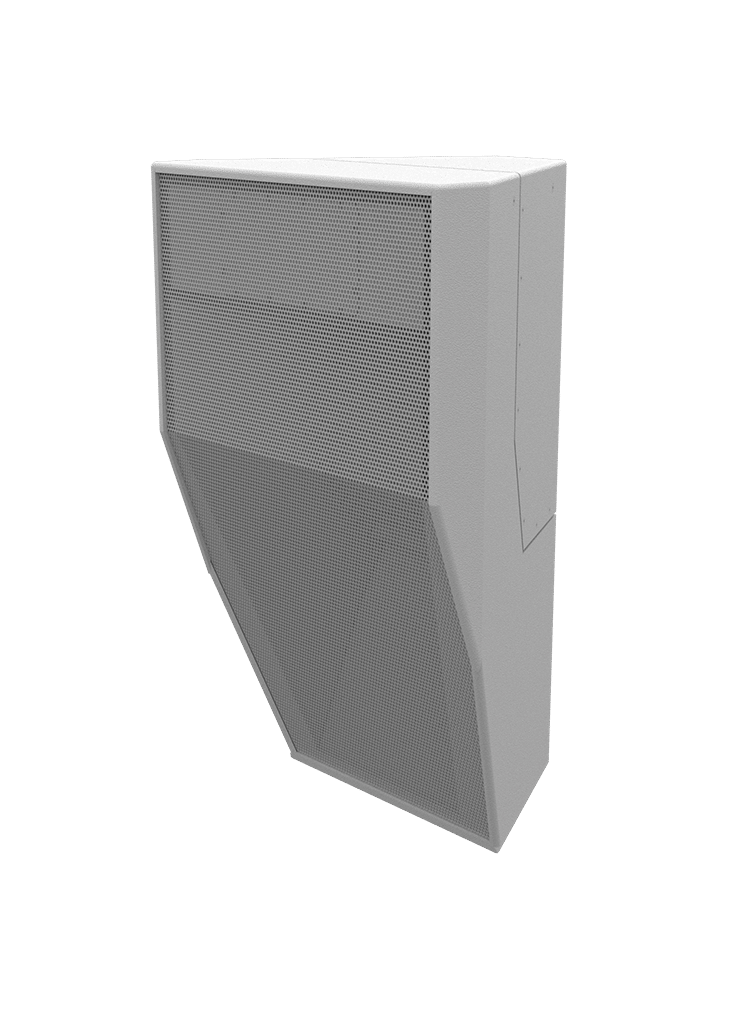

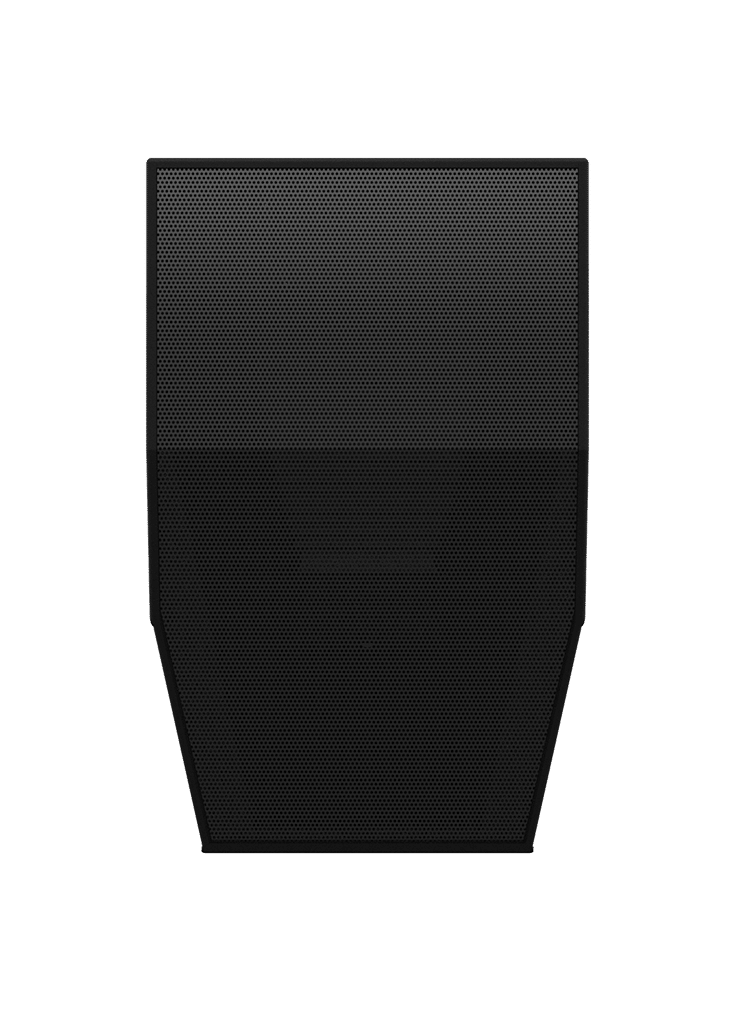

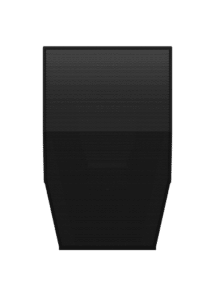

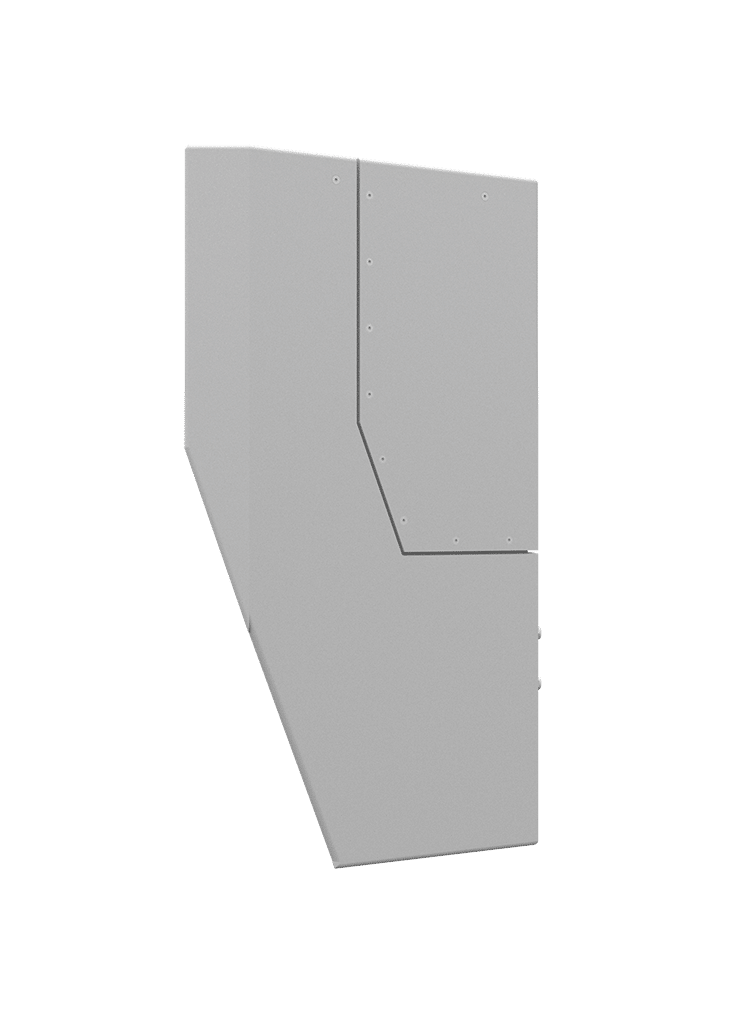

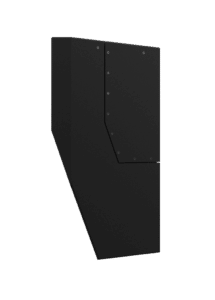

The GH60
The GH60

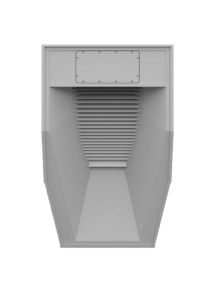

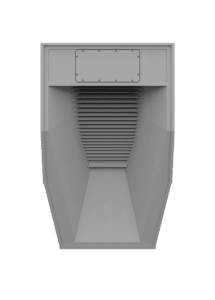

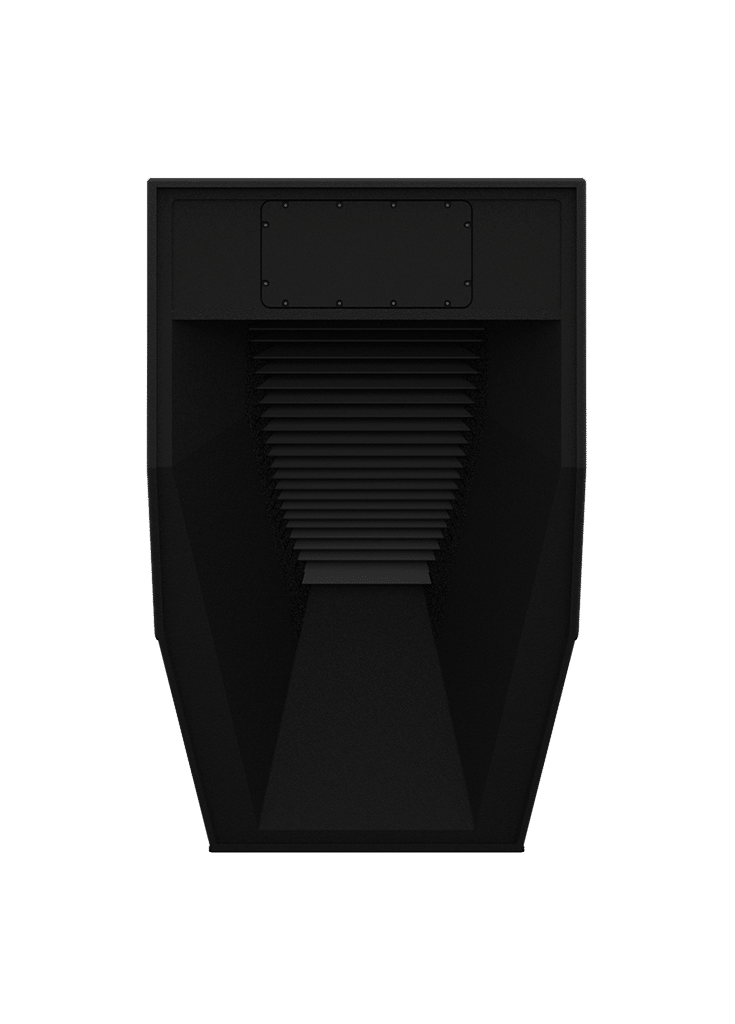

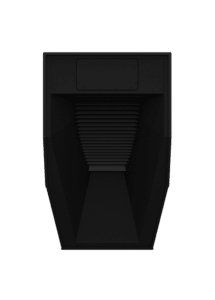

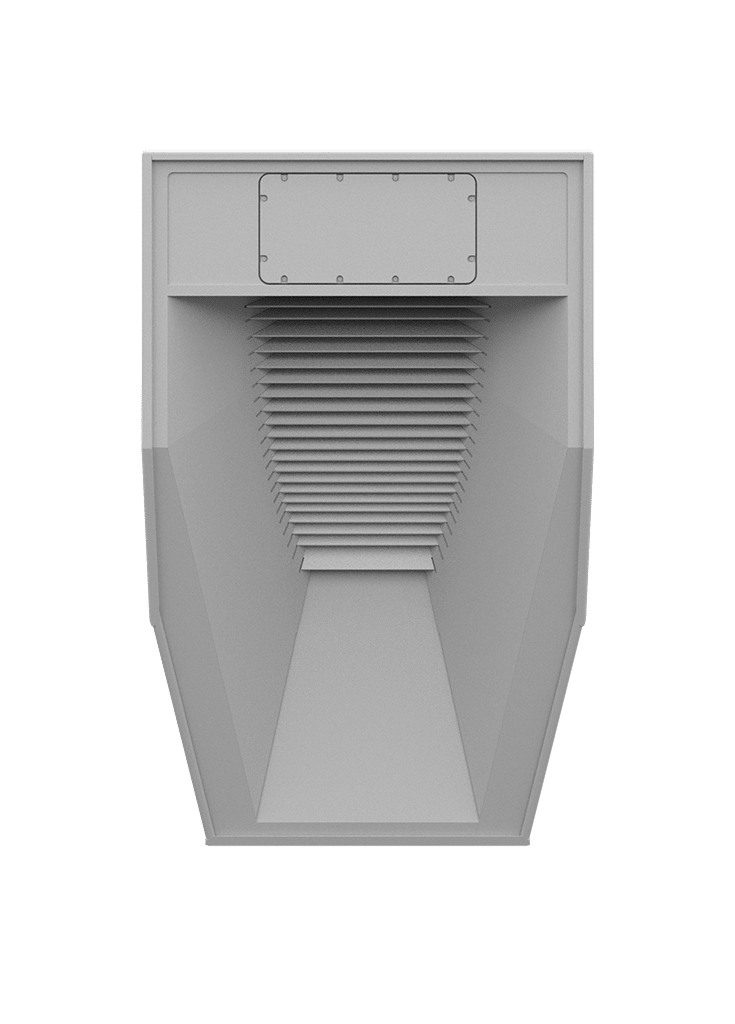

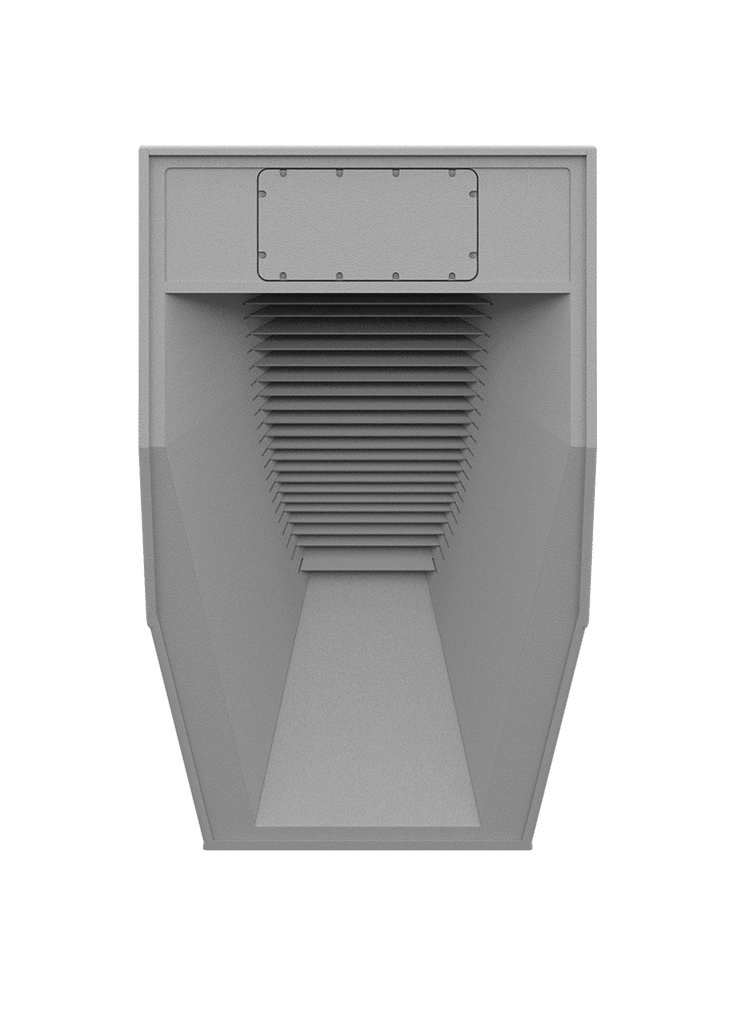

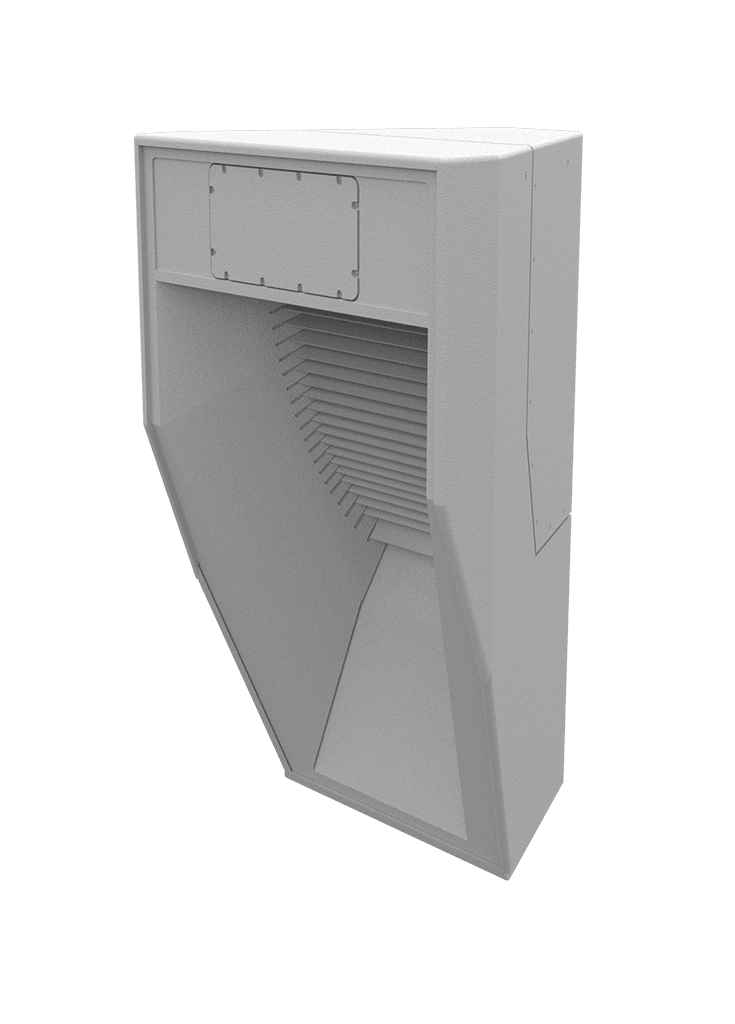

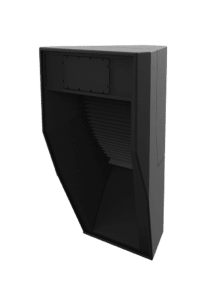

Made possible by the Synergy Horn™, the GH60 represents a paradigm shift in loudspeaker technology. That is because the GH60 Genesis Horn incorporates three patents in one box: the Synergy Horn™, the Paraline™ and the Shaded Amplitude Lens™. The result is everything you wanted a line array to do and more. The GH60 houses a total of 18 drivers utilizing 21 horizontal 20-degree downward vanes that provide even front-to-back coverage (better than line array performance) from a single point source. Due to the Shaded Amplitude Lens™, the GH60 has 16dB of gain on the furthest listener’s axis, and all 45 degrees of the vertical coverage is useable.
Product Specifications
Coverage Pattern
60Ëš horizontal
45Ëš SA vertical
45Ëš SA vertical
Operating Frequency Range
90 Hz – 16 kHz ( -10 dB points)
Continuous Output
133 dB SPL
Peak Output
139 dB SPL
Sensitivity
104 dB SPL
(2.83 Volts into
rated Z, at 1 meter)
measured in free space
(2.83 Volts into
rated Z, at 1 meter)
measured in free space
Magnitude Response
90-16kHz
Driver Complement
Low 8 x 6.5″
Mid 8 x 4″
High 2 x 1.4″
Mid 8 x 4″
High 2 x 1.4″
Dimensions
48 x 30 x 23 inches
Weight
199 lbs
Rated Impedance
4 ohms
Power Rating
1400 Watts Cont.
5600 Watts Peak
5600 Watts Peak
