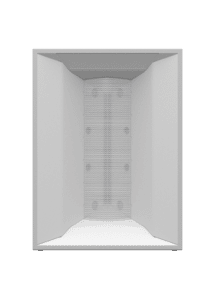

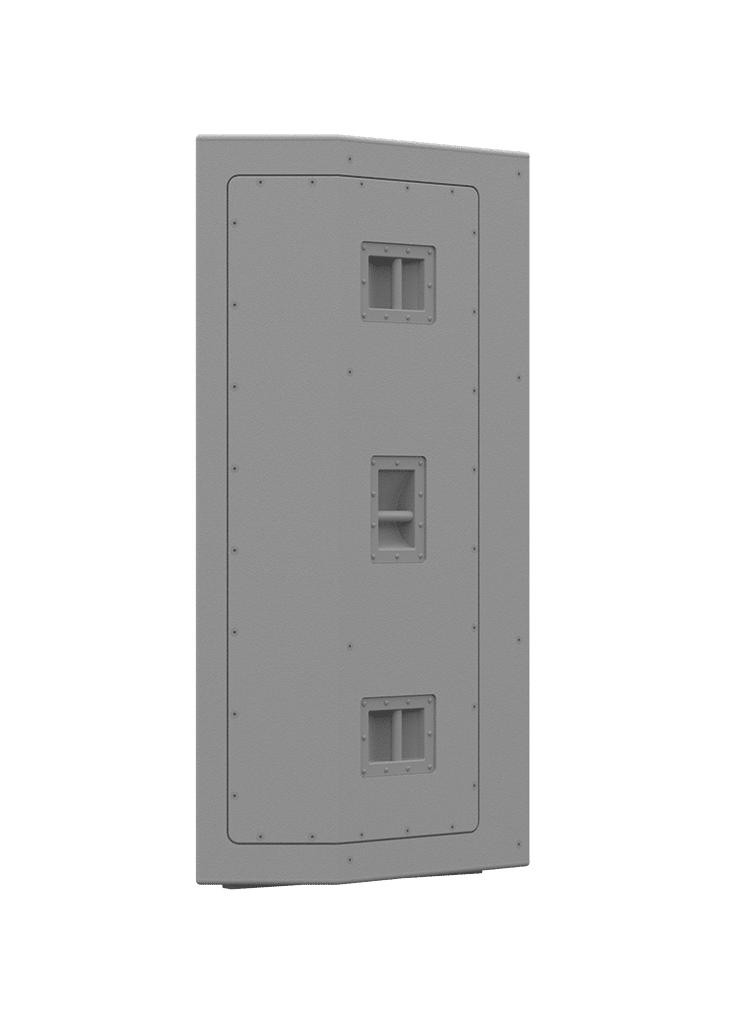

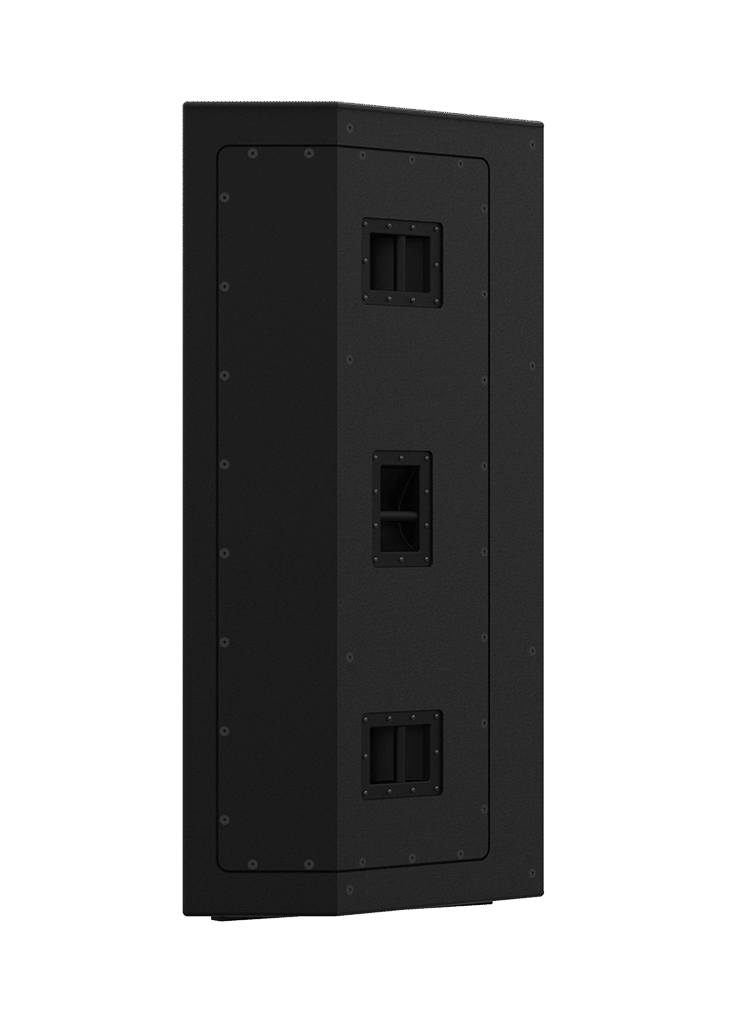

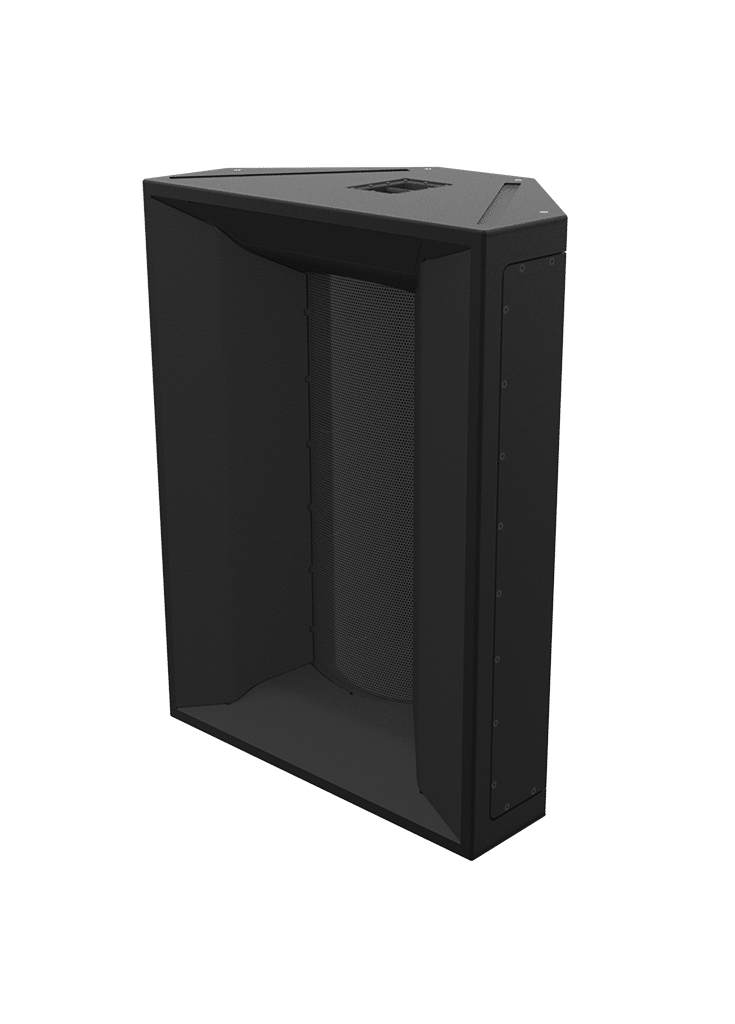

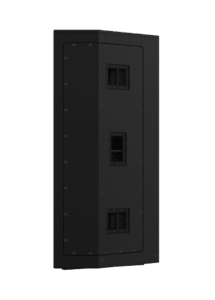

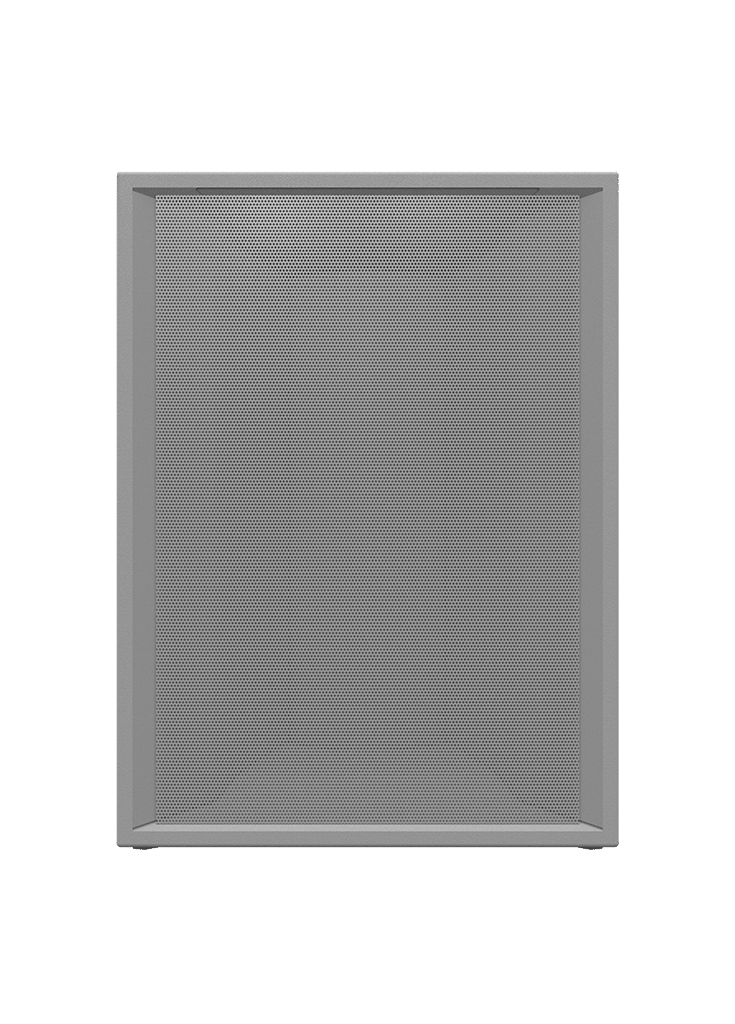

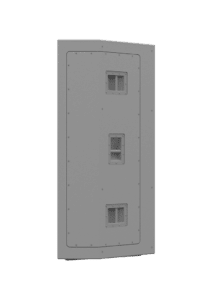

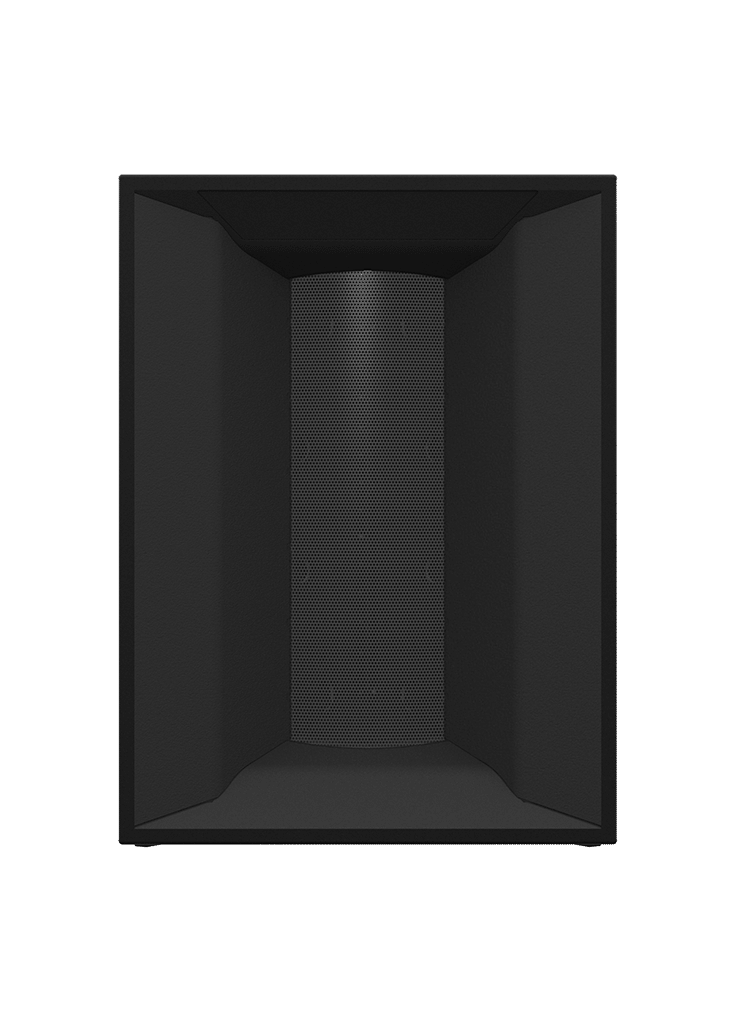

42 Drivers, One Full-range Array-able Horn

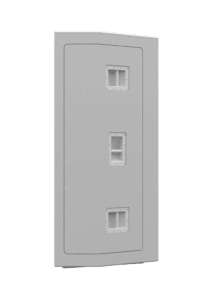

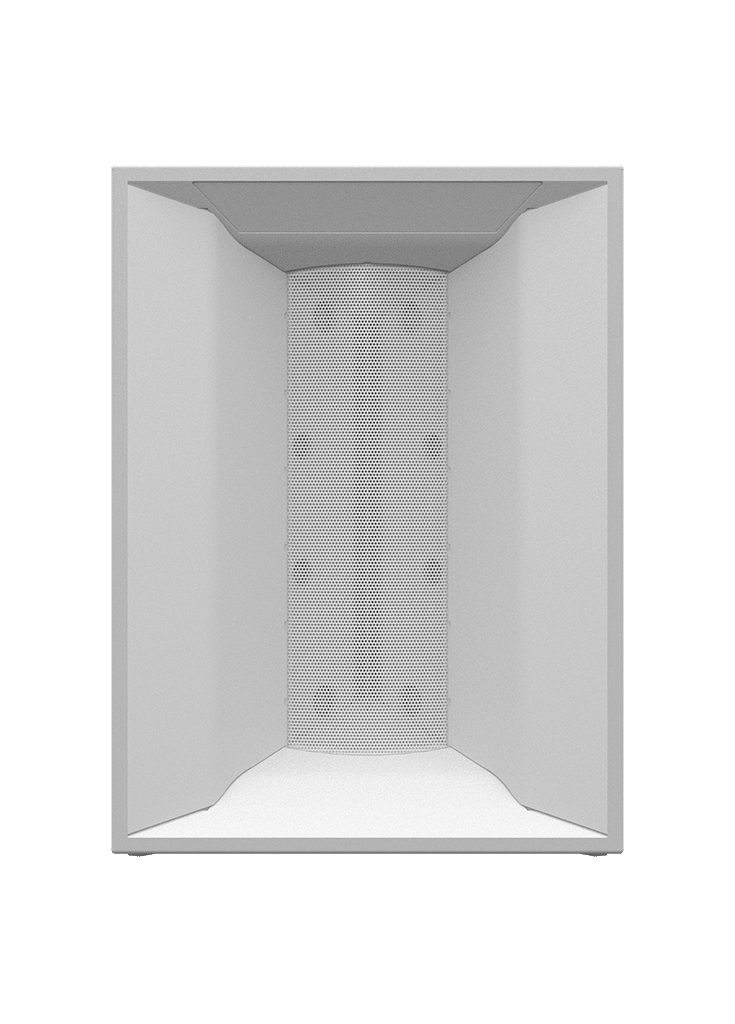

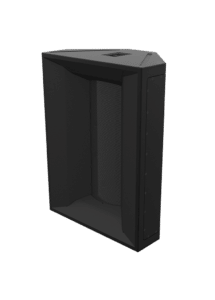

J2-96
J2-96

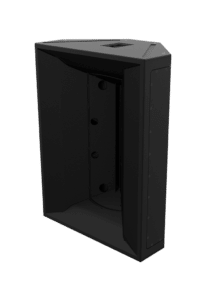

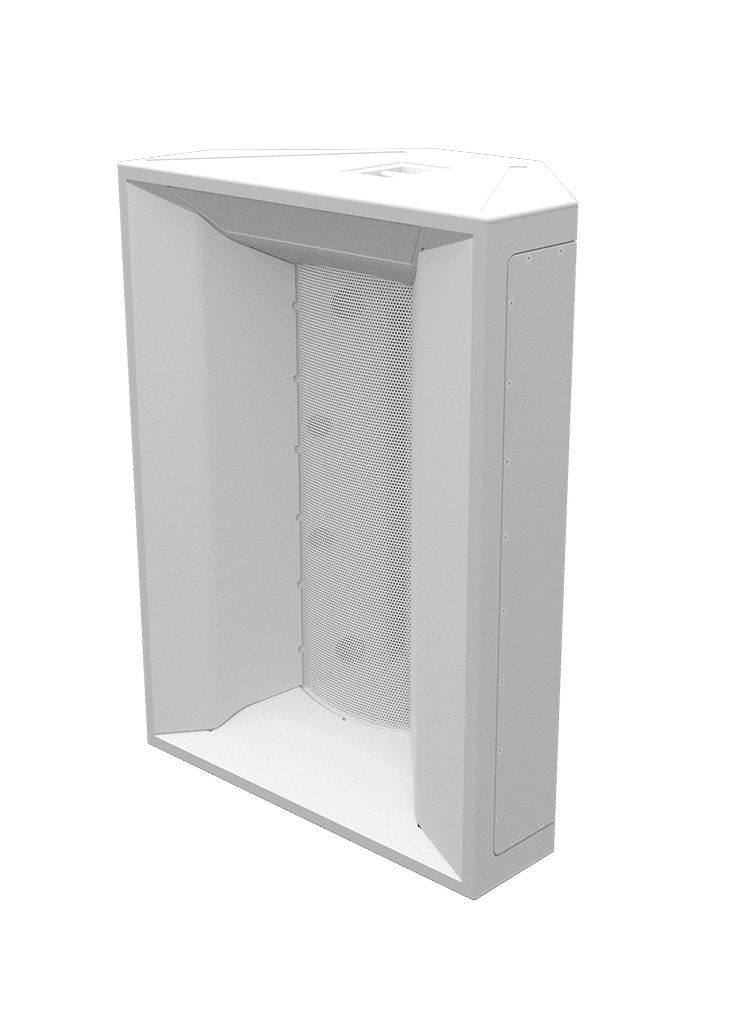

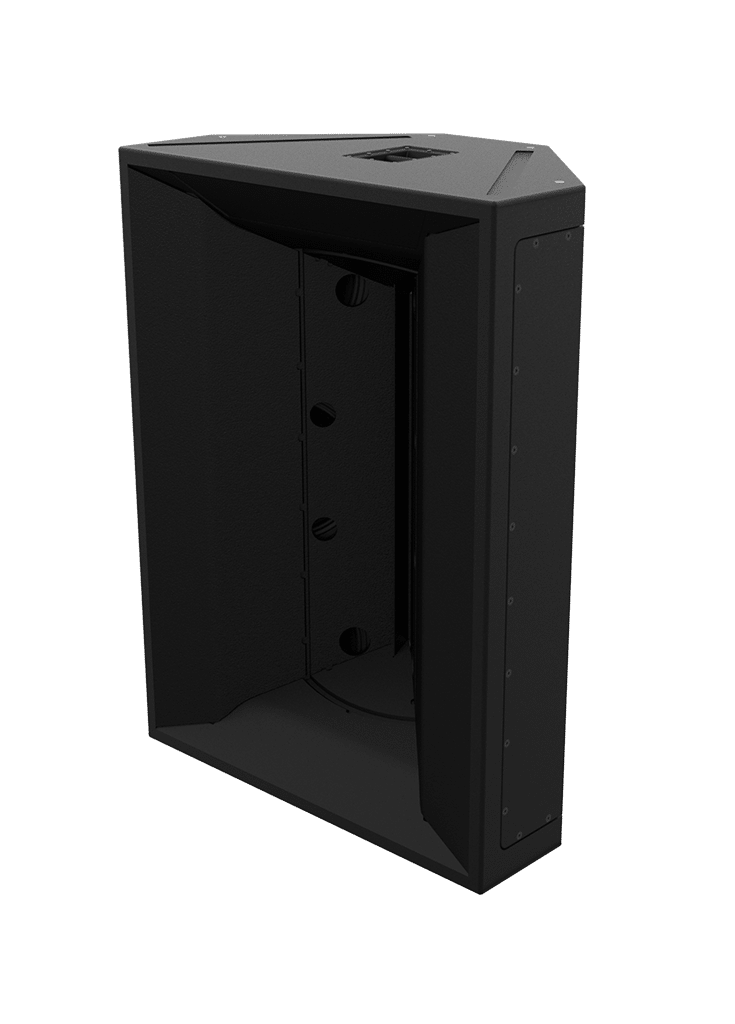

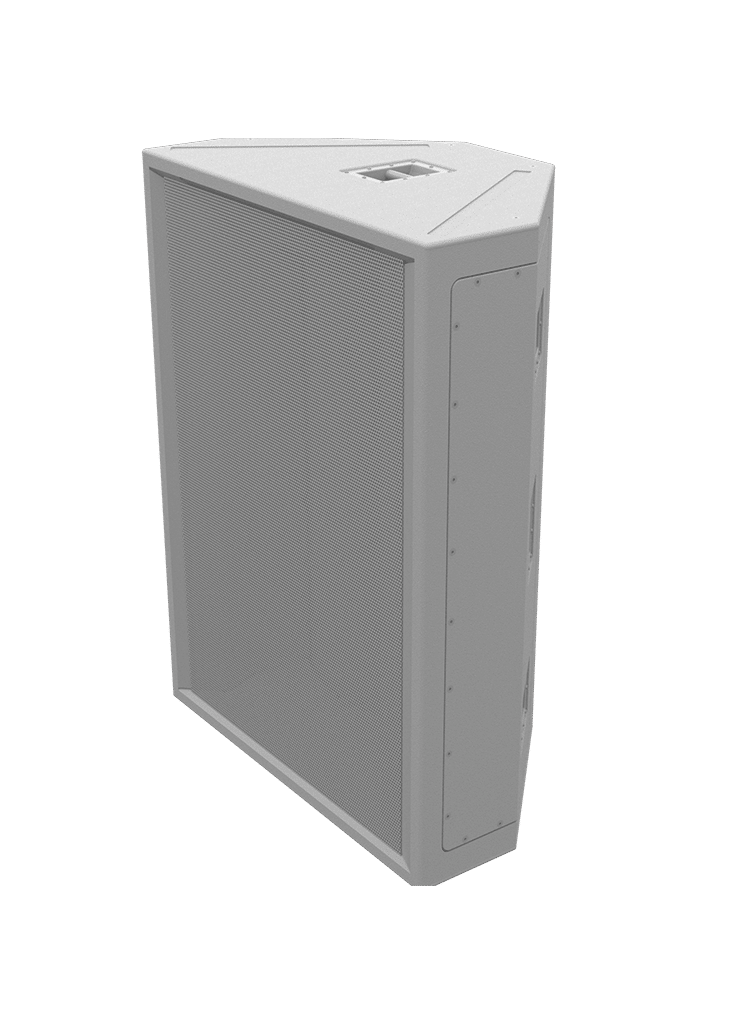

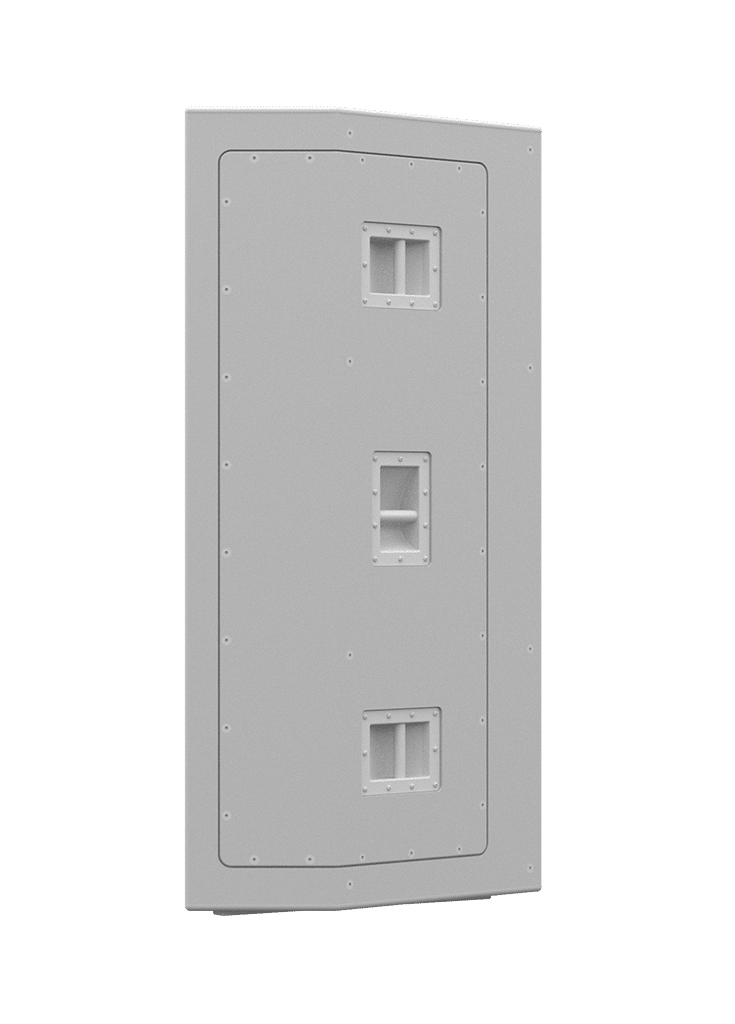

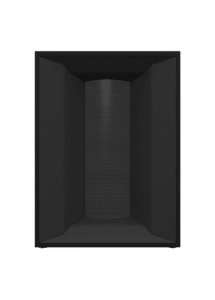

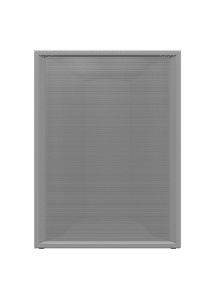

The J2-96 offers another impressive option for Danley clients. Containing 42 drivers in one full-range, array-able horn, this loudspeaker produces incredible clarity despite its massive power. The massive dimensions of the horn also give it incredible pattern control well into the low frequency band pass.
Product Specifications
Coverage Pattern
90 by 60
Operating Frequency Range
37 Hz – 10 kHz -3 dB
27 Hz – 15 kHz -10 dB
27 Hz – 15 kHz -10 dB
Continuous Output
Band dependent, average 138 dB SPL
Peak Output
Band Dependent, average 145 dB SPL
Sensitivity
Band Dependent , average 113 dB SPL
Driver Complement
Low Freq six 18″ woofers
Mid Range twenty four 5″ mids,
High Freq Twelve 1″ compression drivers
Mid Range twenty four 5″ mids,
High Freq Twelve 1″ compression drivers
Dimensions
60 x 45 x 28 inches
Weight
600 Lbs
Rated Impedance
band dependent
LF 3 ohms
Mids 4 ohms
High Freq. 4 ohms
LF 3 ohms
Mids 4 ohms
High Freq. 4 ohms
Power Rating
See Spec Sheet
