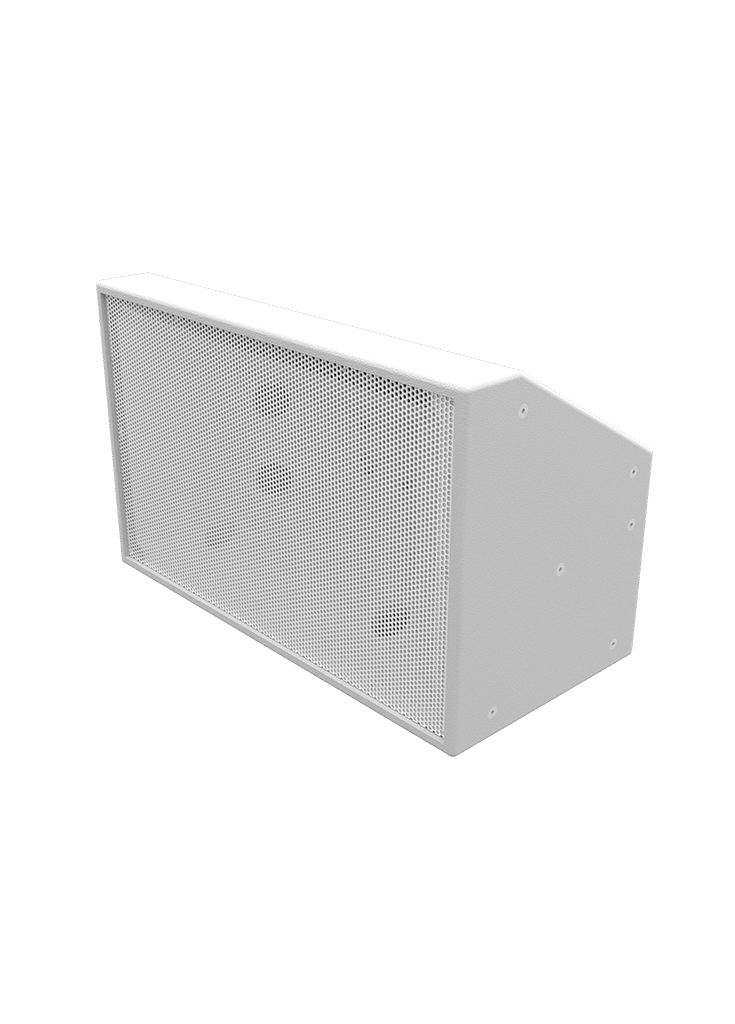

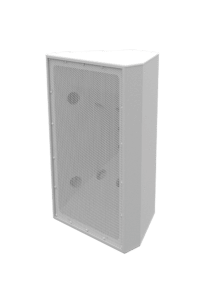

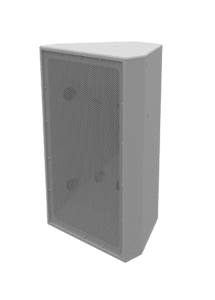

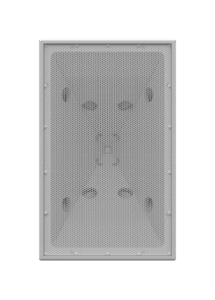

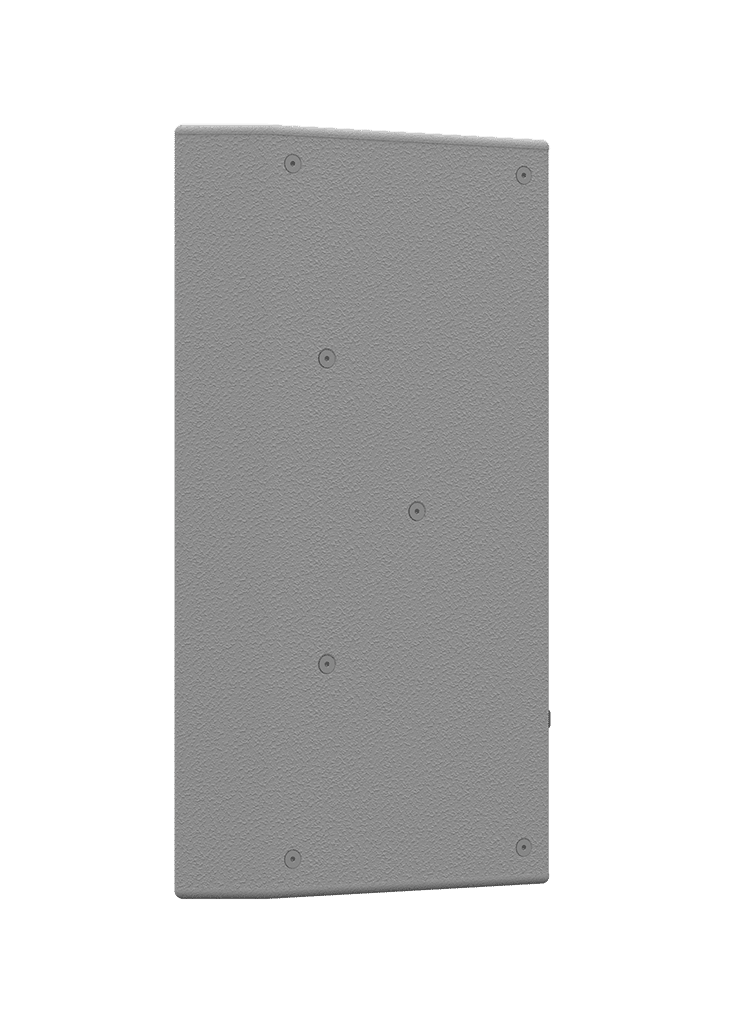

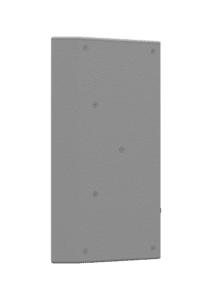

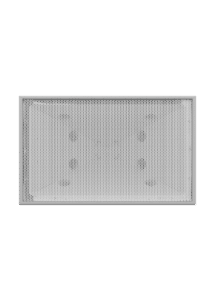

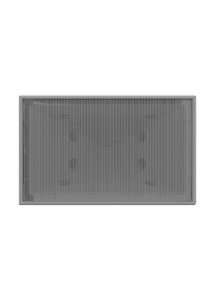

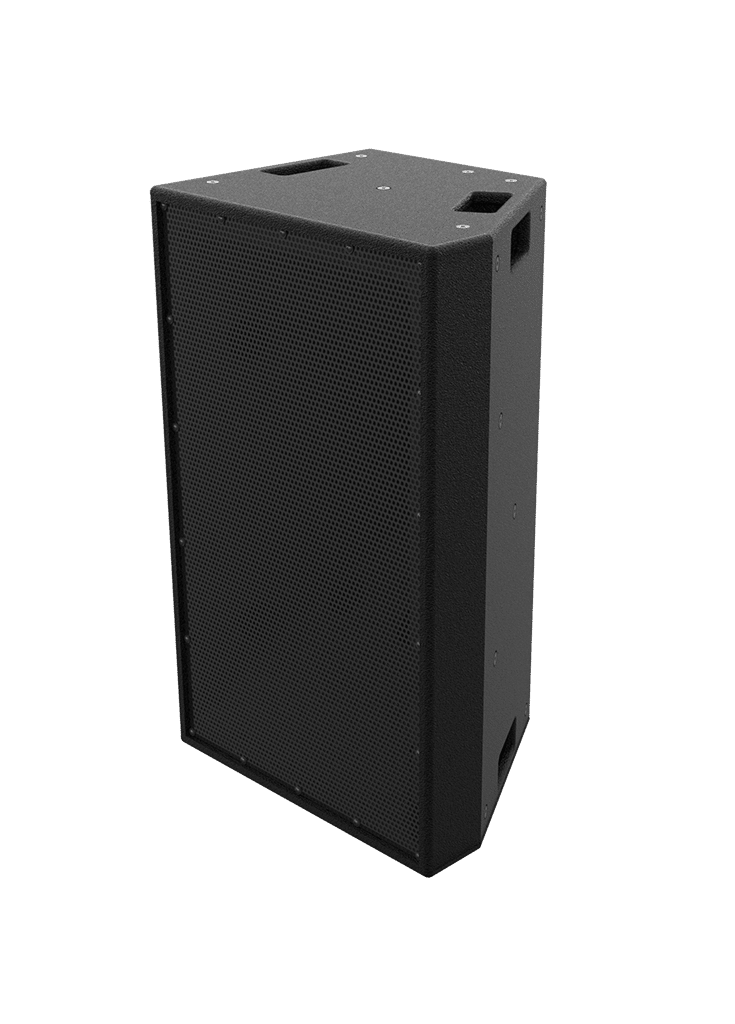

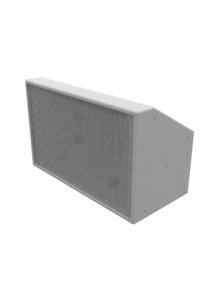

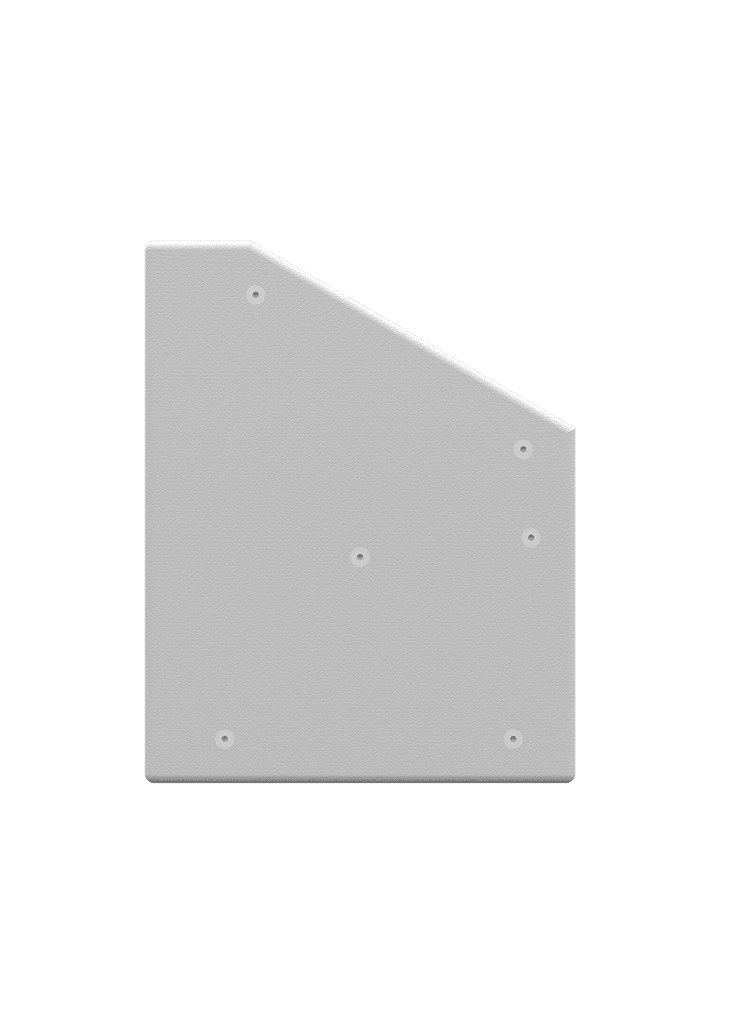

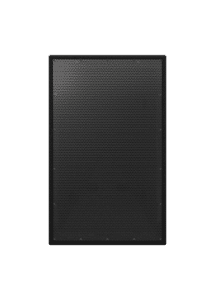

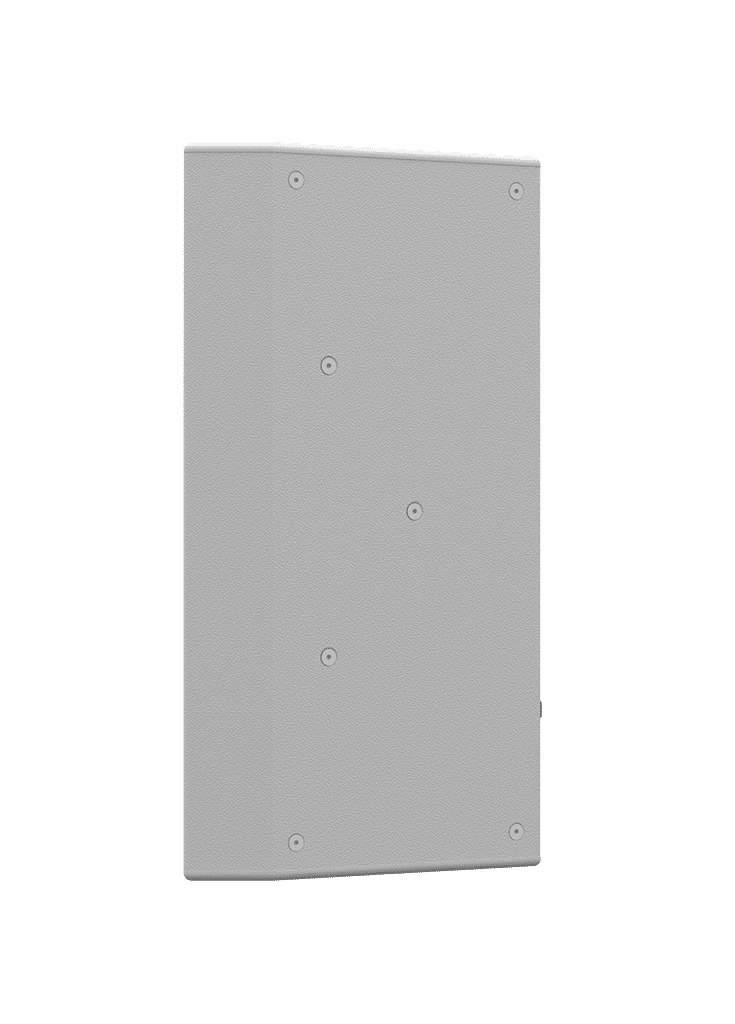

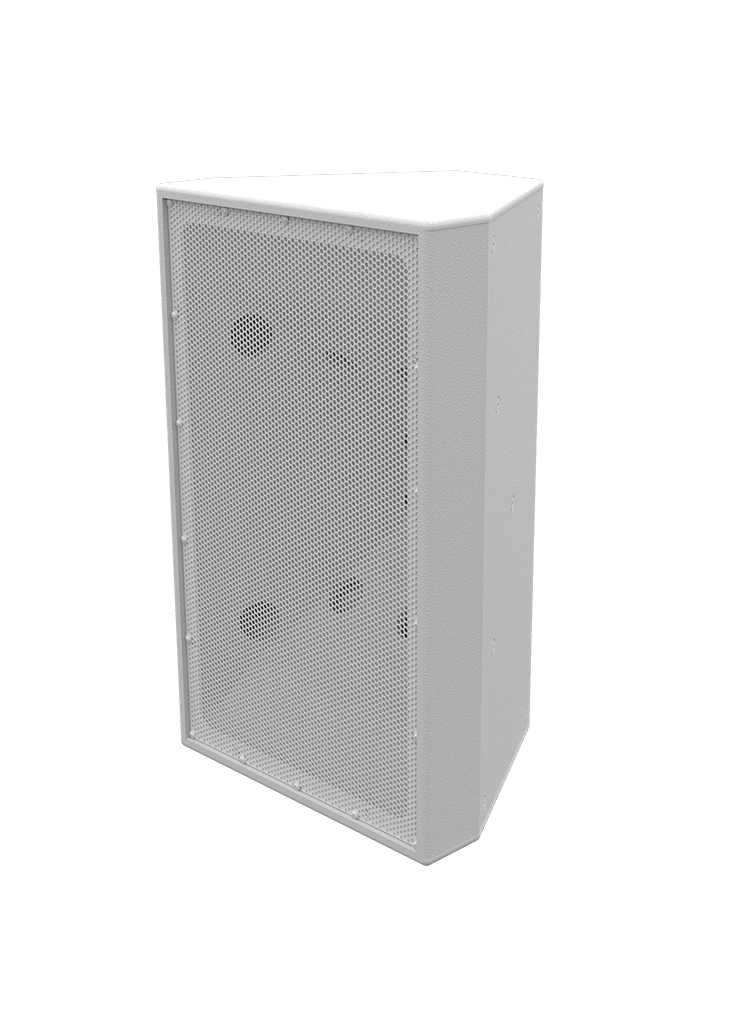

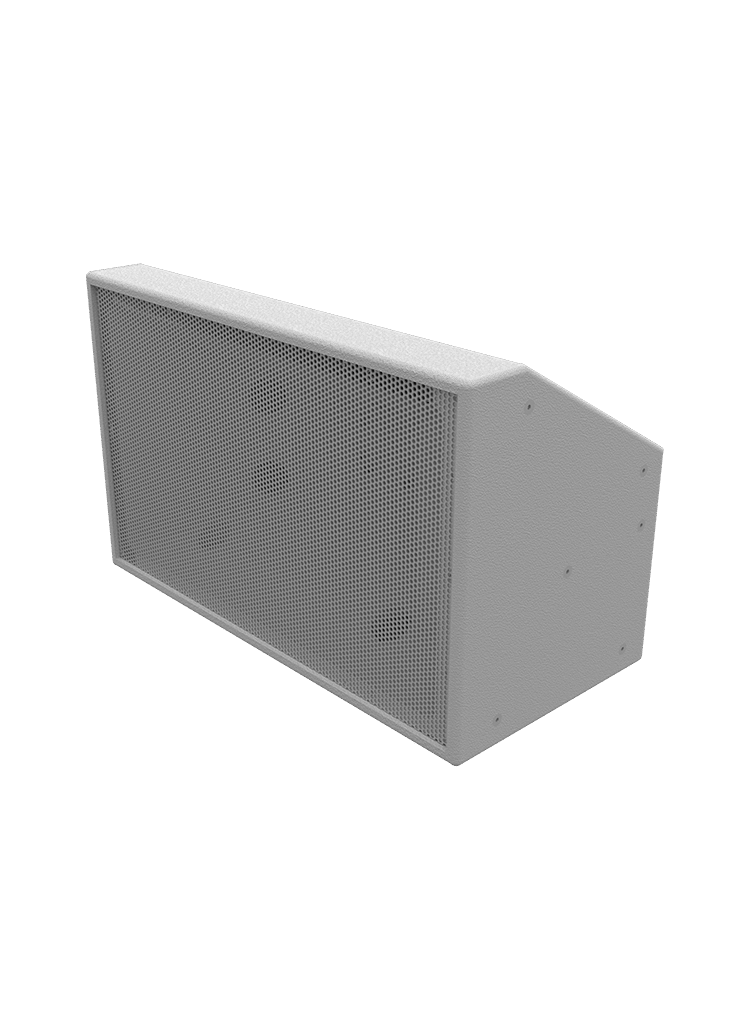

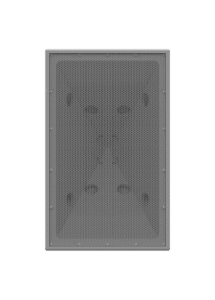

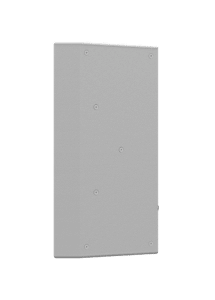

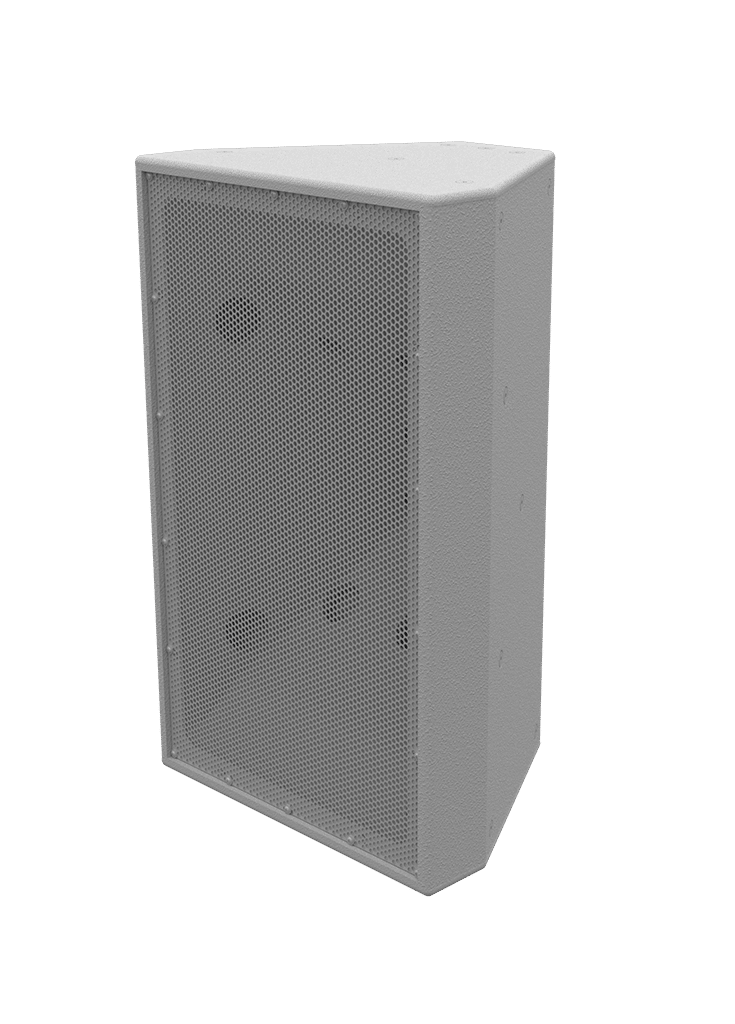

SH69
SH69
A true full range performer in a compact and relatively lightweight design, the SH69 features the performance of the flagship SH50 in a wider pattern. An array built with SH69s produces sound that is powerful, seamless, and, above all, crystal clear.
Product Specifications
Coverage Pattern
60˚
90˚
90˚
Operating Frequency Range
55 Hz – 18 kHz +/- 3 dB
33 Hz- 24 kHz – 10 dB
33 Hz- 24 kHz – 10 dB
Continuous Output
126 dB SPL
Peak Output
132 dB SPL
Sensitivity
99 dB SPL
(2.83 Volts into
rated Z, at 1 meter)
measured in
whole space
(2.83 Volts into
rated Z, at 1 meter)
measured in
whole space
Driver Complement
Low 2 x 12″
Mid 6 x 4″
High 1 x 1″
Mid 6 x 4″
High 1 x 1″
Dimensions
34 x 21 x 17 inches
Weight
116 lbs
Rated Impedance
4 Ohms
Power Rating
1000 Watts Cont.
4000 Watts Peak
4000 Watts Peak
