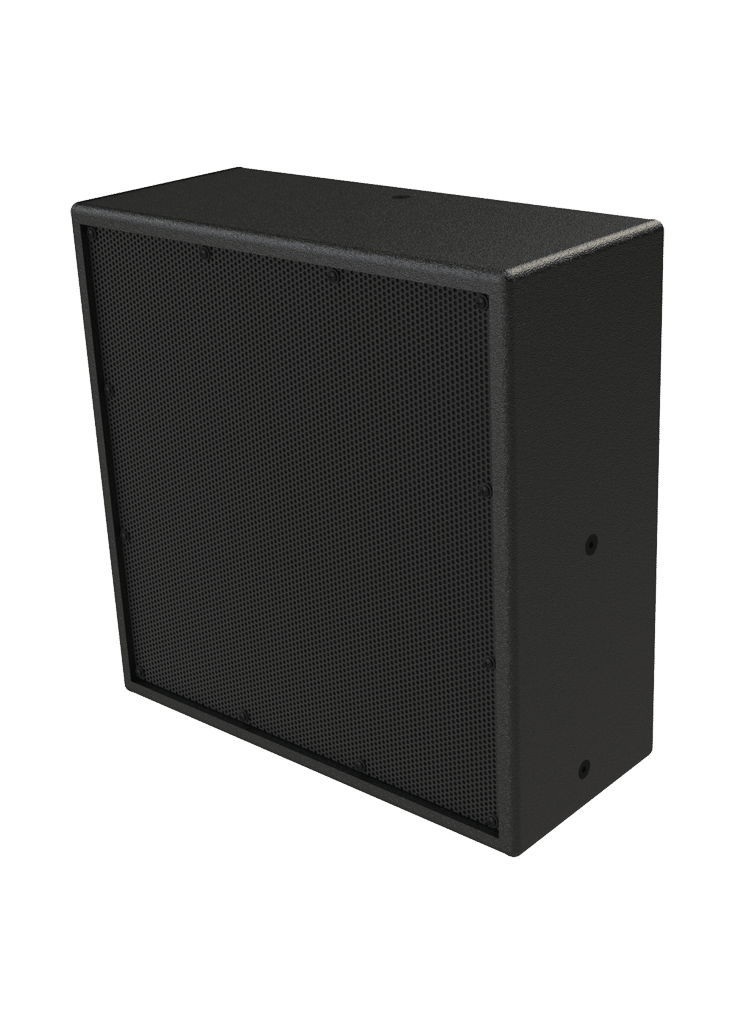

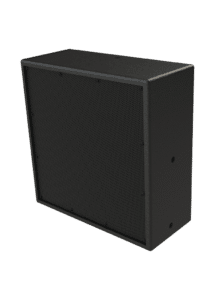

A full range option that offers wide dispersion with high fidelity and incredible pattern control, the SM100 is a two-way full range speaker – one that flawlessly delivers 100-degree dispersion. It is an excellent choice for a multitude of systems due to its superior pattern control, frequency response and overall fidelity.

Product Specifications

coverage Pattern
110˚ conical
operating frequency range
70 Hz- 20 kHz +/- 3dB
50 Hz – 24 kHz – 10dB
continuous output
120 dB SPL
peak output
126 dB SPL
95 dB SPL
(2.83 Volts into
rated Z, at 1 meter)
measured in free space
magnitude response
70 Hz- 20 kHz
driver complement
1 x 8″ coaxial
20.5 x 20.5 x 9 inches
45 lbs
Rated Impedance
8 Ohms
Power Rating
300 Watts Cont.
1200 Watts Peak
Danley Products

SM Family of Products

Danley’s SM family of loudspeakers is simply a smaller, lighter version of our Synergy Horn family. What that means is that SM loudspeakers deliver the same clarity and full range of audio thanks to our proprietary single source technology.
