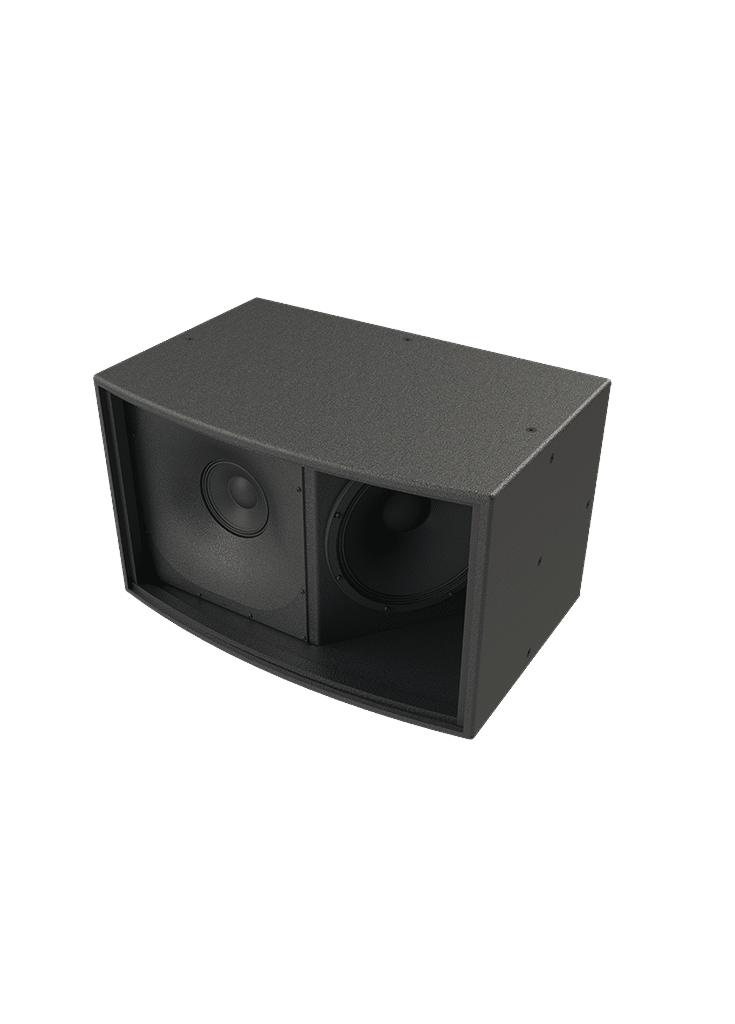

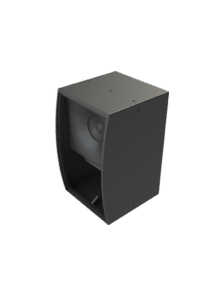

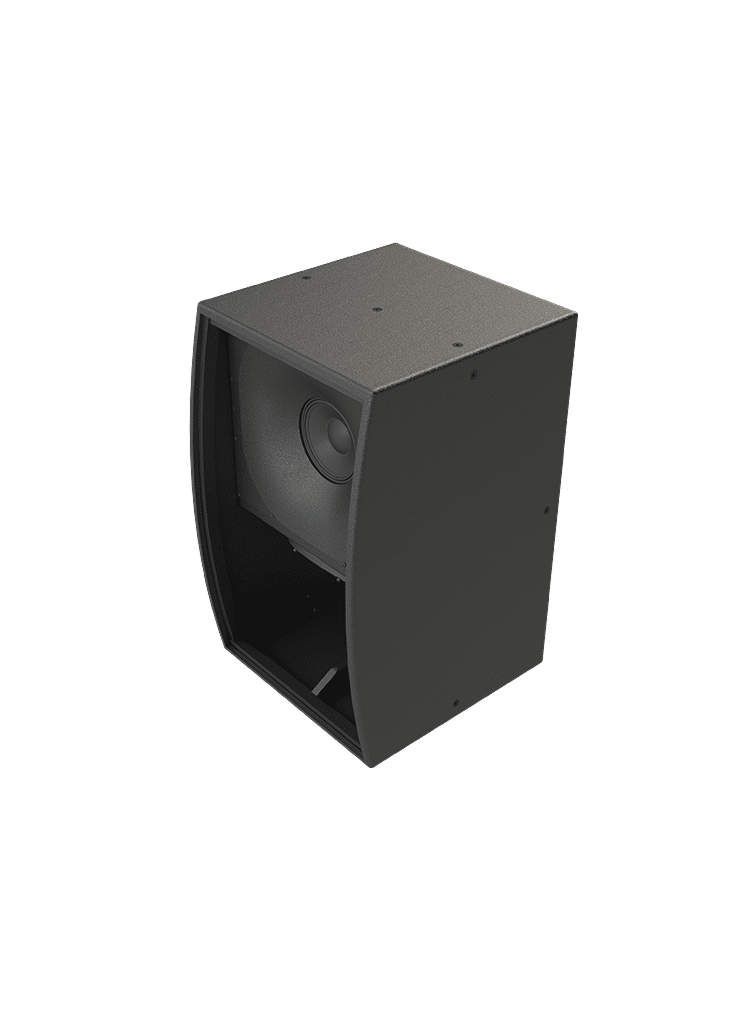

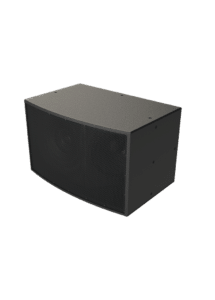

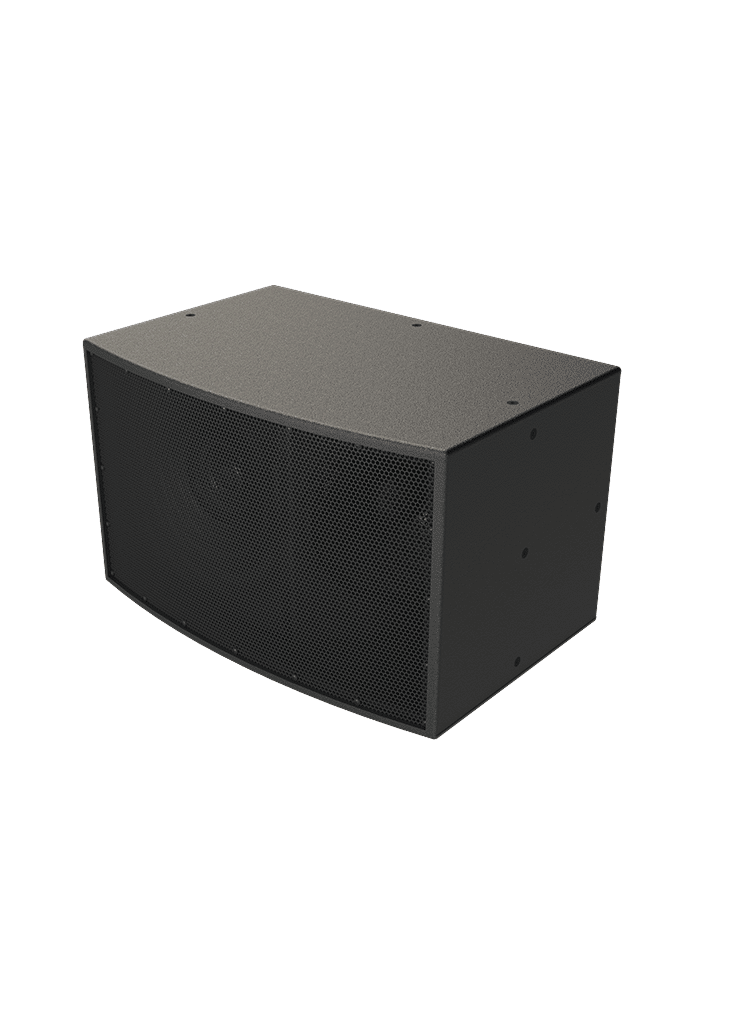

SM100F
SM100F
This workhorse loudspeaker offers powerful broadband response and packs an incredible punch inside its compact enclosure. In fact, placing one SM100F per venue side, with or without subwoofers, will do an amazing job of covering a substantial seating area.
Product Specifications
coverage Pattern
110° conical
operating frequency range
47 Hz – 18 kHz +/- 3 dB
42 Hz – 19 kHz -10 dB
42 Hz – 19 kHz -10 dB
continuous output
128 dB SPL
peak output
134 dB SPL
sensitivity
98 dB SPL
(2.83 Volts into
rated Z, at 1 meter)
measured in free space
(2.83 Volts into
rated Z, at 1 meter)
measured in free space
driver complement
Low 1 x 15”
High 1 x 8” coaxial
High 1 x 8” coaxial
dimensions
33.5 x 20.5 x 19.0 inches
weight
122 lbs
Rated Impedance
8 ohms
Power Rating
800 Watts Cont.
3200 Watts Peak
3200 Watts Peak
