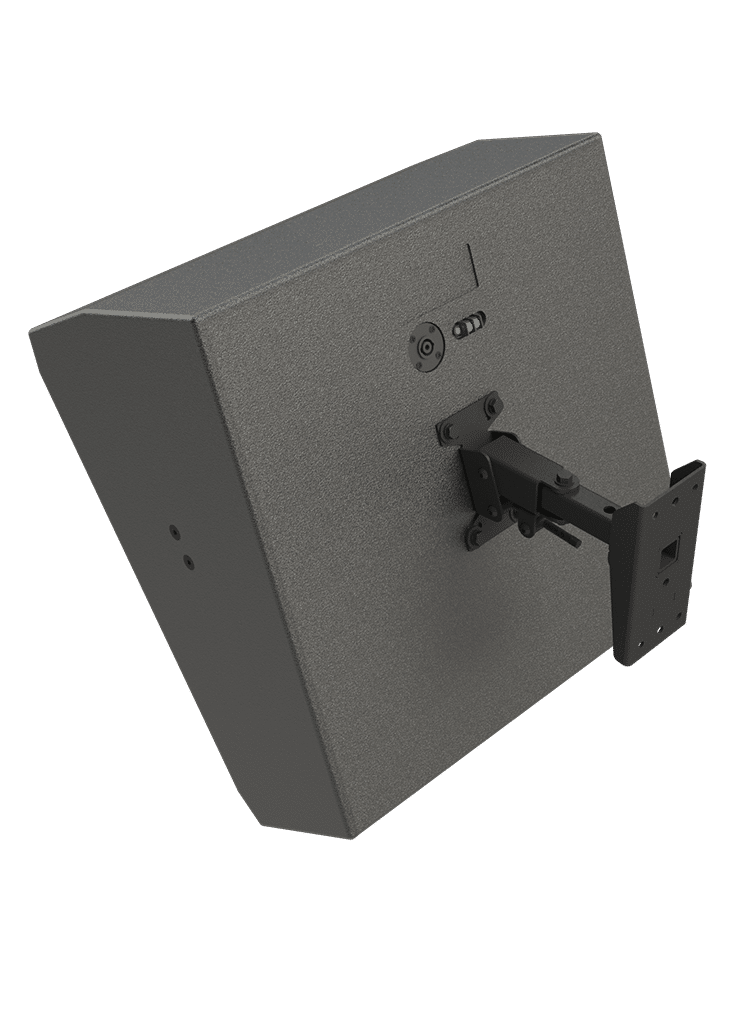

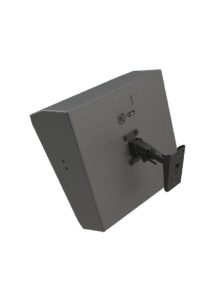

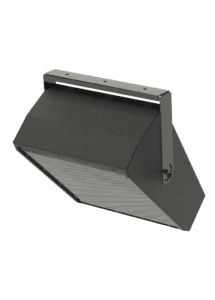

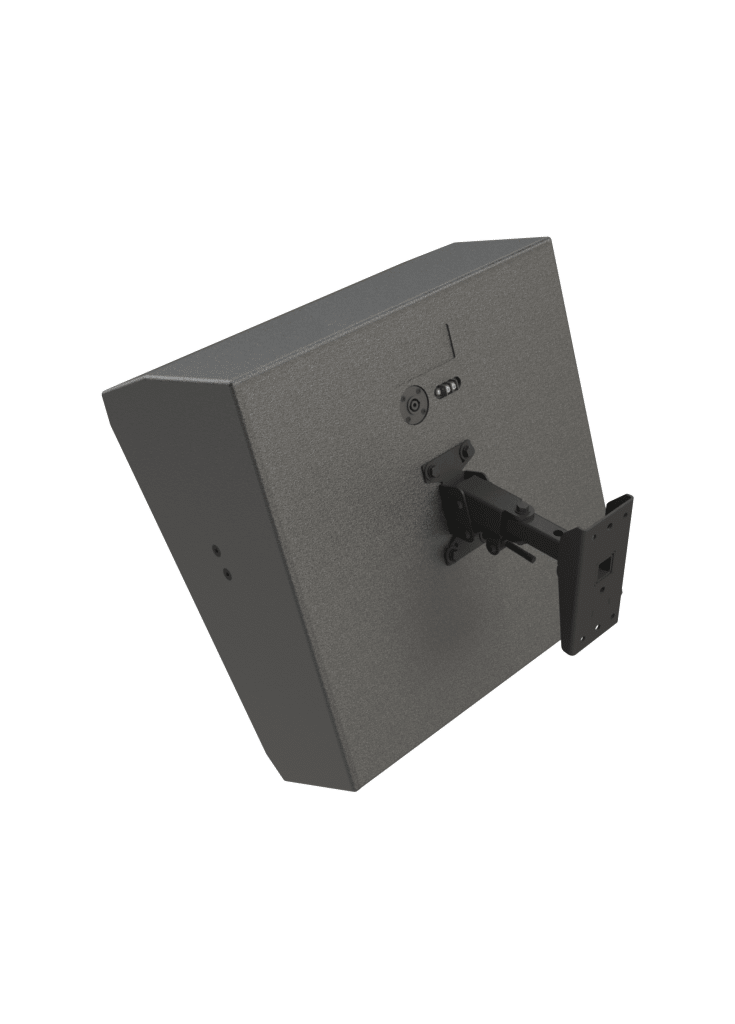

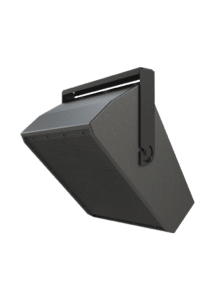

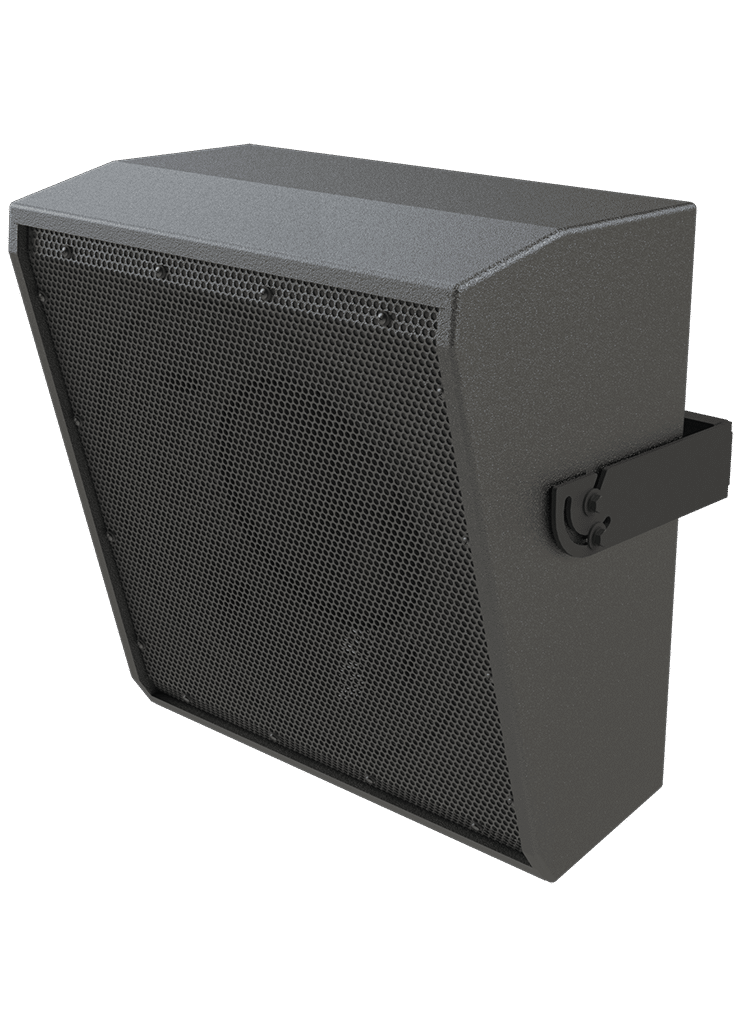

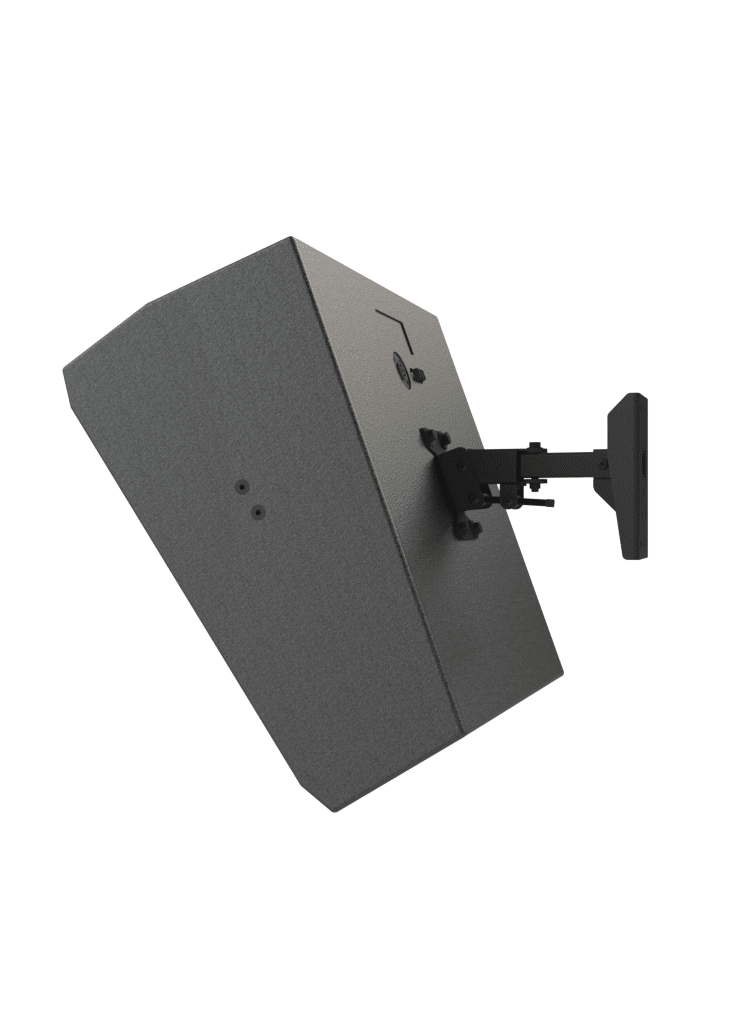

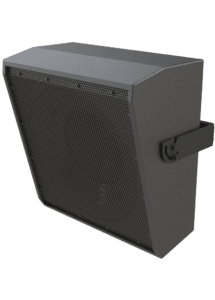

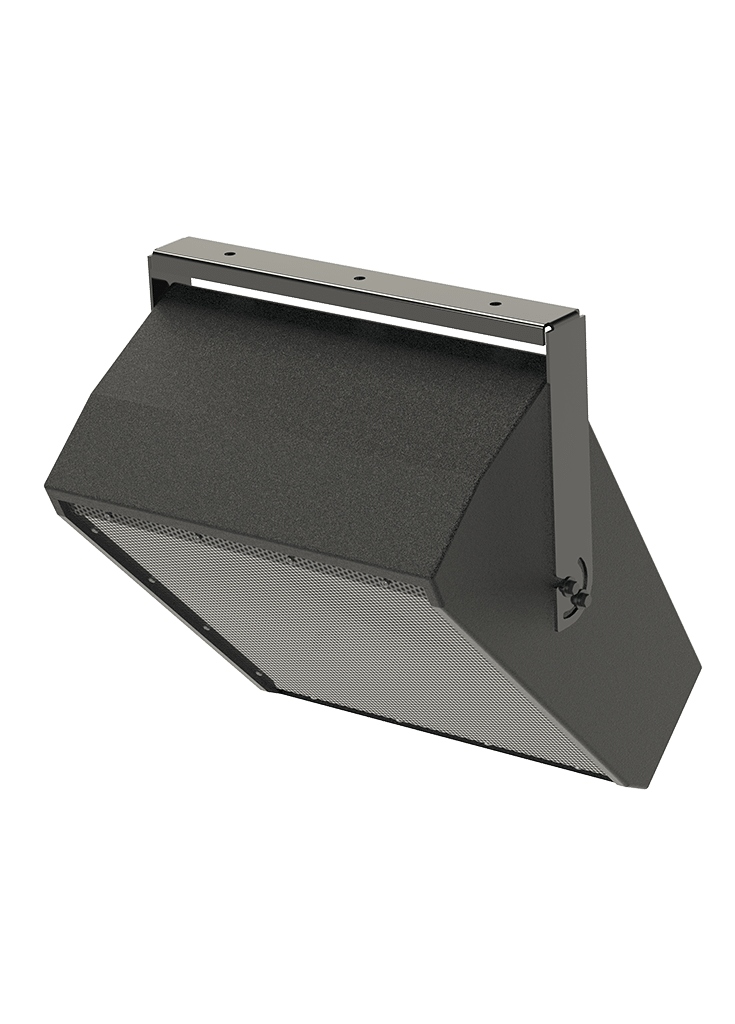

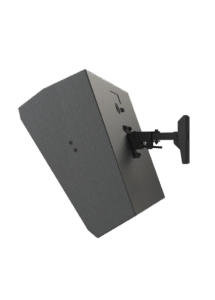

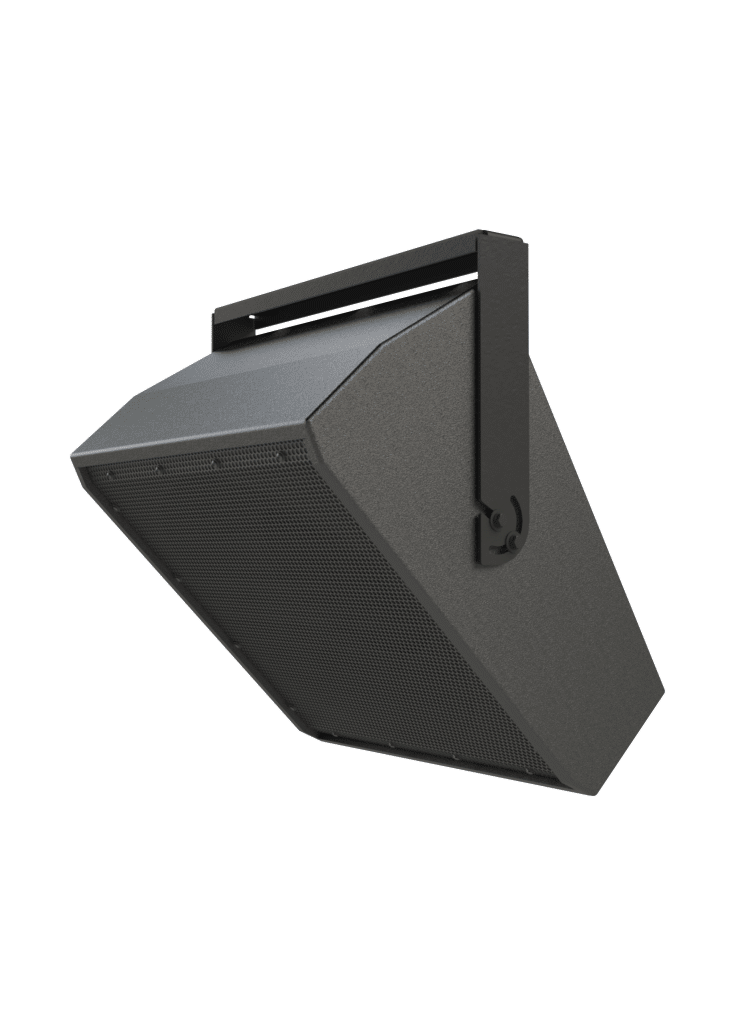

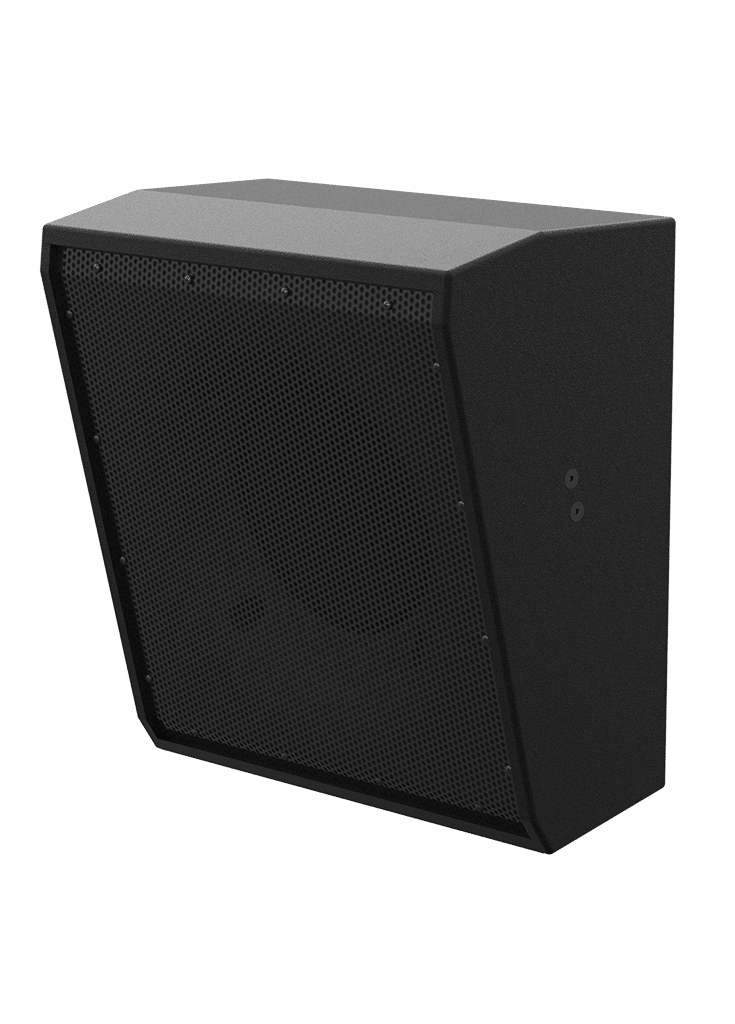

Designed as a passive two-way system with a built-in 15° down angle, the SM90 will fit a variety of applications from a main PA for small houses of worship to auditoriums and theaters as well as serving as delays and fills for larger systems. Versatility is another feature of the SM90 with wall and ceiling (or suspension) mounting brackets.

Product Specifications

coverage pattern
90˚ conical
operating frequency range
63 Hz- 24 kHz +/- 3dB
40 Hz – 24 kHz – 10dB
continuous output
120 dB SPL
peak output
126 dB SPL
95 dB SPL
(2.83 Volts into
rated Z, at 1 meter)
measured in free space
driver complement

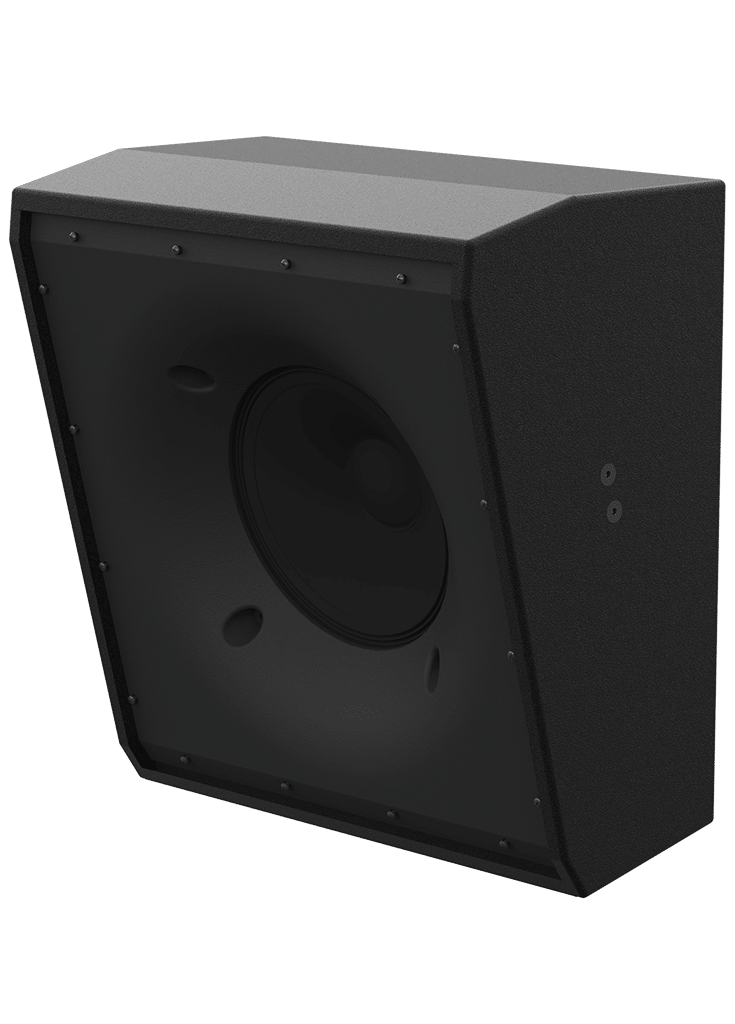

1 x 12″ coaxial + 1″ w/ Sentinel protection on HF
25.5 x 23.5 x 13.25 inches | 64.8 x 59.7 x 33.7 cm
55 lbs | 24.95 kg
Rated Impedance
8 Ohms
Power Rating
300 Watts Cont.
1200 Watts Peak
