WLS-RX1

High-quality audio sent wirelessly from one location to another. Developed and manufactured in the US.

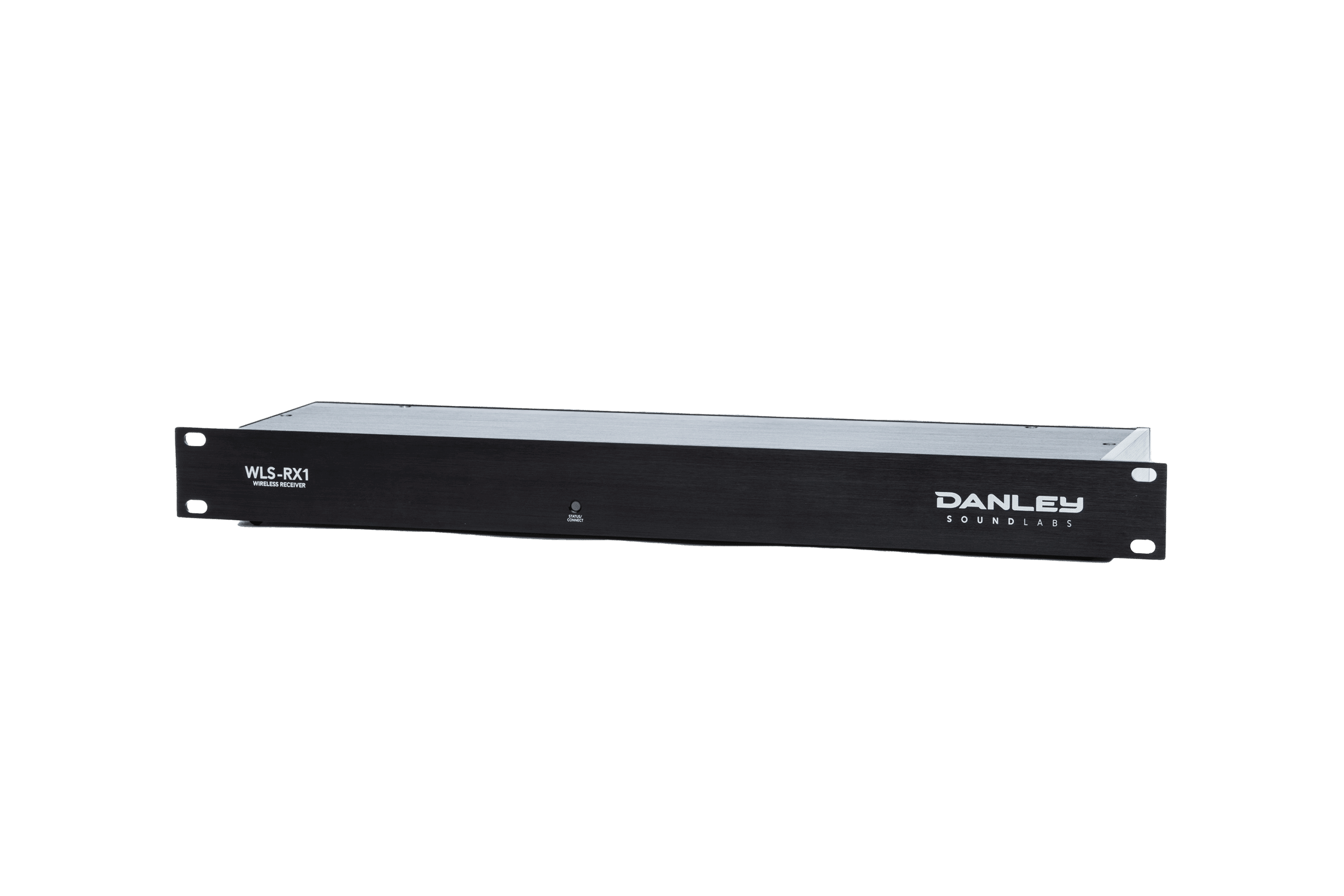

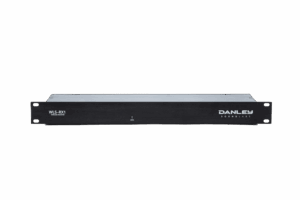

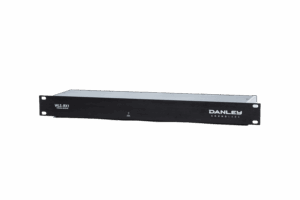

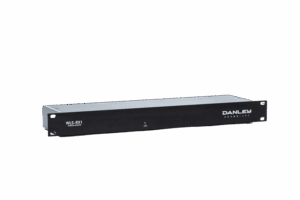

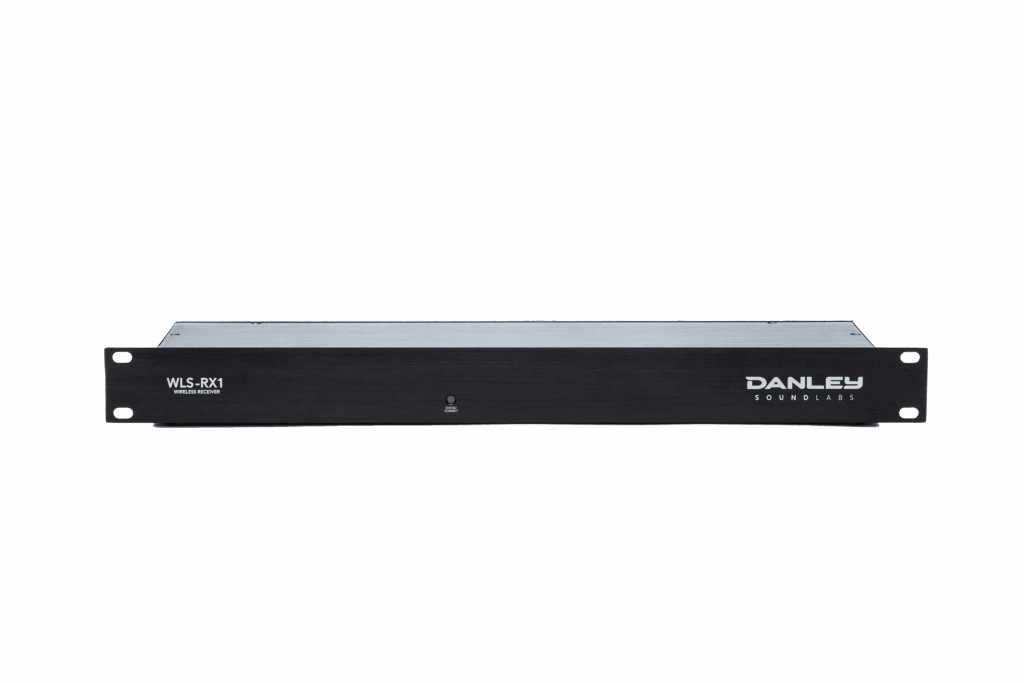

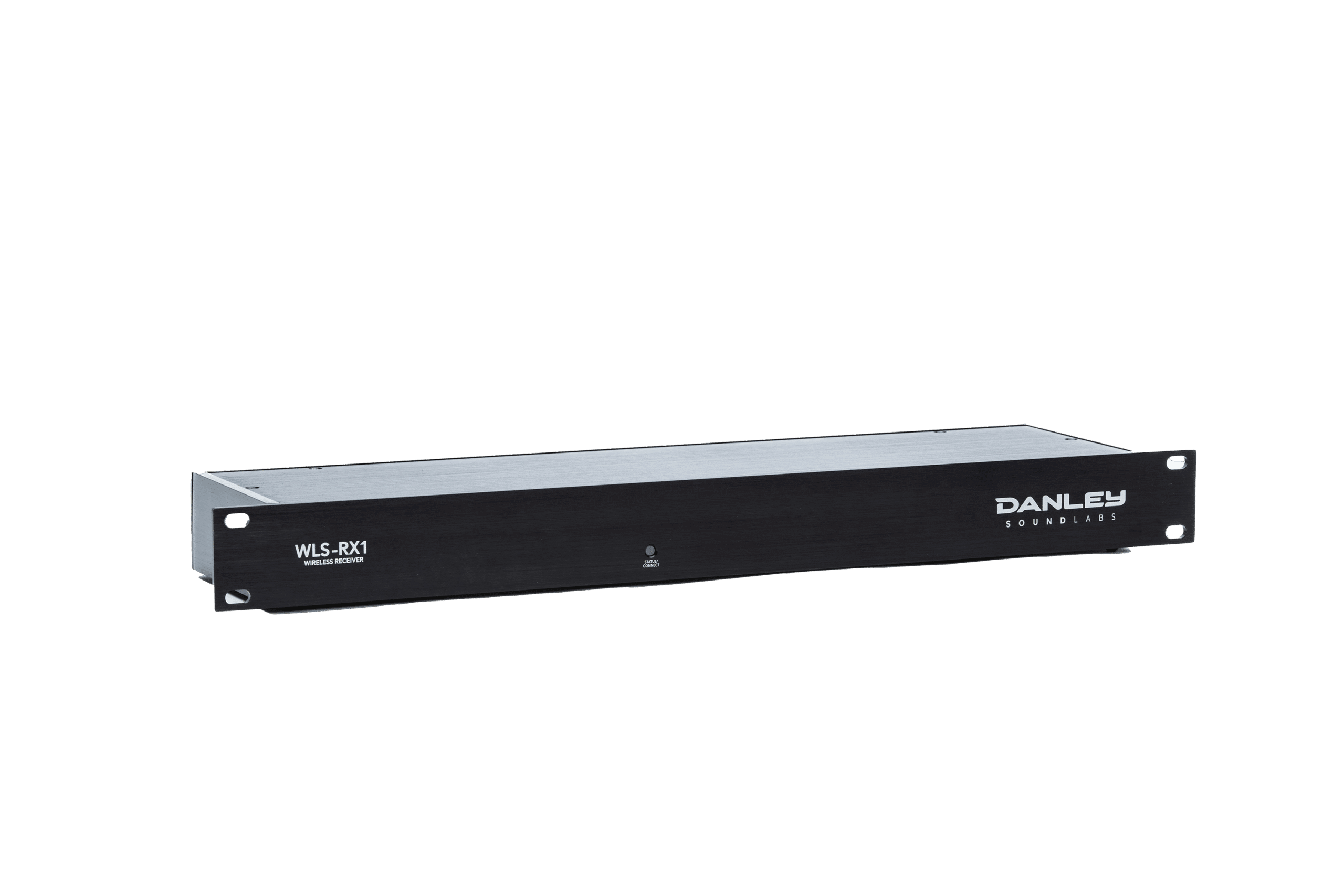

Wireless Link System RX1 Receiver
Wireless Link System RX1 Receiver
Wireless Link System RX1 Receiver

Send high-quality audio wirelessly from one location to another with the Wireless Link System (WLS) from Danley Sound Labs.

Operating in the 2.4 GHz ISM frequency band, WLS delivers low-latency, high-fidelity audio across long distances. Whether you’re working in a stadium, arena, or any location where pulling cable is a challenge, WLS offers an innovative and professional solution.

The Wireless Link System WLS-RX1 rack-mount receiver can receive one (1) mono audio signal from a Wireless Link System transmitter and output one (1) mono balanced audio signal. The WLS allows for wireless distribution of uncompressed balanced audio signals (48 kHz, 24 bit, frequency response 10 Hz – 24 kHz, -/+ 00.15 dB)

Download Wireless Link System Quick Start

Wireless Link System Features

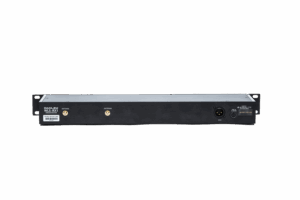

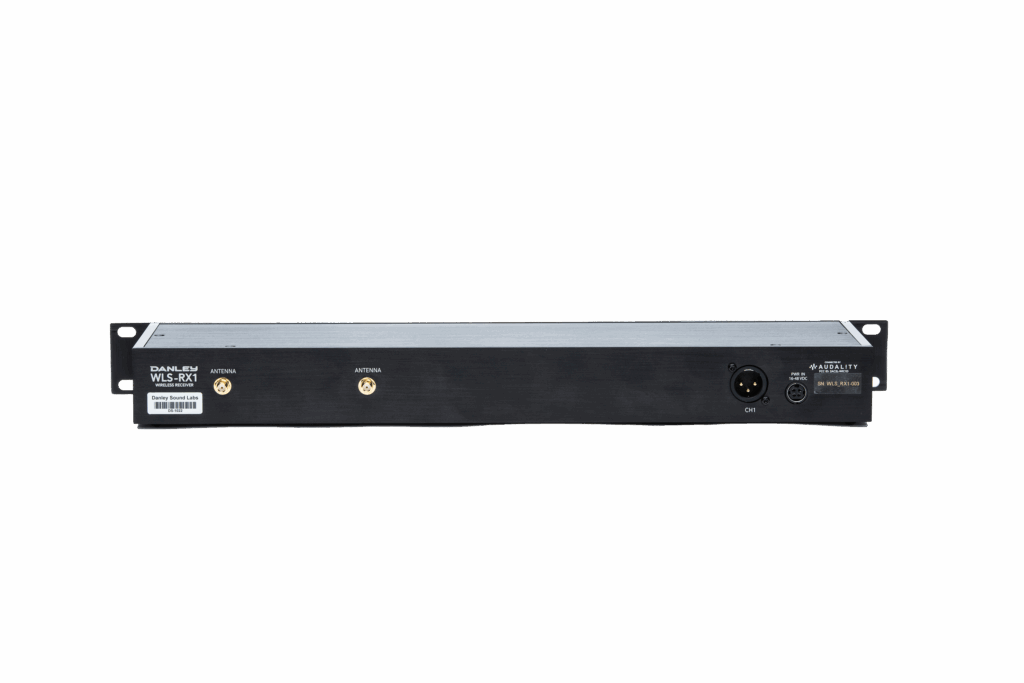

Antenna Connections
(2) SMA Connectors
Output Connections
(1) XLR-M, +4 dB balanced audio
Output Impedance
205 Ω
Power
24 VDC 500mA, multipin
Dimensions
19″ x 1.75″ x 8.25″
Weight
2.0 lbs. / 0.9 kg
