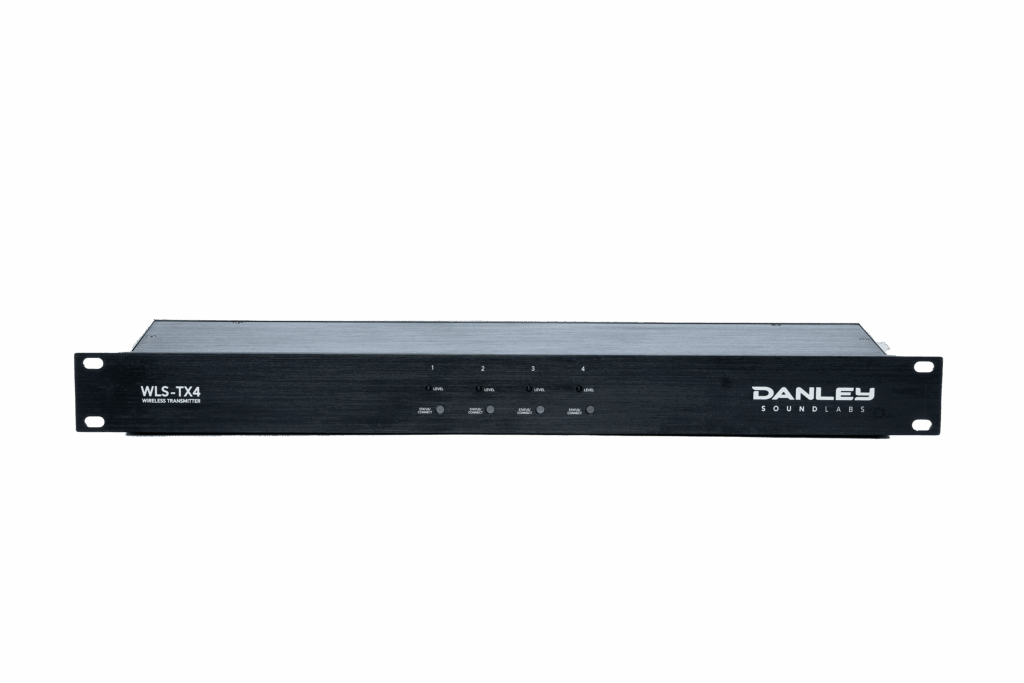

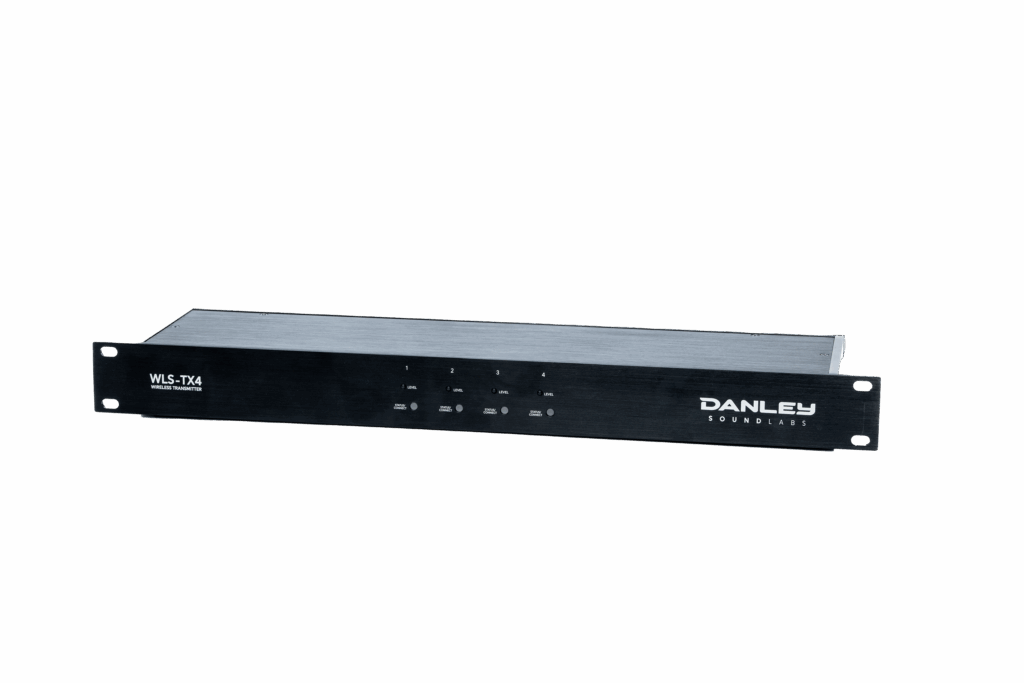

WLS-TX4

Send high-quality audio wirelessly from one location to another with the Wireless Link System (WLS) from Danley Sound Labs.

Operating in the 2.4 GHz ISM frequency band, WLS delivers low-latency, high-fidelity audio across long distances. Whether you’re working in a stadium, arena, or any location where pulling cable is a challenge, WLS offers an innovative and professional solution.

The Wireless Link System WLS-TX4 can send four (4) mono balanced audio signals to up to sixteen (16) WLS-RX1 or OS-PWR receivers. The WLS allows for wireless distribution of uncompressed balanced audio signals (48 kHz, 24 bit, frequency response 10 Hz – 24 kHz, -/+ 00.15 dB)

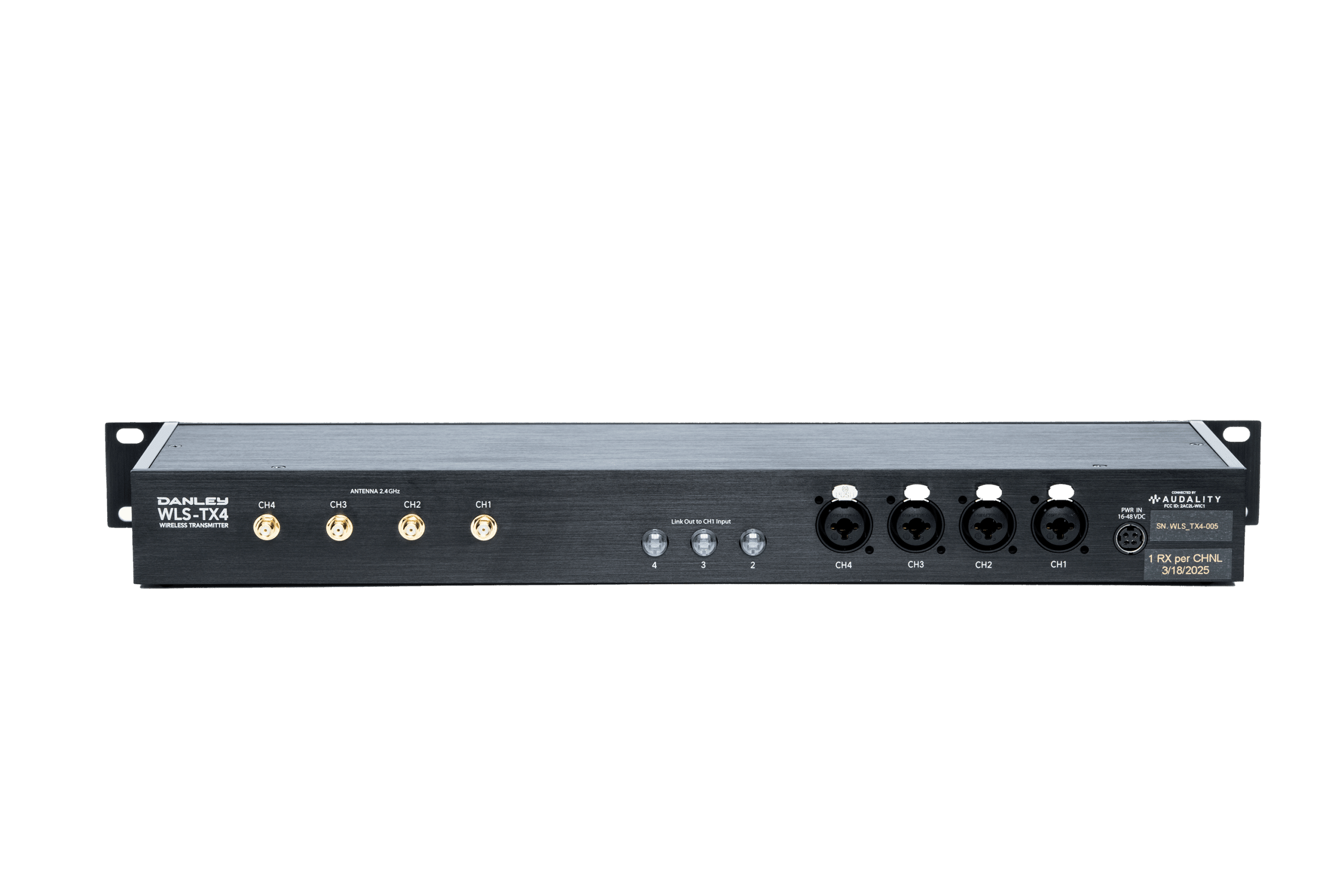

Input Connections
(4) XLR-F / TRS, +4 dB balanced audio
Input Impedance
965 Ω
Antenna Connections
(4) SMA connectors
Power
24 VDC 500mA, multipin
Dimensions
19″ x 1.75″ x 8.25″
Weight
2.5 lbs. / 1.1 kg
