Over 120 dB SPL at 33 Hz!

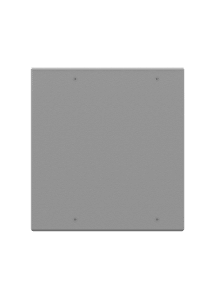

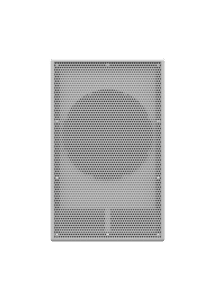

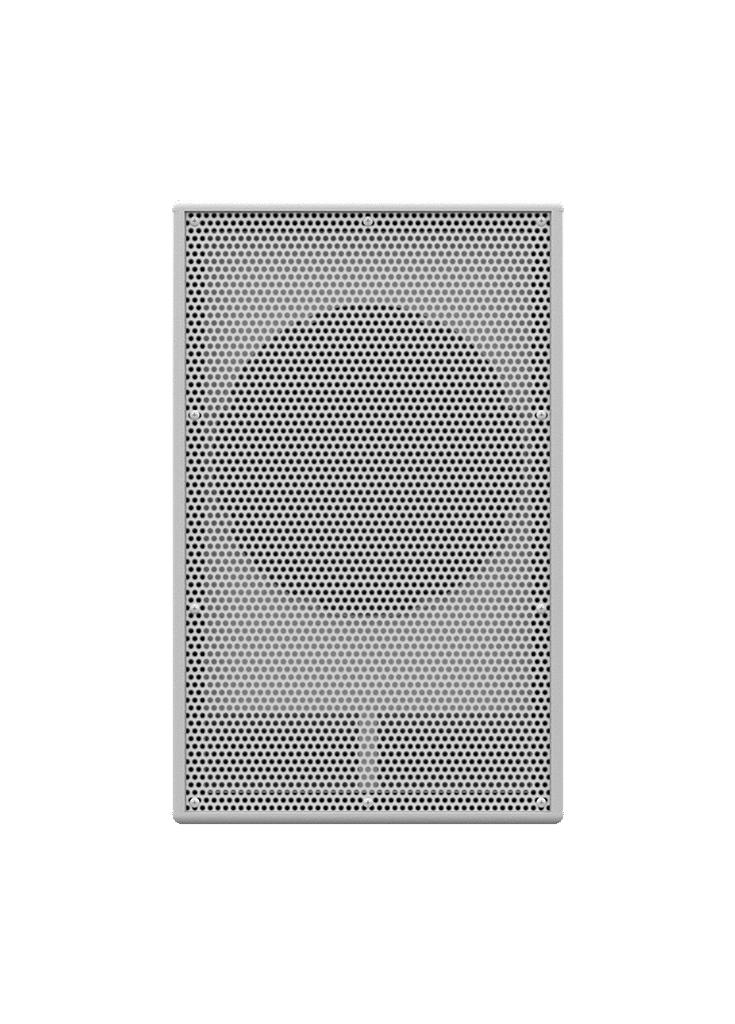

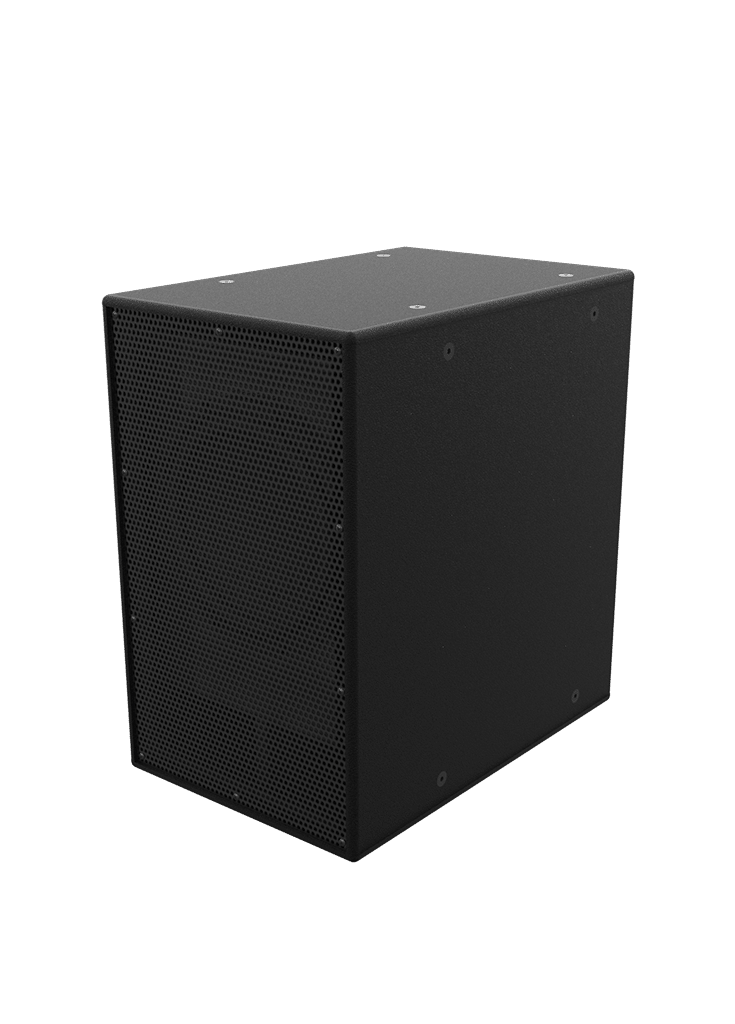

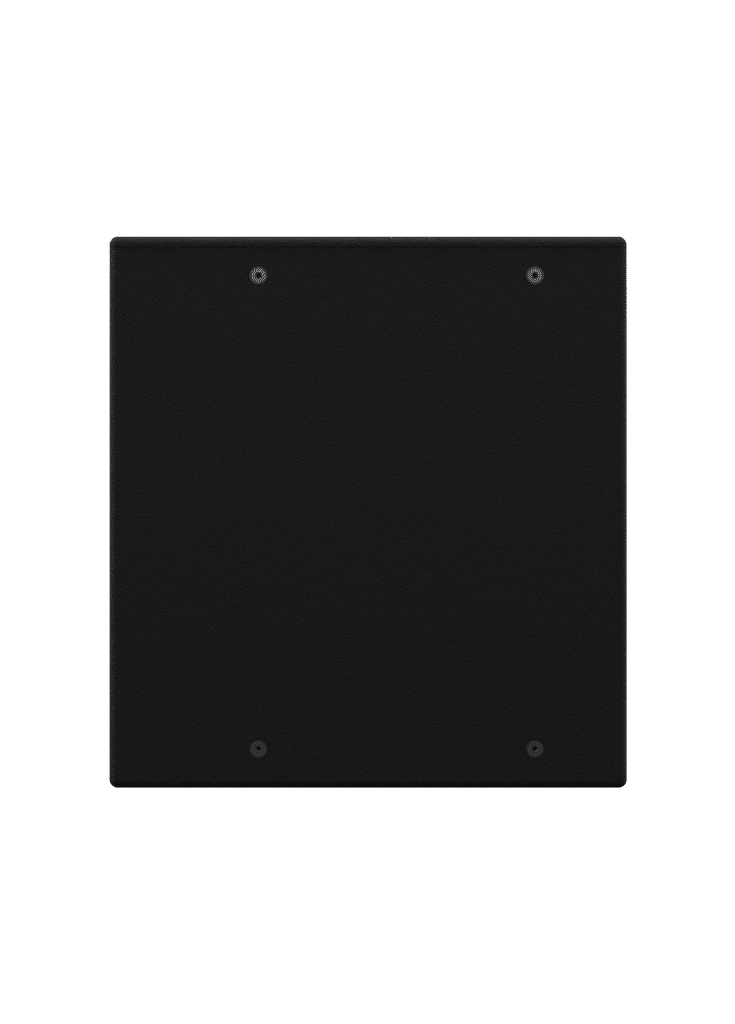

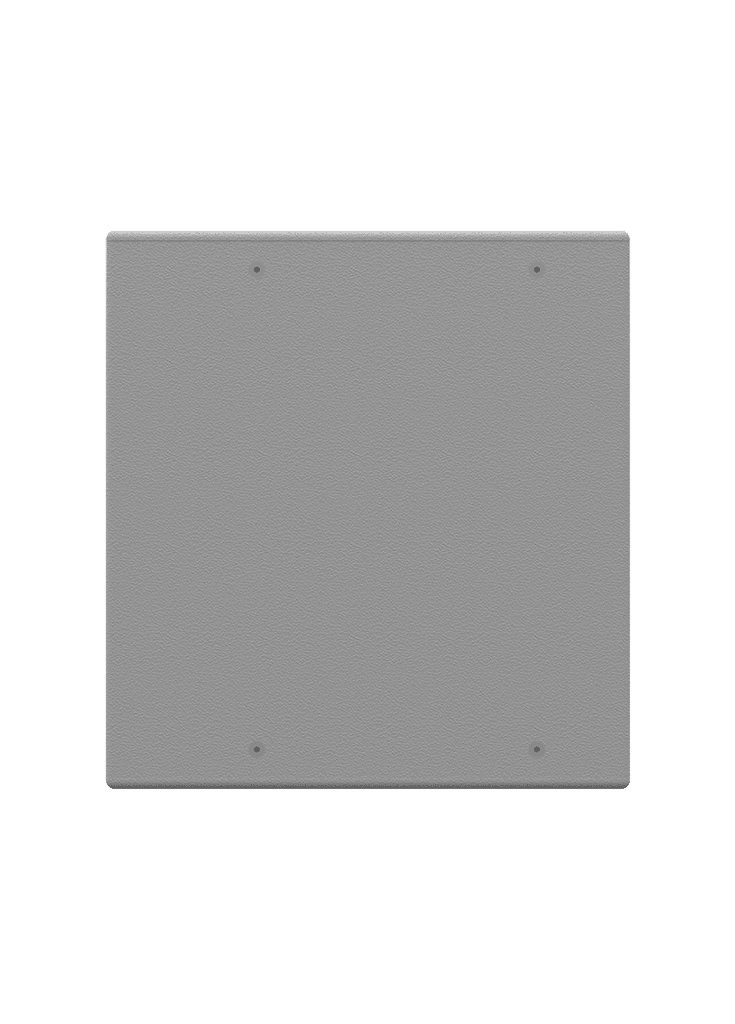

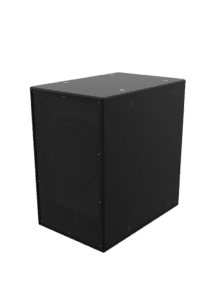

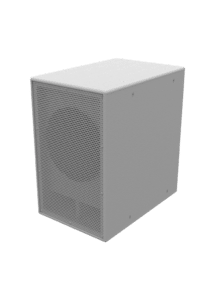

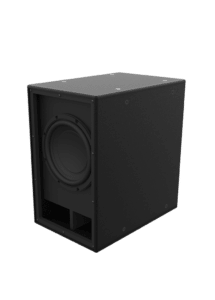

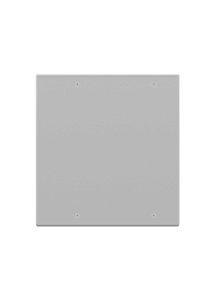

We consider this the world’s smallest high output commercial subwoofer. Combining high sensitivity with very low frequency cutoff in a sub-compact package, the CS30 offers more than 120 dB Spl at 33 Hz. And, even better, the CS30 is available in both touring and install models for easy installation or portability.

Product Specifications

Operating Frequency Range
33 Hz- 67 Hz – 3dB
27 Hz- 150 Hz – 10dB
Continuous Output
121 dB SPL
Peak Output
127 dB SPL
95 dB SPL (2.83 Volts into rated Z, at 1 meter), measured in half space
Magnitude Response
33 Hz – 67 Hz
Driver Complement
one 12″ woofer
24 x 15 x 22.5 inches
83 lbs
Rated Impedance
8 Ohms
Power Rating
400 W continuous
800 W program
