D14K4-DSP

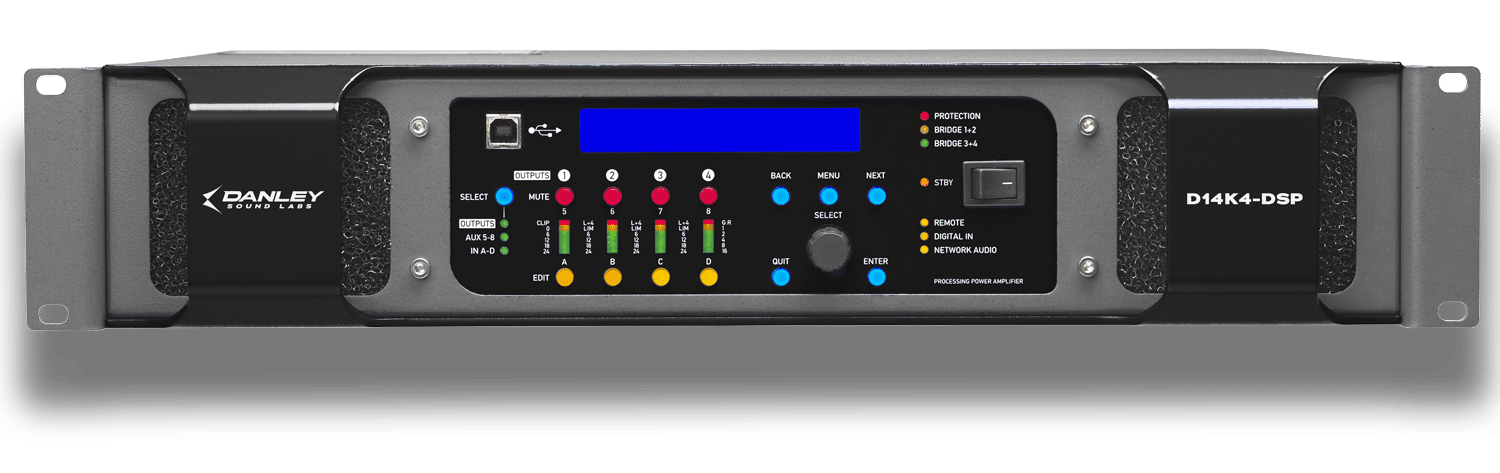

D14K4-DSP Professional Amplifier
The Danley D14K4-DSP 4 channel professional amplifier features powerful processing such as FIR filtering, dynamic eq, and Dante networking (optional) alongside unique DSP architecture including 4 local + 4 aux DSP channels (also supplied to the network), meaning a single Delta DSP amplifier can control a stereo 4-way system with no external processing. With Class-D power, the D14K4-DSP delivers high output power while also offering high efficiency and low heat generation.
Product Specifications
Output @ 2 Ohms
3,500W
Output @ 2.7 Ohms
3,700W
Output @ 4 Ohms
2,700W
Output @ 8 Ohms
1,400W
4 Ohms Bridged
7,000W
8 Ohms Bridged
5,400W
Gain / Sensitivity
32dB / 10.7dBu
Weight
24 lbs – 10.9 kg
Dimensions
3.46″ (h) x 18.98″ (w) x 16.85″ (d) | 88 (h) x 482 (w) x 428 (d)
Bit Depth & Sample Rate
24 bit ADCs and DACs, 96kHz sampling and processing throughout
AES & Networked Audio
44.1kHz – 192 kHz
THD%
@1 1 kHz < 0.08% | 20 Hz to 20 kHz < 0.1%
Frequency Response
20 Hz – 20 kHz +0/-0.5 dB
Protection Limiters
RMS Fully Variable x 8; Look Ahead (zero overshoot) Peak Limiter x 8 Output short circuit, DC; Over-temperature; Mains in-rush control, over voltage, over current
Power Supply
100/120V or 220/240V tapped transformer according to customer requirements
