D5K4-DSP

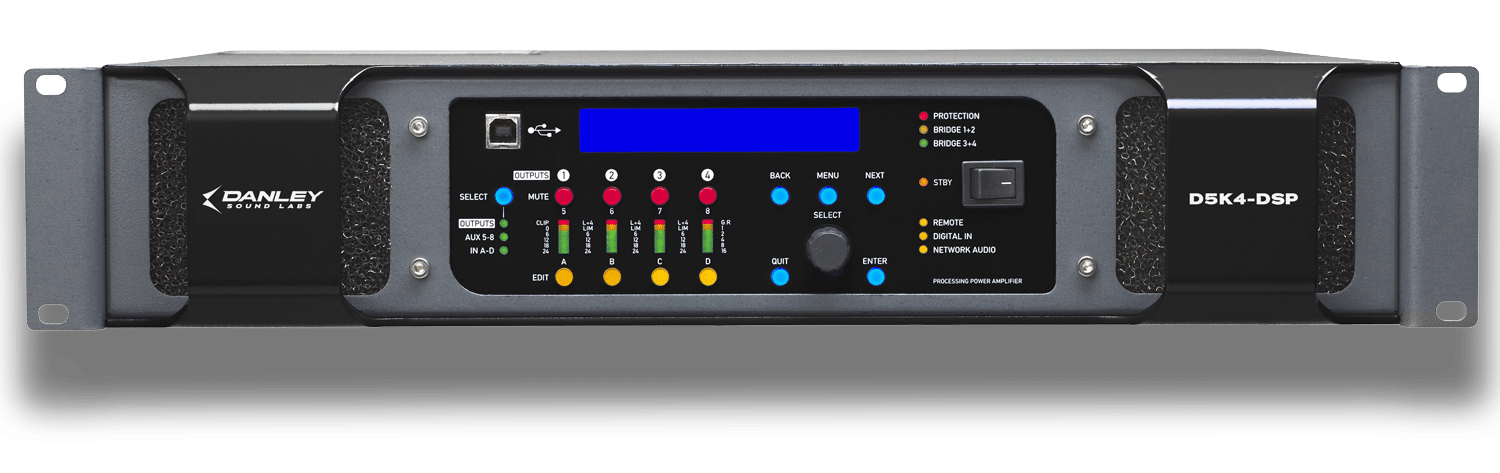

D5K4-DSP Professional Amplifier

The Danley D5K4-DSP 4 channel professional amplifier features a powerful Class-D power stage that delivers high output power while also offering high efficiency and low heat generation. This latest addition to Danley’s amplifier offering features advanced protection circuitry that ensures the safety of the equipment and speakers. Powerful processing features, such as FIR filtering, dynamic eq, and Dante networking (optional), work alongside unique DSP architecture including 4 local + 4 aux DSP channels (also supplied to the network).

Product Specifications

Output @ 2 Ohms
1,200W
Output @ 2.7 Ohms
1,400W
Output @ 4 Ohms
1,000W
Output @ 8 Ohms
500W
4 Ohms Bridged
2,400W
8 Ohms Bridged
2,000W
Gain / Sensitivity
32dB / 6.2dBu
Weight
22 lbs – 10 kg
Dimensions
3.46″ (h) x 18.98″ (w) x 16.85″ (d) | 88 (h) x 482 (w) x 428 (d)
Bit Depth & Sample Rate
24 bit ADCs and DACs, 96kHz sampling and processing throughout
AES & Networked Audio
44.1kHz – 192 kHz
THD%
@1 1 kHz < 0.08% | 20 Hz to 20 kHz < 0.1%
Frequency Response
20 Hz – 20 kHz +0/-0.5 dB
Protection Limiters
RMS Fully Variable x 8; Look Ahead (zero overshoot) Peak Limiter x 8 Output short circuit, DC; Over-temperature; Mains in-rush control, over voltage, over current
Power Supply
100/120V or 220/240V tapped transformer according to customer requirements
Delivering Quality Sound

D Series Amplifiers

The D series amplifiers provide high-end sound reinforcement for installation and touring use.
