DNA 5K4C

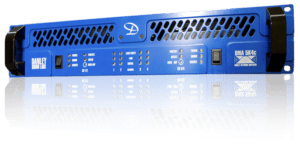

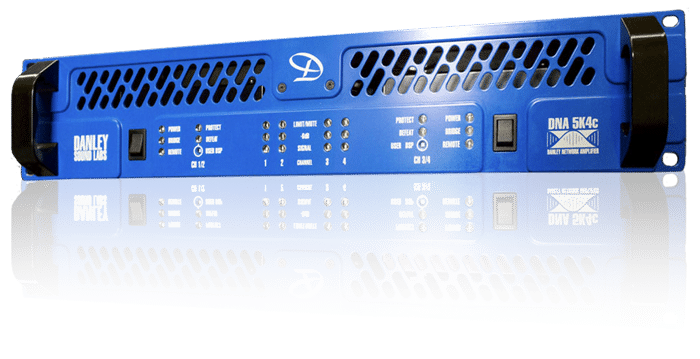

DNA 5K4C Amplifier
The DNA 5K4C amplifier represents an industry first. Never before has it been possible to economically purchase a shallow, 2U rack mounting, 4 channel power amplifier with this level of flexibility and power density. The 5K4c integrates light-weight power supplies, high-power, sonically-transparent class D amplifiers, full system monitoring (including ‘end of line’), and a fully featured USB or network controlled, 24 bit 96kHz DSP processing platform as standard.
Get the Specs
RATED POWER PER CHANNEL
2 Ohms
1250 Watts
4 Ohms
800 Watts
8 Ohms
450 Watts
RATED POWER BRIDGED MODE
4 Ohms
2500 Watts
8 Ohms
1600 Watts
16 Ohms
900 Watts
FEATURES
Type
High Efficiency Class D
Number of channels
Four
Controls
User DSP Defeat (can be disabled with PodWare) Power switch
INDICATORS & CONTROLS
Per Channel
Sig, Limit -6dB, Limit
Per Channel Pair
Power, Protect, Bridge, Network, User DSP active
Front Panel
User DSP Defeat (can be disabled with PodWare) Power switch
Rear Panel
Two Contact Closure Inputs
Shutdown input
Shutdown input
Monitoring facilities
Input signal level
Output signal level
Output current level
Temperature
Limiter operation
Protection system operation
Driver impedance
Output signal level
Output current level
Temperature
Limiter operation
Protection system operation
Driver impedance
