The Outdoor SM80

OS80

OS80

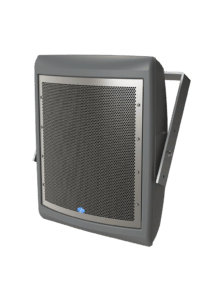

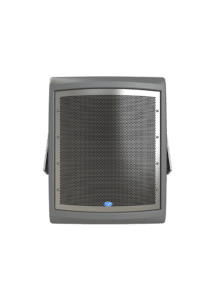

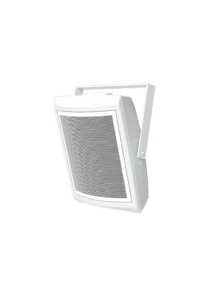

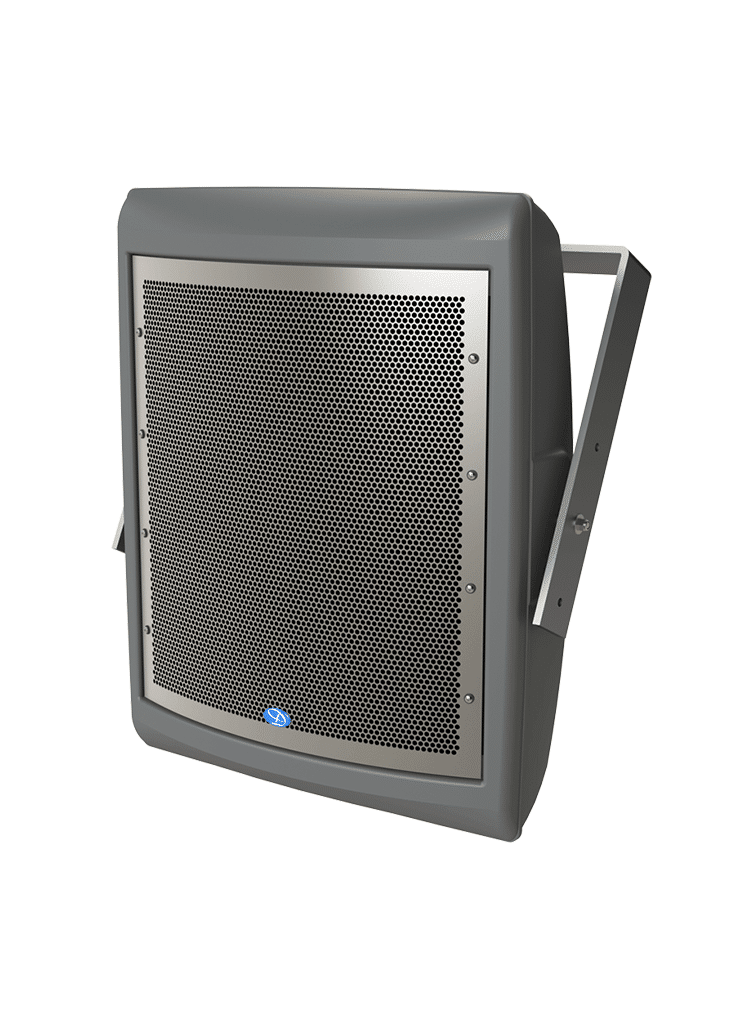

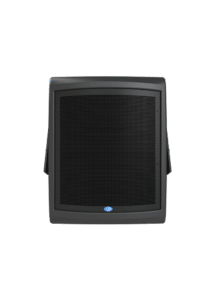

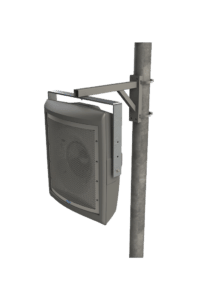

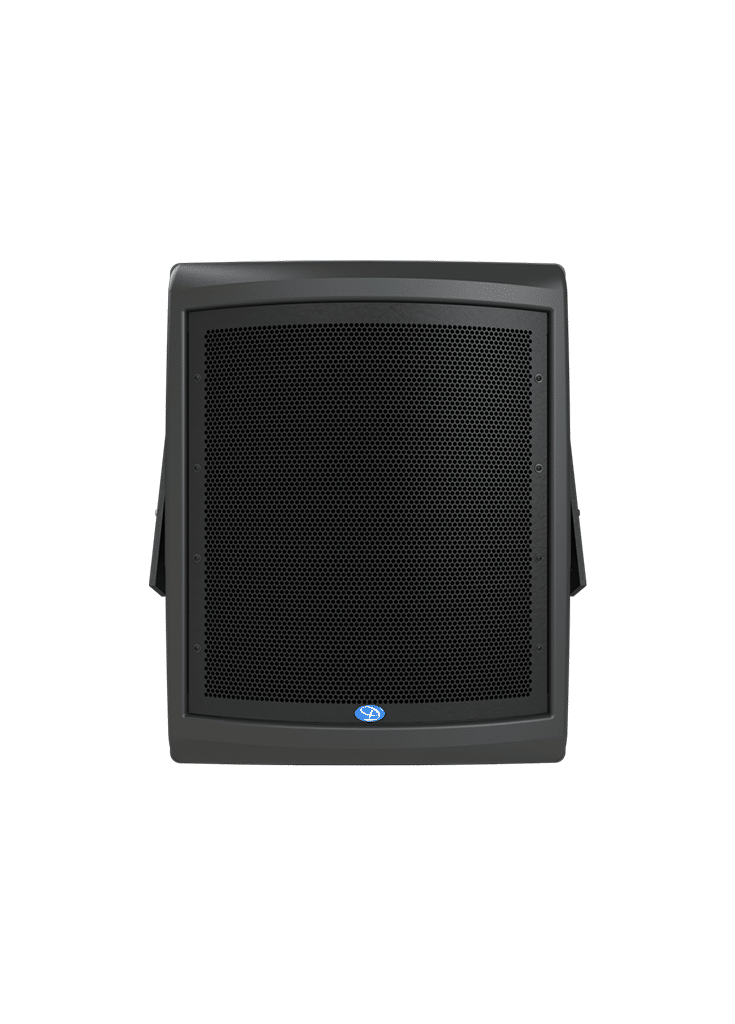

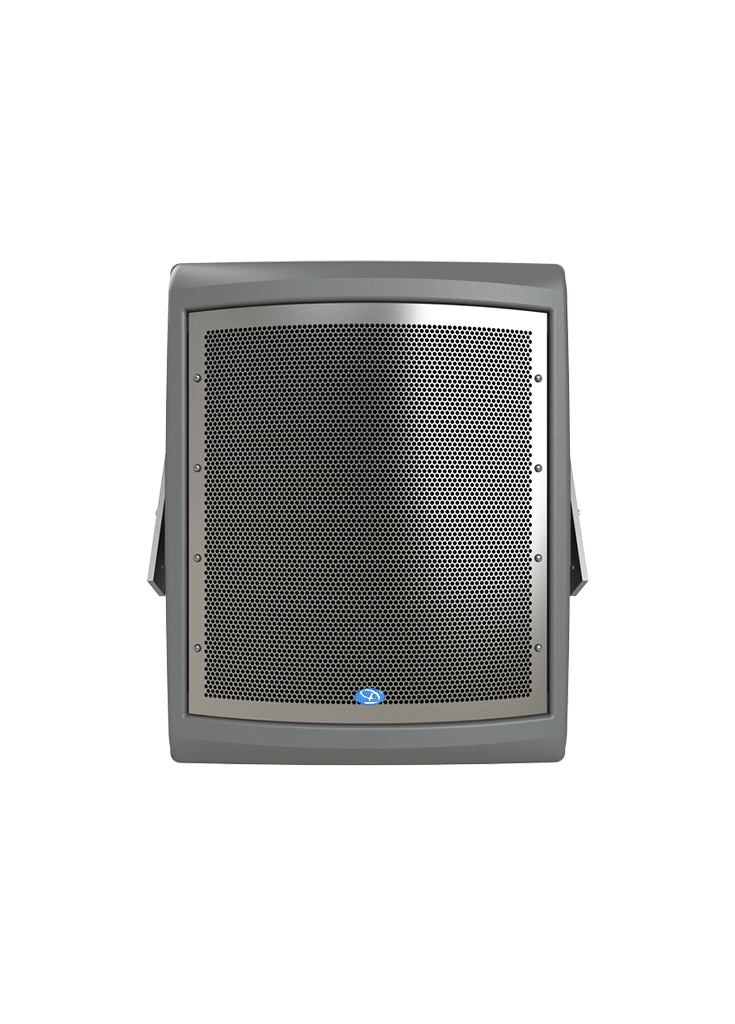

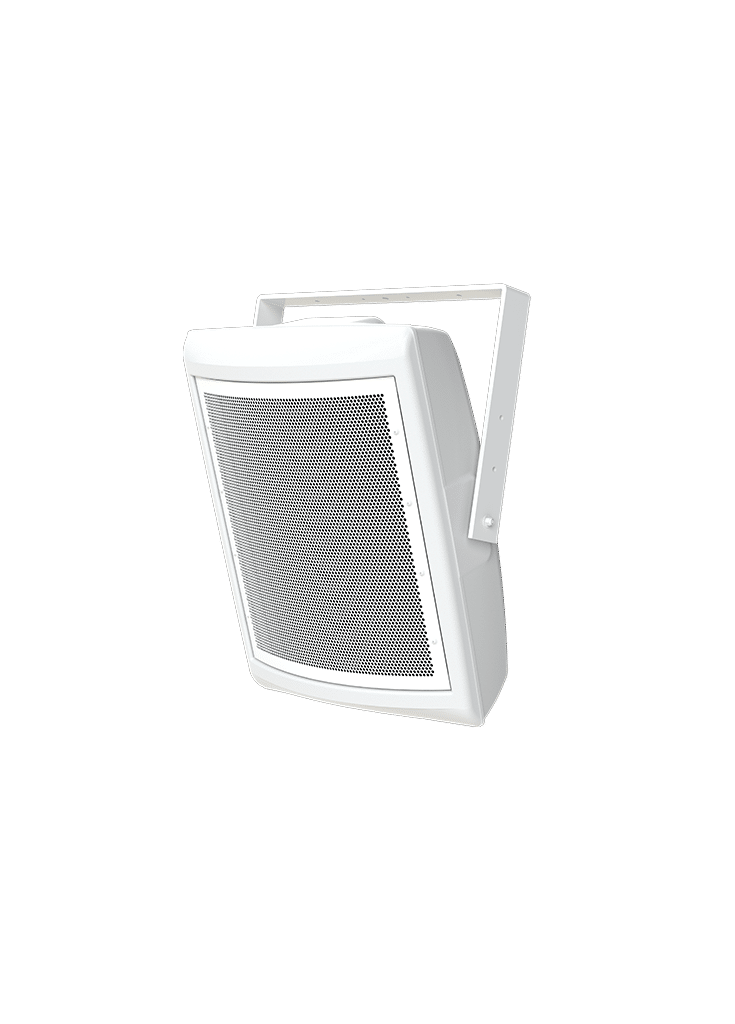

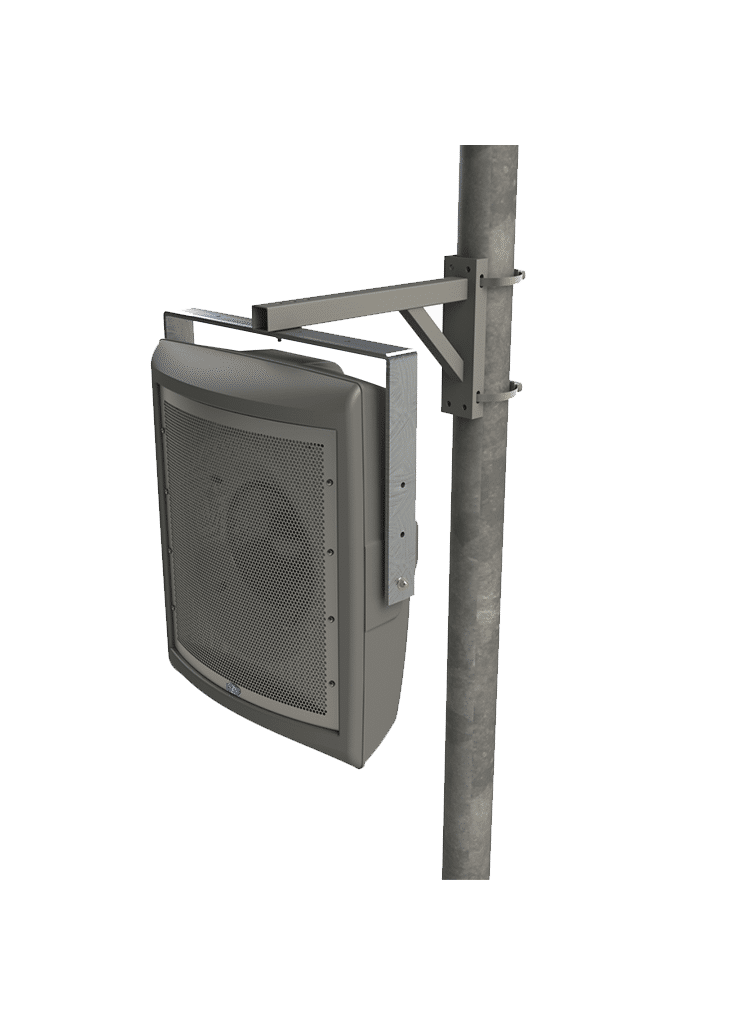

Danley brings its innovative loudspeaker technologies to the outdoor speaker market. The OS80 is a high-performance speaker in an outdoor enclosure that is impervious to weather. Featuring a high output 12”/1.4” coaxial driver mated to a 80° conical horn, a single cabinet can produce high quality audio beyond 130dB from a compact full range Synergy Horn™ that weighs only 51 pounds. Utilizing a Synergy crossover network allows for proper phase alignment between frequency bands. This permits the physically separated bands to combine and emerge from the horn as a single source, greatly reducing off axis distortions in frequency response and allowing for greater clarity at long distances.  The OS80 includes a heavy-duty aluminum mounting bracket and angle strap.

As an added layer of protection we include our Sentinel™ high frequency driver protection circuitry which is a multistage limiter that protects the high frequency driver in the event of overloads (peaks or long term).  It is inaudible during normal operation, so dynamic range is not compromised.  Utilize our DNA amplifiers or processor for maximum performance and protection with industry leading DSP capabilities.

All of these features makes the OS80 the perfect choice for many outdoor locations such as sports venues, arenas, athletic fields and complexes, theme and recreational parks, public gatherings, racetracks, community centers, cruise ships, hockey rinks, electronic carillons, water parks, and swimming areas. When you have to leave it outside, leave it to Danley.

Product Specifications

Coverage Pattern
80° Conical
Operating Frequency Range
113 Hz – 18 kHz +/- 3 dB
70Hz – 19 kHz -10 dB
Continuous Output
127 dB SPL
Peak Output
133 dB SPL
Sensitivity
101 dB (2.83 Volts into rated Z, at 1 meter), measured in free space
Driver Complement
Low 1 x 12″
High 1 x 1.4″
Dimensions
32.25 x 26 x 14.5 inches
Weight
51 lbs
Rated Impedance
8 ohms
Power Rating
400 W continuous
1,600 W peak
