If the SH96 goes to “10” the HO goes to “11” !

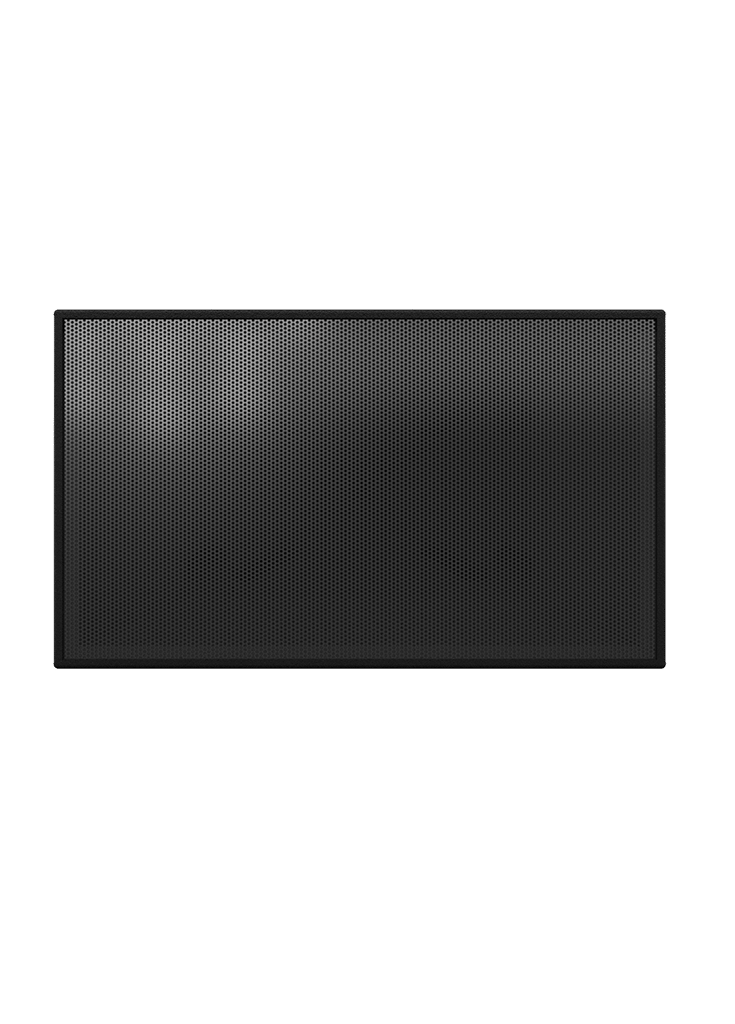

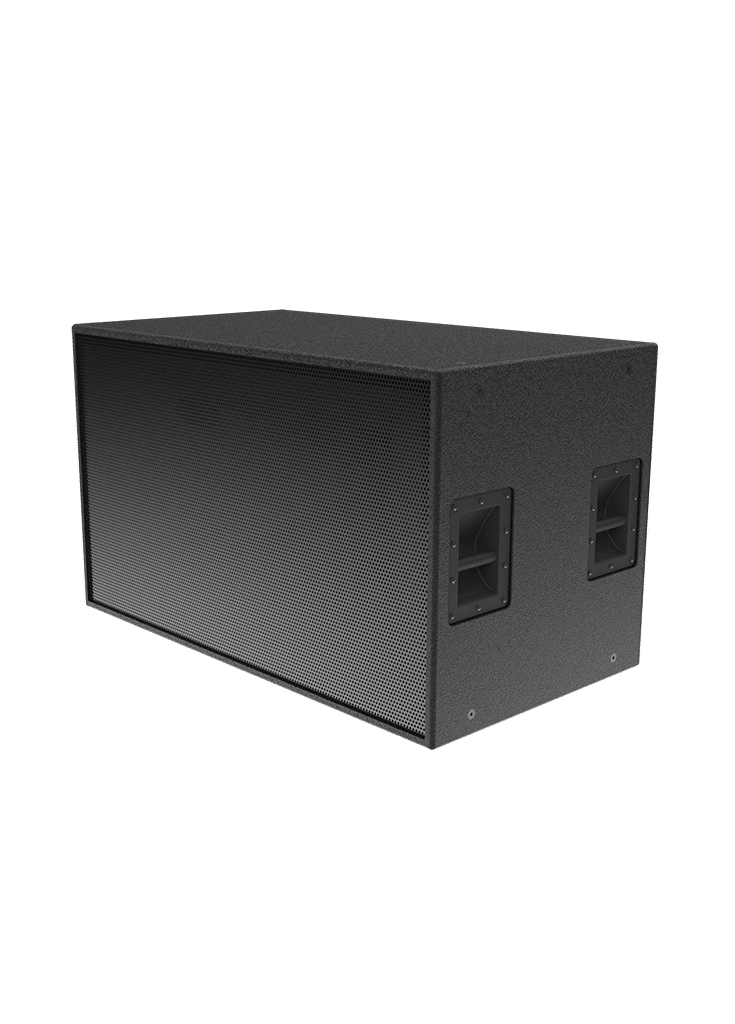

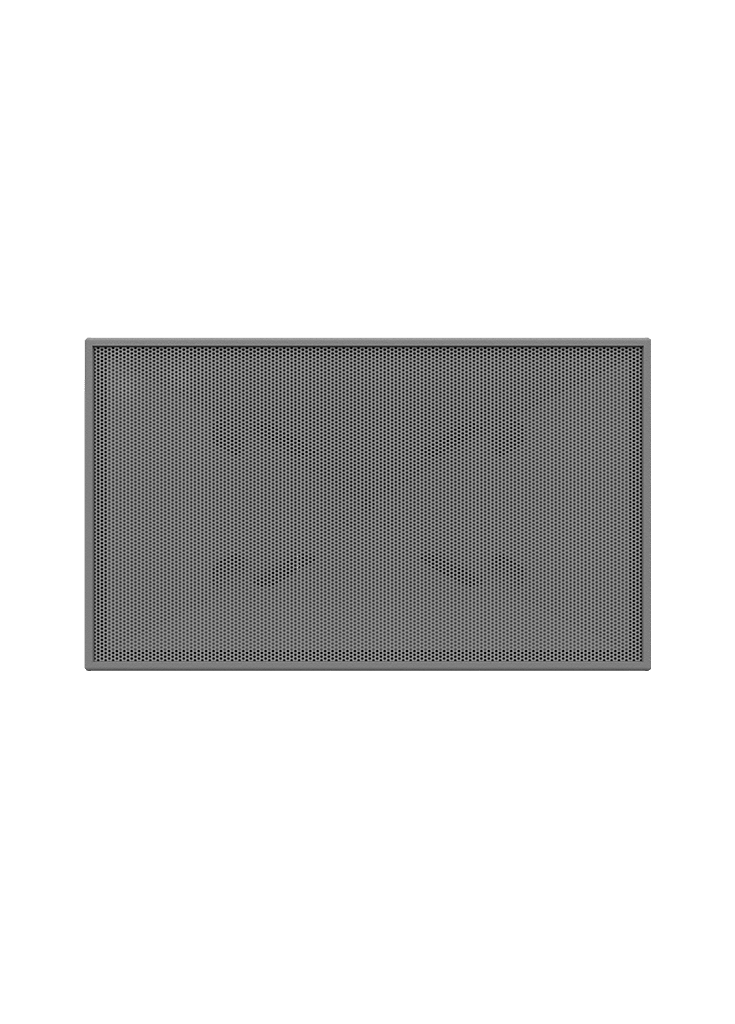

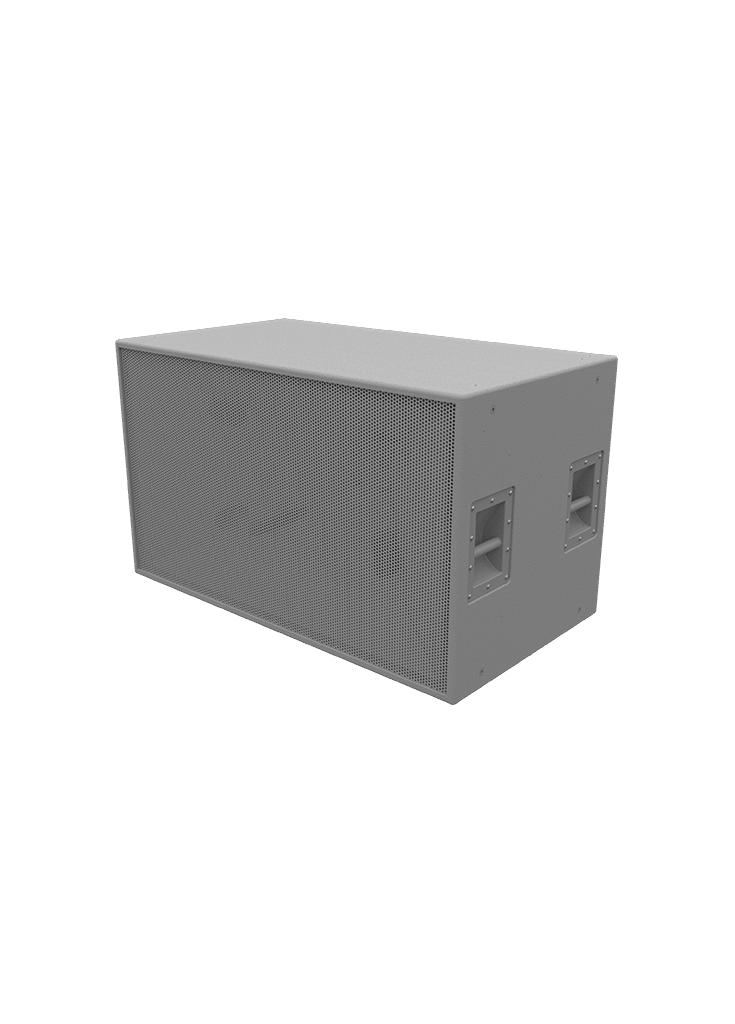

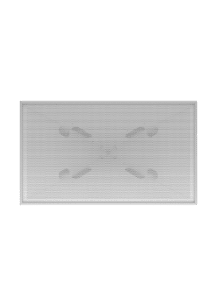

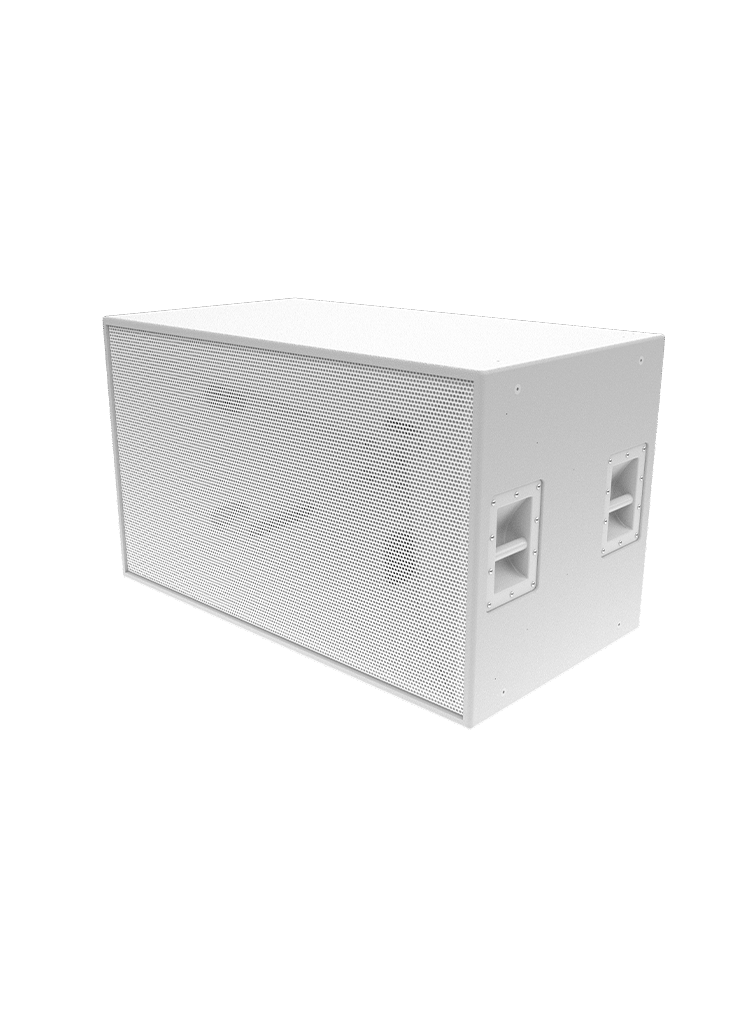

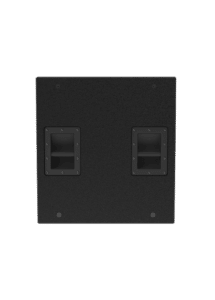

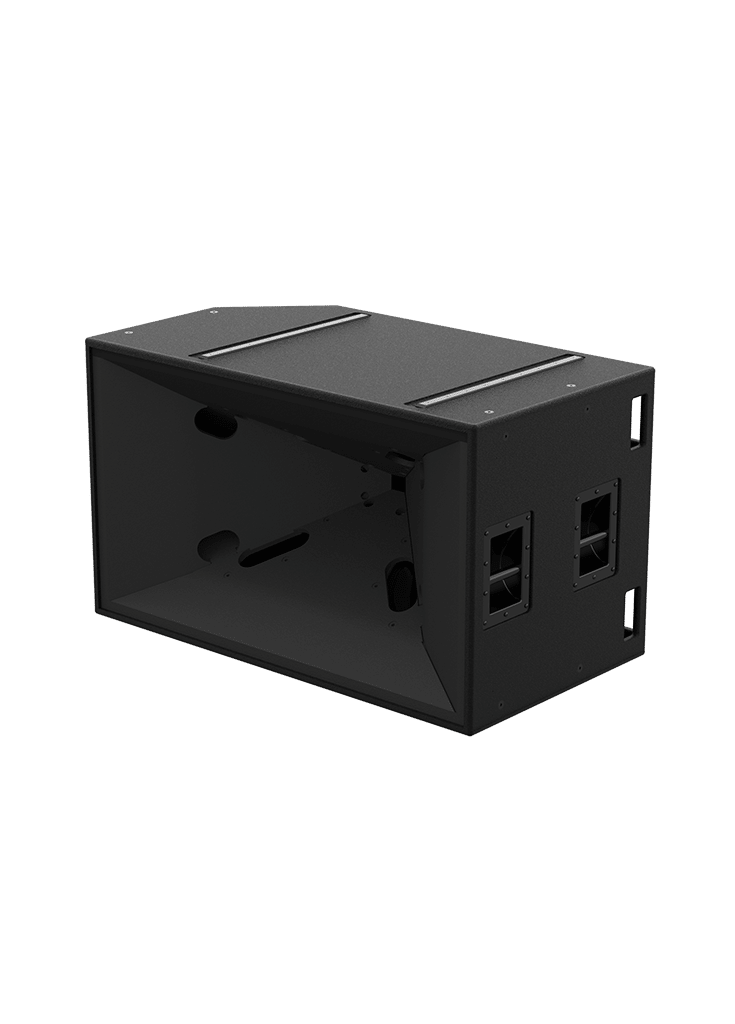

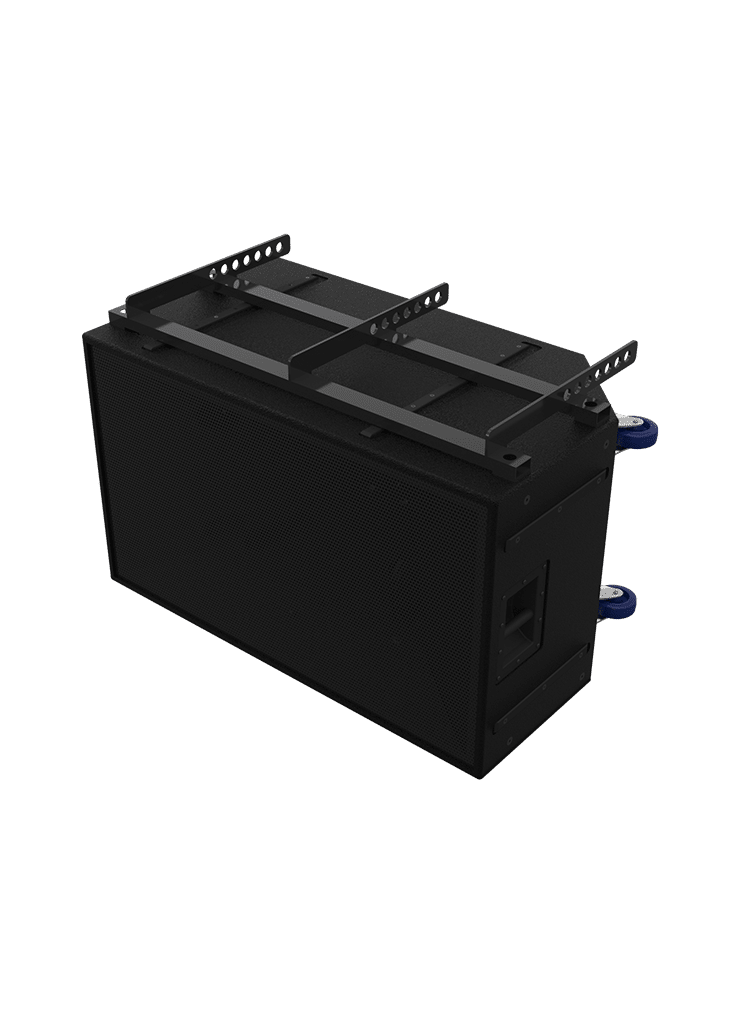

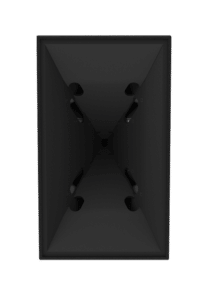

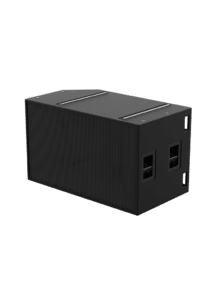

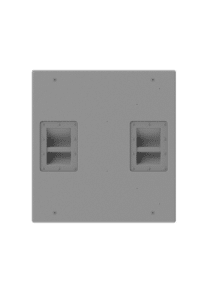

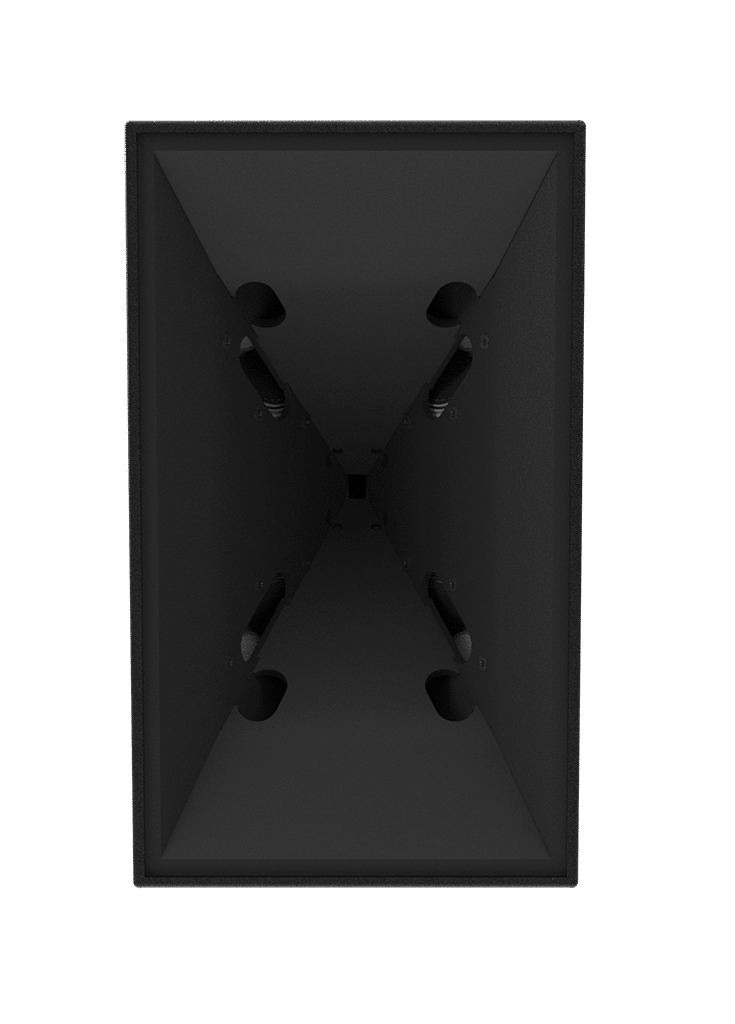

Just like the SH96, this loudspeaker offers an extraordinary design that features 11 drivers coupled to a single Synergy Horn™ that includes four 15-inch drivers, six 4-inch mid-range drivers and a 1.4-inch-high exit HF compression driver – all mounted within a 45-inch x 26-inch horn. Thoughtful driver placement within the horn, combined with our Synergy crossover network, allows for proper phase alignment between frequency bands. This permits the physically separated bands to combine and emerge from the horn in synchrony, greatly reducing off-axis distortions in frequency response and allowing for greater clarity at long distances.

Product Specifications

Coverage Pattern
90 horizontal
60 vertical
Operating Frequency Range
45 Hz – 13.5 kHz +/- 3dB
38 Hz – 15 kHz – 10dB
Continuous Output
133 dB SPL
Peak Output
139 dB SPL
105 dB SPL
(2.83 Volts into
rated Z, at 1 meter)
Measured in
whole space
Driver Complement
Low 4 x 15″
Mid 6 x 4″
High 1 x 1.4″
26.5 x 45 x 25 inches
220 lbs
Rated Impedance
8/2 ohms selectable

4 ohms
Power Rating
2800 Watts Cont.
11,000 Watts Peak

800 Watts Cont.
3200 Watts Peak
