11 Drivers, 1 Horn!

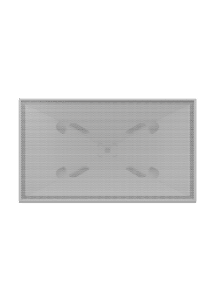

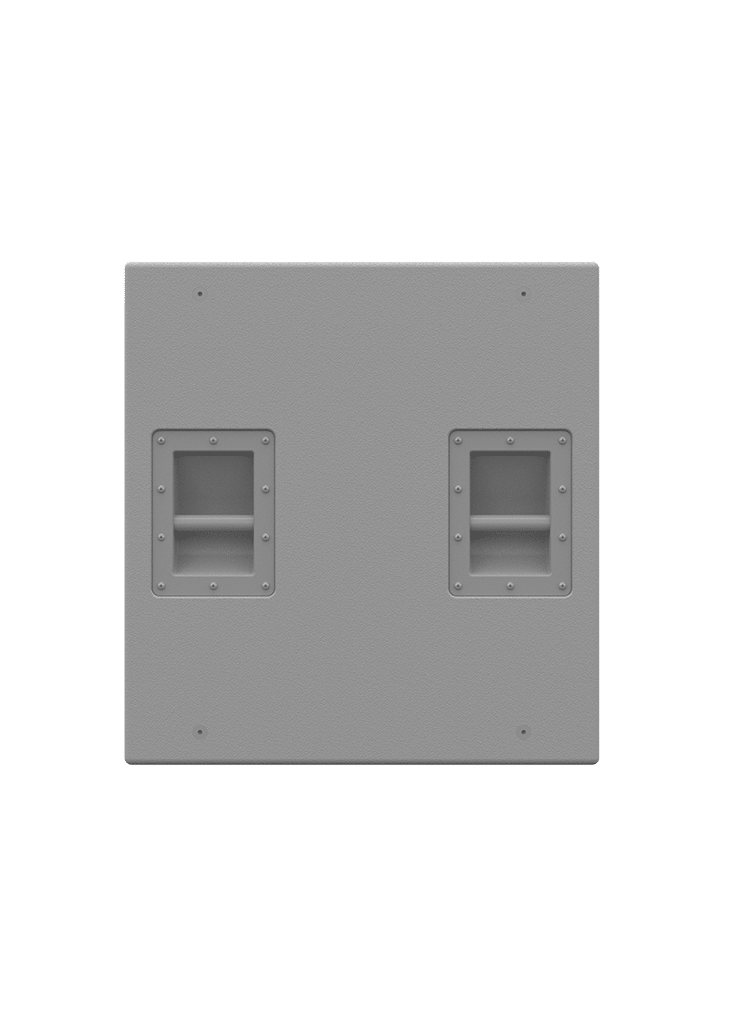

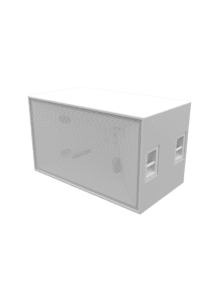

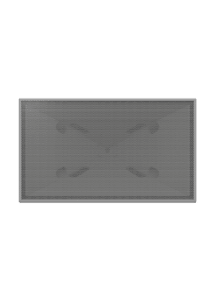

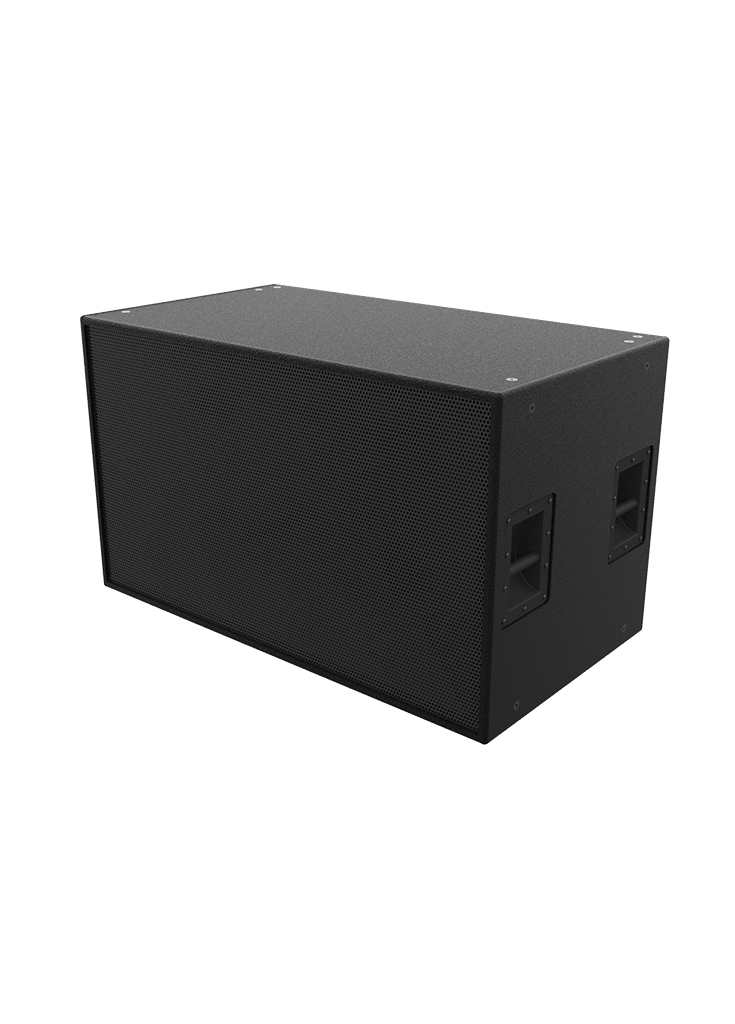

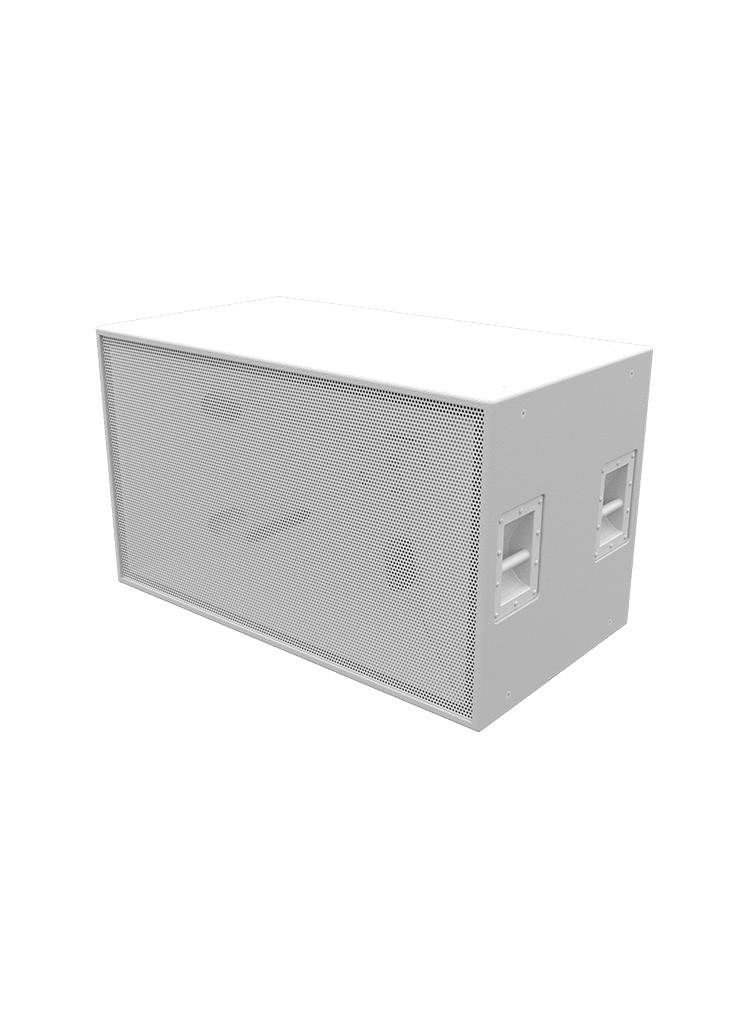

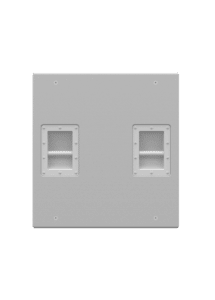

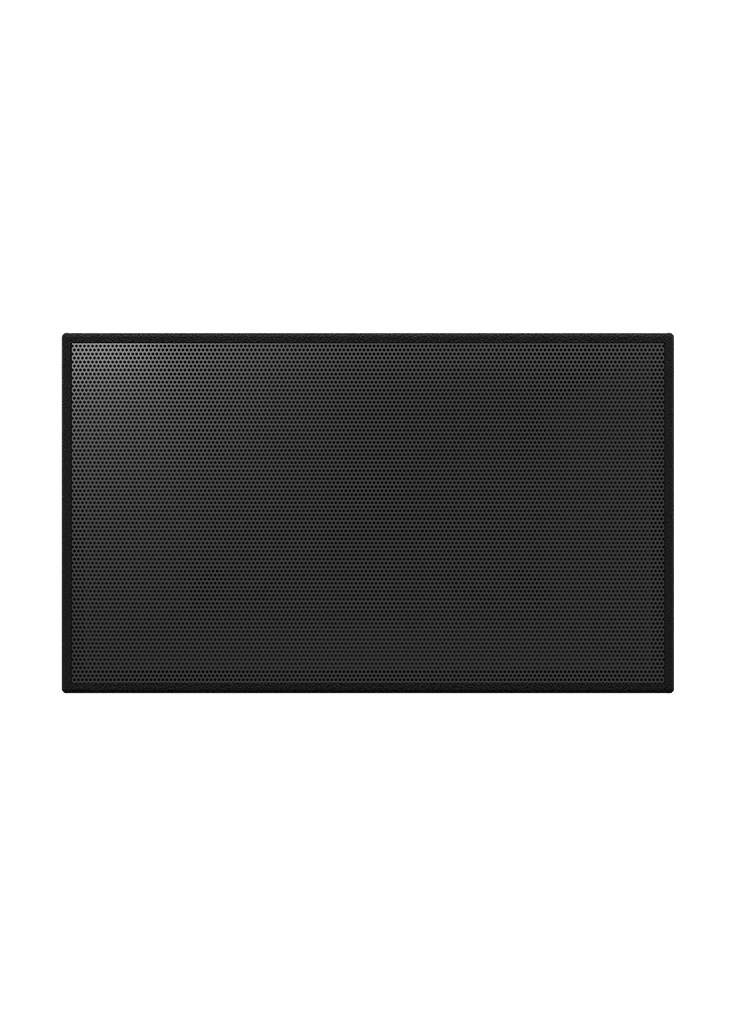

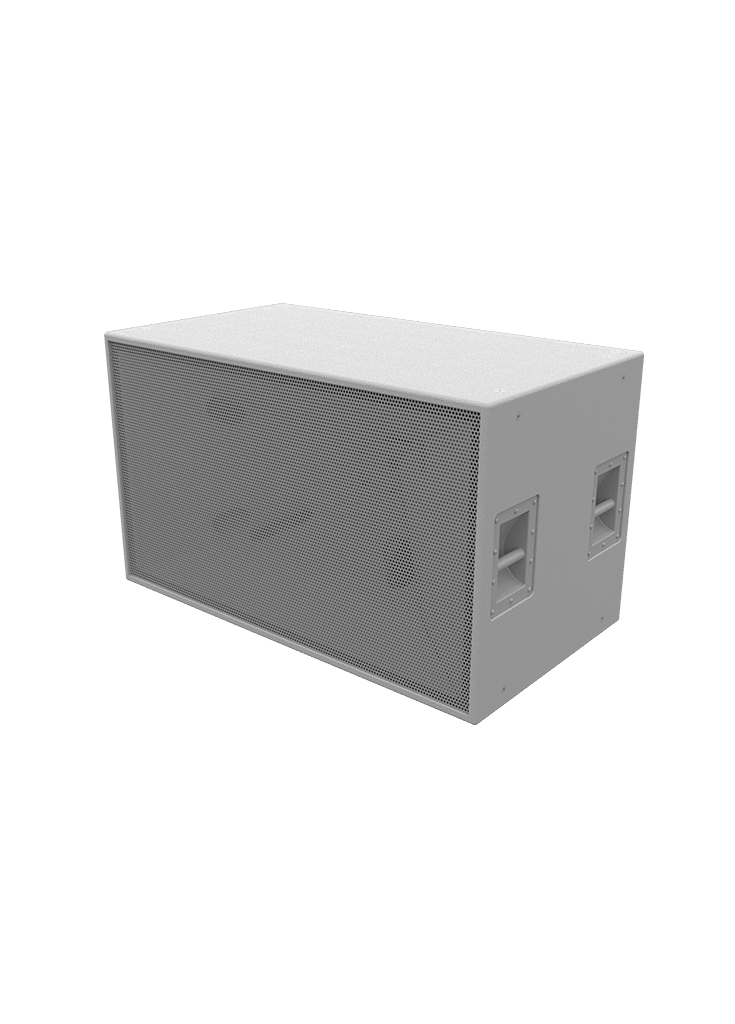

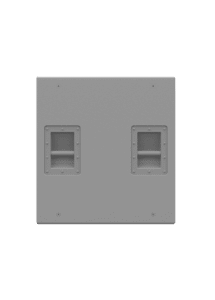

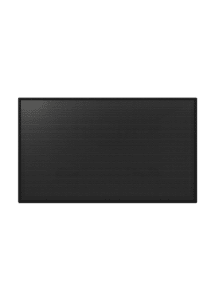

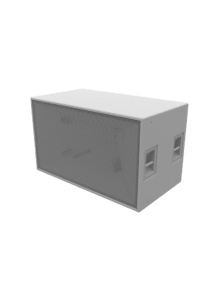

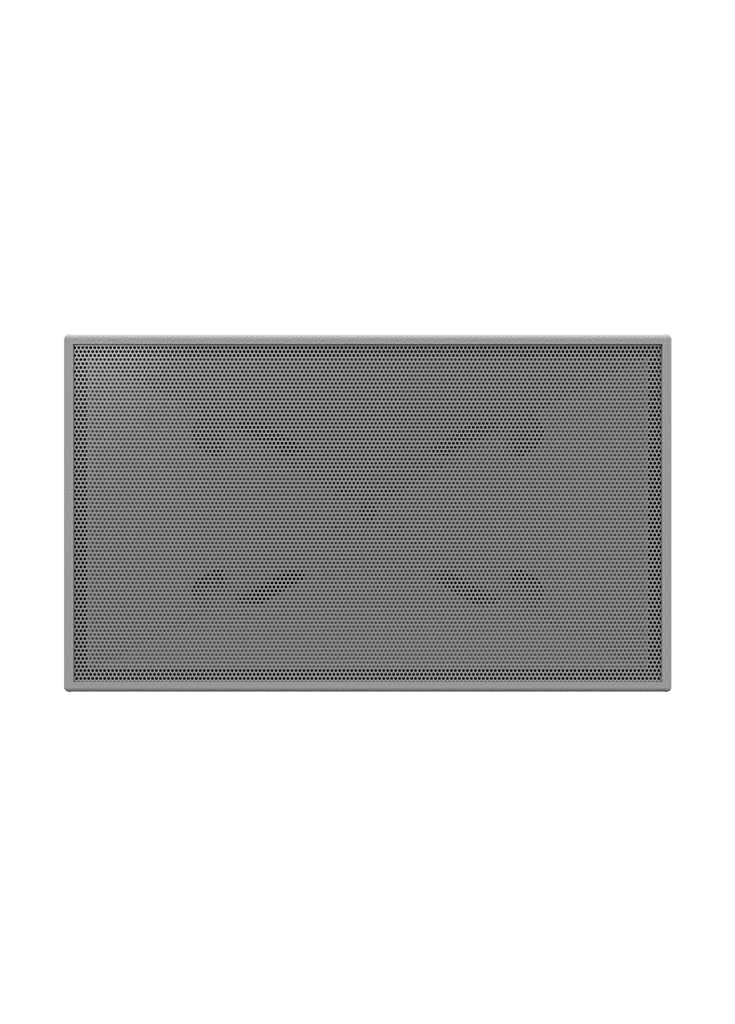

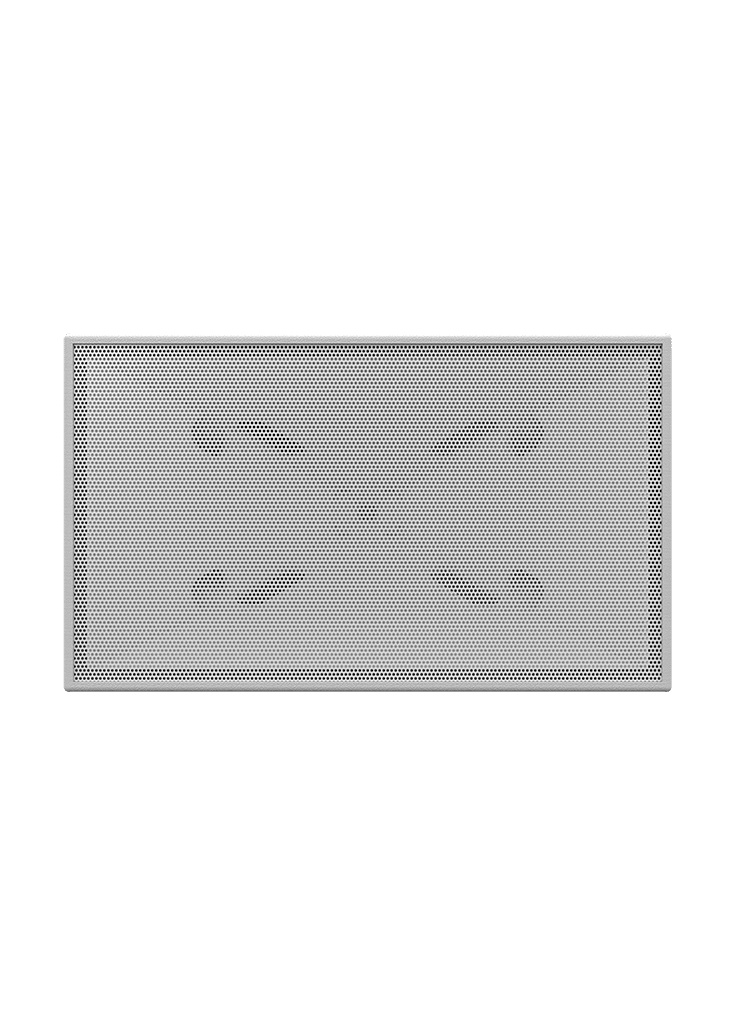

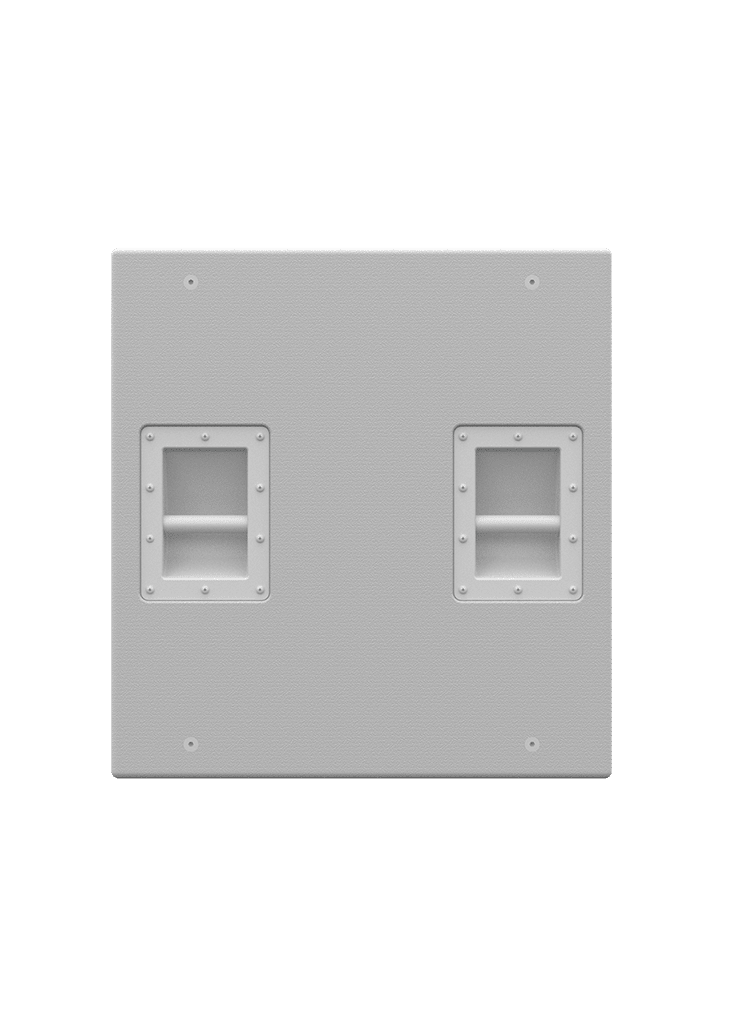

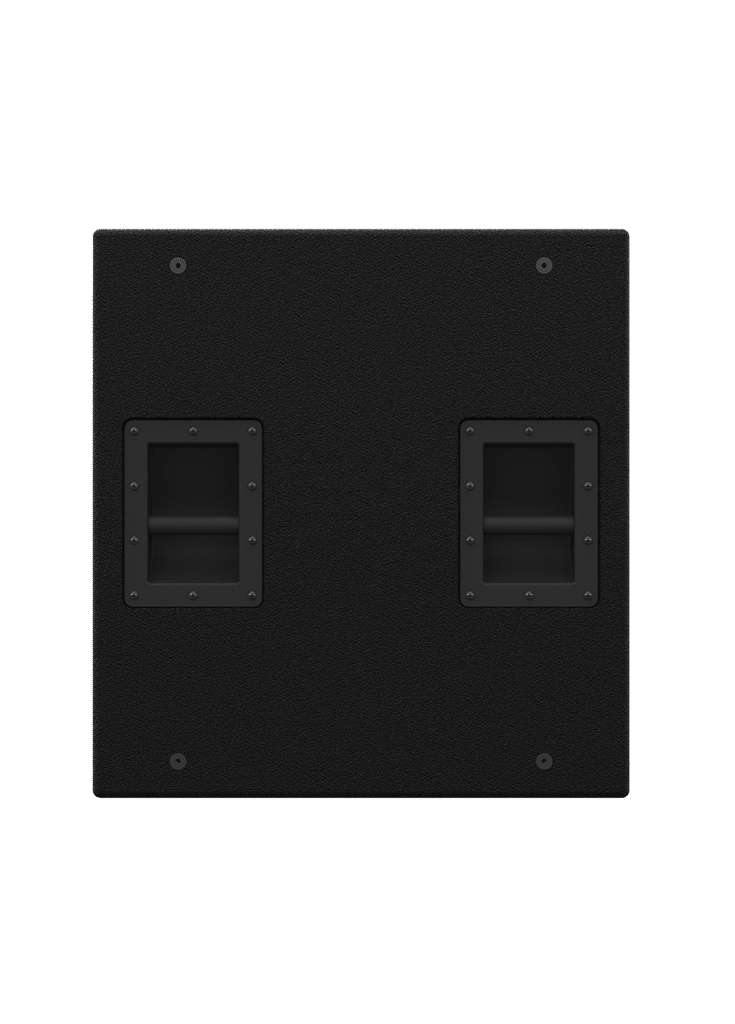

This is your single-box solution for high output and wide coverage. the SH96 is a three-way powerhouse that features four 15-inch drivers, six 4-inch mid-range drivers and a 1.4-inch-high frequency driver — that makes a jaw-dropping 11 drivers coupled to a single horn. The SH96 has a 90-degree x 60-degree pattern, and a sensitivity of 101dBSPL. Like all of our Synergy Horns, it is available in both touring and installed versions.

Product Specifications

Coverage Pattern
90˚horizontal x 60˚ vertical
Operating Frequency Range
50 Hz – 16 kHz +/-3dB
36 Hz – 19 kHz +/-10dB
Continuous Output
133 dB SPL
Peak Output
139 dB SPL
101 dB (2.83 Volts into rated Z, at 1 meter) measured in free space
Magnitude Response
65 Hz – 16 kHz
Driver Complement
four 15″ woofers
six 4″ Mid Range
one 1.4″ High Freq
26.5 x 45 x 25 inches
215 lbs
Rated Impedance
8 Ohms
Power Rating
1400 Watts Continuos
2800 Watts Program
