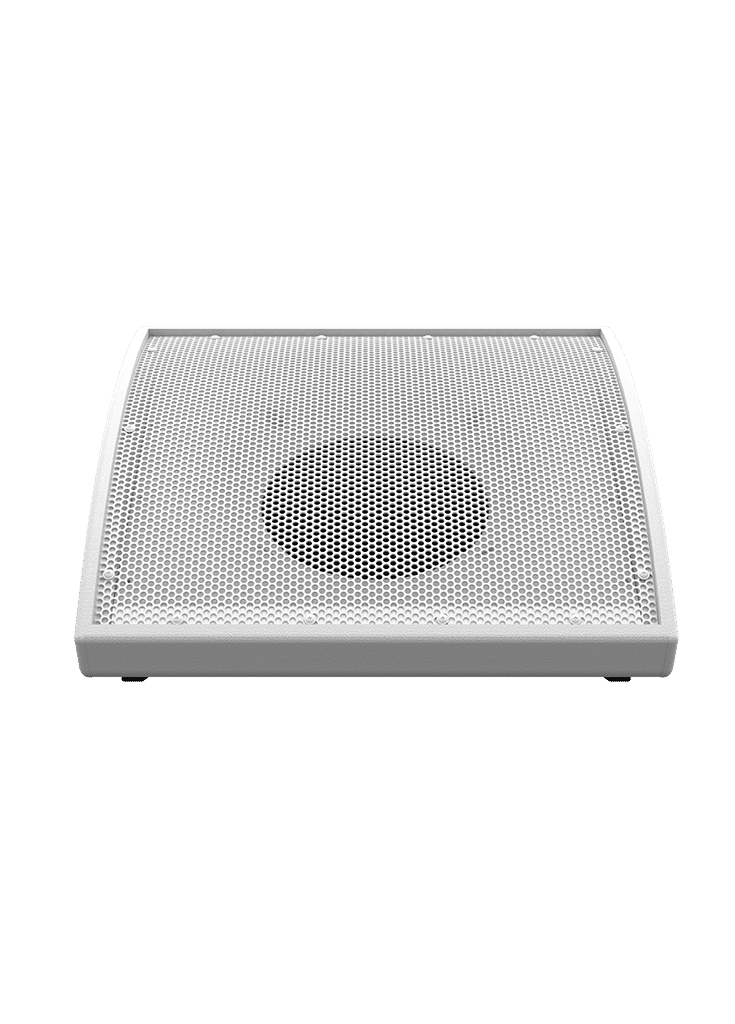

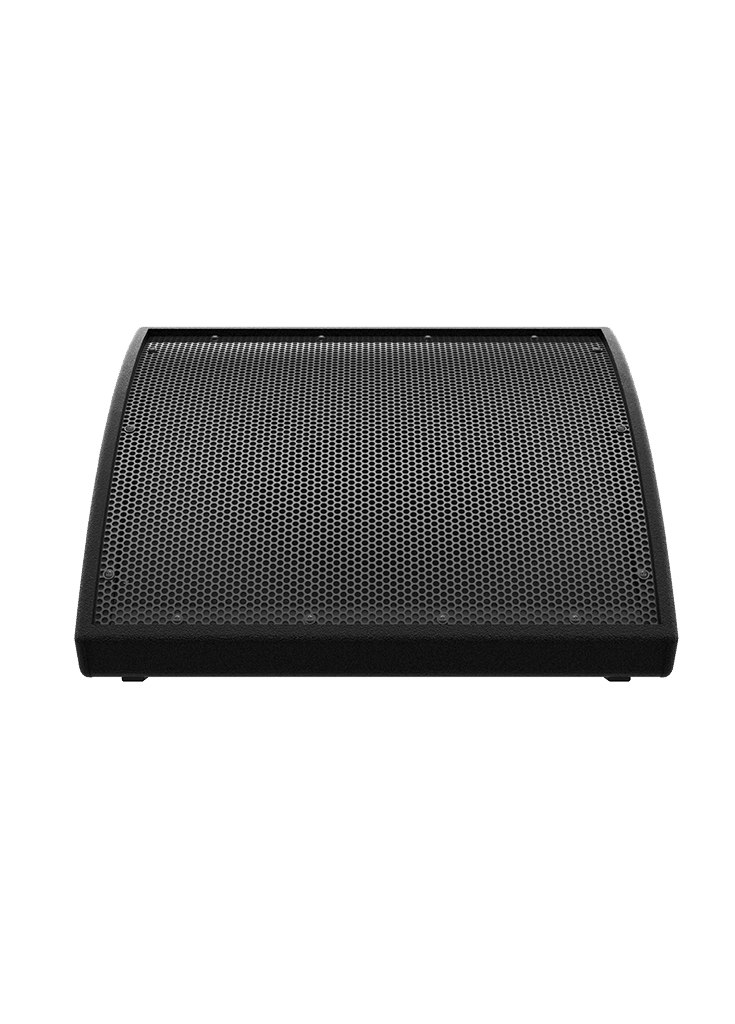

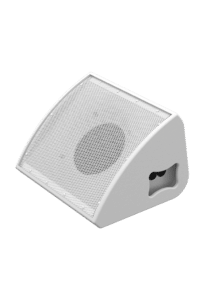

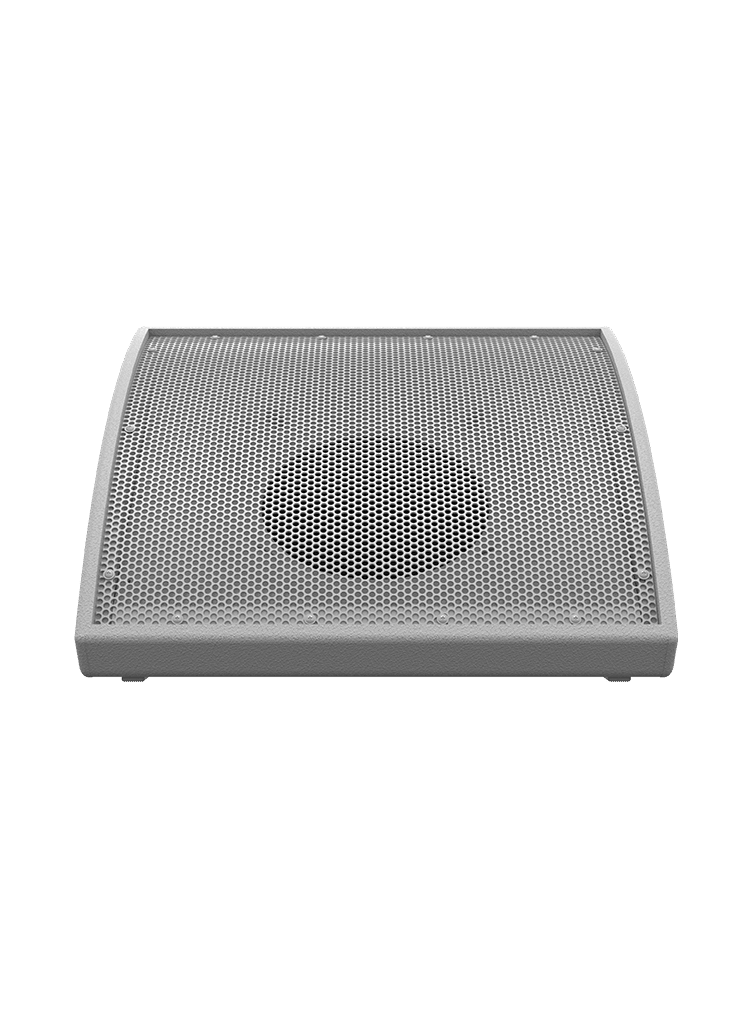

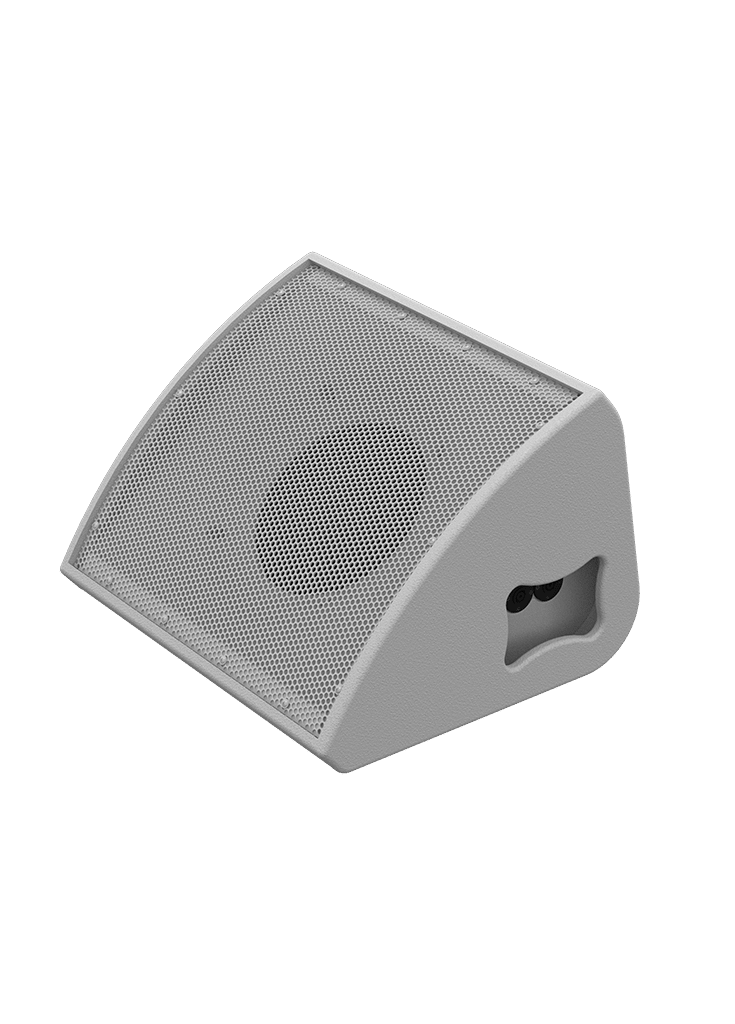

The SM80M
The SM80M

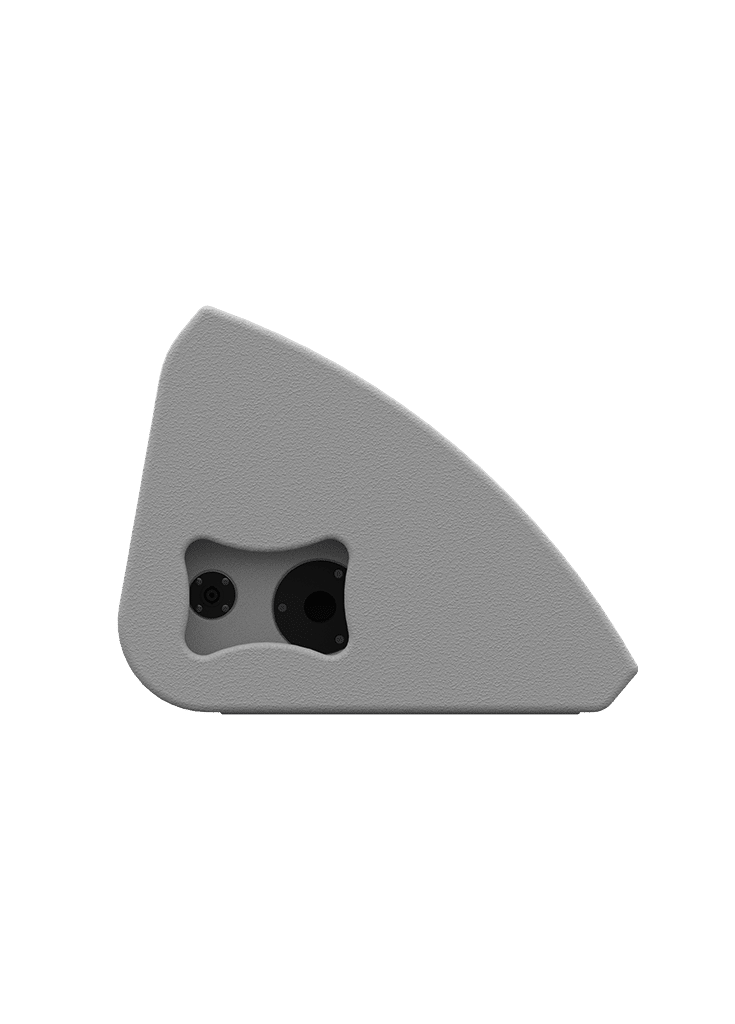

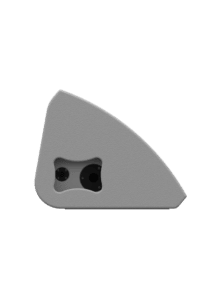

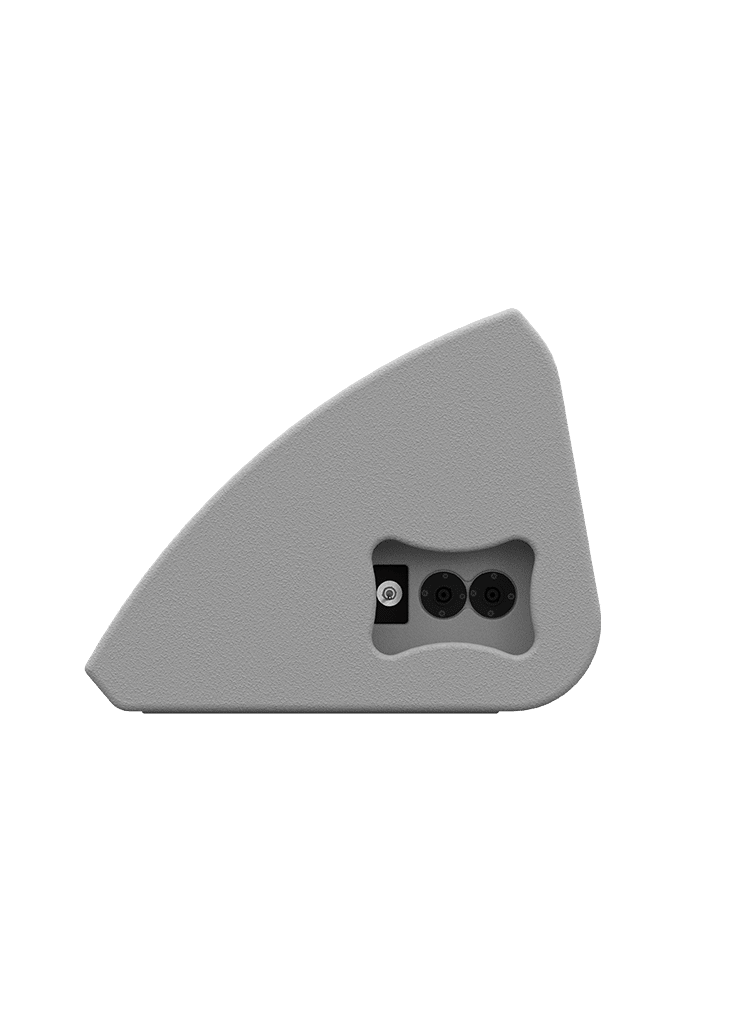

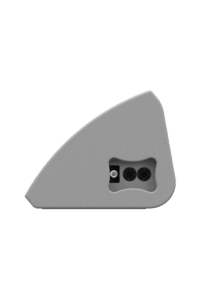

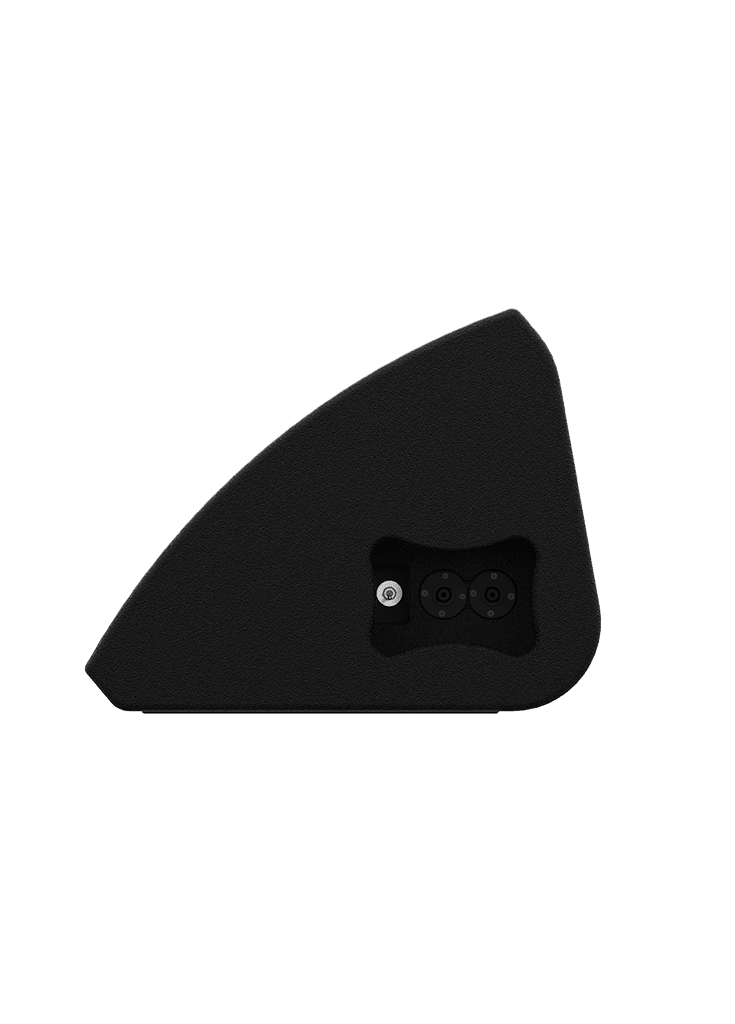

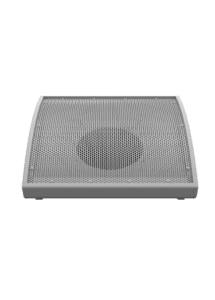

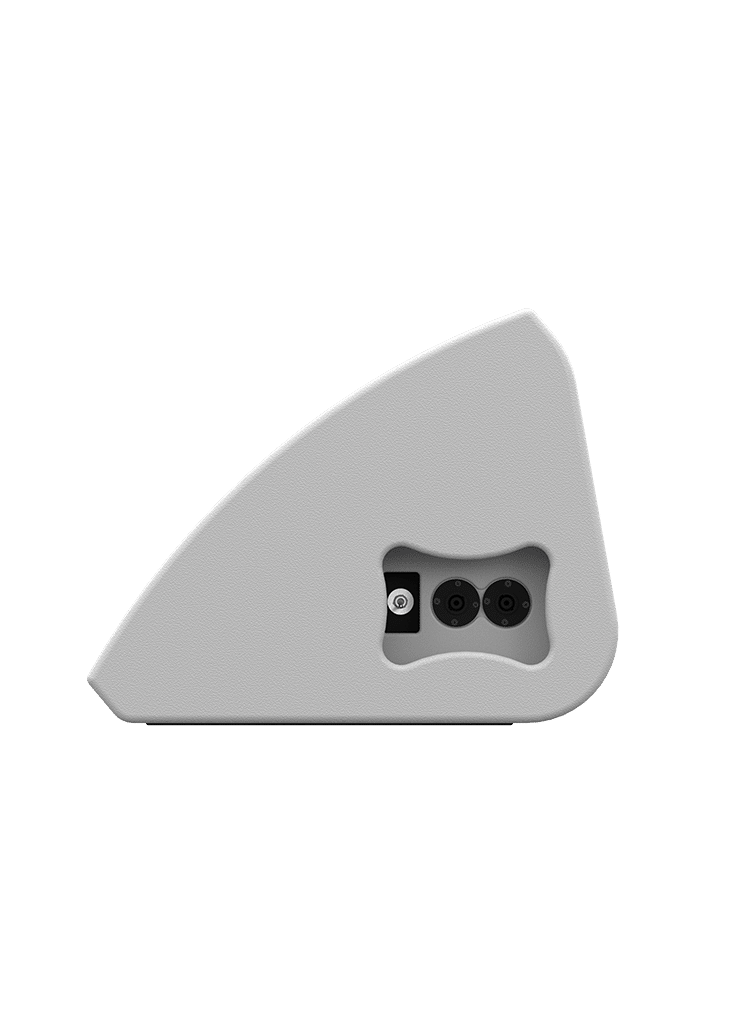

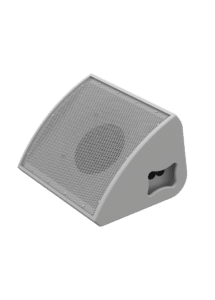

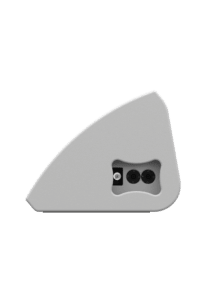

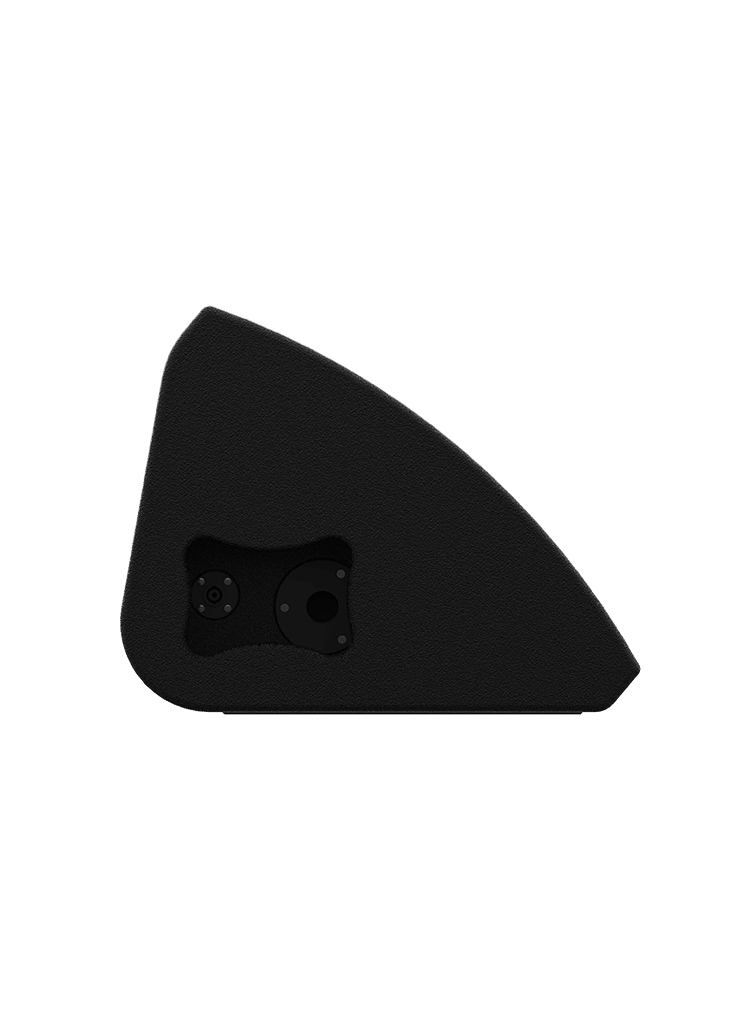

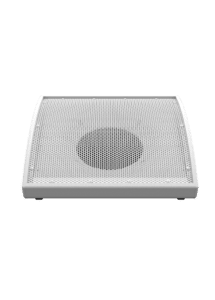

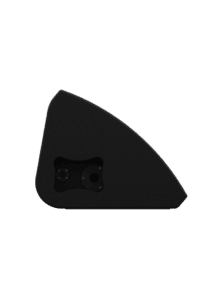

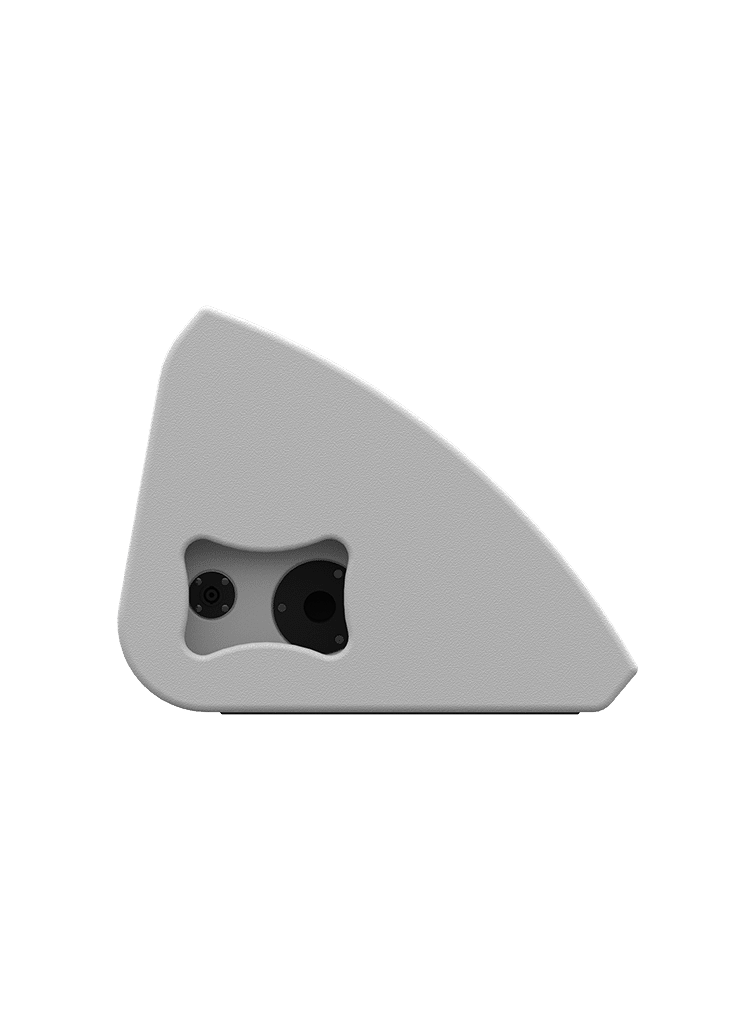

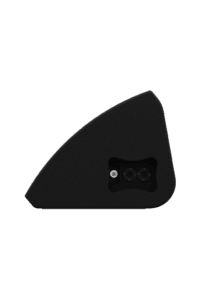

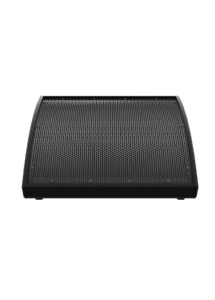

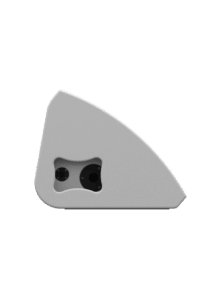

For those ready to rock, this is the ultimate floor monitor. The SM80M offers the option of switching between passive and bi-amped operation, and the large horn provides significant forward directivity – which keeps the sound on the stage and not bleeding back into the first few rows of the audience. It also features two angles of operation with dual input/output connections on each side to reduce cable clutter.
Product Specifications
coverage Pattern
80° conical
operating frequency range
86Hz- 19KHz +/-3dB
70Hz- 20KHz -10dB
70Hz- 20KHz -10dB
continuous output
128 dB SPL
peak output
134 dB SPL
sensitivity
102 dB SPL
driver complement
1-12” / 1-1.4” coaxial
dimensions
25.5”W x 24”D x 16.5”H
weight
65 lbs.
Rated Impedance
8 ohms
Power Rating
400 Watts Cont.
1600 Watts Peak
1600 Watts Peak
