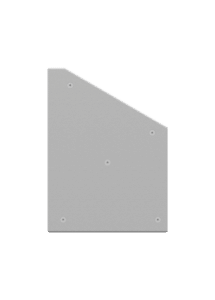

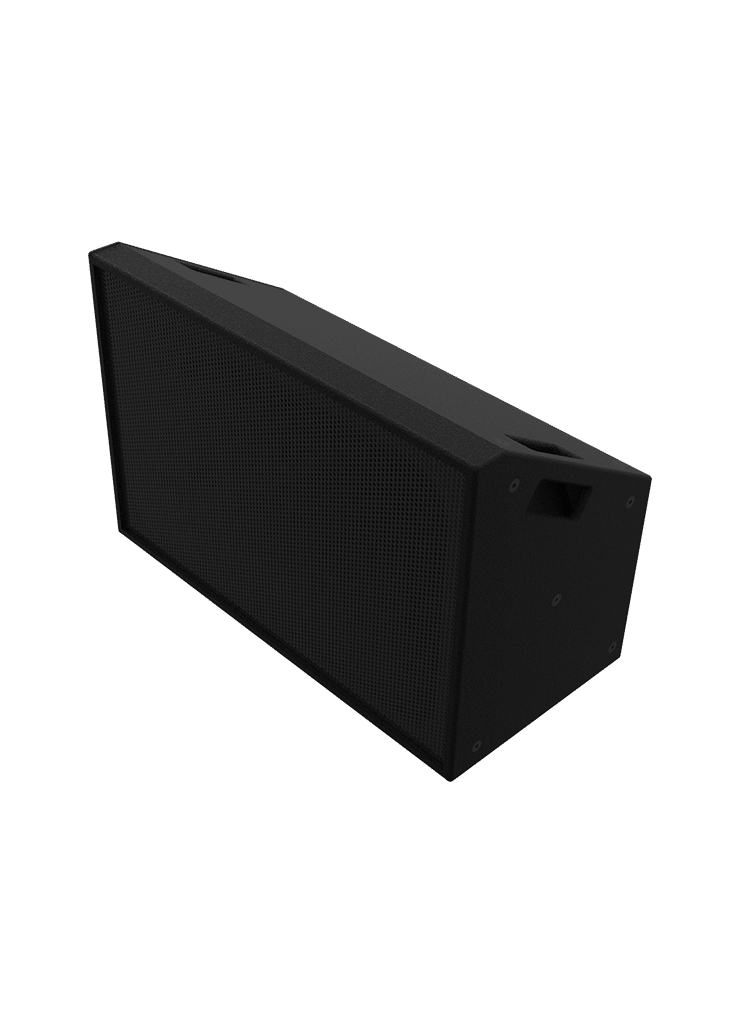

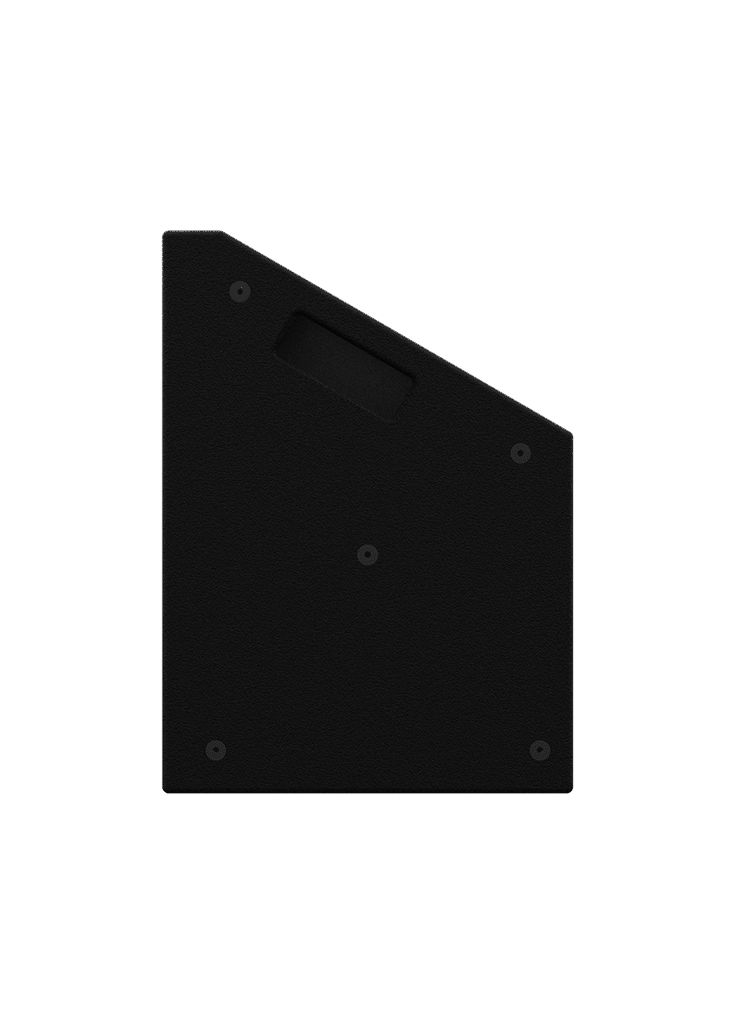

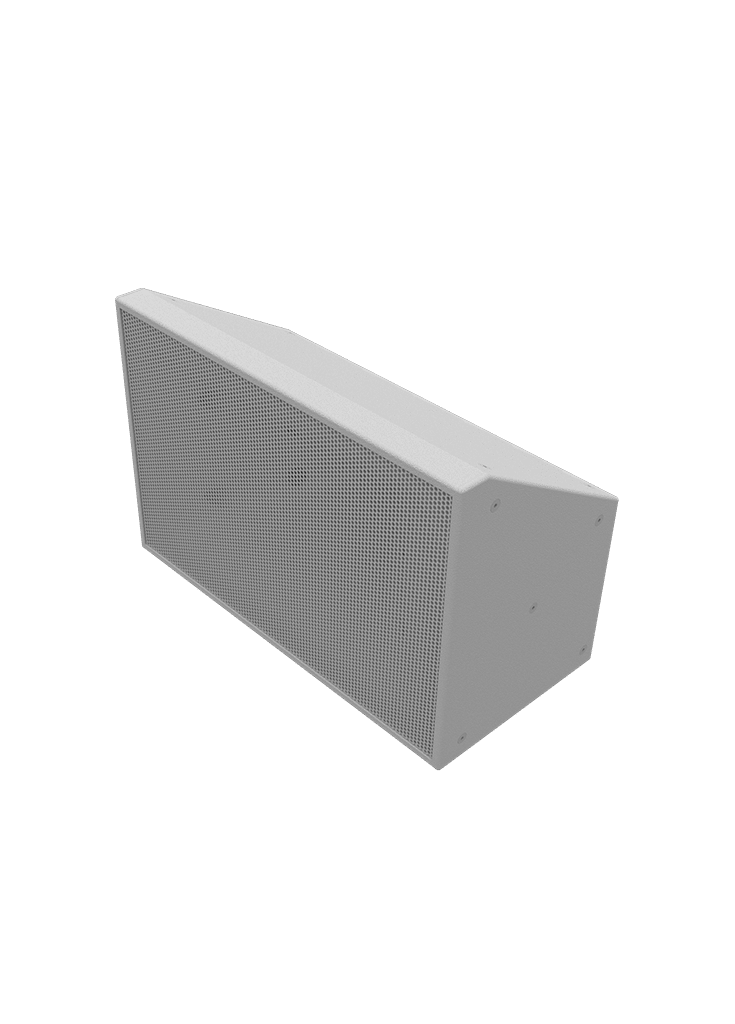

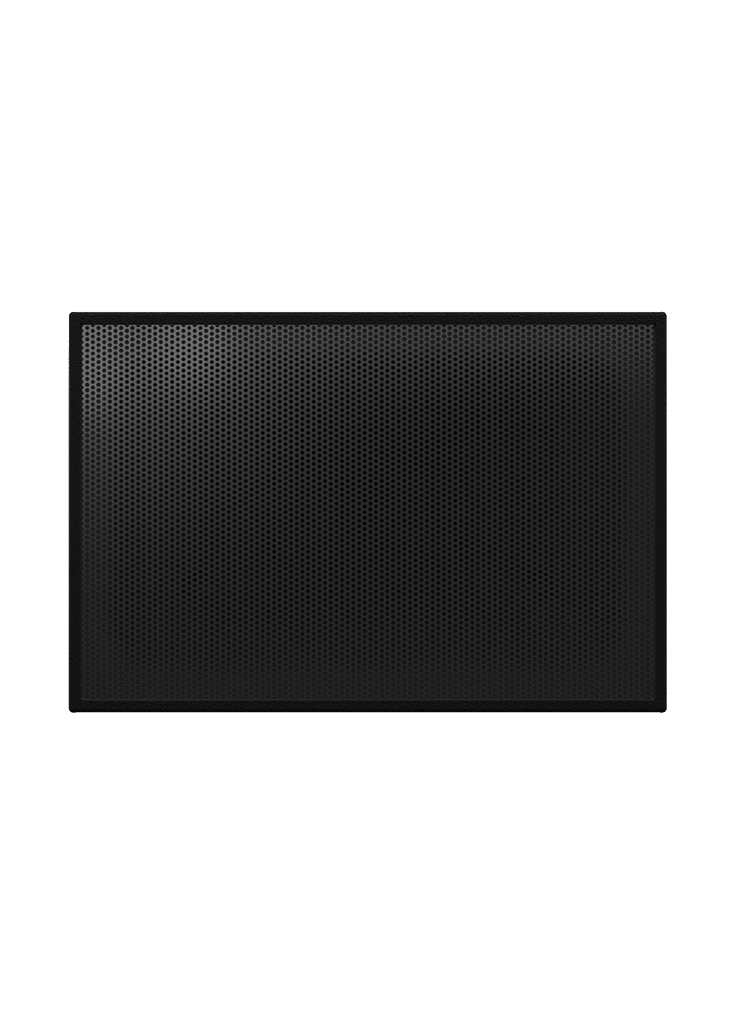

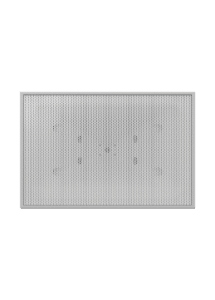

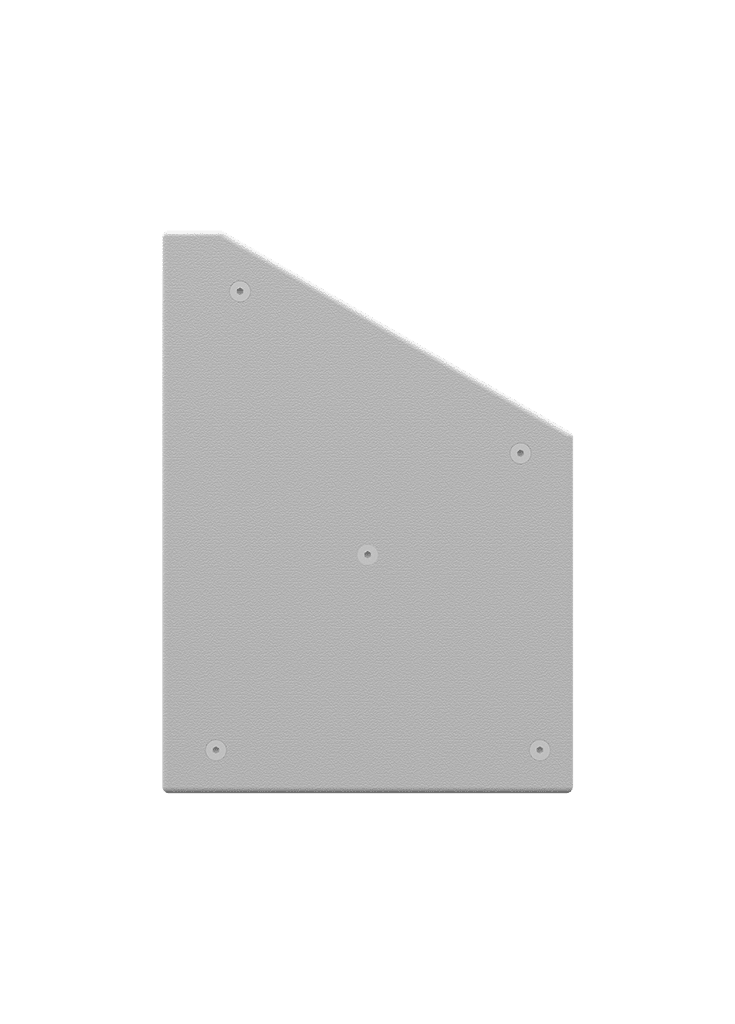

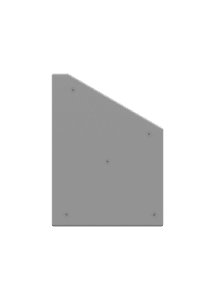

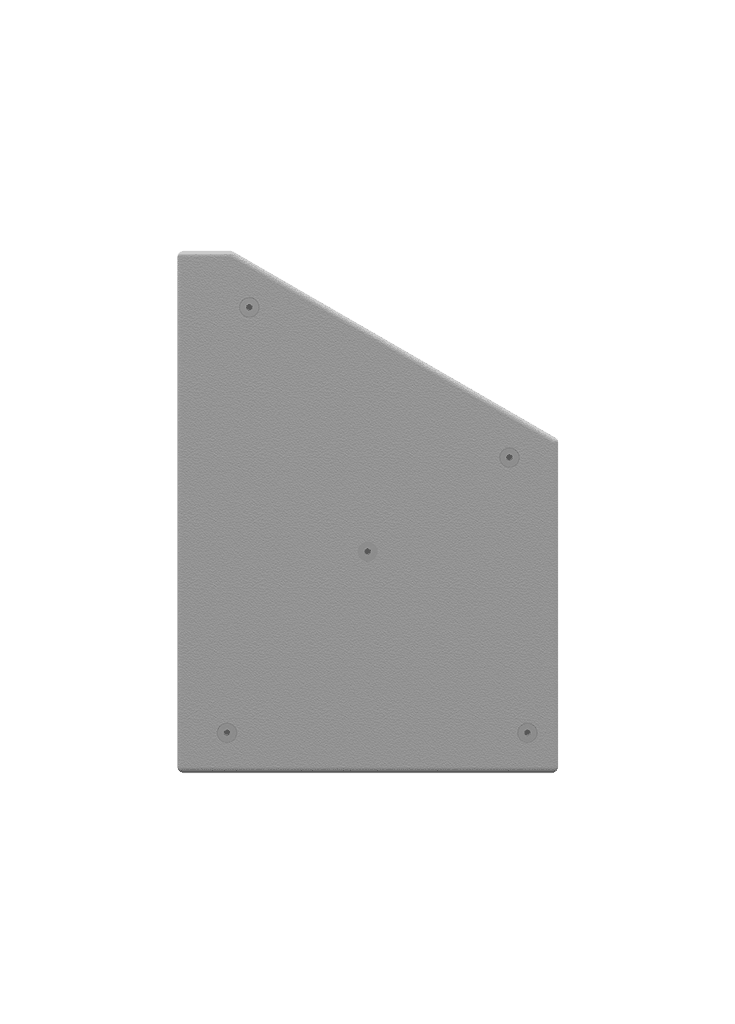

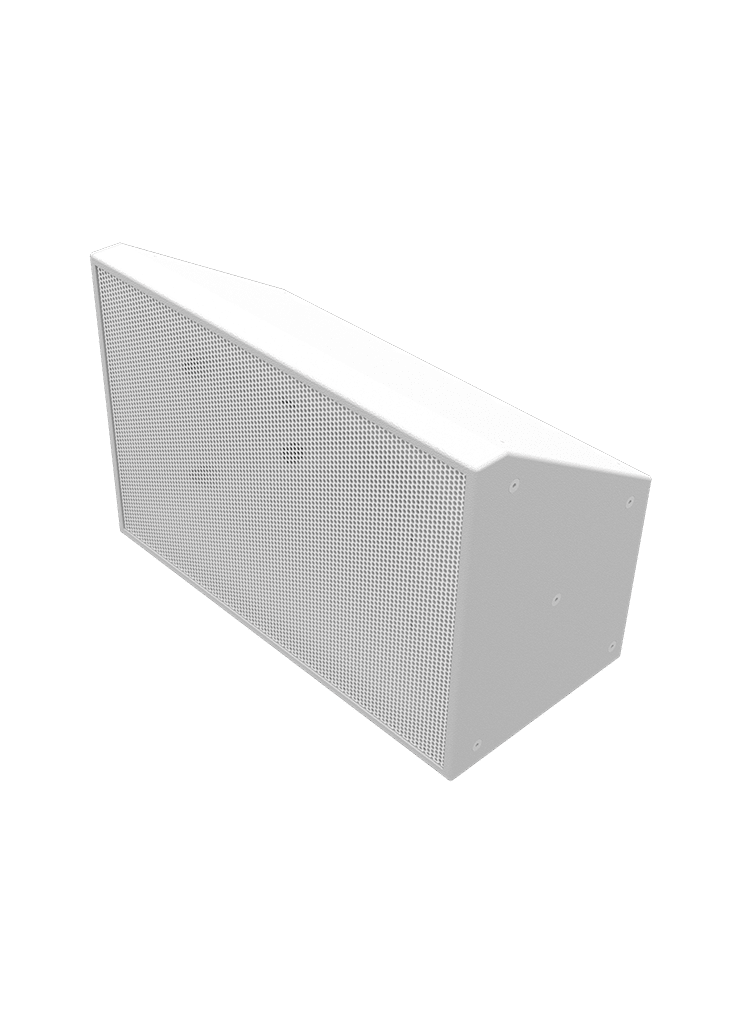

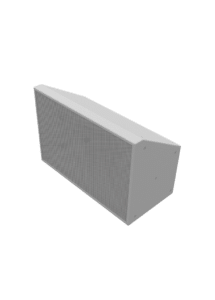

SM96
SM96
This speaker offers crystal clear 90-degree x 60-degree coverage in a compact box and has the added benefit of truly modular array-ability. The SM96 combines great fidelity, low frequency pattern control and unrivaled magnitude/phase response into an ultra-compact enclosure. The SM96 is available for installation or for touring.
Product Specifications
coverage Pattern
90˚ horizontal
60˚ vertical
60˚ vertical
operating frequency range
55 Hz – 24 kHz +/- 3dB
42 Hz – 26 kHz – 10dB
42 Hz – 26 kHz – 10dB
continuous output
124 dB SPL
peak output
130 dB SPL
sensitivity
98 dB SPL
(2.83 Volts into
rated Z, at 1 meter)
measured in free space
(2.83 Volts into
rated Z, at 1 meter)
measured in free space
magnitude response
55 Hz- 24 kHz
driver complement
Low 2 x 8″
High 1 x 5″
High 1 x 5″
dimensions
31.5 x 21 x 15.5 inches
weight
73lbs
Rated Impedance
4 Ohms
Power Rating
800 Watts Cont.
3200 Watts Peak
3200 Watts Peak
