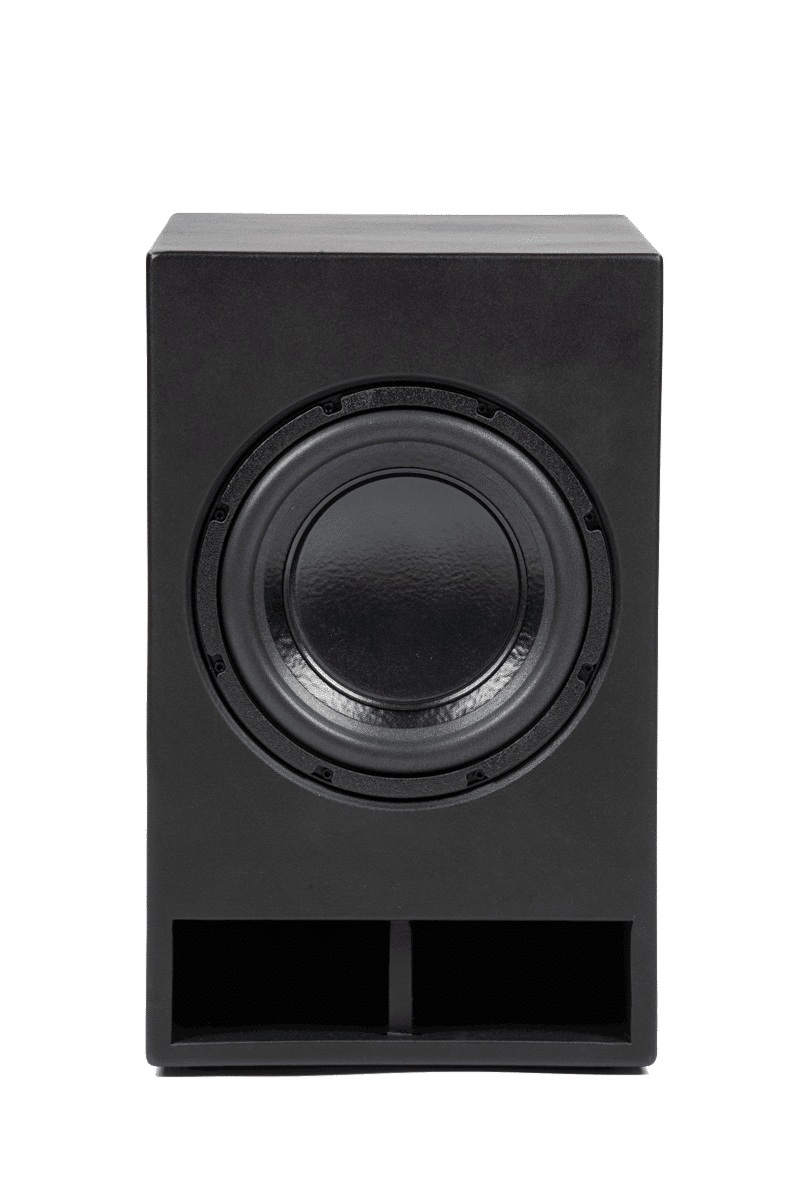

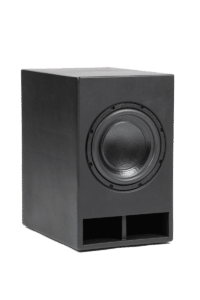

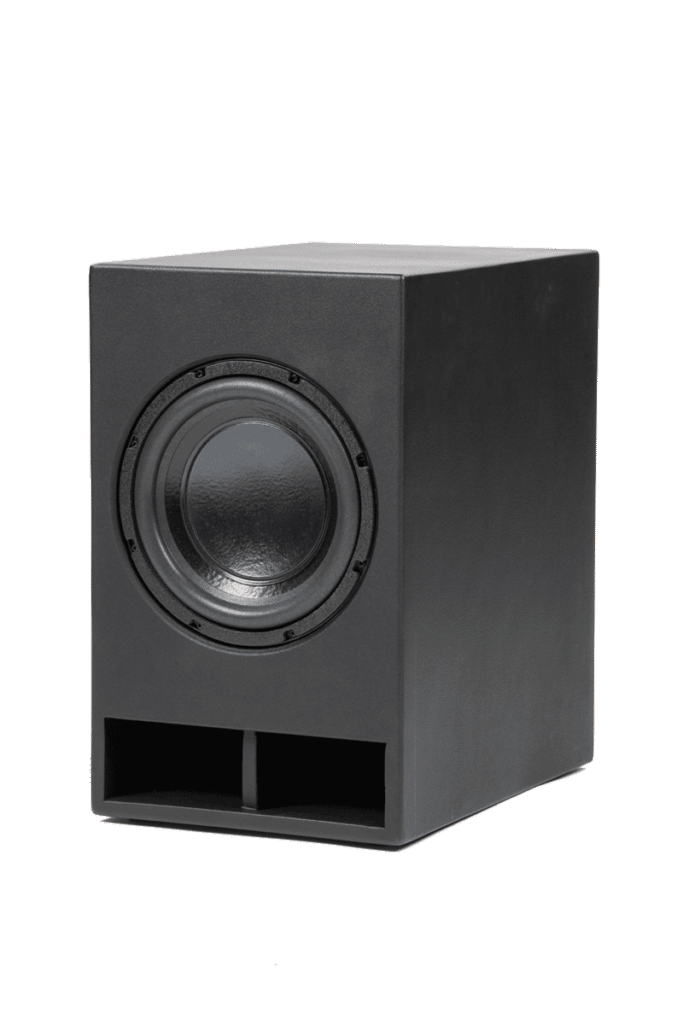

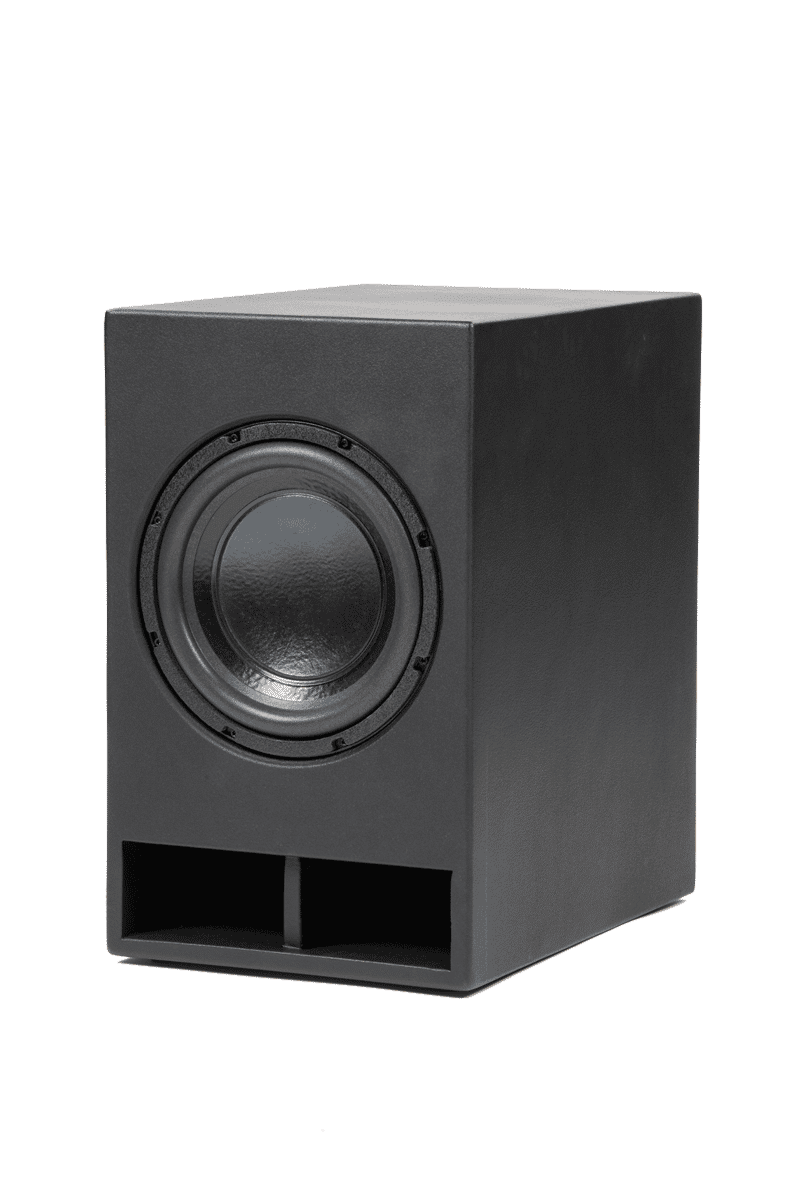

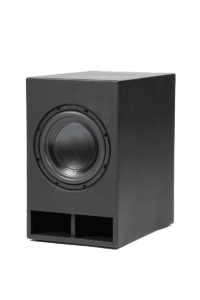

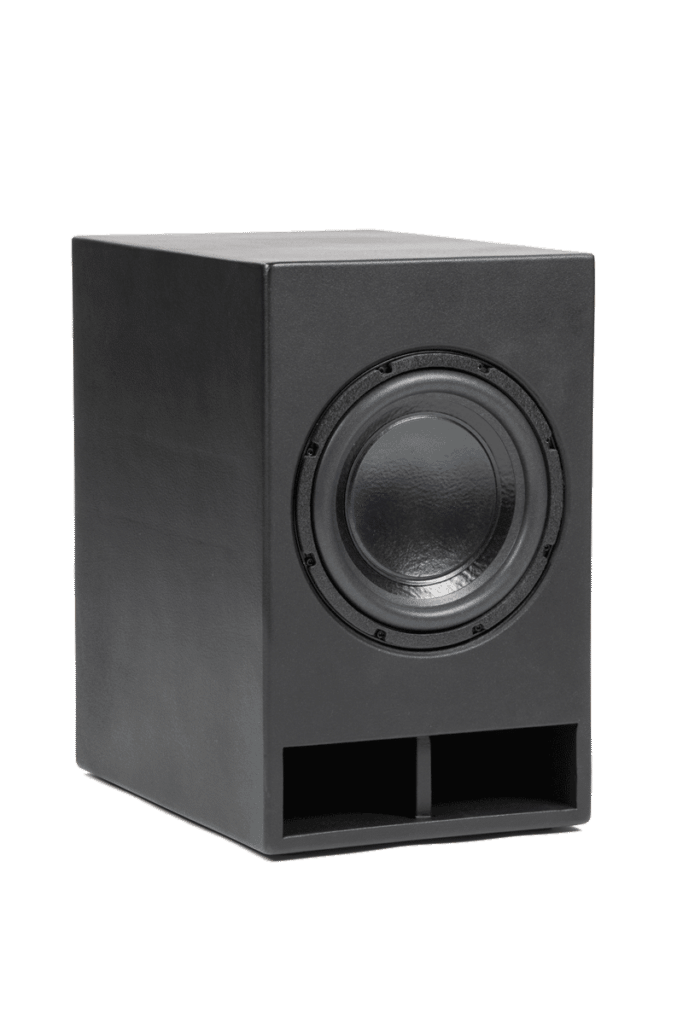

TDS Sub 2.1

Experience umatched audio fidelity with the Danley TDS Sub 2.1, now enhanced with a built-in three-channel amplifier powering the sub, left, and right channels. Designed for transparent reference monitoring in tandem with the Danley TDS1 studio monitor, this versatile subwoofer transitions seamlessly from home to studio use, embodying the perfect blend of form and function.

At the core of the TDS Sub lies an advanced 12-inch driver capable of producing powerful and precise low-frequency response. Encasedin a solid, acoustically optimized enclosure, it ensures that every beat and note is reproduced with utmost accuracy, enhancing your listening experience across various applications.

Whether adding depth to your home theater system or monitoring bass in your recording studio, the TDS Sub’s 2.1 stereo system allows for a more immersive audio setup. It’s specifically engineered for music production, mastering, film scoring, and sound design, making it an ideal choice for professionals seeking a reliable and high-performing audio solution.

With its exceptional sound quality, versatile design, and sleek aesthetics, the TDS Sub stands out as an essential component in any home or professional studio setup. Trust in the TDS Sub to deliver consistently accurate low-frequency sound that elevates your audio projects to the highest standard.

Performance Specifications

Operating Mode
Self-powered subwoofer with 2 powered outputs
Operating Range
33 Hz – 67 Hz (-3 dB) | 27 Hz – 150 Hz (-10 dB)
Coverage Pattern
Omni-directional
Transducers
1 x 12″
Sensitivity Under Equalized Conditions
0.038V
Maximum Linear Output
119 dB SPL Z-Peak | 107 dB Z-Slow
Power Rating
Low 1200 Watts
Out 1 400 Watts
Out 2 400 Watts
HPF Settings
1 – 60 Hz
2 – 90 Hz
3 – 120 Hz

Physical Specifications

Connections
(2) XLR, stereo balanced audio
(2) NL4, speaker output
(1) Powercon 120V ~ 240V 15A
Dimensions & Weight
24 x 15 x 23.1 inches | 609.6 x 381 x 586.5 mm
79 lbs | 35.74 kg
Finish
Black poluurea coated enclosure
Black, white, and custom color painted enclosure available
Enclosure Material
18mm Baltic Birch, polyurea coated
Danley Studio

The Musician’s Choice

While there are many options on the market today for studio gear, Danley Studio provided by Danley Sound Labs offers true art in audio engineering and craftsmanship. The TDS-1 is the ideal companion to the TDS 2.1 Sub. Other products like the TDH-3 studio monitor, along with the TDS-Sub, as well as Danley’s variety of amplifiers also make for the ideal compliment in any studio – whether setting a standard 2.1 system or a 7.1 Atmos system.
