DSA 125X4

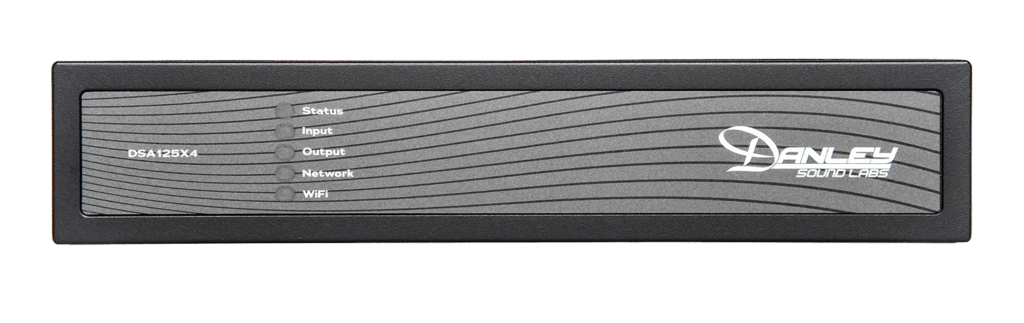

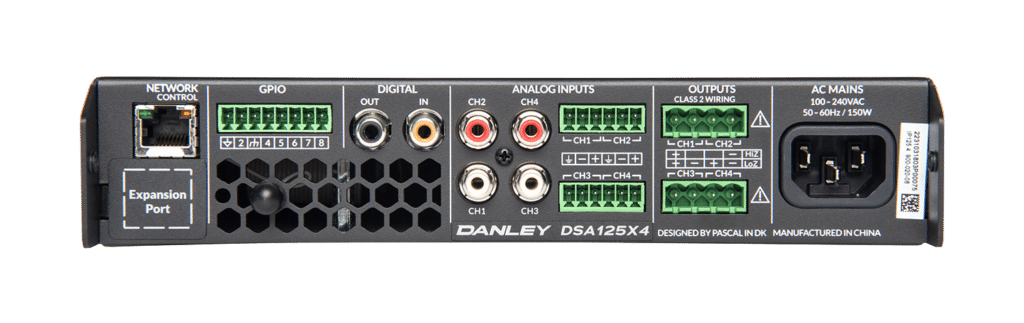

DSA125X4 Amplifier
The Danley DSA series is a collection of multi-purpose installation amplifiers. The DSA 125X4 is a four channel wifi enabled DSP amplifier. The amplifier has a built in Wireless Access Point (WAP) for simple connection and configuration via WiFi.
The DSA 125X4 features a full matrix digital signal processor (DSP) embedded and controlled via TCP/IP and an optimal hybrid of low and high Z performance.
Product Specifications
Channels
4 x Lo-Z / 2x Hi-Z
Output power @ 4 Ohms / 8 Ohms / 70V / 100V* All Channels Driven
125W Lo-Z / 250W Hi-Z
Output power @ 4 Ohms / 8 Ohms / 70V / 100V* Single Channel Driven
125W
Output power @ 16 Ohms All Channels Driven
125W
Power Consumption
150W
Weight
6.2 lbs | 2.8 kg
Dimensions
1.75″ x 8.66″ x 11.65″ | 44.5 x 220 x 296 mm
Output Circuitry
UMAC(TM) Class D – full bandwidth PWM modulator with ultra-low distortion
Output Voltage
70Vp / 140 Vpp (unloaded) // Bridged 140Vp / 280 Vp (unloaded)
THD+N (typical)
< 0.05% (+0/-0.25dB (8 Ohm load, 3dB below rated power)
Frequency Response
20Hz – 20kHz (+0/-0.25dB (8 Ohm load, 3dB below rated power)
Protection Circuits
Short circuit-, DC-, Undervoltage-, Temperature- and Overload protection
Operating Temperature
0-40C
Accessories
Rack Mount Kit / Wall/Desktop Mount Kit, 1x IEC to NEMA 5-15
Power Ratings
1% THD @ 120Vac and 230Vac
