DNA 10K4 Pro

DNA 10K4 Pro Amplifier

This truly revolutionary amplifier platform provides a logical front panel user interface and powerful ethernet based remote control. Both provide access to all features allowing rapid system configuration with full performance monitoring and analytics.

Features include:

  • Four channels of sonically pure Class D amplification
    • Unique, precise digital signal processing
    • Over designed switch mode power supply
    • 10,000 watts RMS total output
    • Analog, AES3 and DanteTM digital network audio inputs

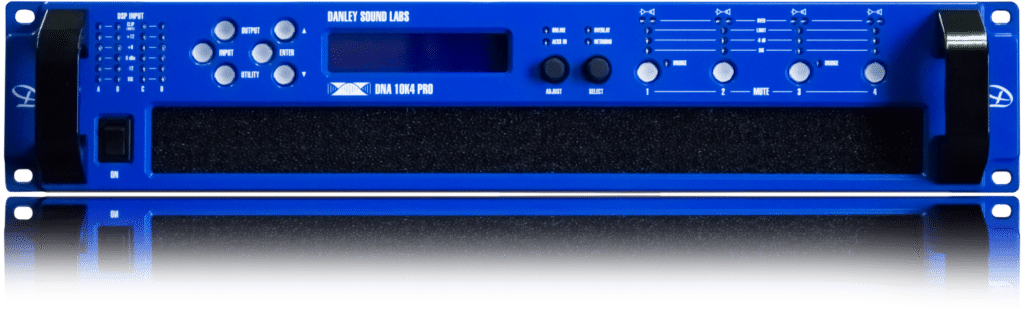

    • Full front panel user interface
    • Ethernet network software for system operation and monitoring
    • DSP Drive Modules for loudspeaker processing
    • Powerful grouping for multi-layer EQ and effective control of large systems

Product Specifications

2 Ohms
2,500W
4 Ohms
2,500W
8 Ohms
1,500W
4 Ohms Bridged
5,000W70V line operation
70V Line Operation
2,500W

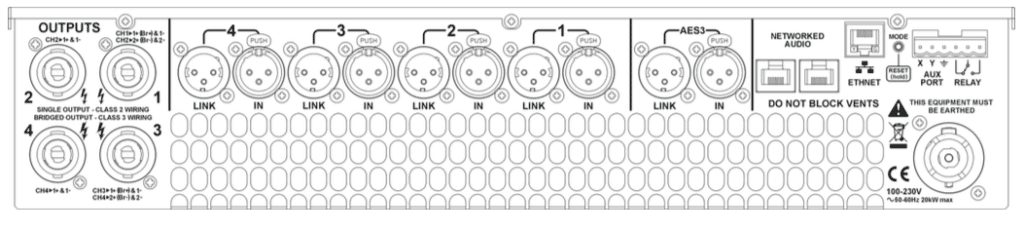

Physical Inputs to DSP Drive Modules
4x analog, 2x AES & 4x DanteTM inputs can be routed to four DSP drive modules
Drive Module Input Processing
Input signal routing, delay, gain, HPF, Phase, Mute EQ: 2x low shelf, 6x PEQ / band pass and FIR shelving filters
Drive Module Output Processing
Source, delay, gain, Phase, Mute, crossover filters, VX limiters EQ: low shelf, 8x PEQ / band pass and FIR shelving filters
Overlays
Twelve additional independent overlays of EQ, Delay and Gain Flexible grouping for effective control of many amplifier channels in large systems
Connector Type
L6-20
