DNA SC48
Advanced System Controller
This Advanced System Controller provides generous amounts of signal processing capability and a wide variety of crossover shapes.
Features include:
- Four input & Eight output channels
- AES3 inputs & outputs selected in pairs
- Dante networked audio option
- 96kHz 4th generation SHARC DSP algorithms
- Powerful Drive Module centric presets
- LIR Linear Phase crossovers
- Multi-stage peak & RMS limiters
- Virtual Xover Limiter for passive systems
- PEQ & FIR equalizers on all inputs
- Flexible hiding of OEM settings
- Easy User grouping & EQ Overlays
- Easy PodWare PC control over Ethernet
- Contact closure preset recall

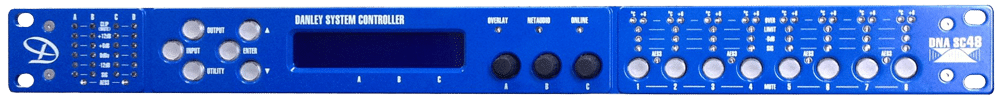

- Quality machined front panel
Product Specifications
Max Input level
+20dBu
Max Output level
+18dBu into 600R
Sample rate
96kHz
Frequency Resp
10Hz – 40kHz
THD (20Hz–20kHz)
<0.008% Typ.
Mains required
85-230VAC 50-60Hz

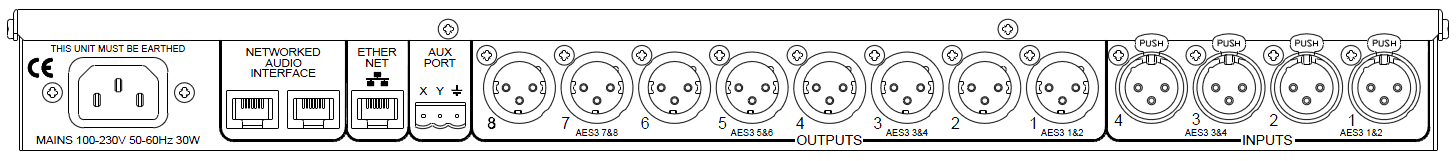

Audio input
3 pin female XLR
Audio output
3 pin male XLR
Ethernet
Shielded RJ45
Aux Contact
3 pin Phoenix
Mains
3 pin IEC
Size
1.75″ x 19″ x 10″
Weight
6 Ibs
OPTIONS
Internal Net Card
DANTE
