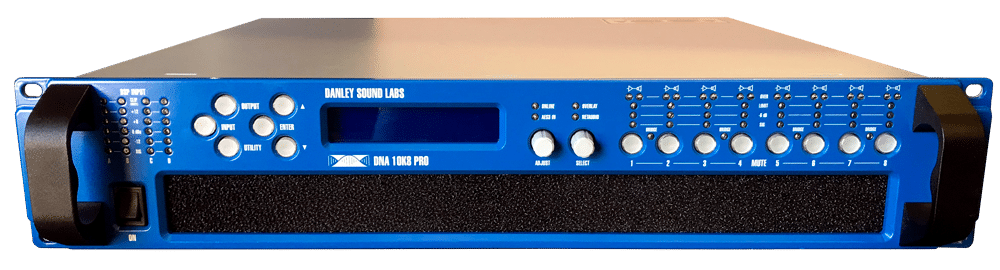

DNA 10K8 Pro

DNA 10K8 Pro Amplifier

This amplifier includes over-designed, high-capacity power supplies, which ensure that full power specification can be delivered into 2 ohms with all channels driven while still remaining highly efficient.

Features include:

  • Eight channels of sonically pure Class D amplification
  • Four analog inputs
  • Unique, precise, 96kHz digital signal processing
  • Over‐designed switch mode power supply 85V to 240V Auto-sensing PSU
  • 10,000 watts RMS total output
  • Full front panel user interface
  • Ethernet network for system operation and monitoring
  • Analogue, AES3 and optional DanteTM digital network audio
  • Powerful grouping & multi‐layer EQ
  • Manufactured in the UK

Product Specifications

2 Ohms
1250W
4 Ohms
1250W
8 Ohms
1250W
4 or 8 Ohms Bridged
2500W
25V line operation
625W
25V line operation
625W
70V line operation
1250W
100V line operation
1250W
Switch mode power supply
85V to 240V Auto-sensing
Mains inrush current (max for <10ms)
6A at 115V and 12A at 230V
Connector Type
L6-20
Physical inputs to DSP drive modules
4x analog, 2x AES & 4x DanteTM inputs can be routed to four DSP drive modules
Drive module input processing
Input signal routing, delay, gain, HPF, Phase, Mute EQ: 2x low shelf, 6x PEQ / band pass and FIR shelving filters
Drive module output processing
Source, delay, gain, Phase, Mute, crossover filters, VX limiters EQ: low shelf, 8x PEQ / band pass and shelving filters
Preset management
10 snapshots for device wide setup, 50 presets for loudspeaker settings Presets can be recalled to sets of outputs or individual outputs as required
Overlays
Twelve additional independent overlays of EQ, Delay and Gain Flexible grouping for effective control of many amplifier channels in large systems
Hardman crossover filters
Better out of band rejection than Linkwitz-Riley
Hardman crossover filters
Unique Linear Phase alignments without the compromises of FIR filters
