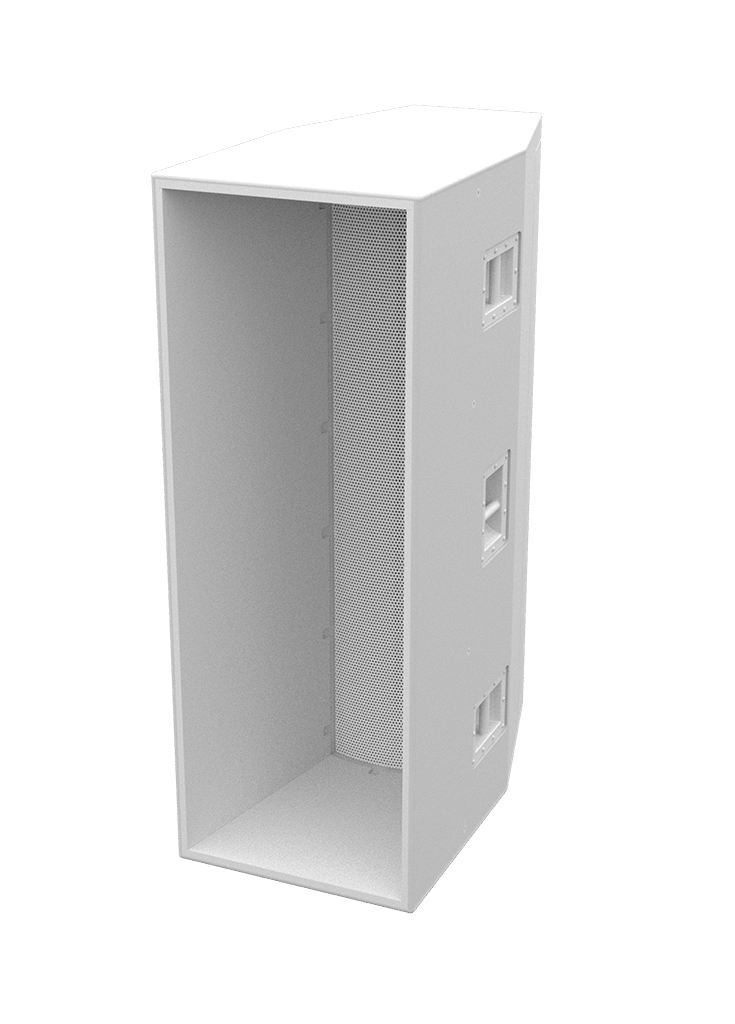

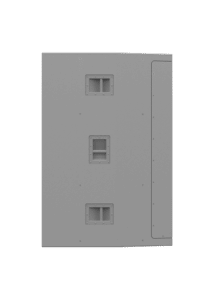

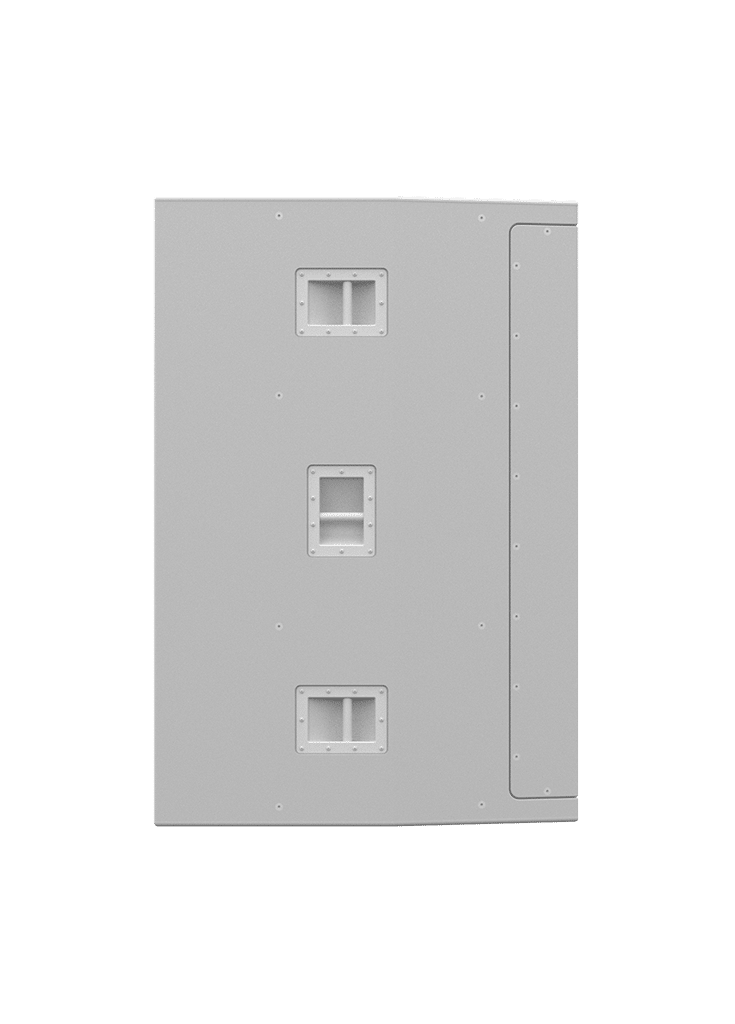

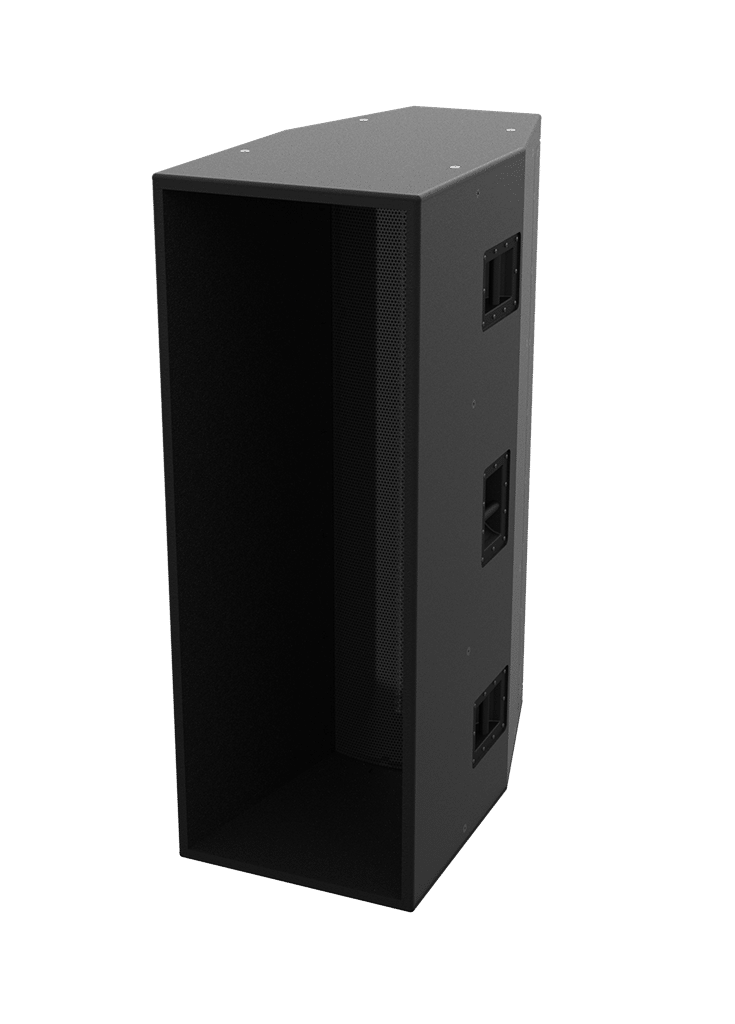

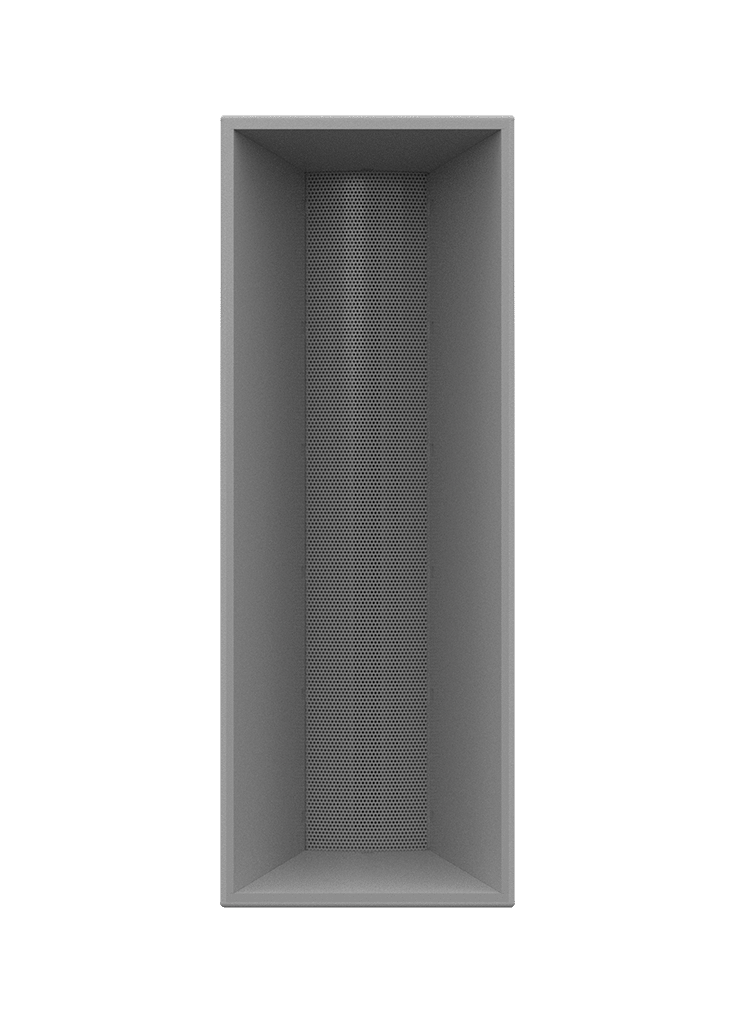

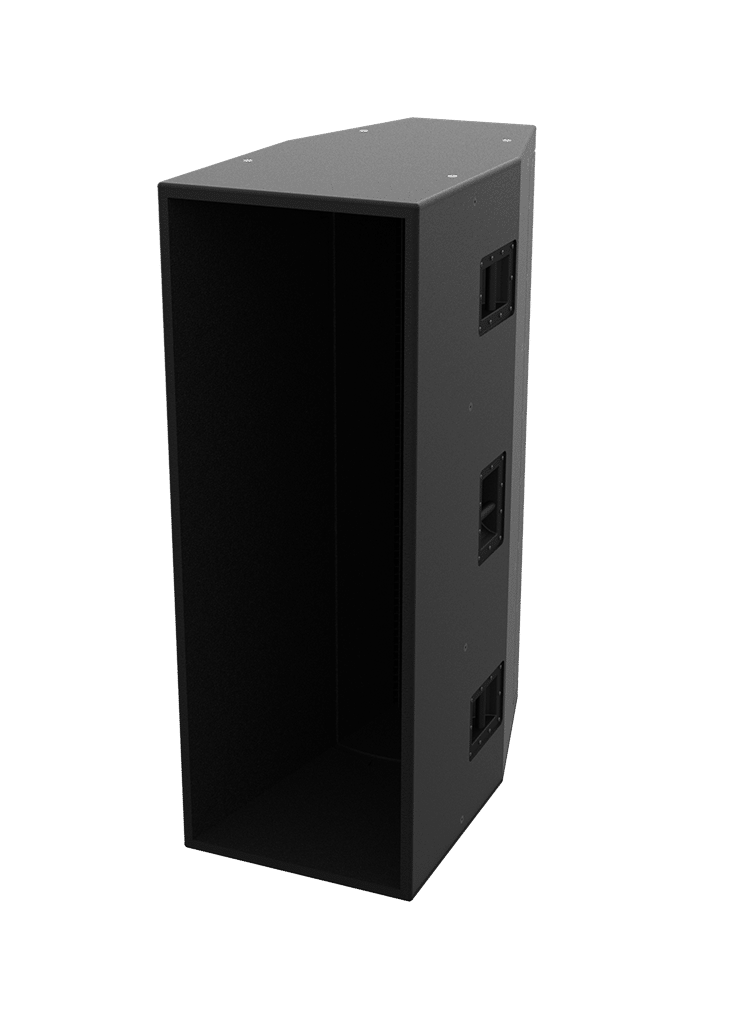

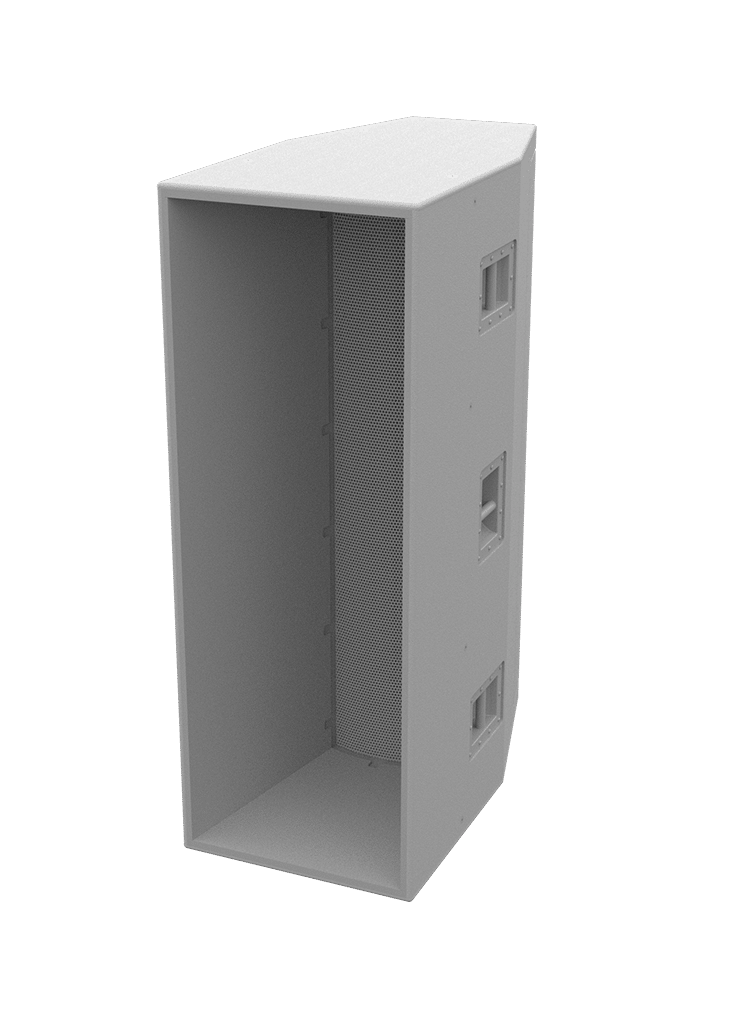

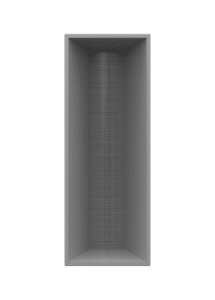

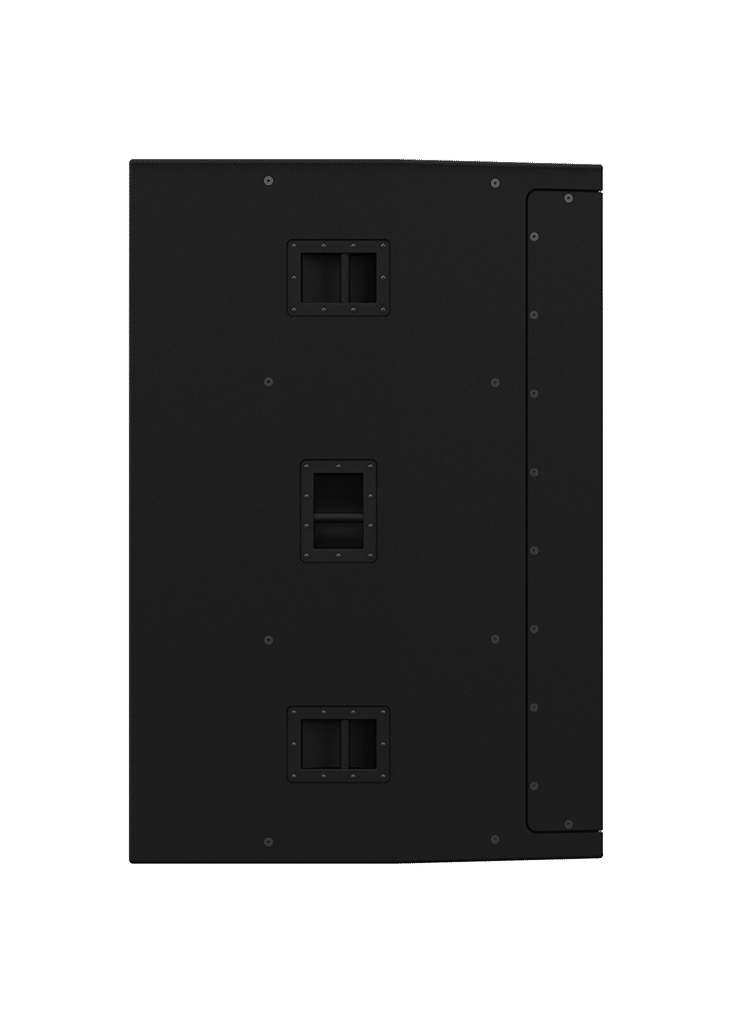

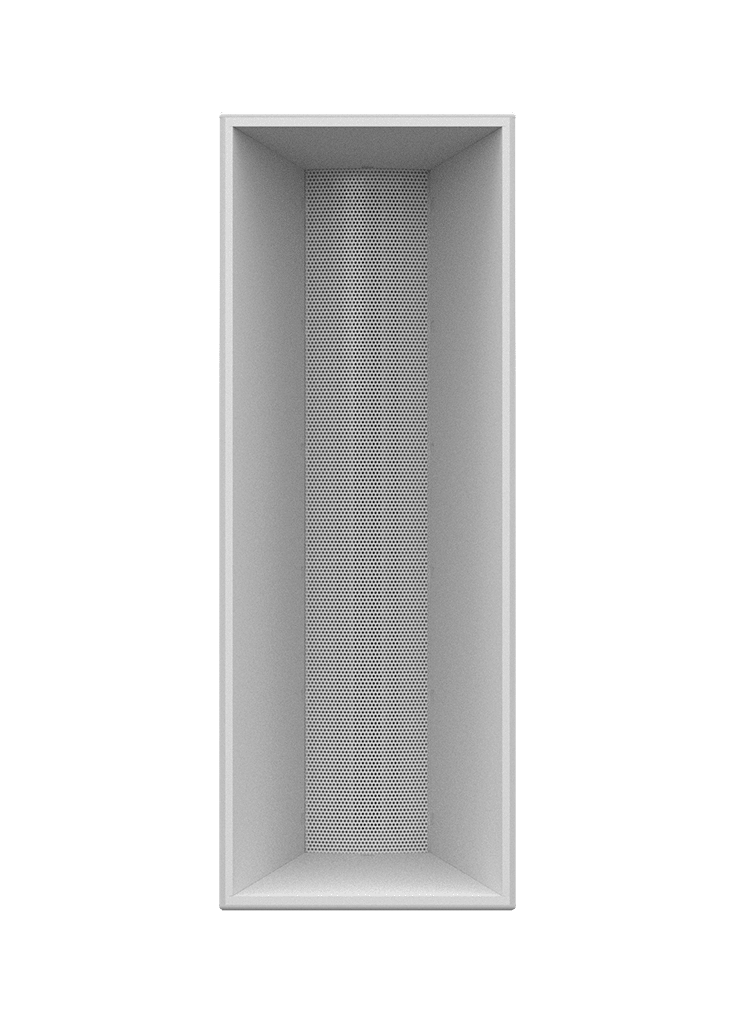

64 Compression Drivers into 1 Horn



On the evolutionary edge of technology here at Danley Sound Labs, the J4-31 boasts a whopping 64 high frequency drivers. The J4-31 will get the highs to your audience over the longest distances and in the most demanding environments!

Product Specifications

Coverage Pattern
30 deg horz by 10 deg vertical
Operating Frequency Range
1000 Hz – 18 kHz
Recommend high pass 3KHz
Continuous Output
150 dB SPL
Peak Output
156 dB SPL
120 dB SPL (2.83 Volts into rated Z, at 1 meter)
Driver Complement
64 compression drivers
60.5 x 22.5 x 41 inches
487 lbs
Rated Impedance
4 X 16 ohms
Power Rating
4 X 800 W continuous
4 X 3,200 W Peak
