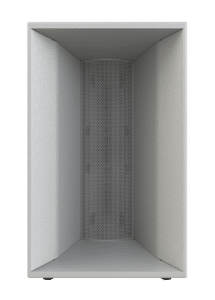

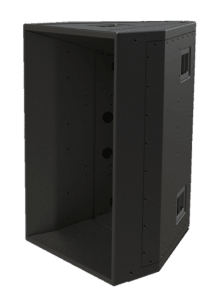

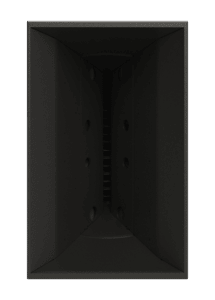

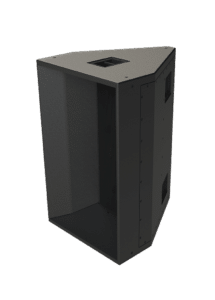

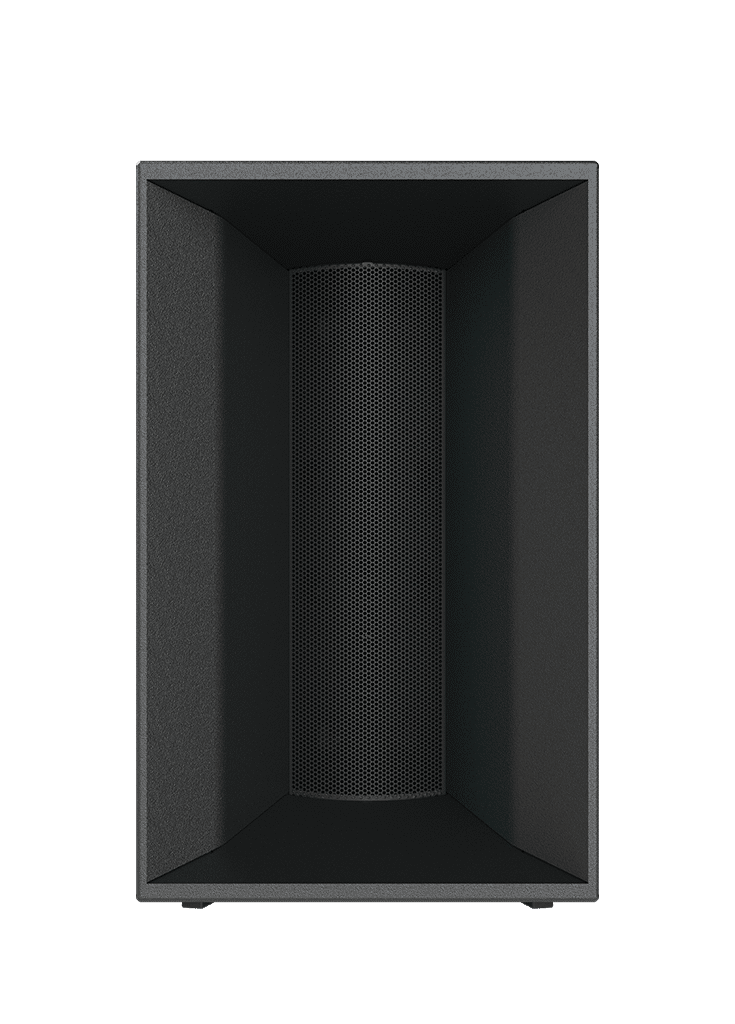

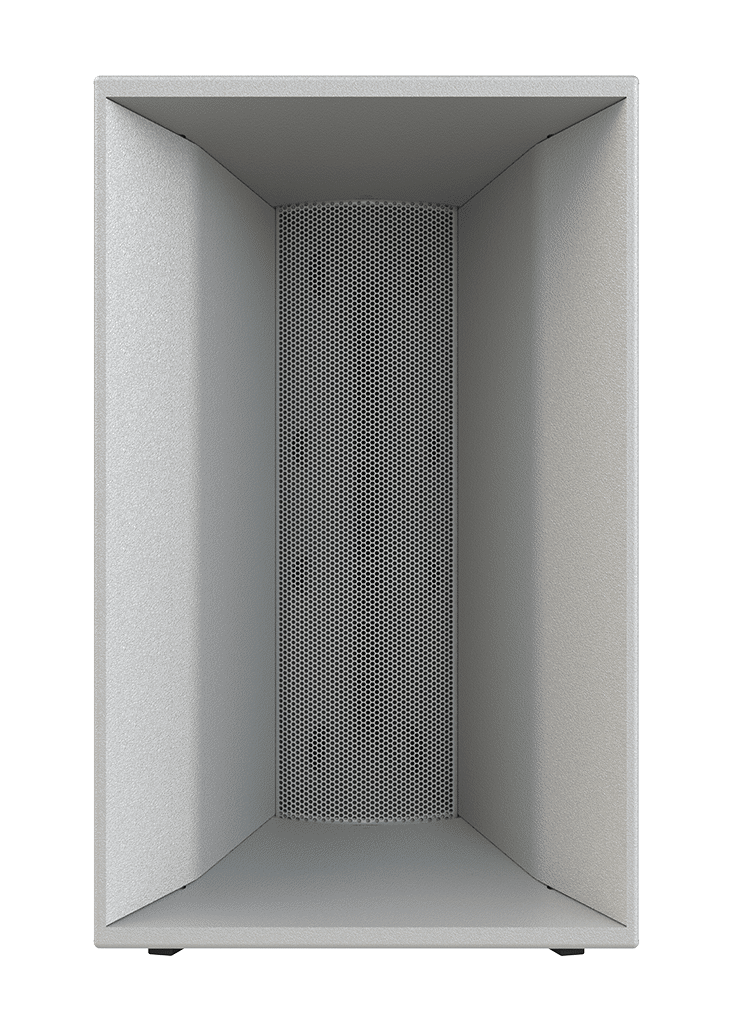

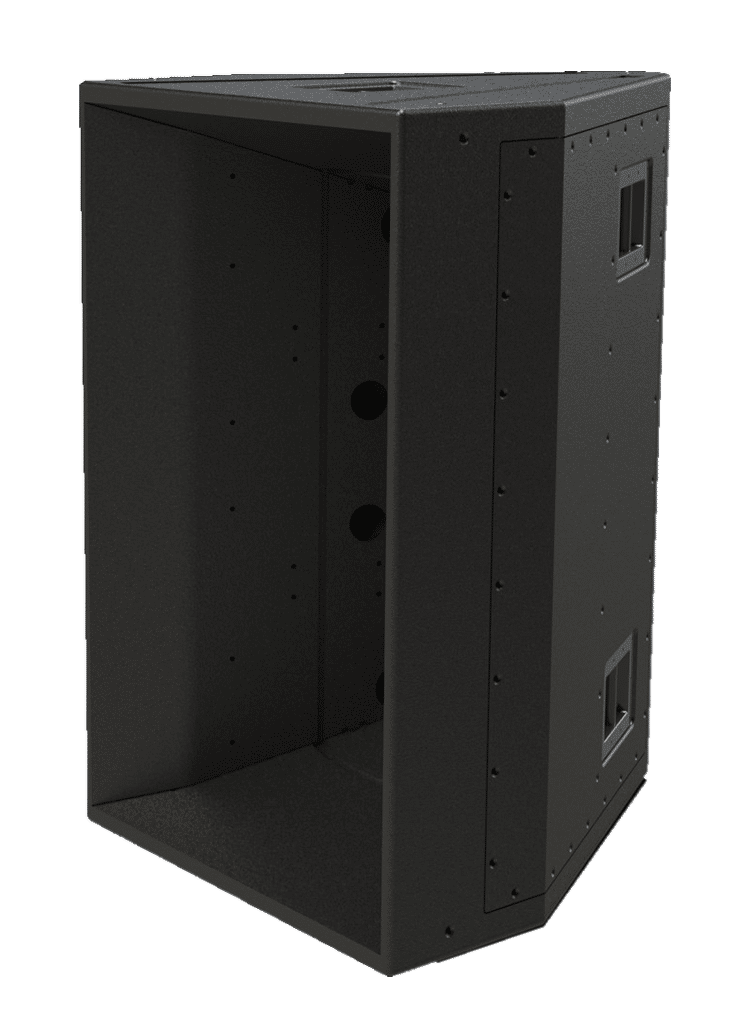

A 60 by 40 degree array-able 140 dB Box!

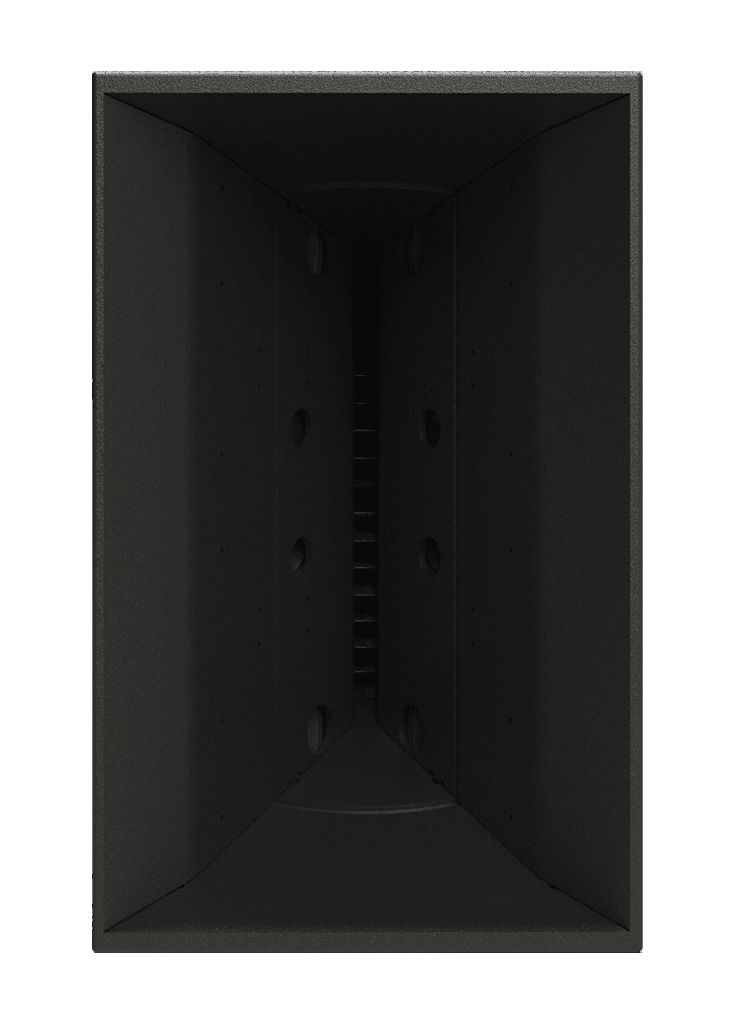

The J3-64 is a single source, high output loudspeaker capable of covering very large audiences with ultra-clear and consistent audio. Its coverage pattern is 60 degrees horizontal and 40 degrees vertical.

Product Specifications

Coverage Pattern
60 by 40
Operating Frequency Range
43 Hz – 20 kHz
Continuous Output
Band dependent, 143 dB SPL
Peak Output
Band dependent >149 dB SPL
112 dB SPL average, (2.38 volts into rated Z at 1 meter)
Driver Complement
Six 15″ woofers
eight 6.5″mids
four 1.4″ highs
30 X 35.6 X 48 inches
432 lbs
Rated Impedance
Low Freq, Two 2 ohm loads
MId range a single 4 ohm load
High, a single 4 ohm load
