Two Channel & Three Channel Weatherproof Amplifier

OS-PWR

OS-PWR

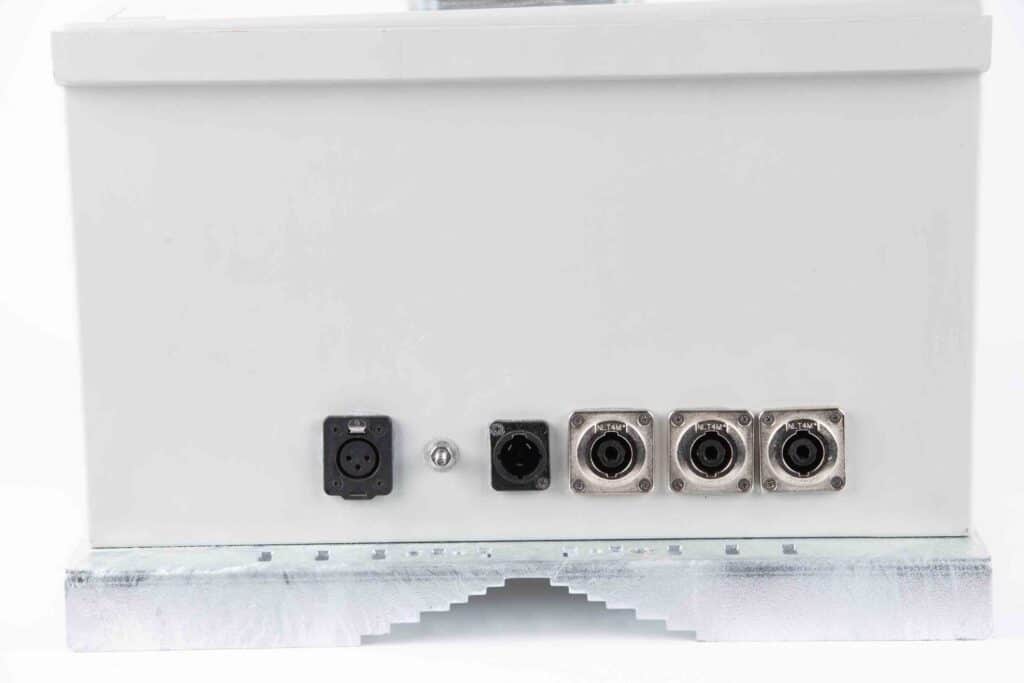

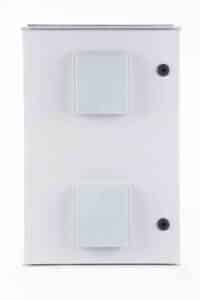

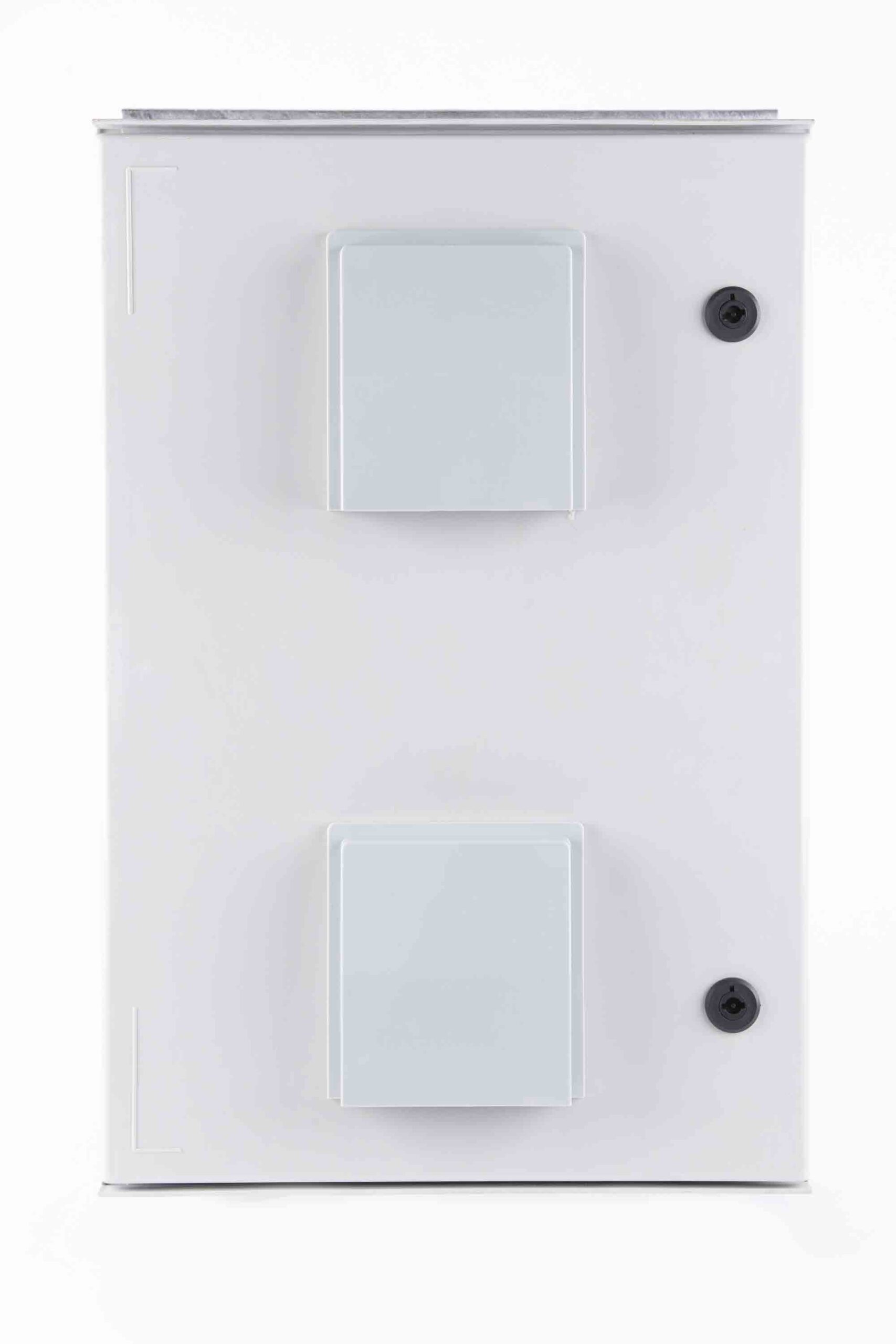

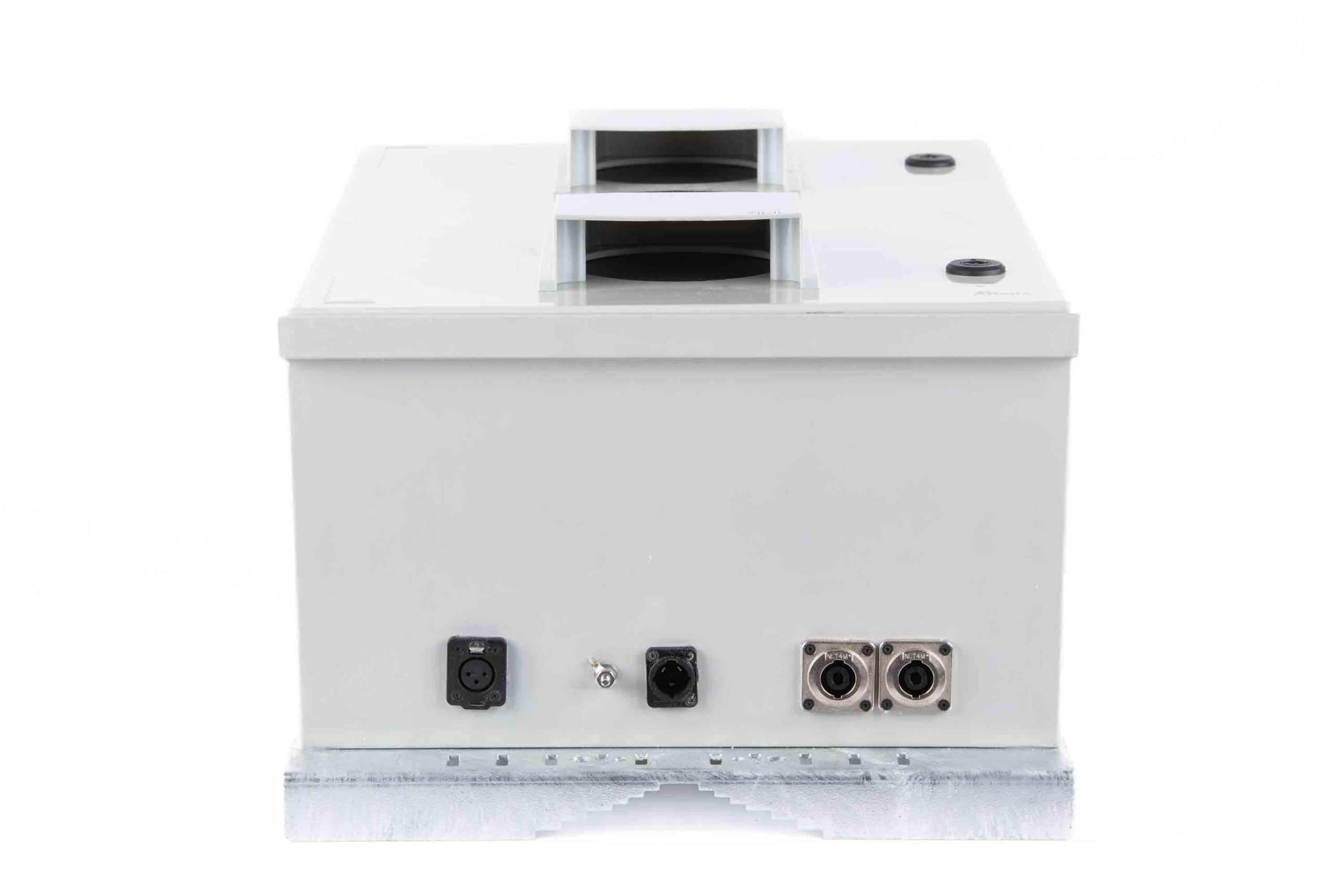

Engineered for the elements, the OS-PWR outdoor amplifier is housed in a UV-resistant, fiberglass-reinforced polyester enclosure with a fully gasketed door, drip rail, and NEMA 3R/IP24 rating.  The OS-PWR contains an optimized ventilation system, inputs and thru XLR connectors and a powerCon mains inlet-outlet connector.

The OS-PWR can be pole or wall-mounted and is now offered in two (2) models: the OS-PWR-2 and OS-PWR-3. Both versions include a high performance 96kHz 120dB 32 bit AD / DA converters and 64 bit double-precision 96kHz DSP processing with up to 2000-tap FIR filtering. The DSP can be programed directly and the user has the option to recall predefined presets quickly through the push buttons on the front panel. Also, the OS-PWR comes outfitted to include USB and 2-ports Ethernet switch for an easy daisy chain connection which permits the control and monitoring of all speakers through an application.

In addition, both versions can be outfitted with Danley’s new Wireless Link System to connect your loudspeakers from the press box to the visitors’ side with no cabling required.

From stadiums to theme parks, the OS-PWR delivers unshakable performance in the most unforgiving environments. This is outdoor amplification redefined. Only from Danley Sound Labs.

Limited quantities of the original OS-PWR are still available. Please inquire with a sales team member or dealer for more details if interested.

Product Specifications

Number of Channels
Two (OS-PWR-2) / Three (OS-PWR-3)
Total Power Output
OS-PWR-2 (8 Ohms [CH A. – 1500W, CH B. 1500W], 4 Ohms [CH. A 3000W, CH. B 3000W], 2 Ohms [CH A. – 1500W, CH B. – 1500W])

OS-PWR-3 (8 Ohms [CH A. – 400W, CH B. – 400W, CH C. 1500W], 4 Ohms [CH A. – 750W, CH B. – 750W, CH C. – 3000W], 2 Ohms [CH A. – 1500W, CH B. – 1500W, CH C. – 1500W})
Audio Inputs
OS-PWR-2 – 2x Neutrik Audio Inputs
OS-PWR-3 – 3x Neutrik Audio Inputs
Model
OS-PWR
Overall Performance
High Performance 96 kHz 120dB 32 bit AD/DA converters, 64 bit double precision 96 kHz DSP process, 0.6ms minimum process latency time, up to 2000 taps custom FIR process
Crossover Filters
FIR and IIR (up to 48dB/oct, Butterw./LR/Bessel)
Output Delay
Up to 40m. (116ms) / channel, shared with Input Delay
Output IIR EQ
12 filters per channel (Param. Shel, LP, HP, BP, SB, AP)
Output FIR EQ
20 filters per channel (Parametric, Shelving, LP, HP, BP, SB, AP) or custom up to 2000 taps
Other Features
RMS and Peak limiter per channel, Optional virtual gain / delay control in user level
Communications
Two ports ethernet switch for daisy chain connection / USB 2.0 Type B port
Output Noise
20 Manufacturer preset memories library, 5 User preset memories library, 4 Quick Preset selection, Manufacturer / User passwords, Independent selectable output power per channel (Z dependent), User control groups for virtual EQ (20 filters), Gain and Delay, Zone management for library, stand-by
Container Features
UV resistant fiberglass reinforced polyester (FRP) construction, fully gasketed door, drip rail to prevent water incursion, (2) 4″ vents with rain shrouds and aluminum screens (cleanable), dual quarter-turn door latches with removable keys, NEMA type 3R, 3RX / IP24, cable gland nuts for input and output
Danley Products

Outdoor Loudspeakers

Just as audio reacts differently in different venues, adding the outdoor element produces unique challenges to producing perfect sound quality. And yet Danley has the understanding and technology to deliver exactly what you require – no matter your needs. The OS-PWR-2 and OS-PWR-3 were both developed considering the use and mounting of Danley OS loudspeakers and subwoofers and inclusive of the new PMK-2-HD mount allowing for two Danley OS loudspeakers and a weatherized Danley subwoofer to be mounted for outdoor use.
