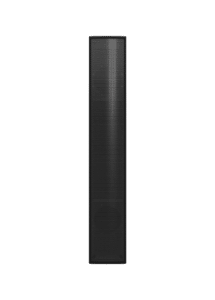

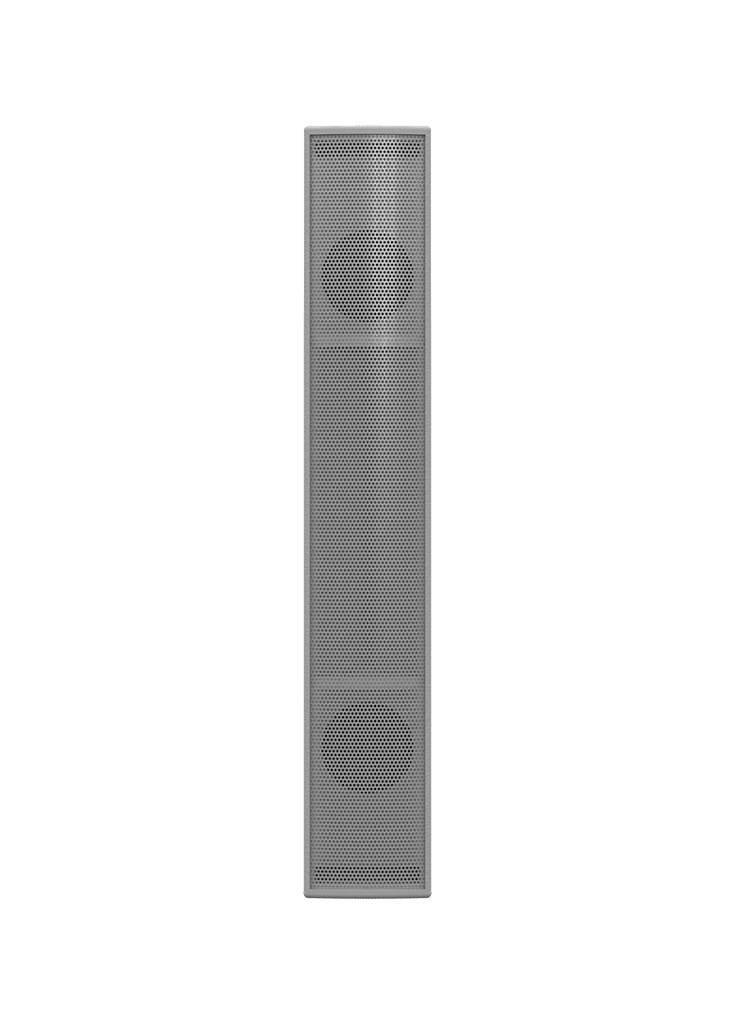

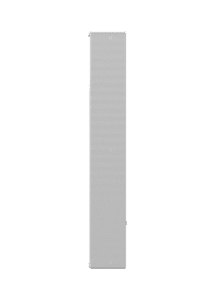

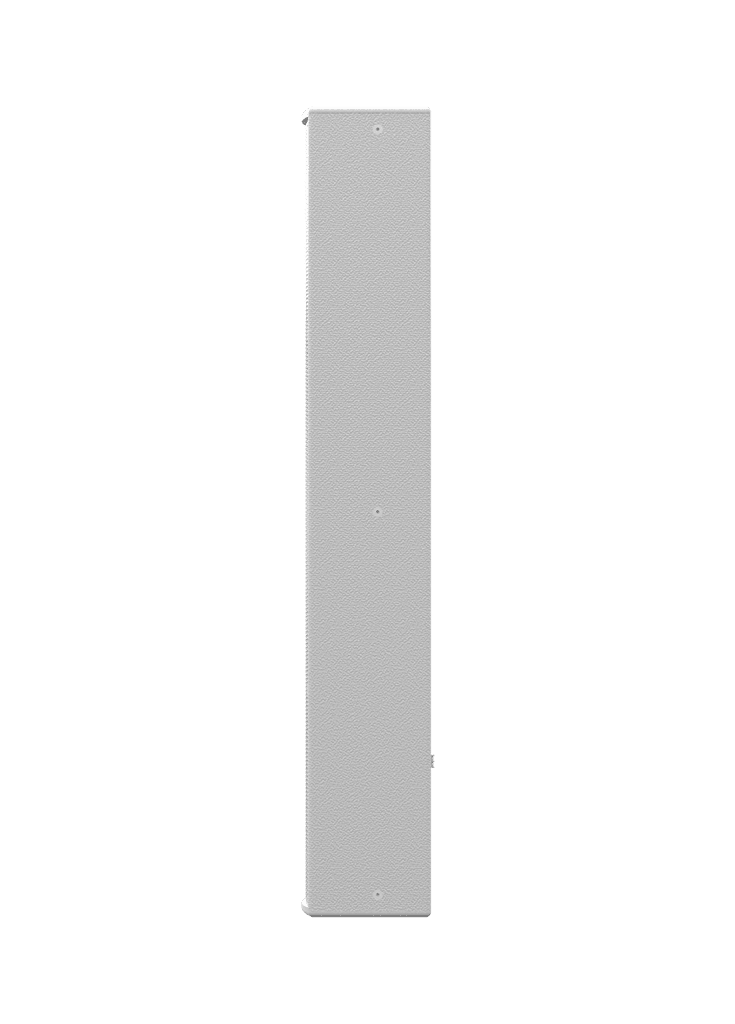

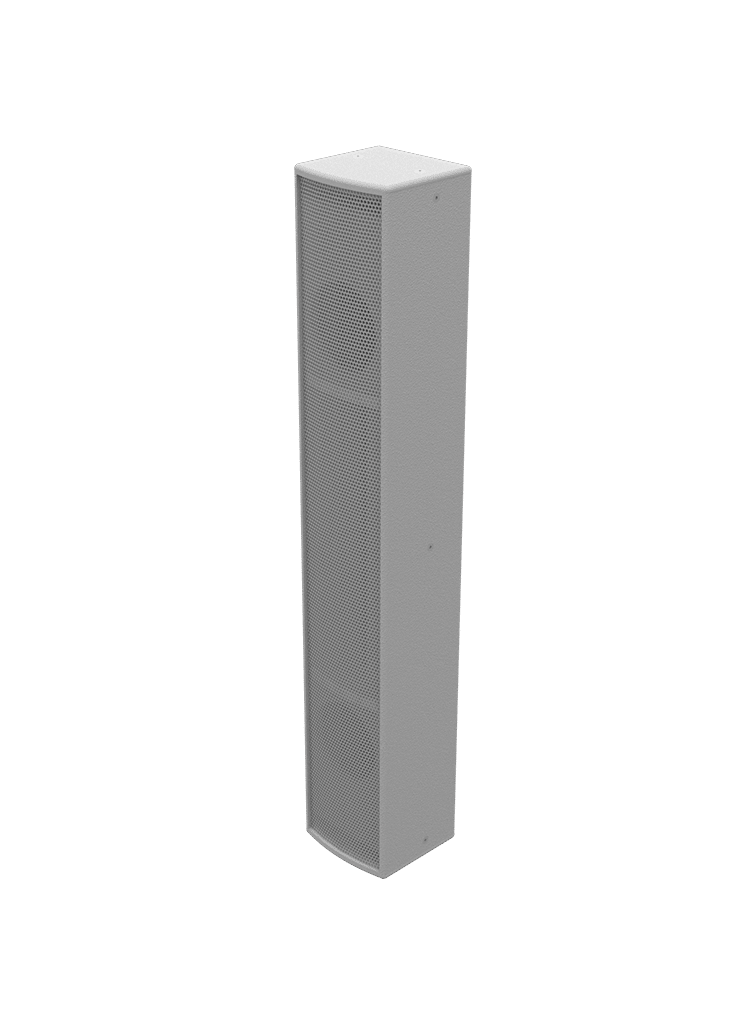

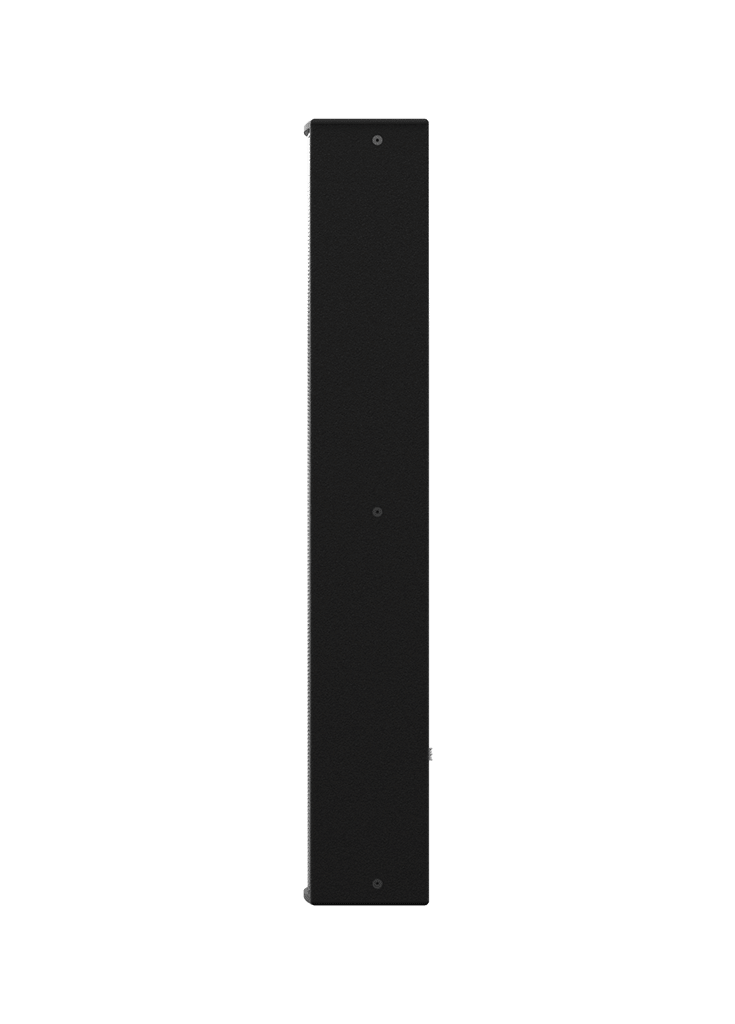

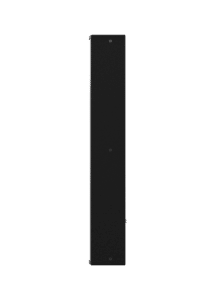

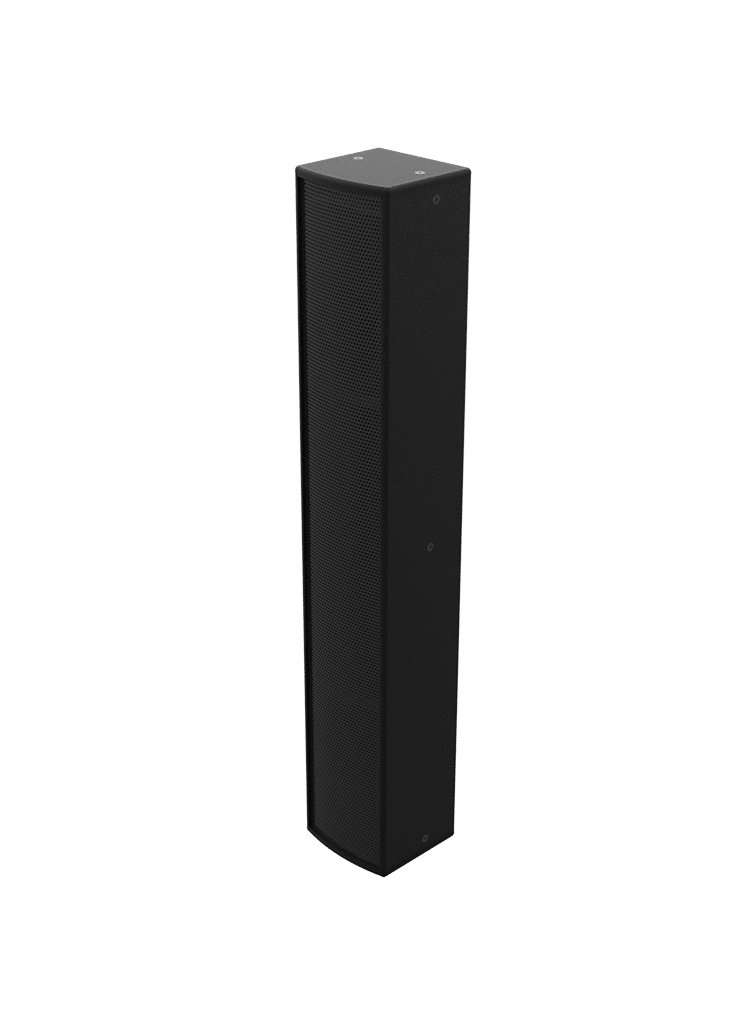

SBH20LF
SBH20LF
This loudspeaker delivers high fidelity and intelligibility in difficult spaces with extremely high directivity – and does so with no side lobes and no complicated DSP. Our patented technologies yields superior performance with unparalleled pattern control, no spurious lobes and no complicated processing for proper performance.
Product Specifications
coverage Pattern
120° horizontal
20° vertical
20° vertical
operating frequency range
68 Hz – 14.3 kHz +/- 3 dB
54 Hz – 16 kHz -10 dB
54 Hz – 16 kHz -10 dB
continuous output
124 dB SPL
peak output
130 dB SPL
sensitivity
99 dBSPL measured at 10M @ 28.3V input
driver complement
Low 2 x 8″
High 4 x 5” Coaxial, Paraline Horn Loaded
High 4 x 5” Coaxial, Paraline Horn Loaded
dimensions
60”H x 10”W x 9”D
weight
90lbs
Rated Impedance
4 ohms
Power Rating
700 Watts Cont.
2800 Watts Peak
2800 Watts Peak
