A flexible option for front fills or small stages

SH110

SH110

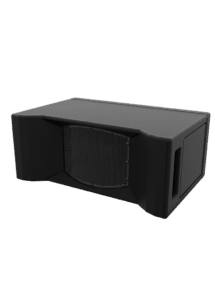

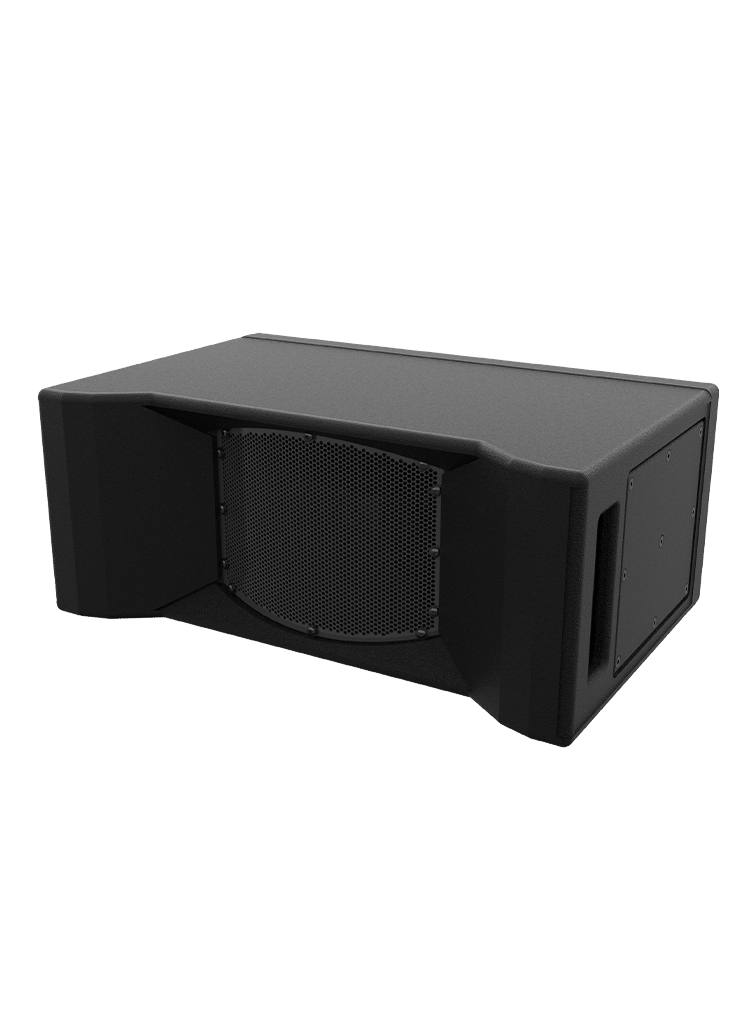

The SH110 is a 2-way, passive loudspeaker designed as a front fill. The SH110-4 includes 2 x 8″ low-frequency drivers and a 1.4″ exit high frequency compression driver, all mounted within a single 110° x 60° horn. Utilizing our patented Synergy Horn™ technology, we uniquely place drivers within the horn in unison with a Synergy crossover network to allow for proper phase alignment between frequency bands. This permits the physically separated bands to combine and emerge from the horn as a single source, greatly reducing off axis distortions in frequency response and allowing for greater clarity at long distances. Furthermore, out of band harmonic distortion is reduced by the use of acoustic low pass filters on the low and mid frequency drivers.

The 13-ply Baltic Birch used throughout the enclosure is encased PolyUrea for protection from impact and atmospheric conditions. Install and touring versions are both equipped with multiple M10 rig points. Our EW (Extreme Weather) variant offers the ultimate in protection from the elements due to the use of high-density polyurethane panels impregnated with fiberglass fibers in the place of standard plywood.

As an added layer of protection we include our Sentinel™ high frequency driver protection circuitry which is a multistage limiter that protects the high frequency driver in the event of overloads (peaks or long term). It is inaudible during normal operation, so dynamic range is not compromised. Utilize our DNA amplifiers or processor for maximum performance and protection with industry leading DSP capabilities.

Product Specifications

Coverage Pattern
110˚horizontal x 60˚ vertical
Operating Frequency Range
360 Hz – 15 kHz, -3dB
90 Hz – 20 kHz, -10dB
Operating Mode
two-way single channel amplified
Transducers
2 x 8″ low frequency, 1 x 1.4″ high frequency
Power Handling
500 watts continuous | 2000 watts peak
Sensitivity
measured as 2.83V @ 1 meter distance – 104 dB
Maximum SPL
128 dB continuous | 134 dB peak
Impedance
4 ohm
Recommended Power Amplifier
1000 Watts
Connections (SH110 install / touring)
(2) Neutrik NL 4 Speakon wired in parallel
Pin 1 +/- | Full Range
Pin 2 +/- | Pass Through
Connections (SH110 – install / EW)
1 x 2 conductor lead-in wire
Mounting / Suspension Points
(2) M10 yoke points (SH110 install / EW)
M10 rigging points
Dimensions / Weight
24 in. x 10 in. x 15.5 in. | 611 x 254 x 194 mm
42 lbs | 19 kg
Finish

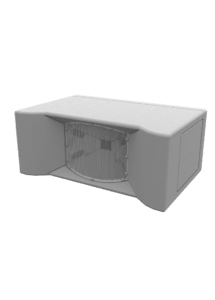

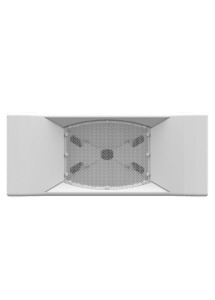

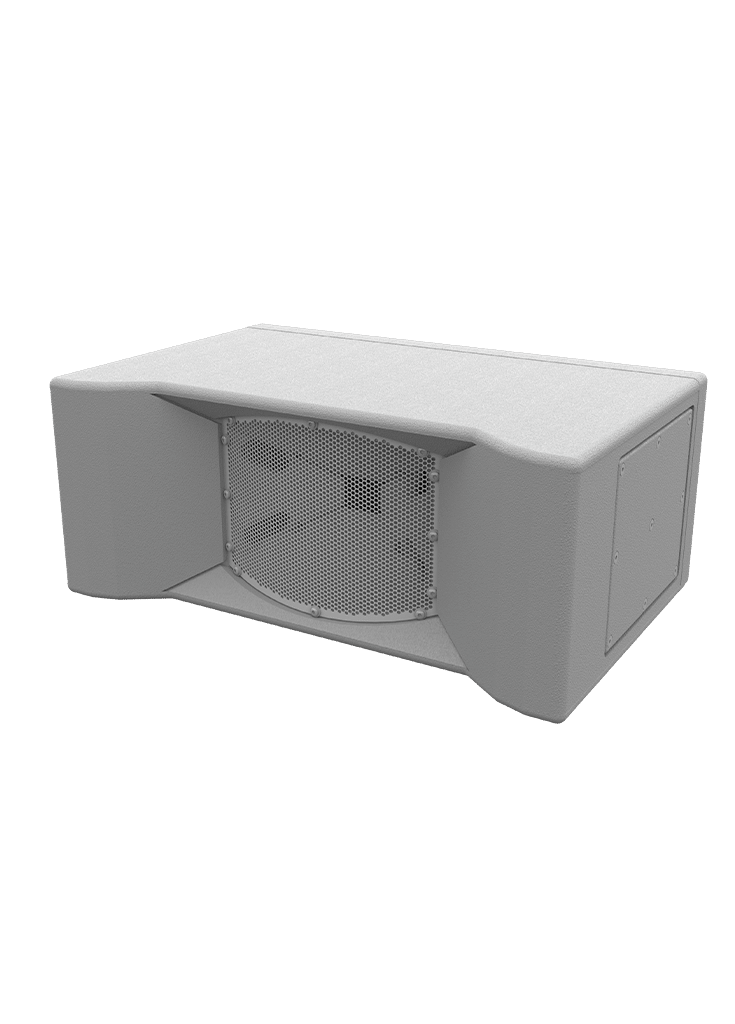

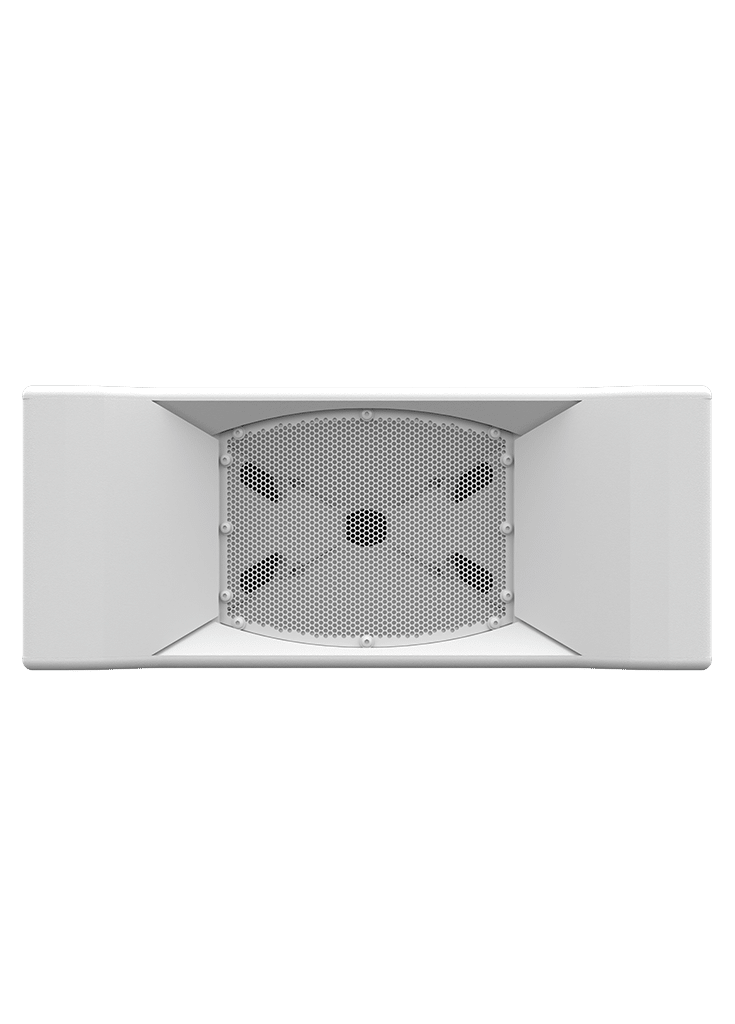

black polyurea coated enclosure with matte black grille / white polyurea coated enclosure with matte white grille / gray UV resistant painted enclosure with matte gray grille
Enclosure Material
18mm Baltic Birch, polyurea coated
Options
SH110 I-EW | Extreme Weathered Version
SH110-I | Install Version
SH110-T | Touring Version
Accessories

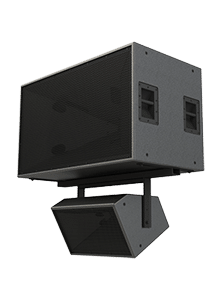

BRKT-95 – U-Bracket for SH110-4/16/SH95
