Small stature, huge fidelity

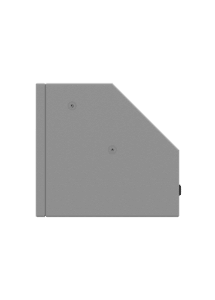

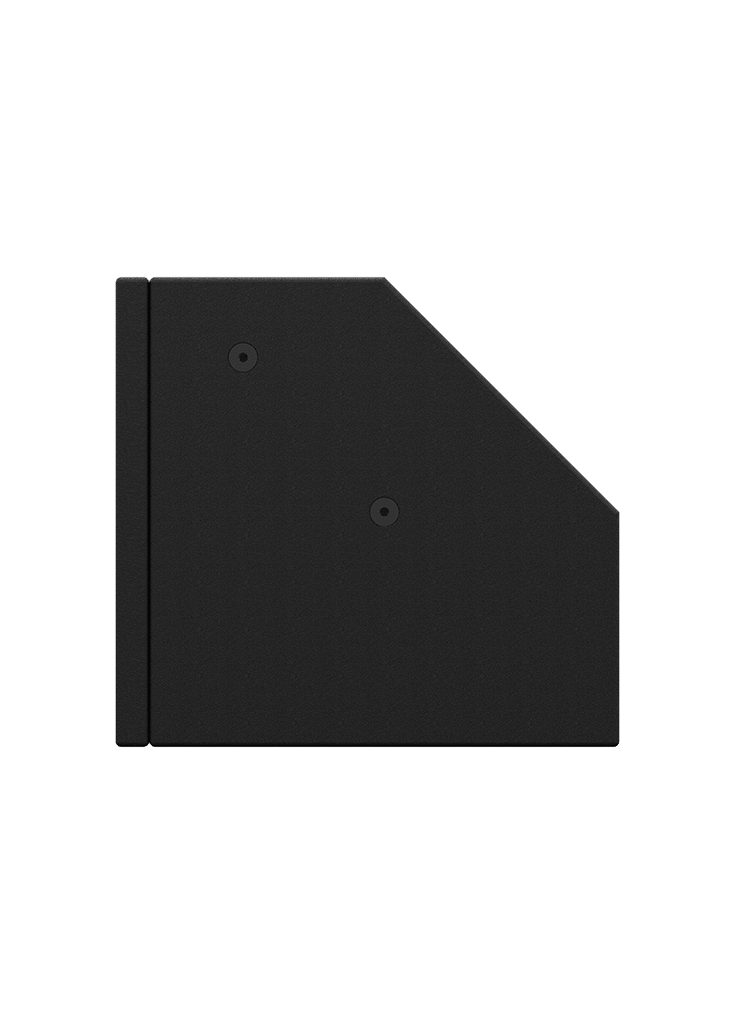

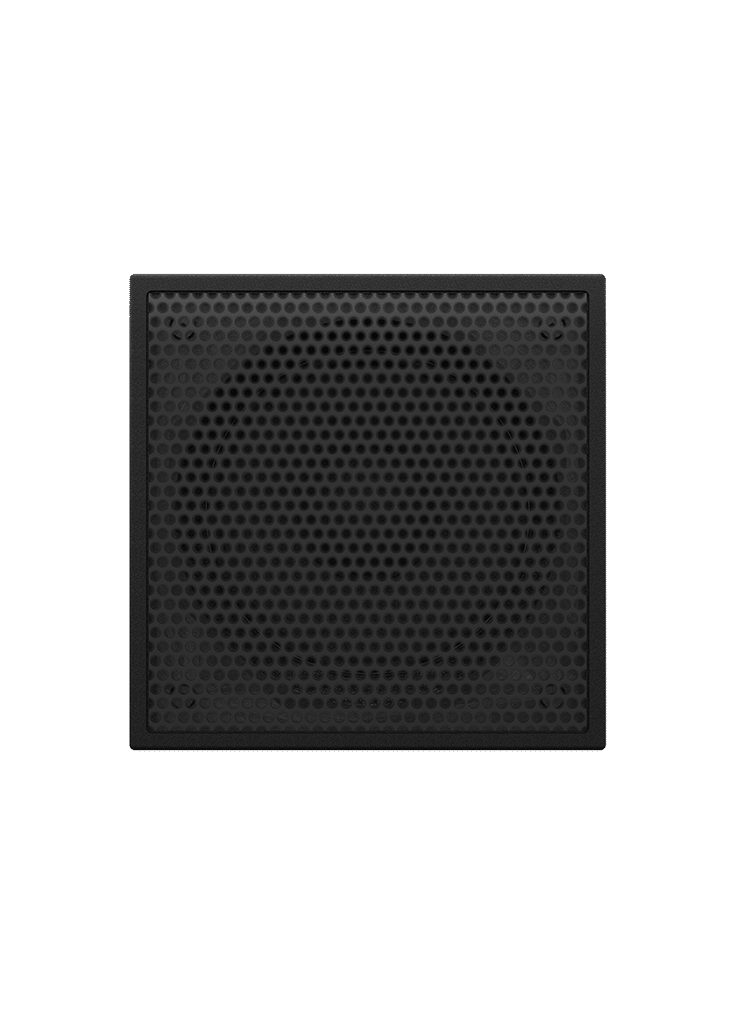

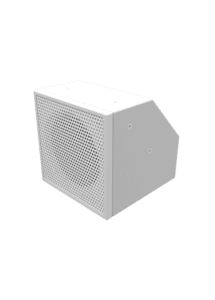

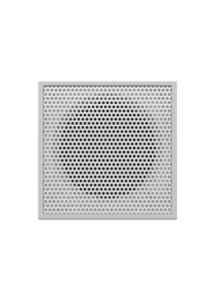

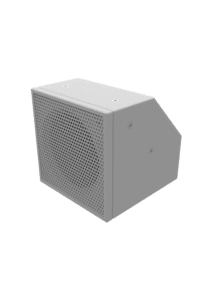

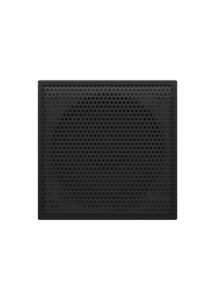

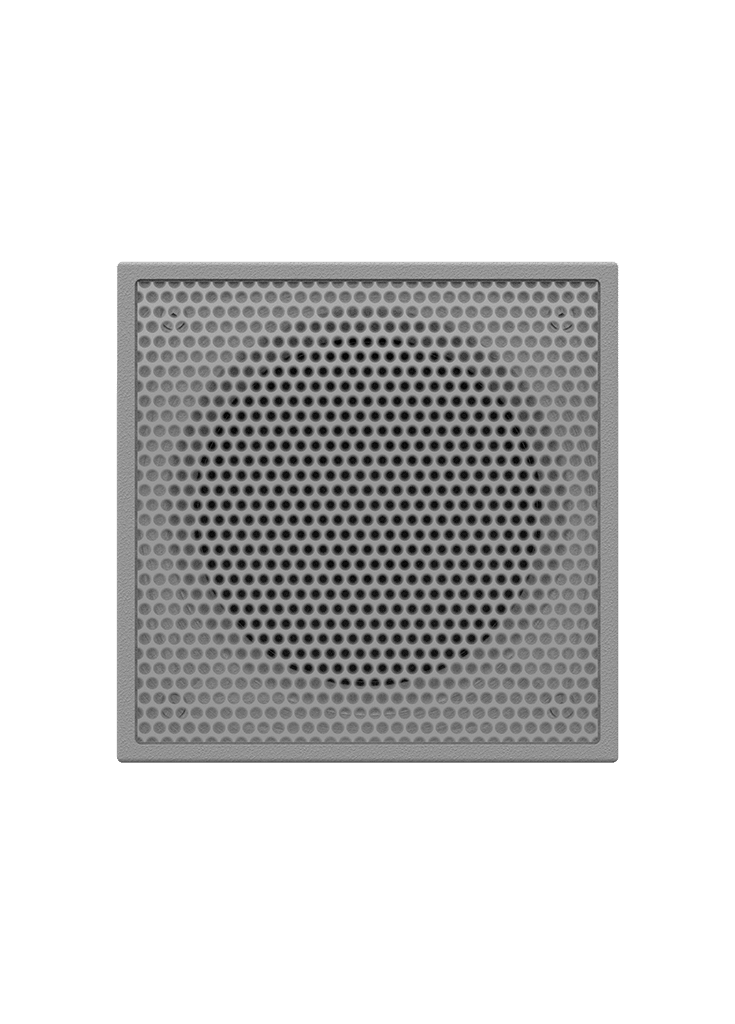

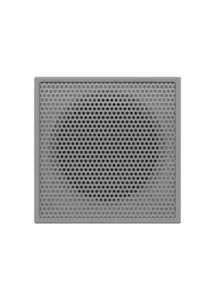

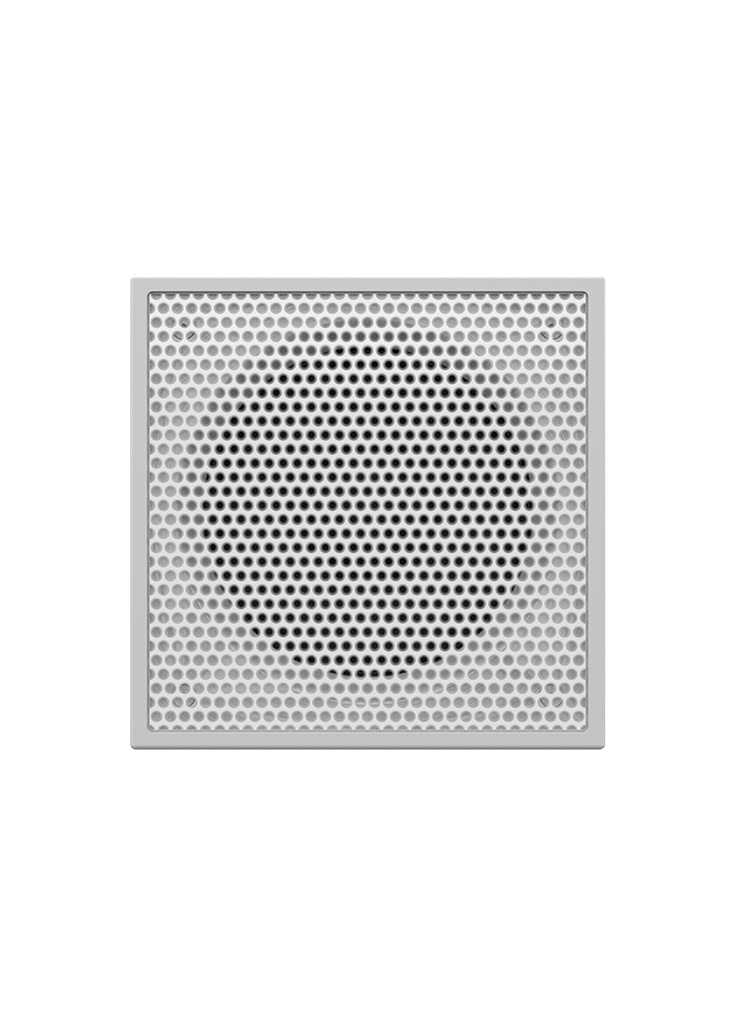

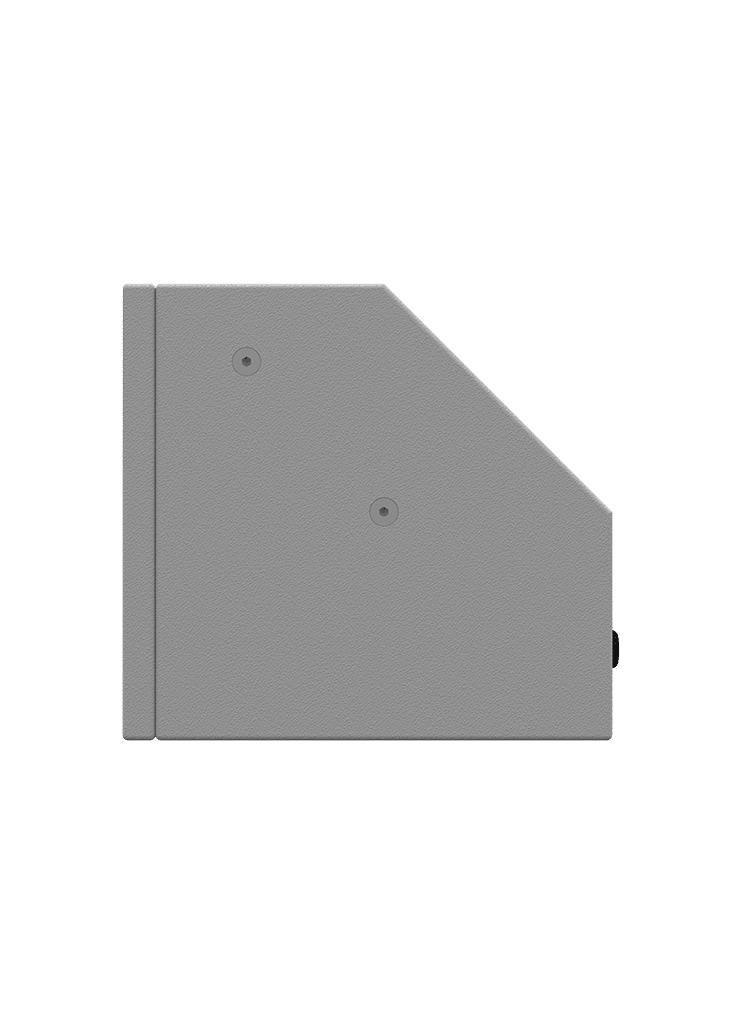

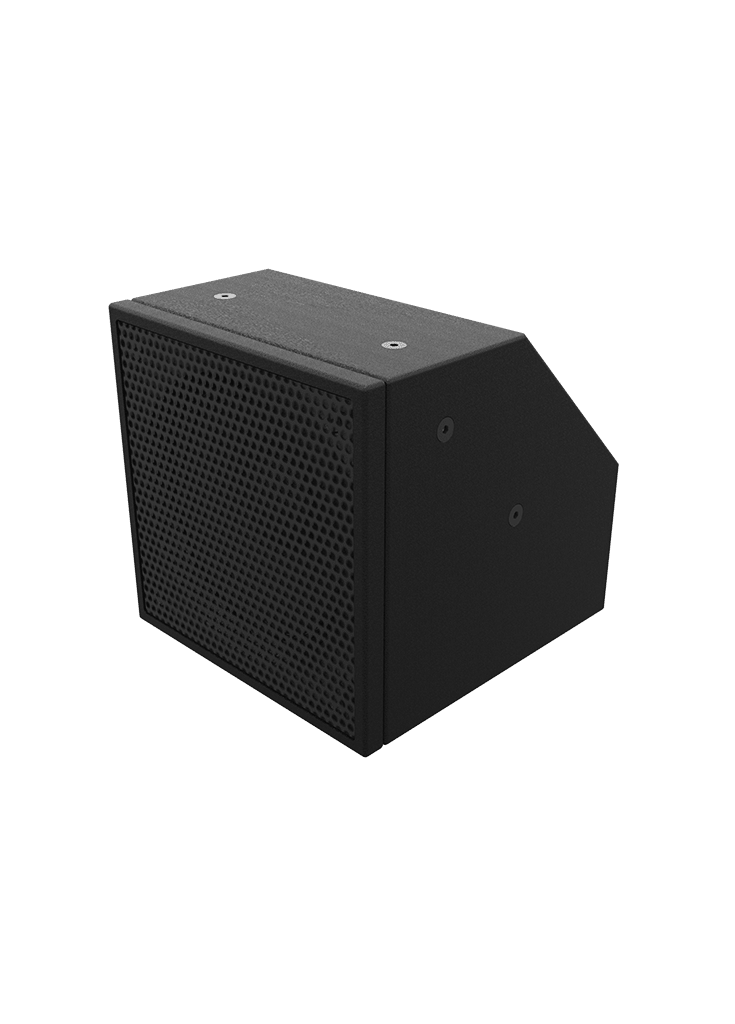

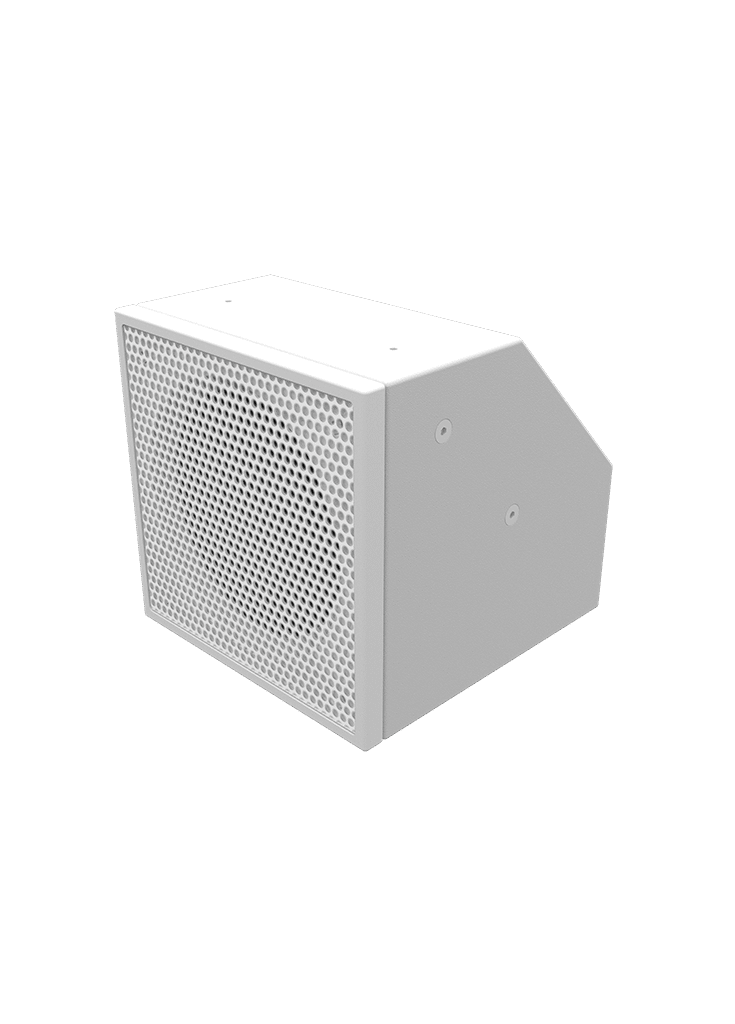

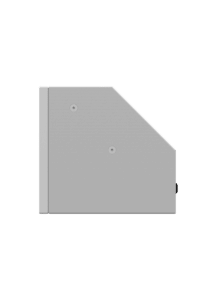

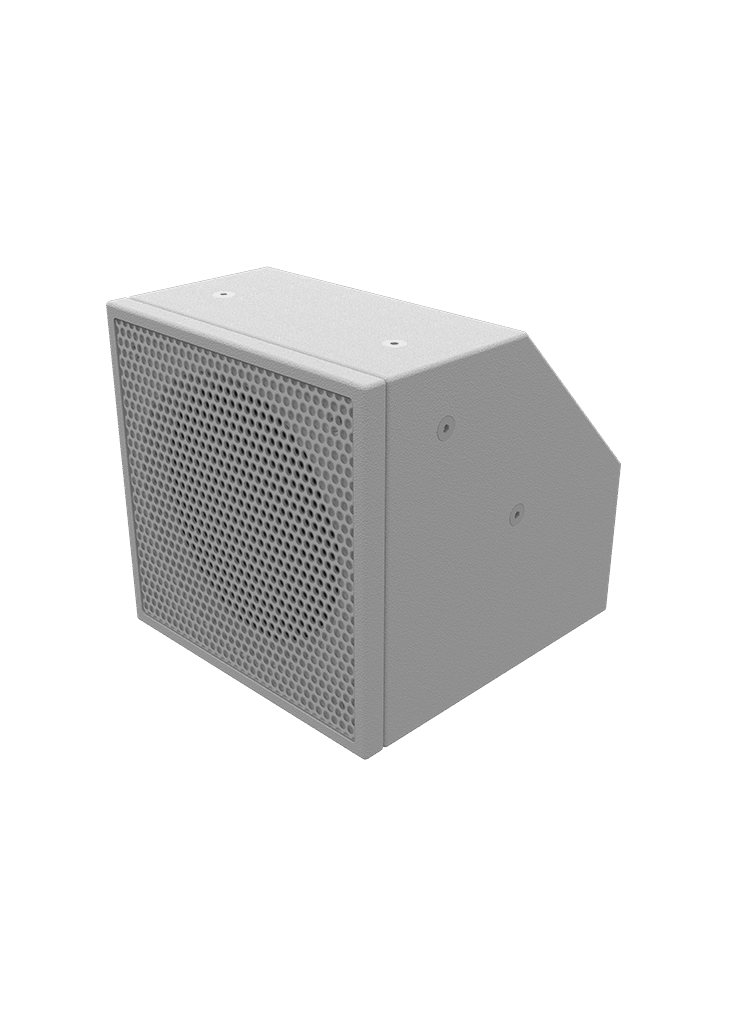

SH Mini

SH Mini

This little workhorse offers small stature but huge fidelity in a full range of situations. A miniature loudspeaker designed for any application that requires wide coverage and great sound, additionally the SH Mini can be used as a very compact floor monitor that offers impressive clarity.

Product Specifications

Coverage Pattern
100˚ conical
Operating Frequency Range
125 Hz – 18 kHz +/- 3dB
88 Hz – 20 kHz – 10dB
Continuous Output
111 dB SPL
Peak Output
117 dB SPL
88 dB SPL (2.83 Volts into rated Z, at 1 meter) measured in free space
Magnitude Response
125 Hz – 18 kHz
Driver Complement
1 x 8″ coaxial
10 x 10 x 10.5 inches
22.5 lbs
Rated Impedance
8 Ohms
Power Rating
200 Watts Cont.
800 Watts Peak
Danley Products

SH Family of Products

Tom Danley’s patented Synergy Horn™ fundamentally changed the audio business.
