Low Profile Stage Monitor

SM LPM

SM LPM

Due to the large horn mouth, the Danley SM LPM offers substantial directivity with front to back rejection and high gain before feedback. High frequencies are very smooth throughout the coverage pattern and there is no beaming. The SM LPM sets a new benchmark in floor monitor loudspeakers. It is provided with 2 NL4MP connectors contained within each recessed handle.

Download User Manual
Download Spec Sheet
Download 2D / 3D Files

Specifications

Coverage Pattern
110˚ conical
Operating Frequency Range
60 Hz- 20 kHz +/- 3dB
52 Hz- 24 kHz – 10dB
Continuous Output
120 dB SPL
Peak Output
126 dB SPL
Sensitivity
95 dB SPL
(2.83 Volts into
rated Z, at 1 meter)
measured in half space
Magnitude Response
60 Hz- 20 kHz
Driver Complement
1 x 8″ coaxial
Dimensions
13.6 x 21.5 x 18 inches
Weight
41 lbs
Rated Impedence
8 Ohms
Power Rating
300 Watts Cont.
1200 Watts Peak
Danley Products

The Perfect Stage Monitor

To experience pure, natural, and uncolored sound, there is no better method than through a Danley loudspeaker. Our groundbreaking innovation produces full range and monitor loudspeakers that deliver crystal clear reproduction.

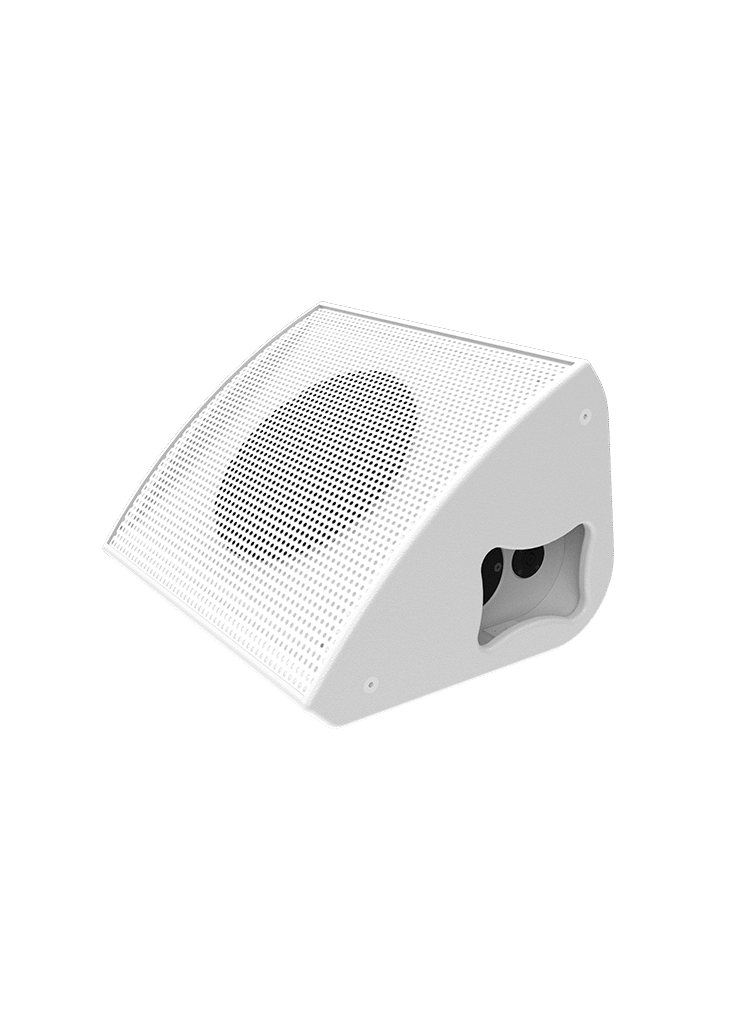

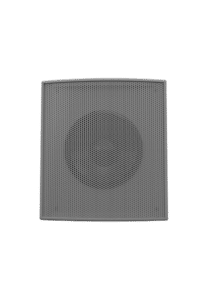

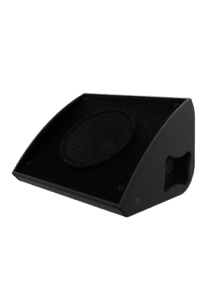

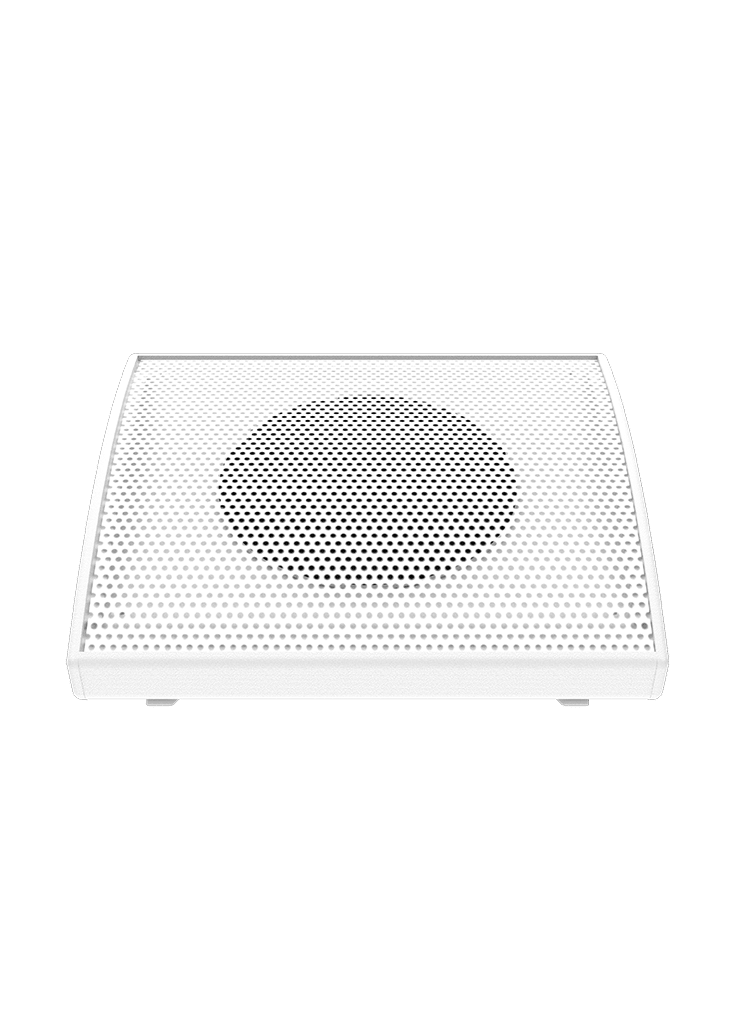

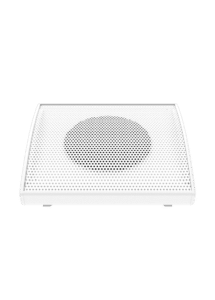

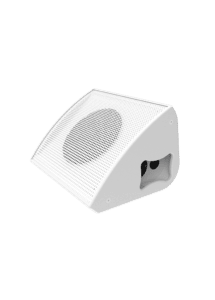

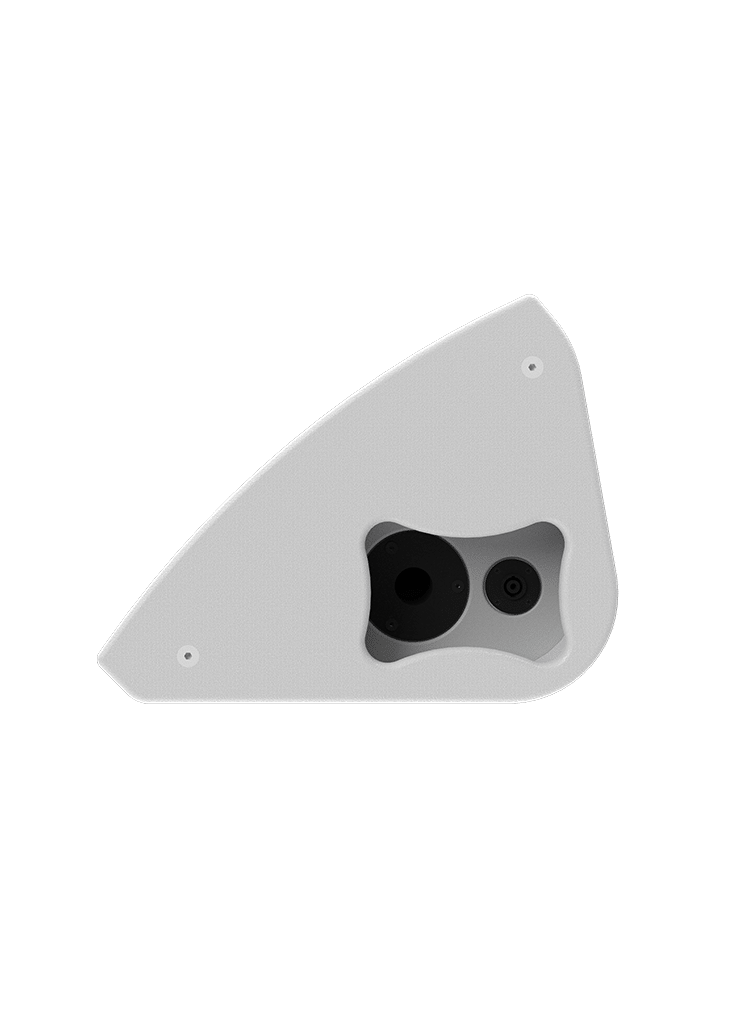

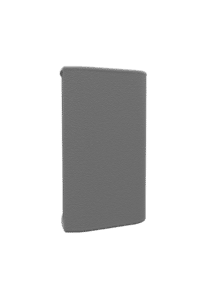

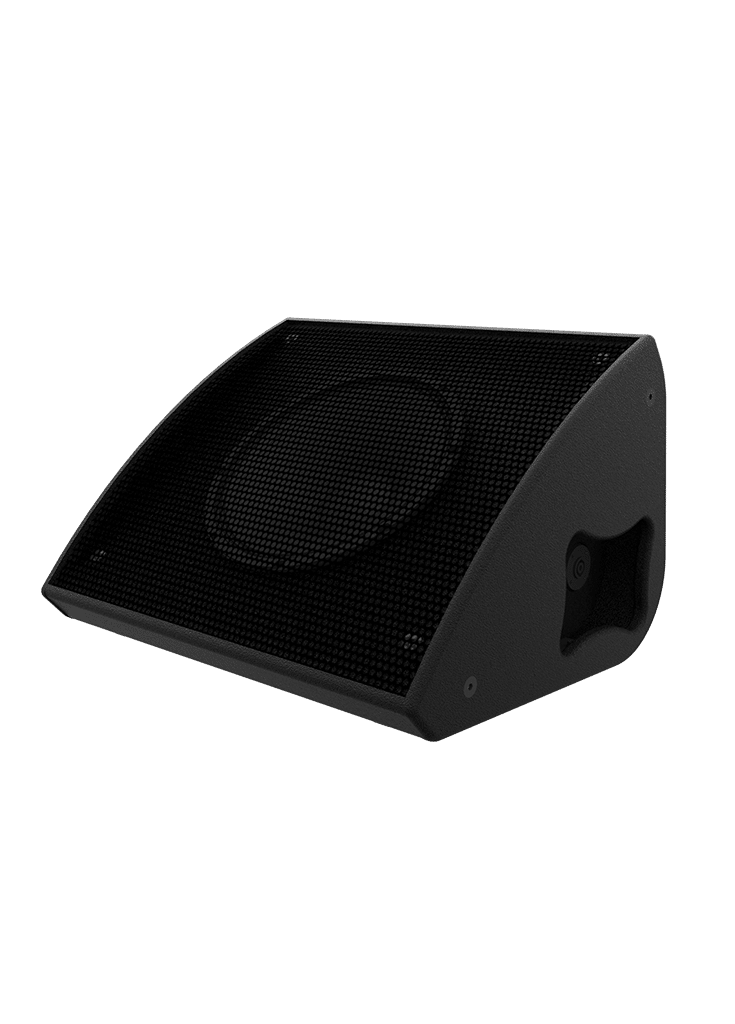

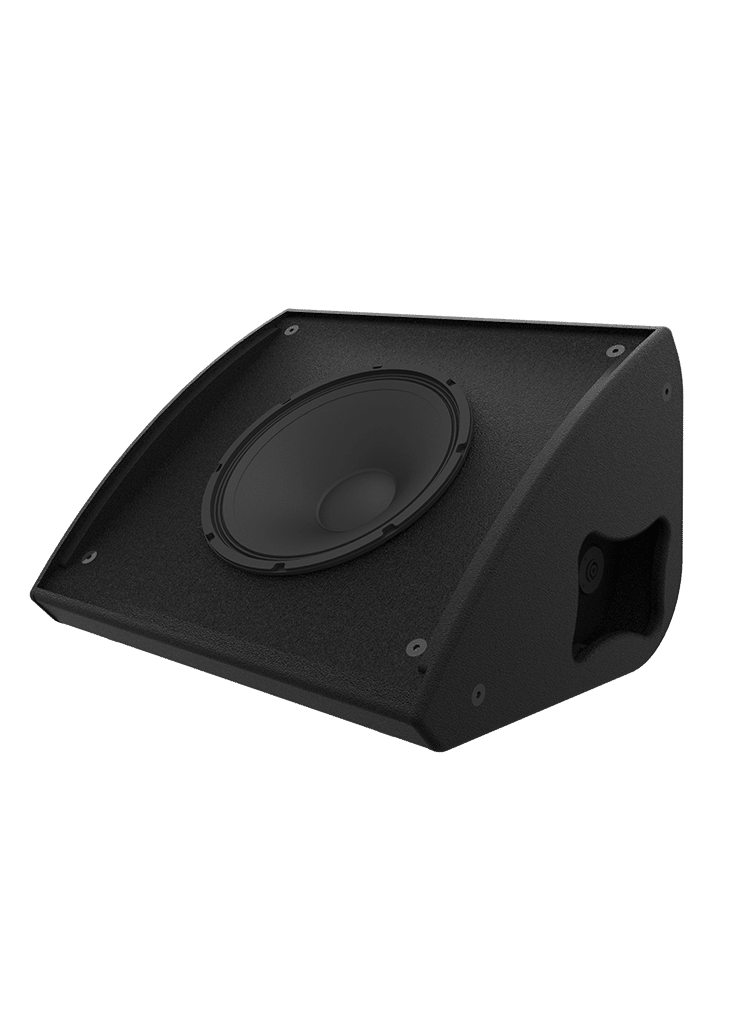

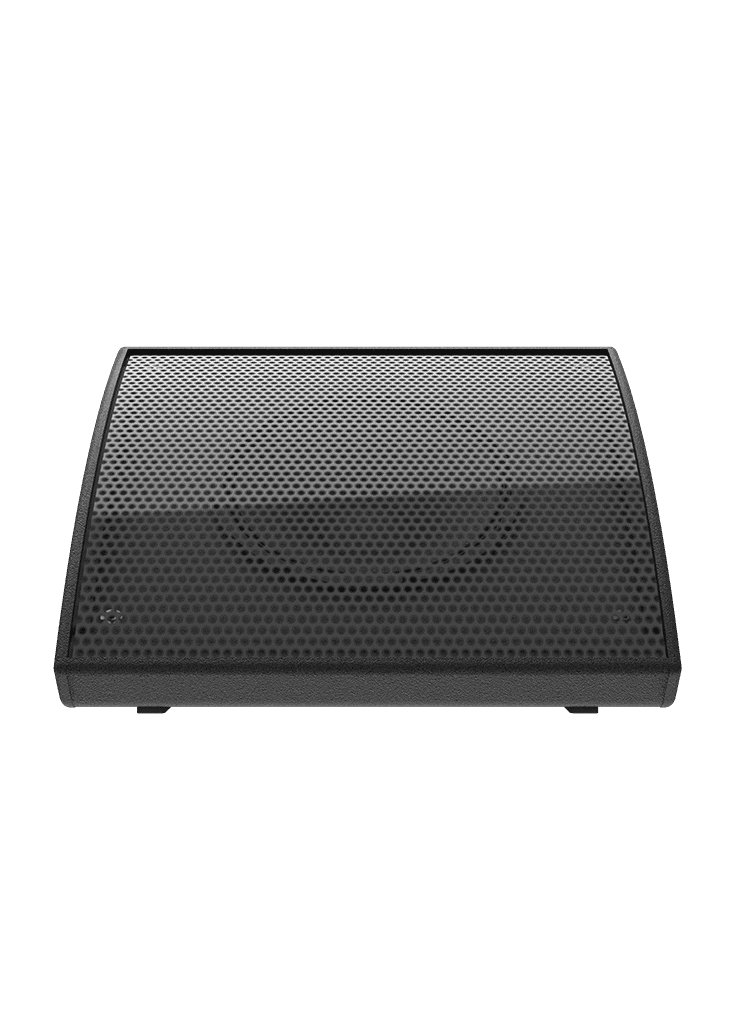

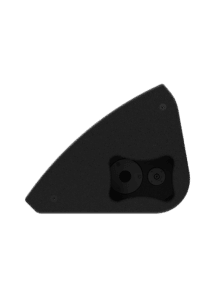

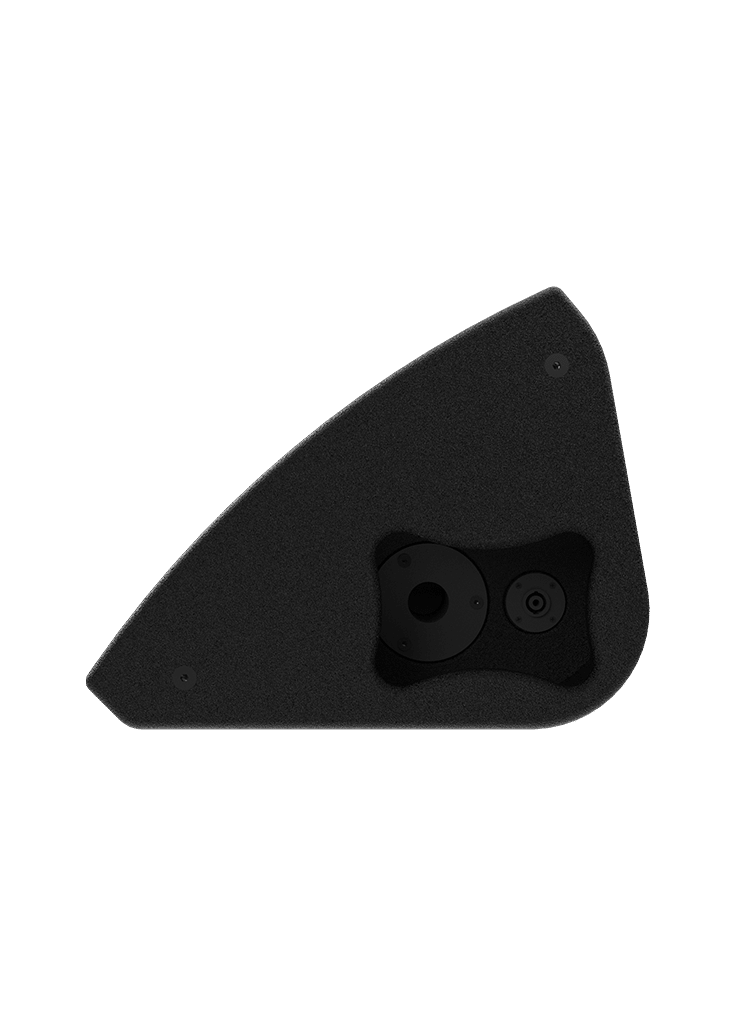

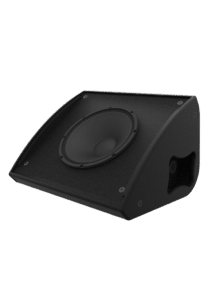

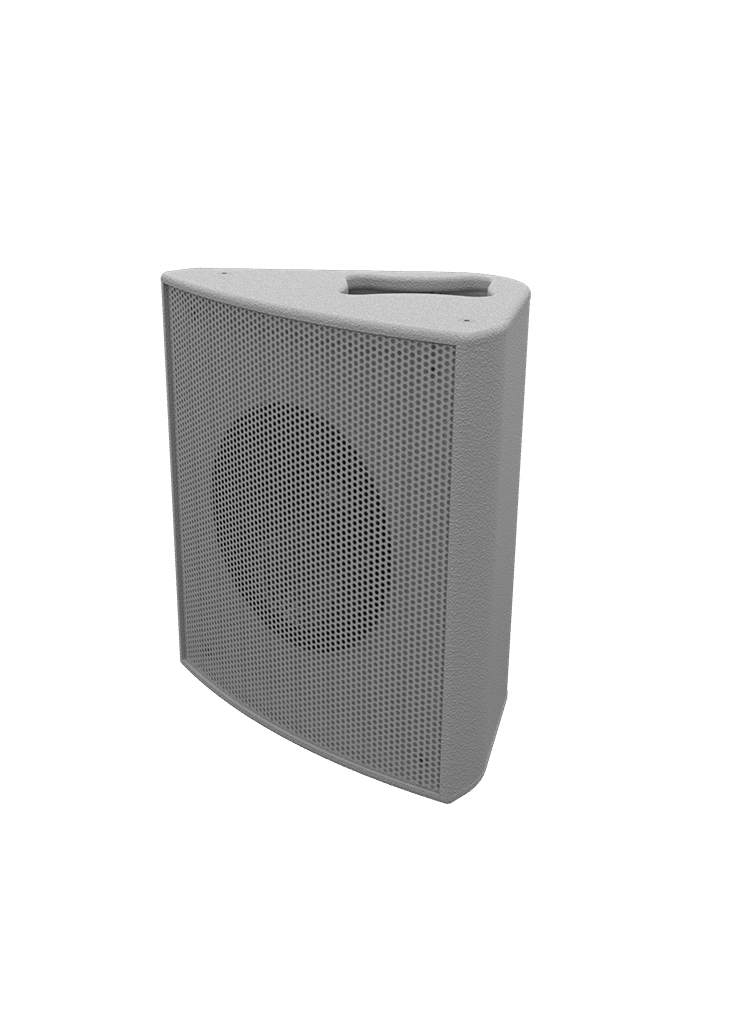

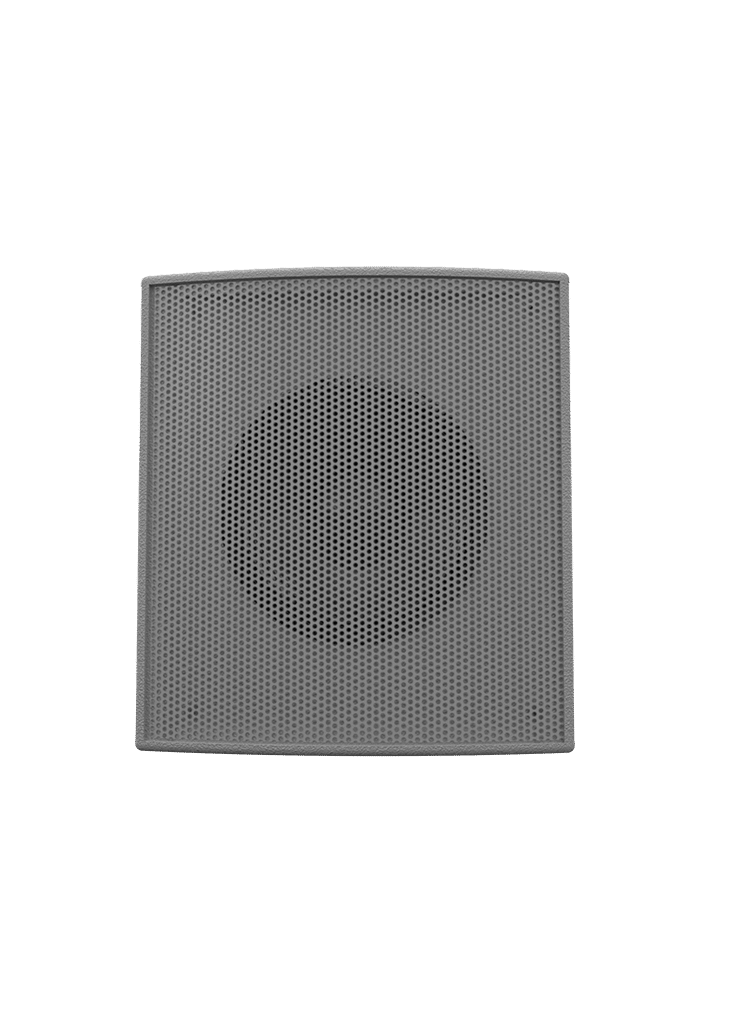

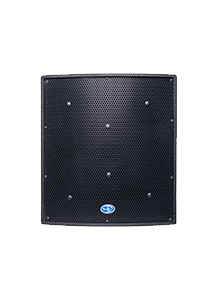

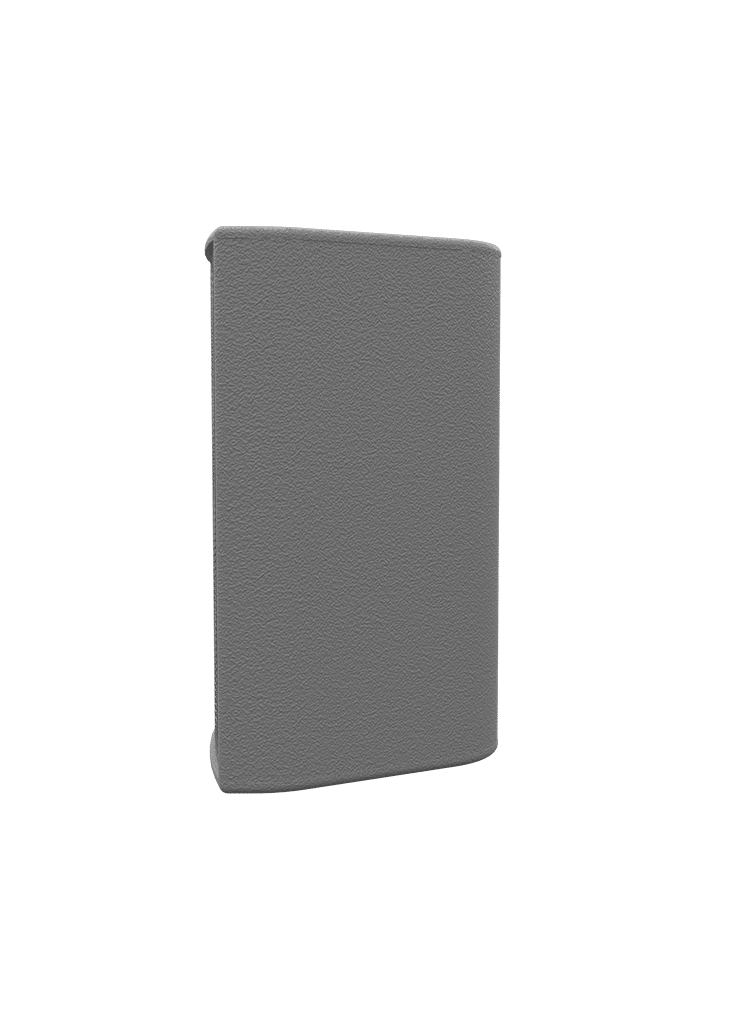

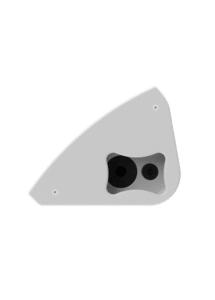

FLX12 Stage Monitor
FLX12
View Product

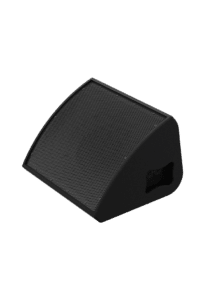

SM80M
