Full range performance in a compact box

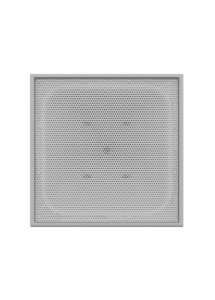

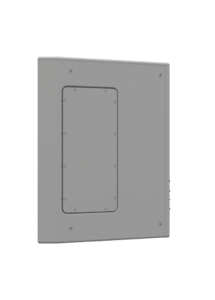

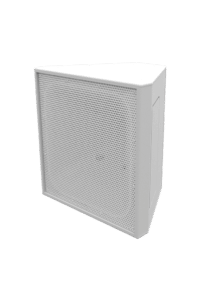

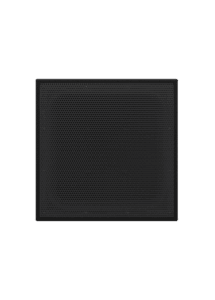

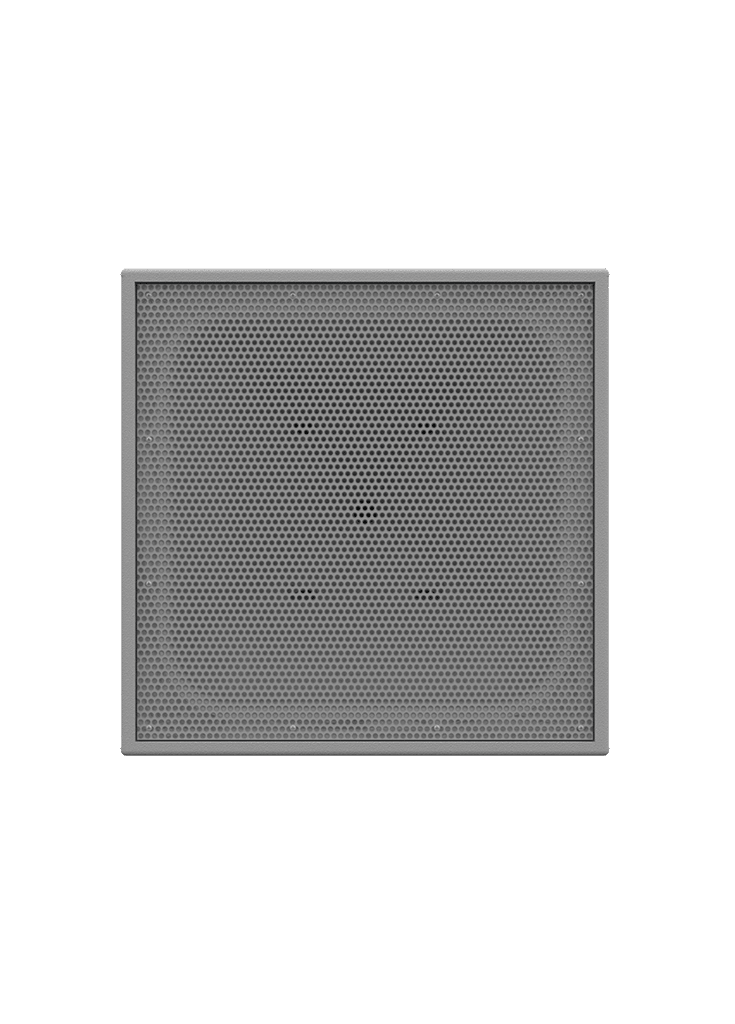

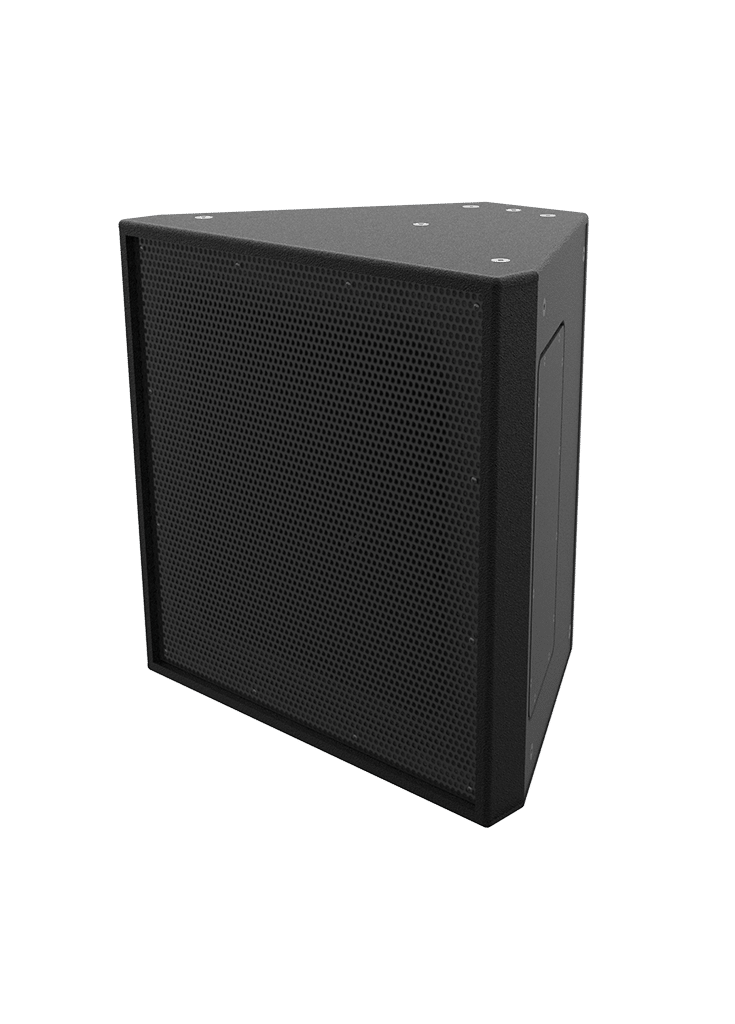

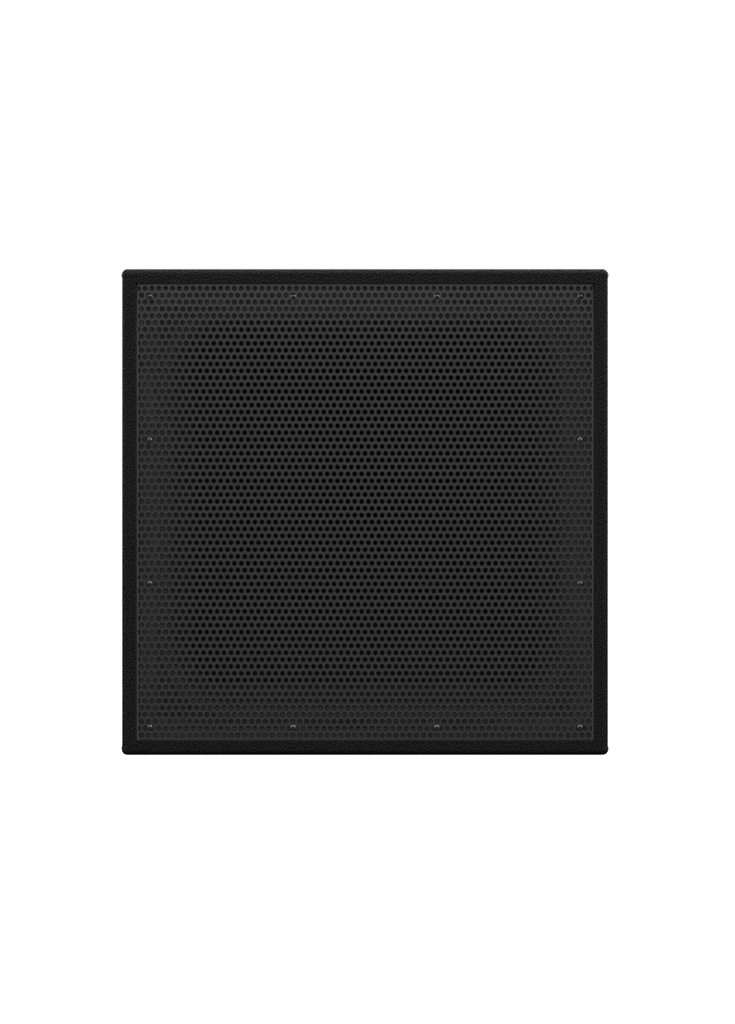

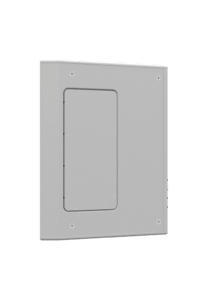

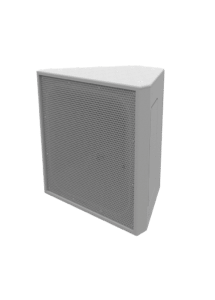

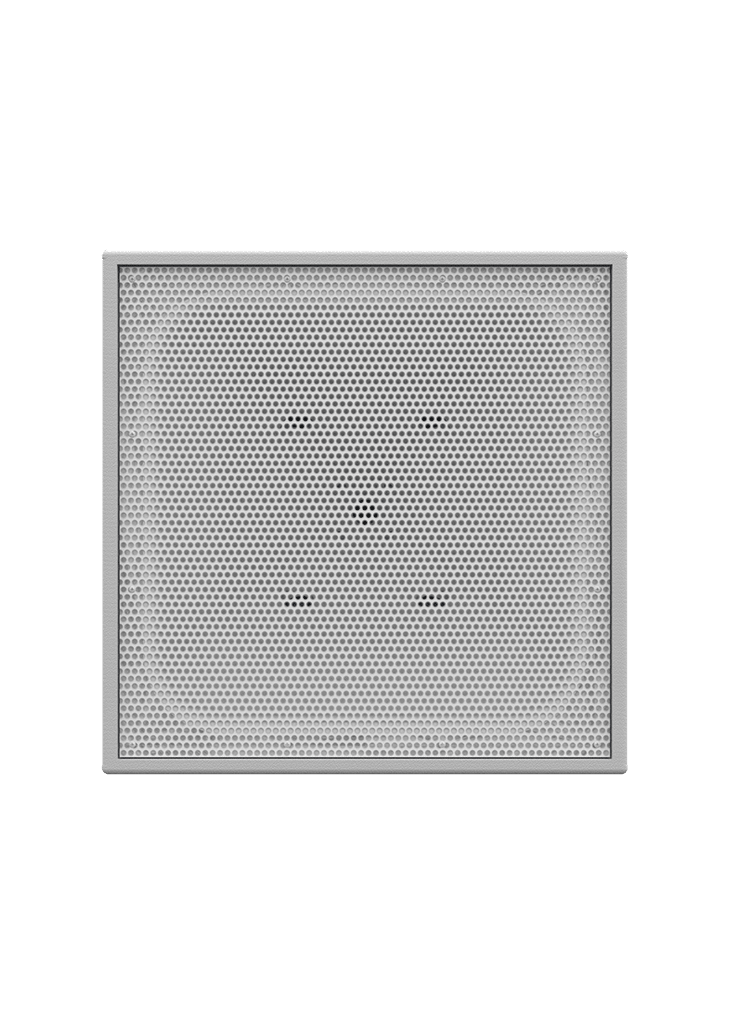

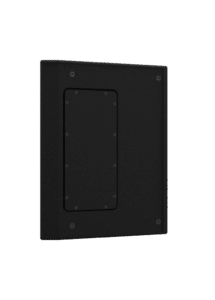

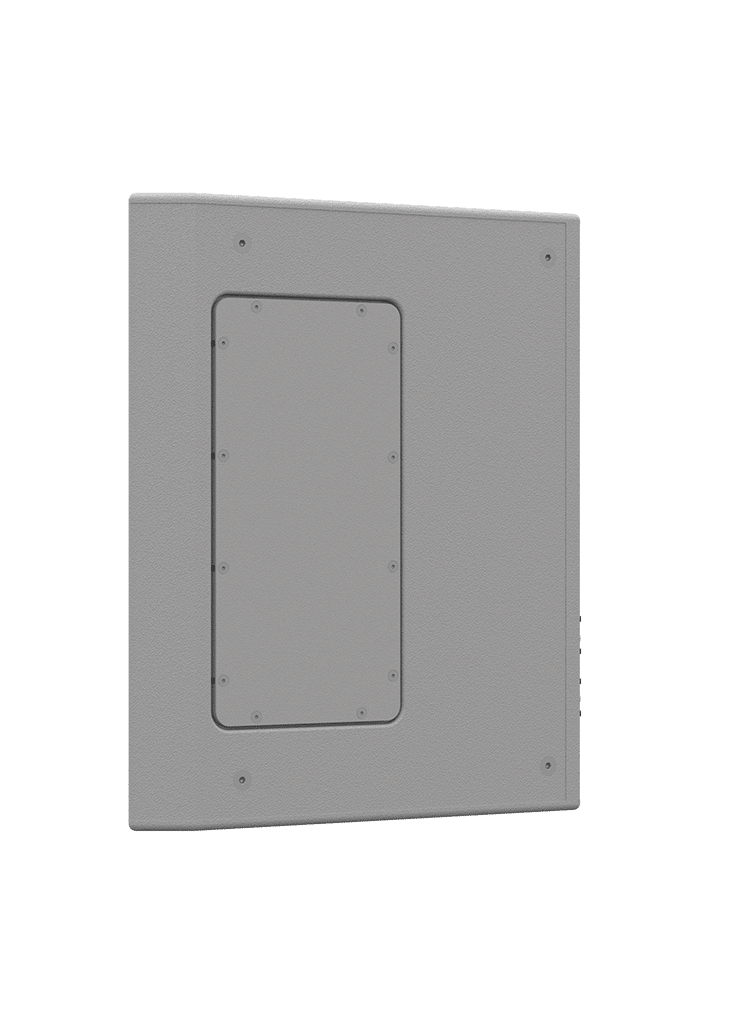

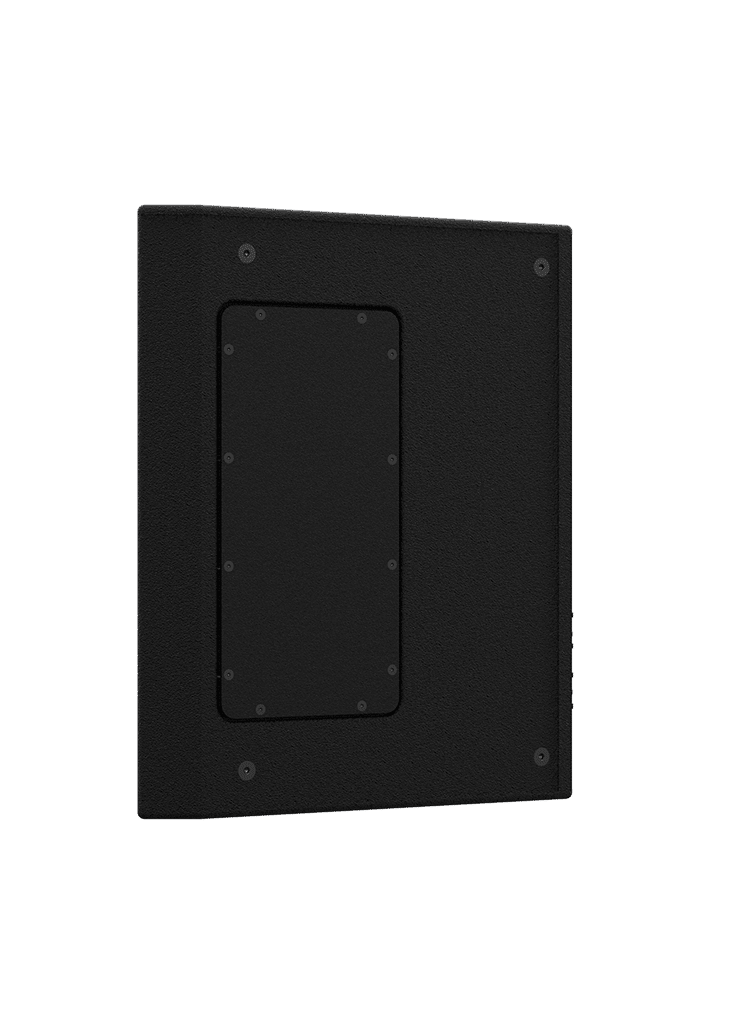

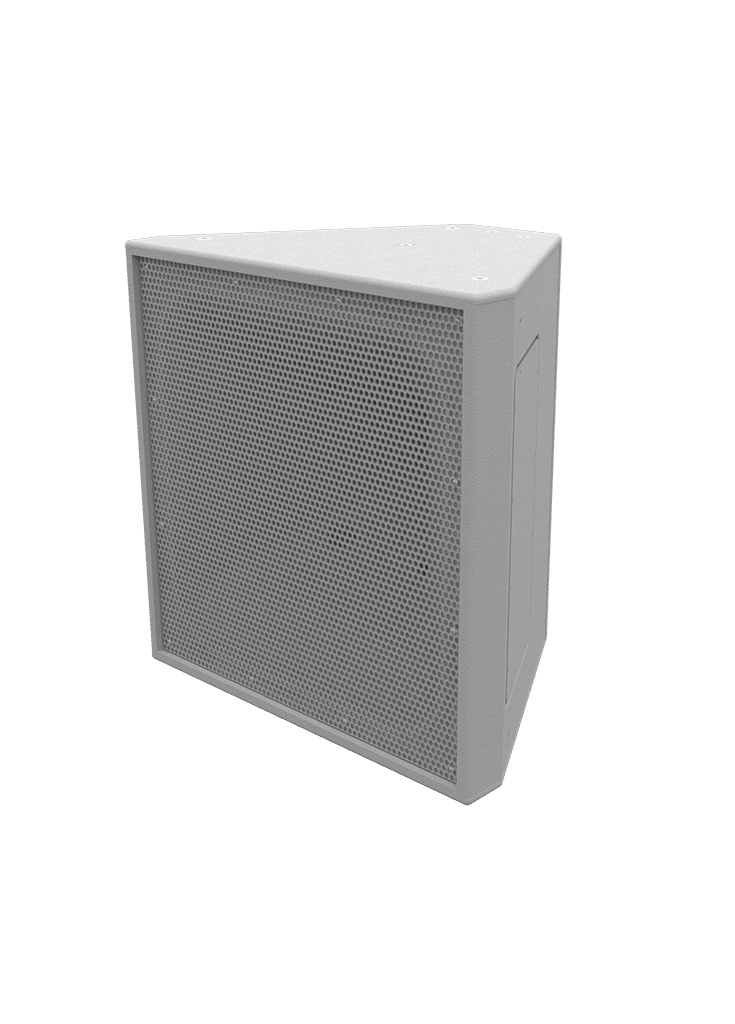

SM60F

SM60F

Offering full range performance in a very compact box, the SM60F packs quite a bit into its frame. It also has the added benefit of truly modular array-ability. Combining great fidelity, low frequency pattern control and unrivaled magnitude/phase response into an ultra-compact enclosure, the SM60F is ready to handle whatever you can throw at it. It is also available in touring and installed versions.

Product Specifications

coverage Pattern
60˚ horizontal
60˚ vertical
operating frequency range
66 Hz – 24 kHz +/- 4 dB
52 Hz – 26 kHz – 10dB
continuous output
125 dB SPL
peak output
131 dB SPL
sensitivity
99 dB
(2.83 Volts into
rated Z, at 1 meter)
measured in free space
magnitude response
66 Hz – 24 kHz
driver complement
Lows 2 x 8″
Highs 1 x 5″
dimensions
20.6 x 20.6 x 16.3 inches
weight
50lbs
Rated Impedance
4 Ohms
Power Rating
800 Watts Cont.
3200 Watts Peak
Danley Products

SM Family of Products

Danley’s SM family of loudspeakers is simply a smaller, lighter version of our Synergy Horn family. What that means is that SM loudspeakers deliver the same clarity and full range of audio thanks to our proprietary single source technology.
