Something New to the Market

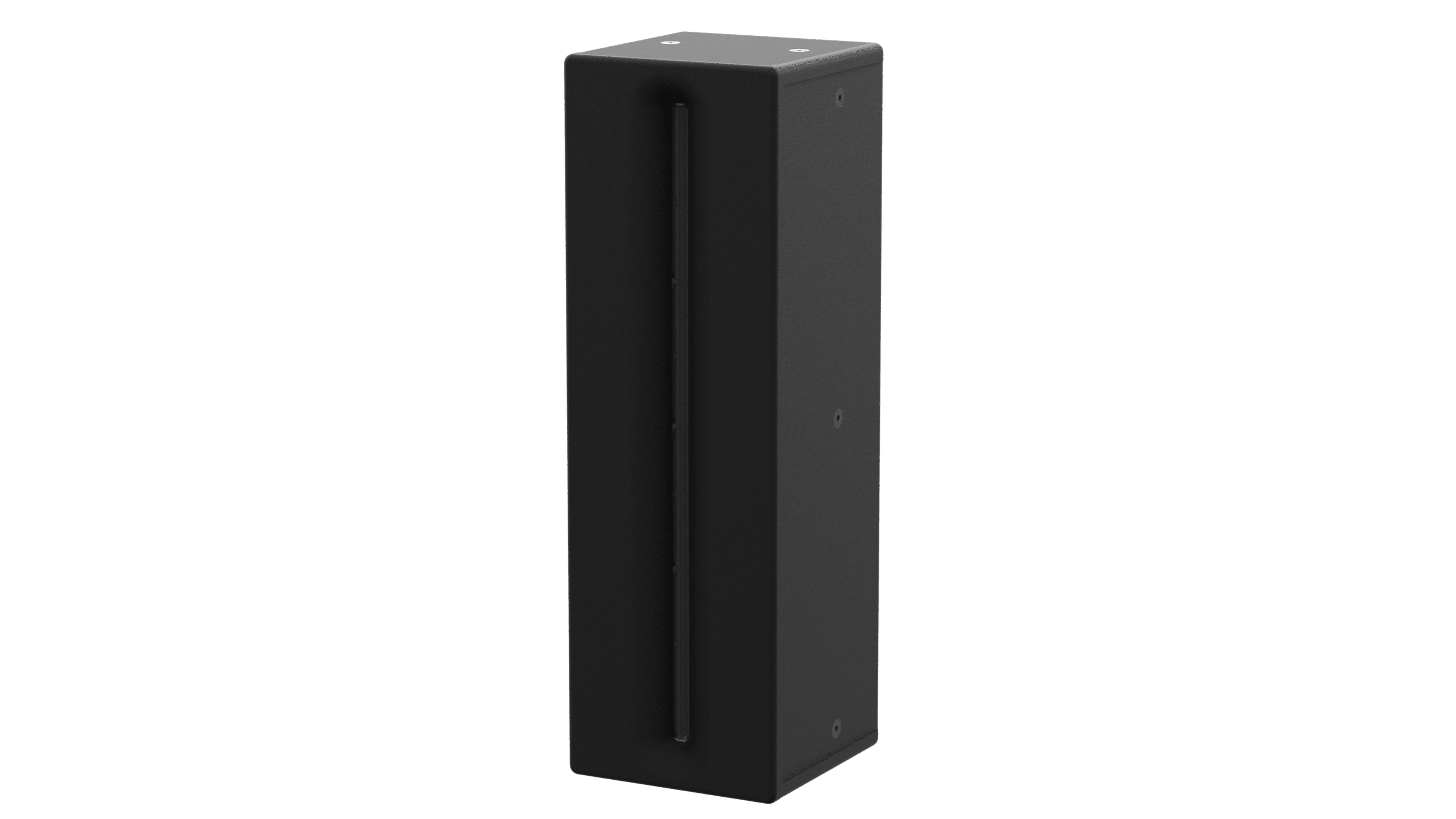

The SBH20FF utilizes 4 5″/1″ coaxial drivers coupled to Danley’s patented Paraline™ lens technology to offer a compact column shaped loudspeaker different from any multi-cone product on the market. Developed in testing for Danley’s Signature Series product line, the SBH20FF features a 150° horizontal x 20° vertical dispersion pattern. How? The SBH20FF actually is a large horn with an effective path length over 12 feet! This yields superior performance with unparalleled pattern control, no spurious lobes and no complicated processing for proper performance.

The 13 ply Baltic Birch used throughout the enclosure is encased in Polyurea for protection from impact and atmospheric conditions. Install versions are each equipped with M10 rig points.

As an additional layer of protection we include our Sentinel™ high frequency driver protection circuitry which is a multistage limiter that protects the high frequency drivers in the event of overloads whether peak or long term. The limiter is inaudible during normal operation so dynamic range is not compromised.

Product Specifications

Coverage Pattern
150˚horizontal x 20˚ vertical
Operating Frequency Range
160 Hz – 14.6 kHz, -3dB
100 Hz – 17 kHz, -10dB
Operating Mode
two-way single channel amplified
4x 5″/1″ coaxial drivers
Power Handling
760 watts continuous | 3040 watts peak
measured as 2.83V @ 1 meter distance – 96 dB
Maximum SPL
124 dB continuous | 130 dB peak
AES 75-2022
Free Field, Crest Factor: 15.1 dB – 132.9 dB SPL-Z, peak | 117.8 dB SPL-Z, SLOW Continuous | 116.6 dB SPL-A, Slow @ 83V
4 ohm
Recommended Power Amplifier
700-1500 Watts
(2) Neutrik NL 4 | Pins 1 – Input | Pins 2 – Through
Mounting / Suspension Points
(2) M10 yoke points
(12) M10 rigging points
Dimensions / Weight
30 in. x 9 in. x 9 in. | 762 x 228.6 x 228.6 mm
46 lbs | 20.8 kg
black polyurea coated enclosure with matte black grille / white polyurea coated enclosure with matte white grille
Enclosure Material
18mm Baltic Birch, polyurea coated
SBH20FF – Install Version
BRKT-SBH20FF-U – SBH20FF U Bracket
BRKT-SBH20FF-WM – SBH20FF Wall Mount Bracket
BRKT-SBH20FF-P45 – Pan Bracket + / – 45 degrees – used with BRKT-SBH20FF-WM
BRKT-SBH20FF-P90 – Pan Bracket + / – 90 degrees – used with BRKT-SBH20FF-WM
