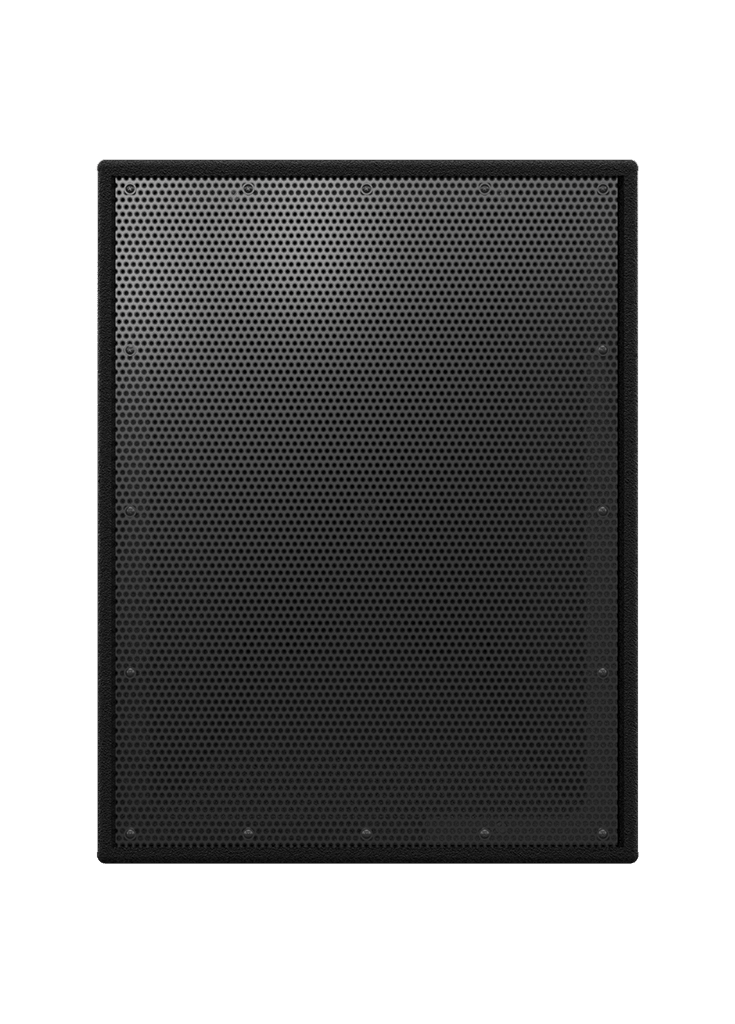

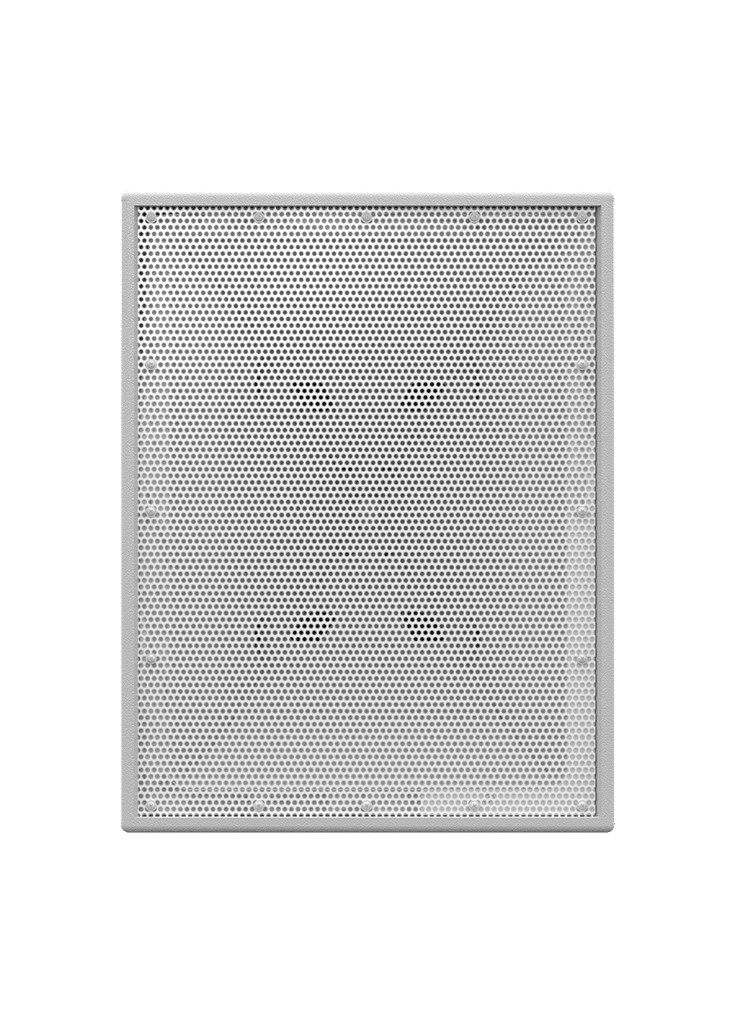

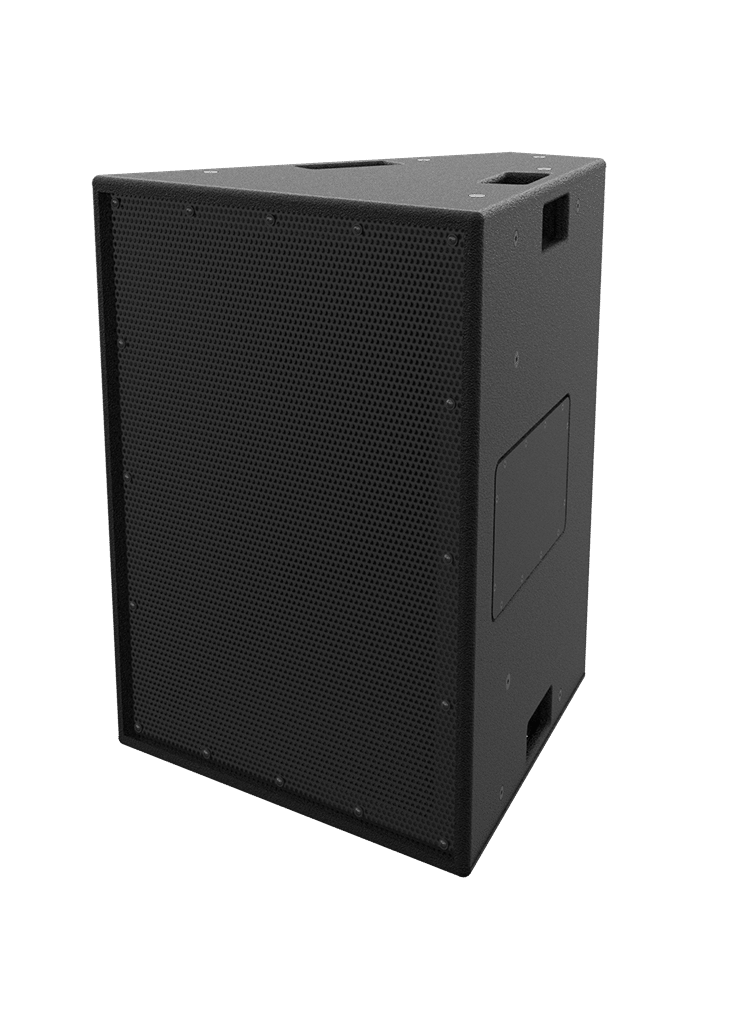

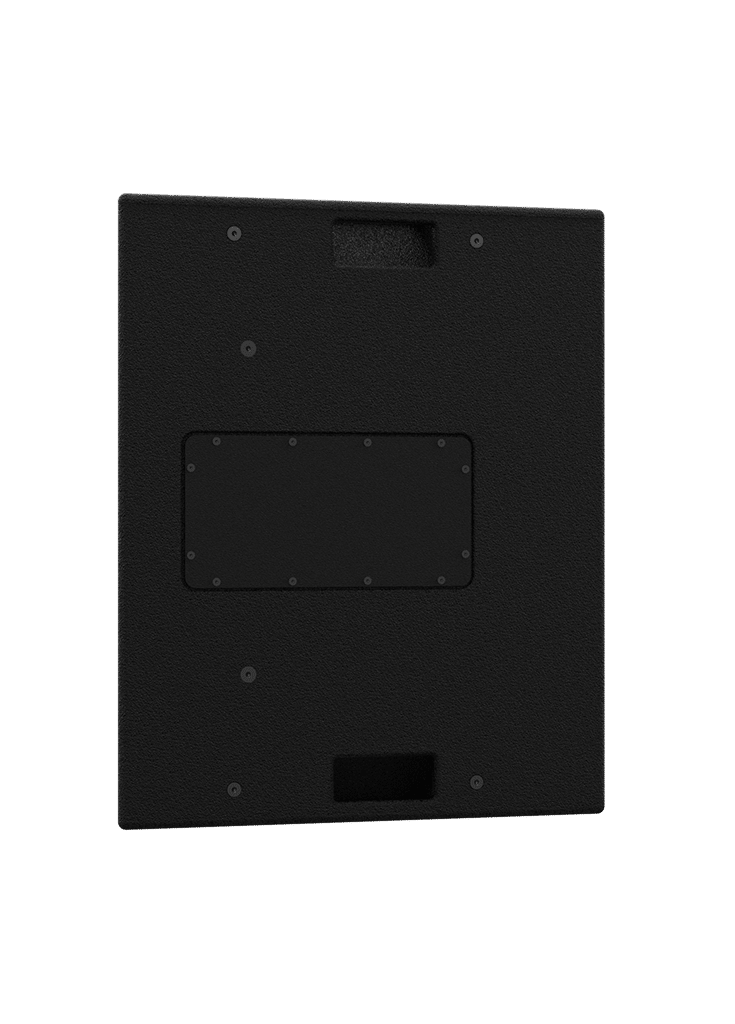

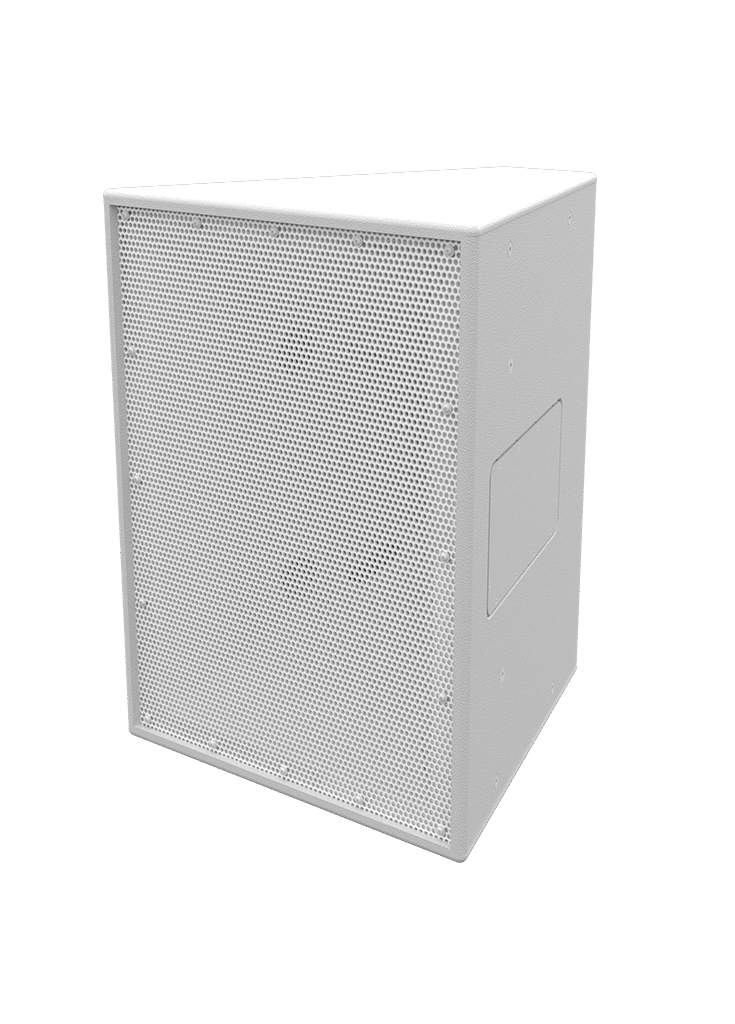

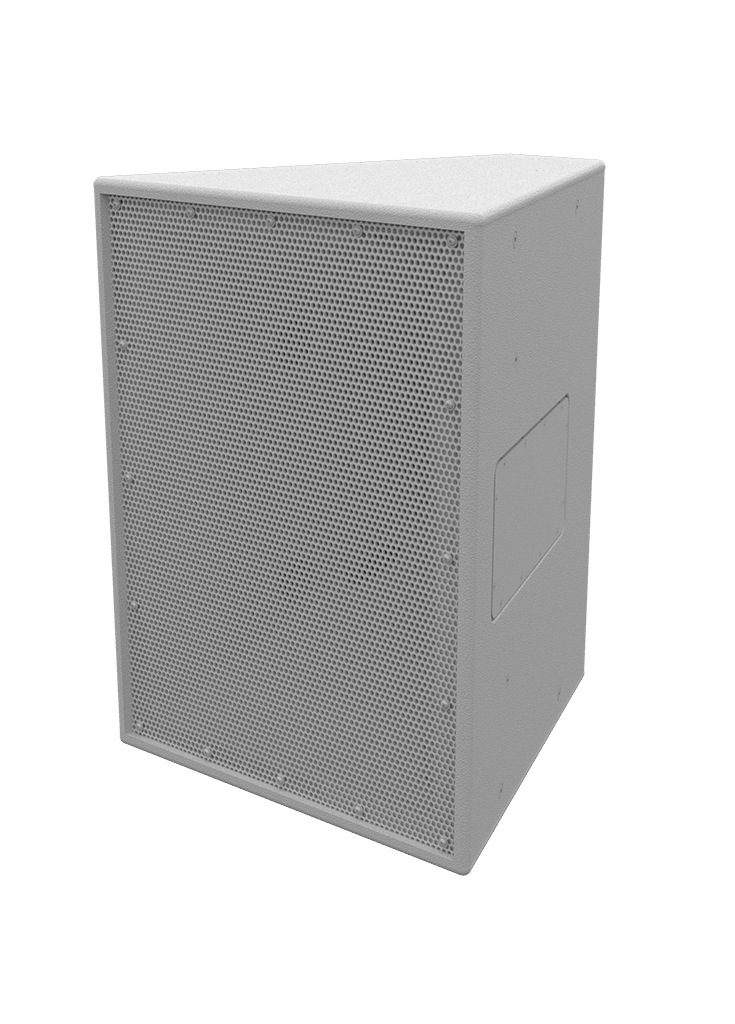

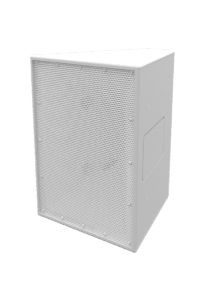

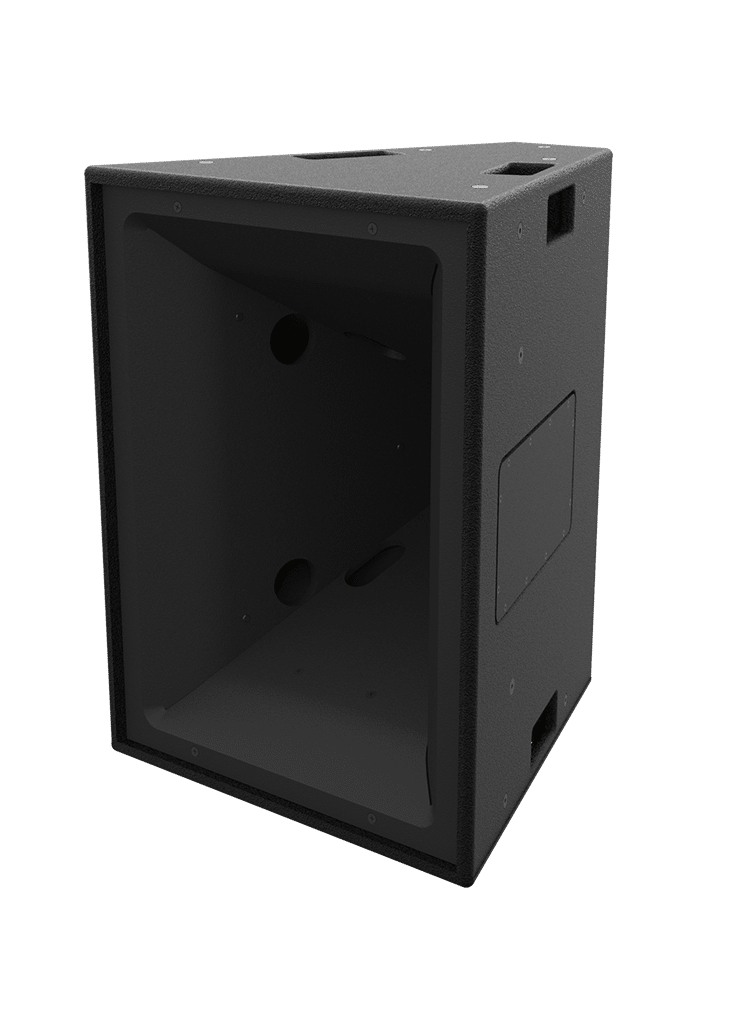

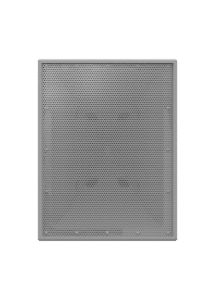

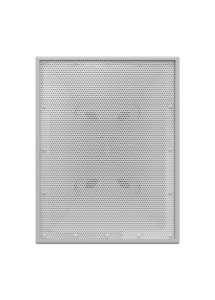

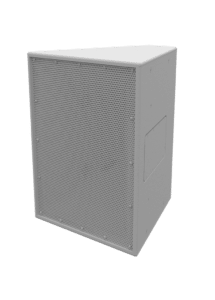

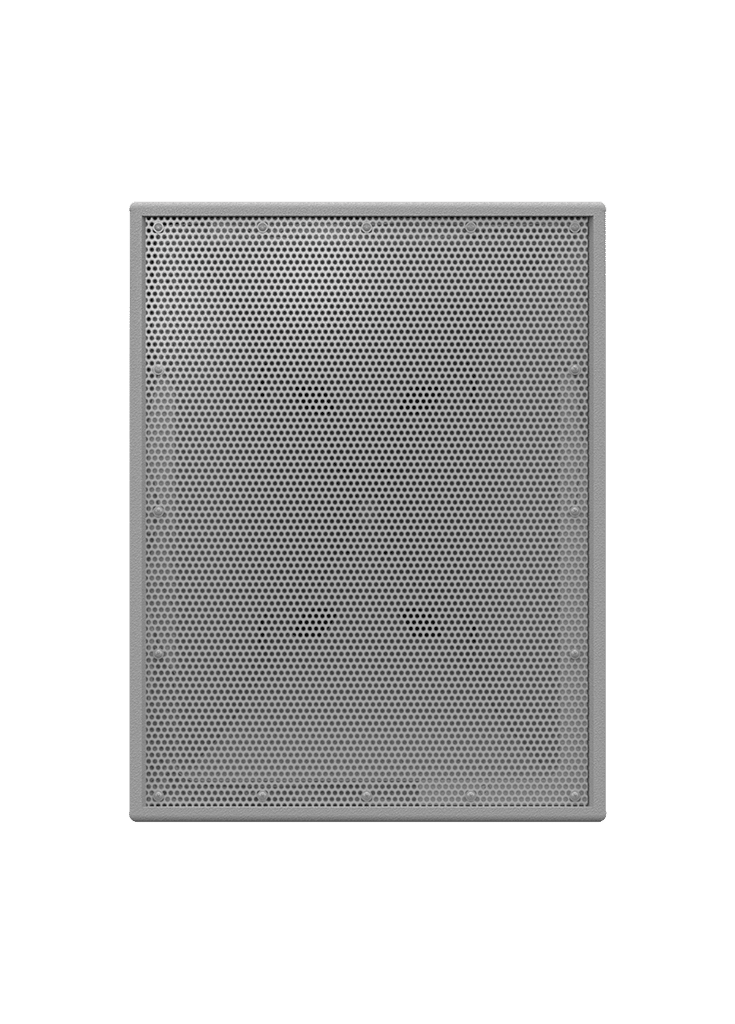

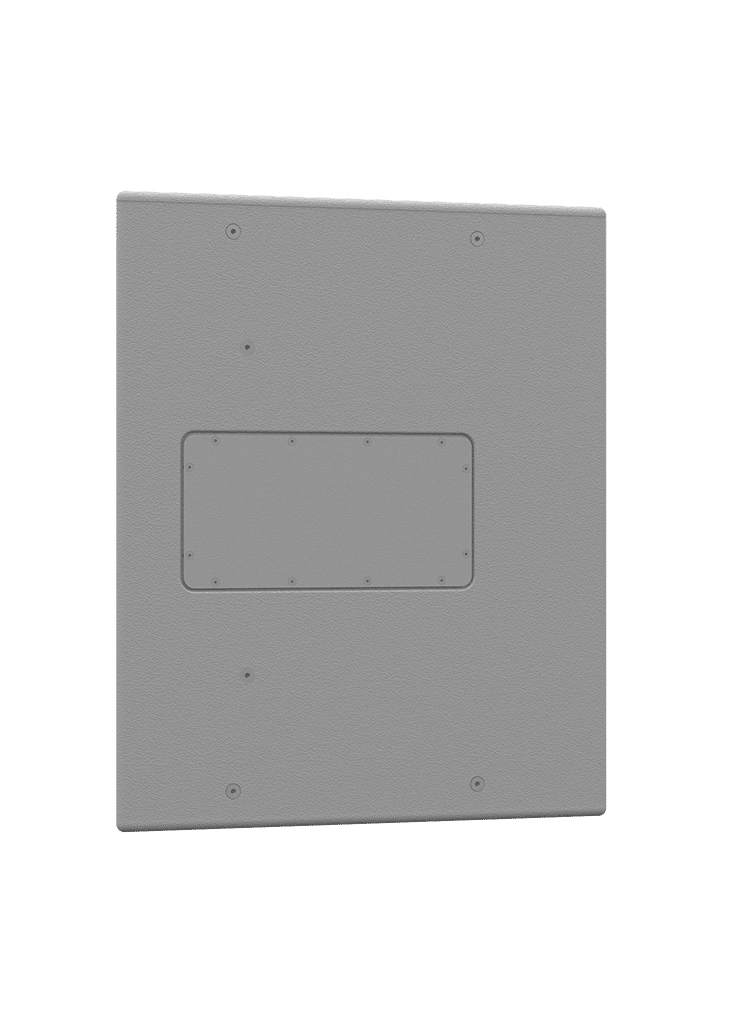

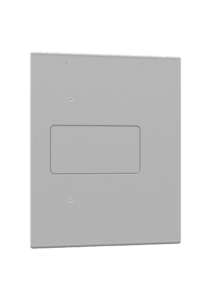

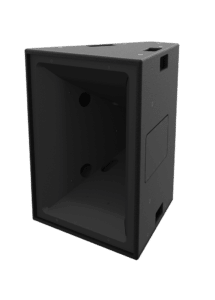

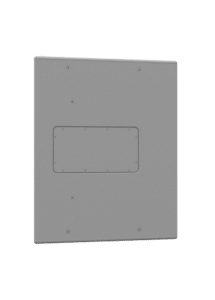

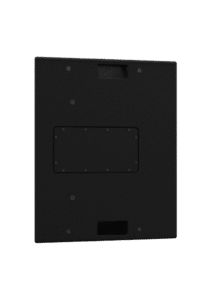

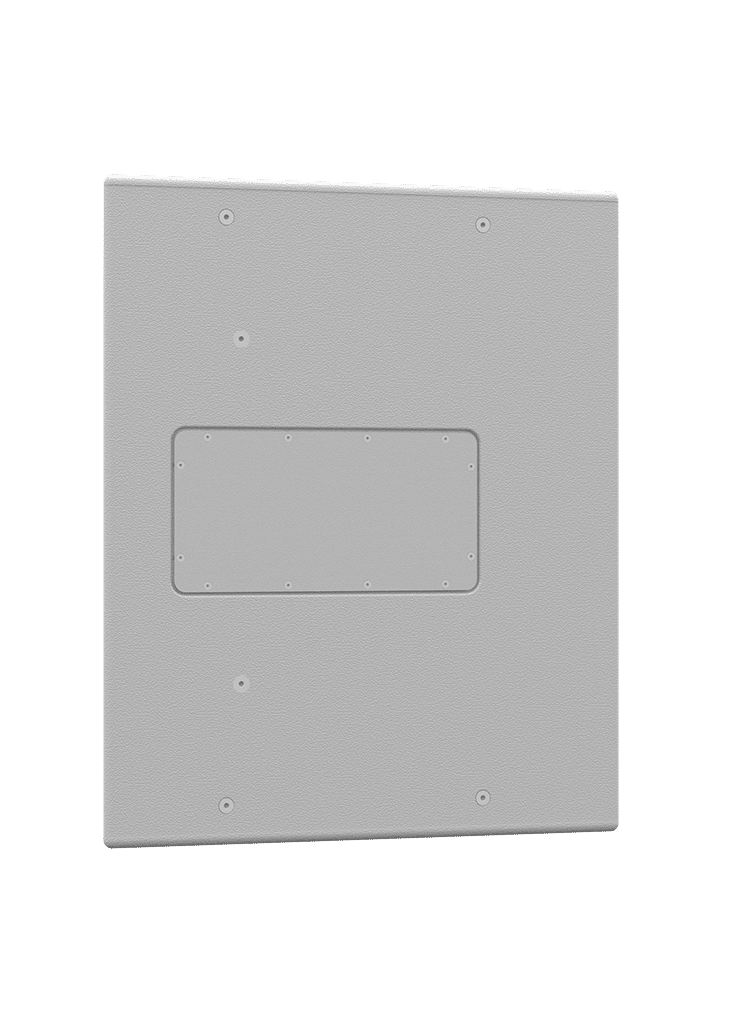

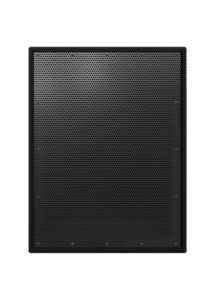

This loudspeaker provides unparalleled sound despite an impressively small footprint. And, like all our Synergy Horns™, the SH46 has incredible fidelity, pattern control, and impressive magnitude/phase response. The SH46 also has the added benefit of truly modular array-ability. In fact, it has a sensitivity of 106dB SPL and can handle 1,400 watts continuous. And it is also versatile: The SH46 can be permanently installed, while the touring model is outfitted with handles for easy transport.

Product Specifications

Coverage Pattern
40˚ horizontal
60˚ vertical
Operating Frequency Range
71 Hz – 14.5 kHz +/- 3dB
58 Hz – 16 kHz -10dB
Continuous Output
135 dBSPL
Peak Output
141 dB SPL
106 dB SPL (2.83 Volts into rated Z, at 1 meter)
Magnitude Response
58 Hz – 16 kHz
Driver Complement
Low 2 x 12″
Mid 4 x 4″
High 1 x 1.4″
29 x 22.3 x 22.7 inches
118 lbs
Rated Impedance
4 Ohms
Power Rating
1400 Watts Cont.
5600 Watts Peak
