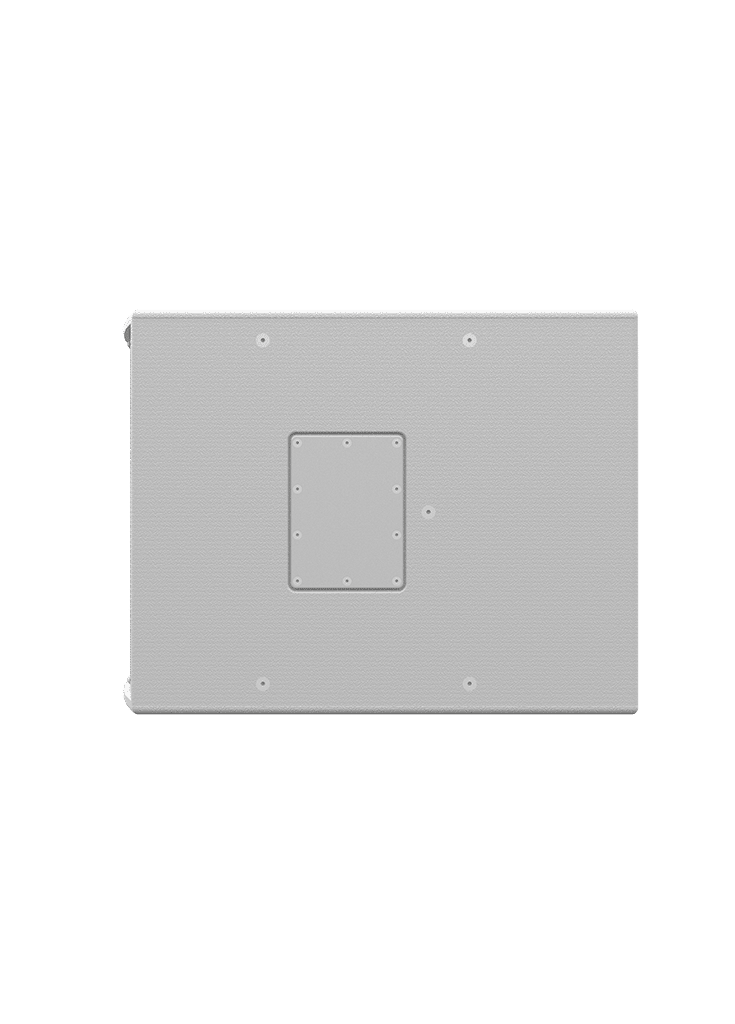

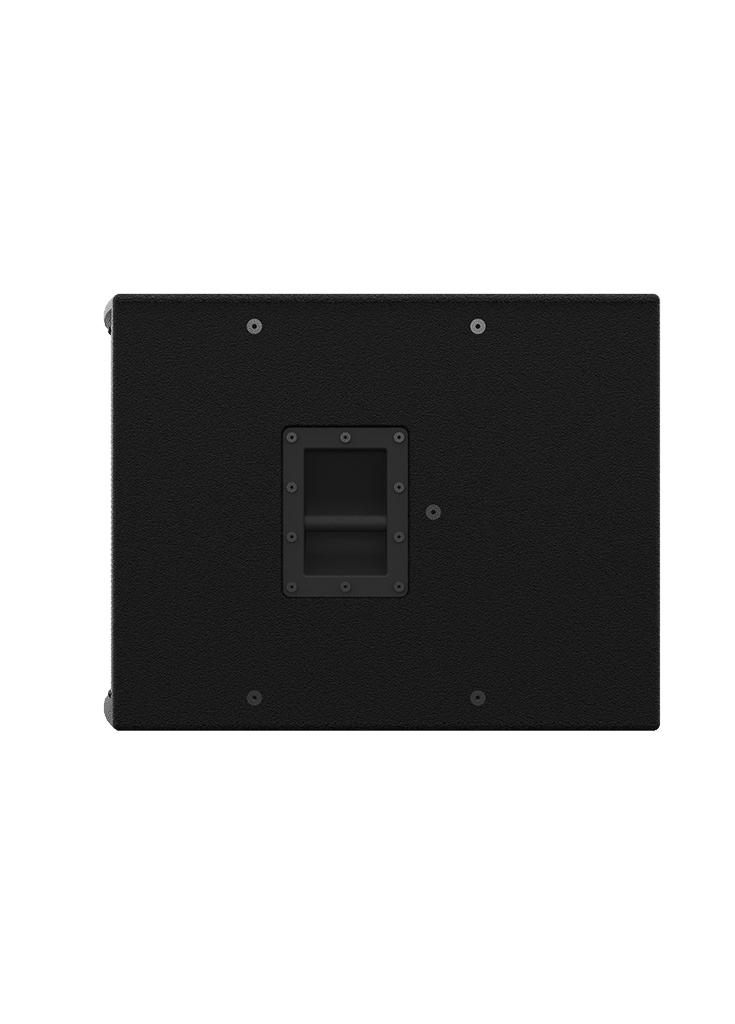

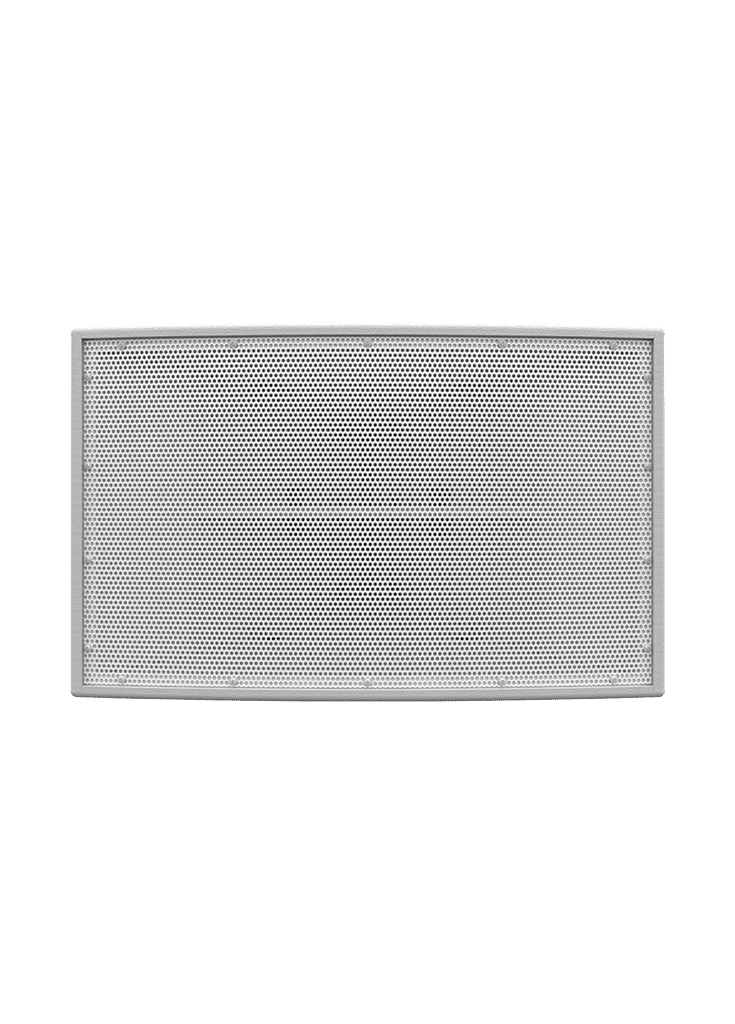

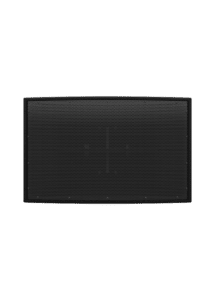

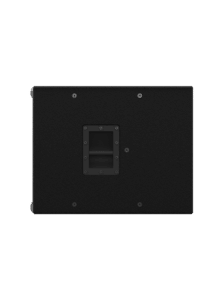

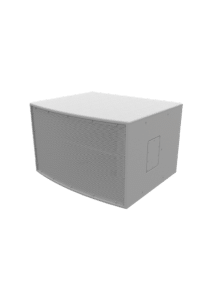

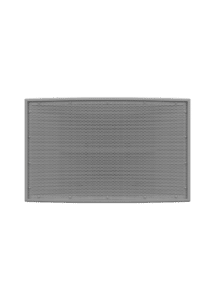

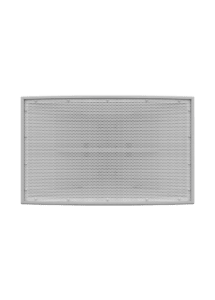

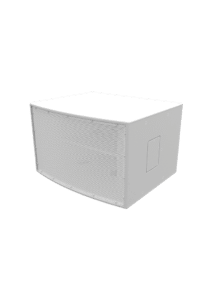

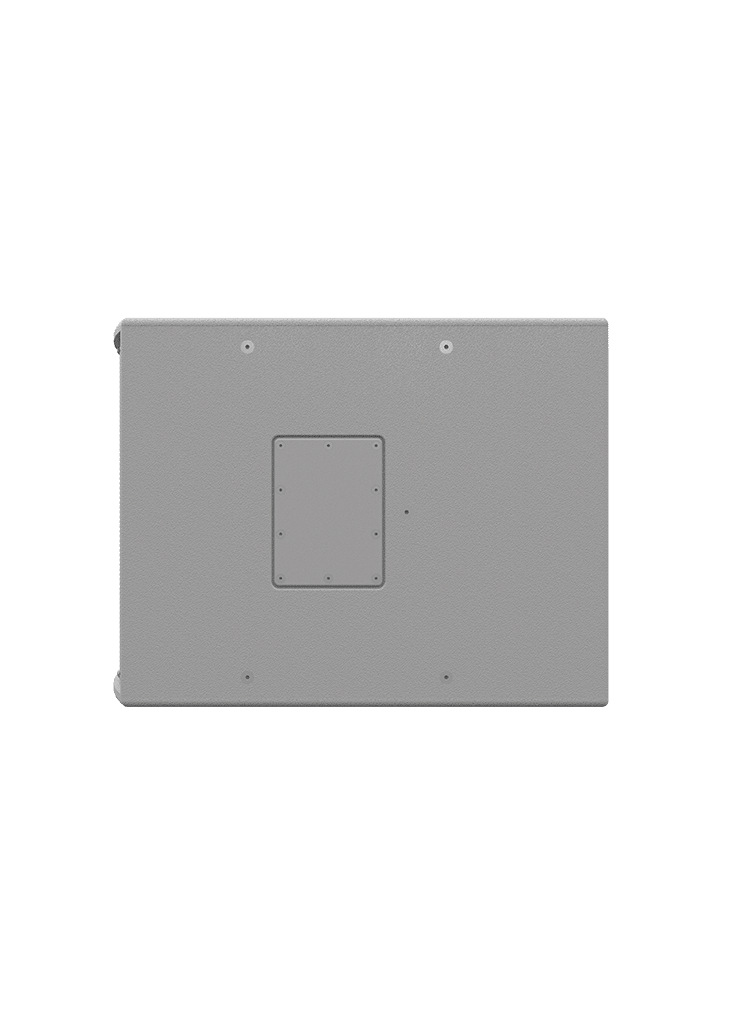

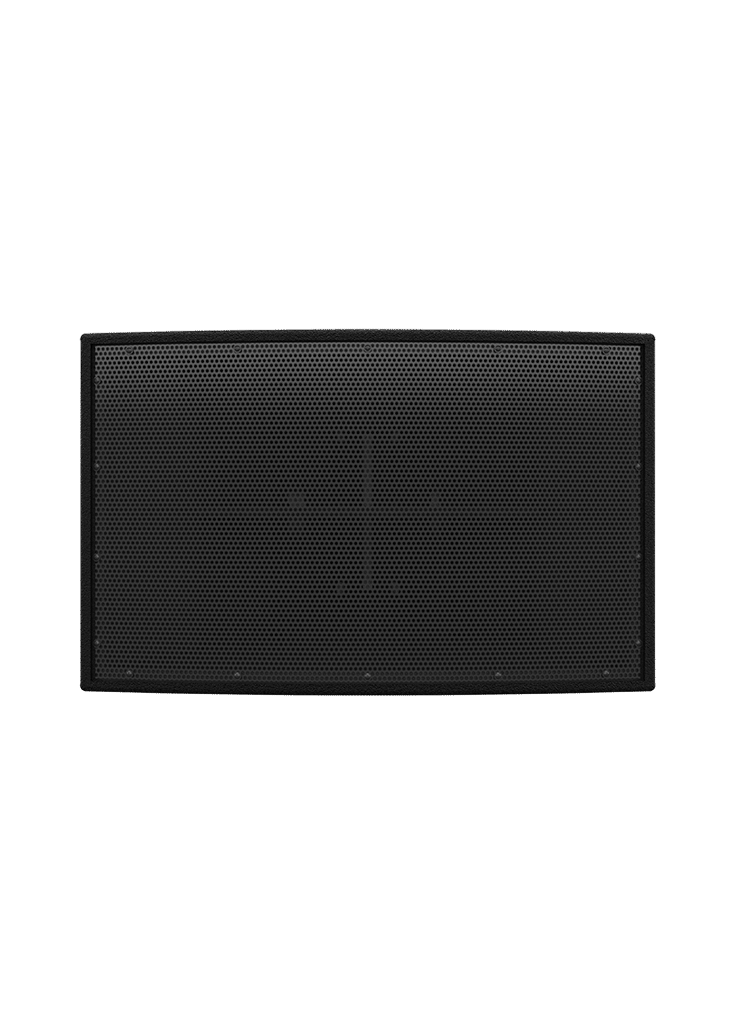

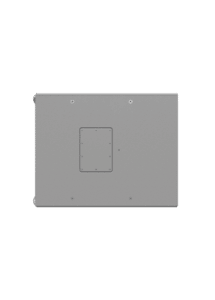

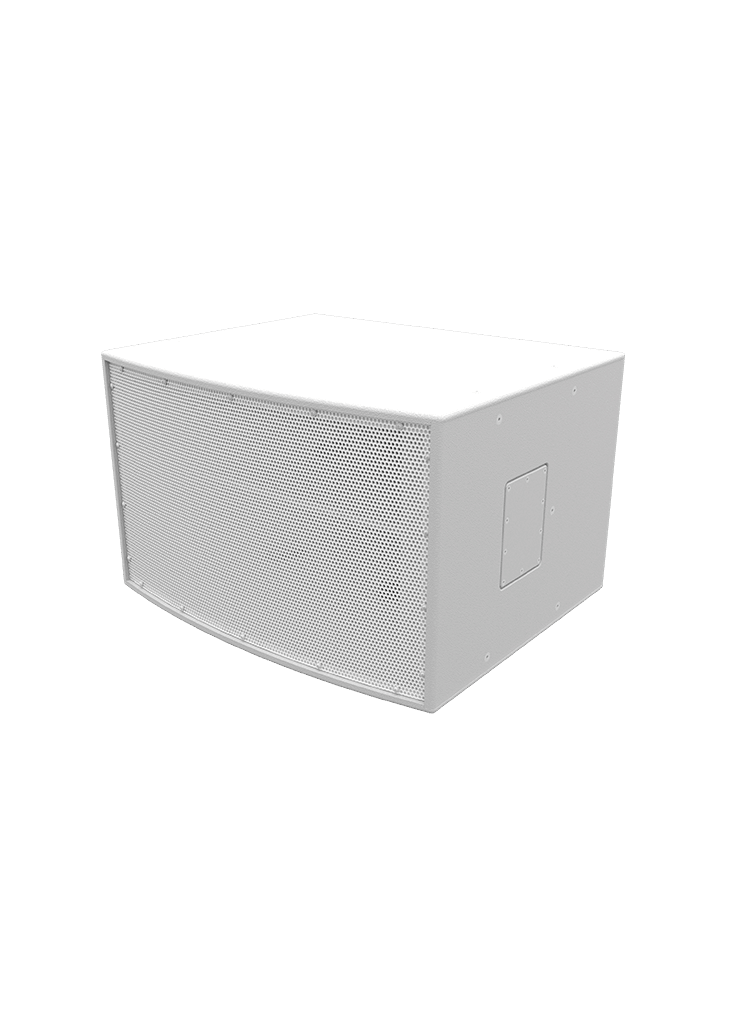

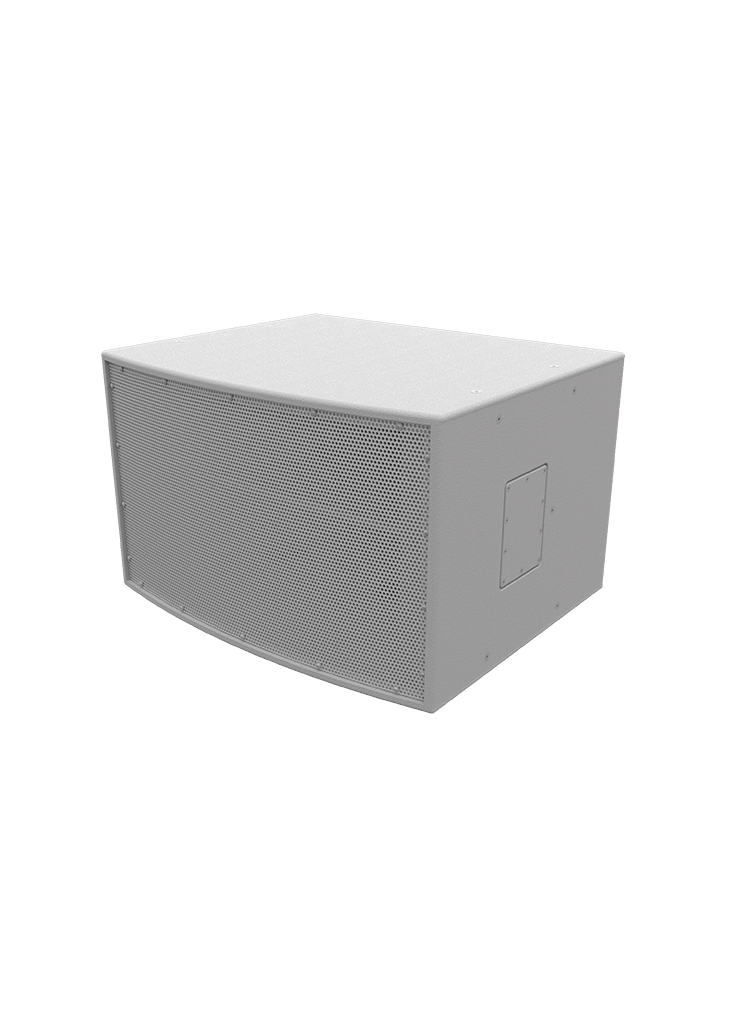

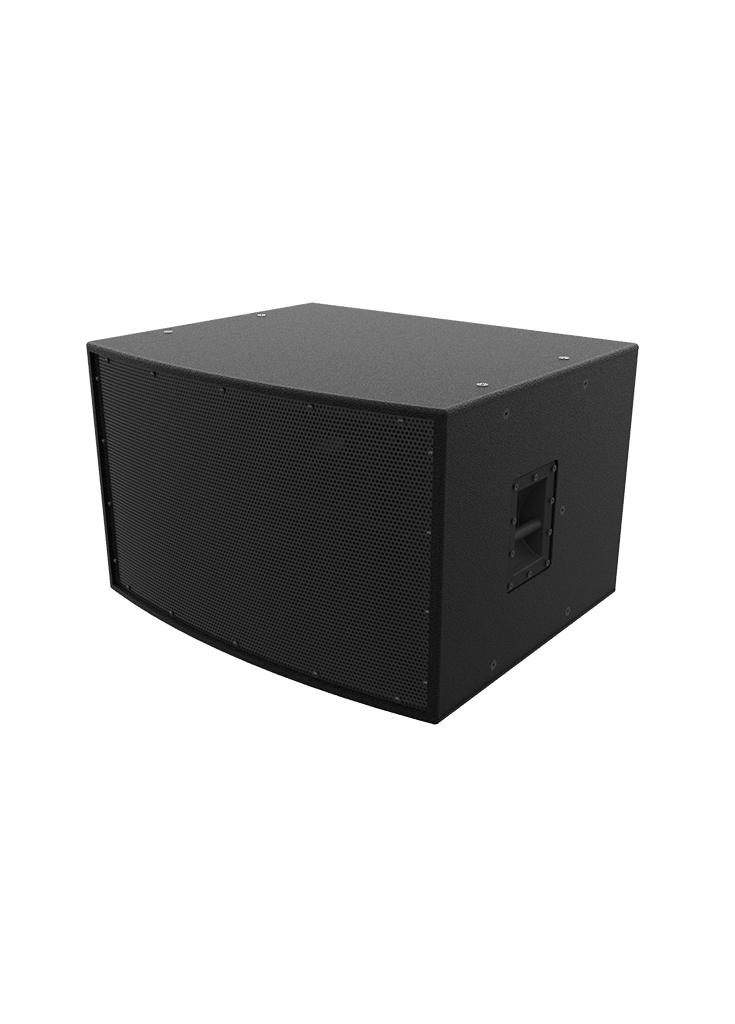

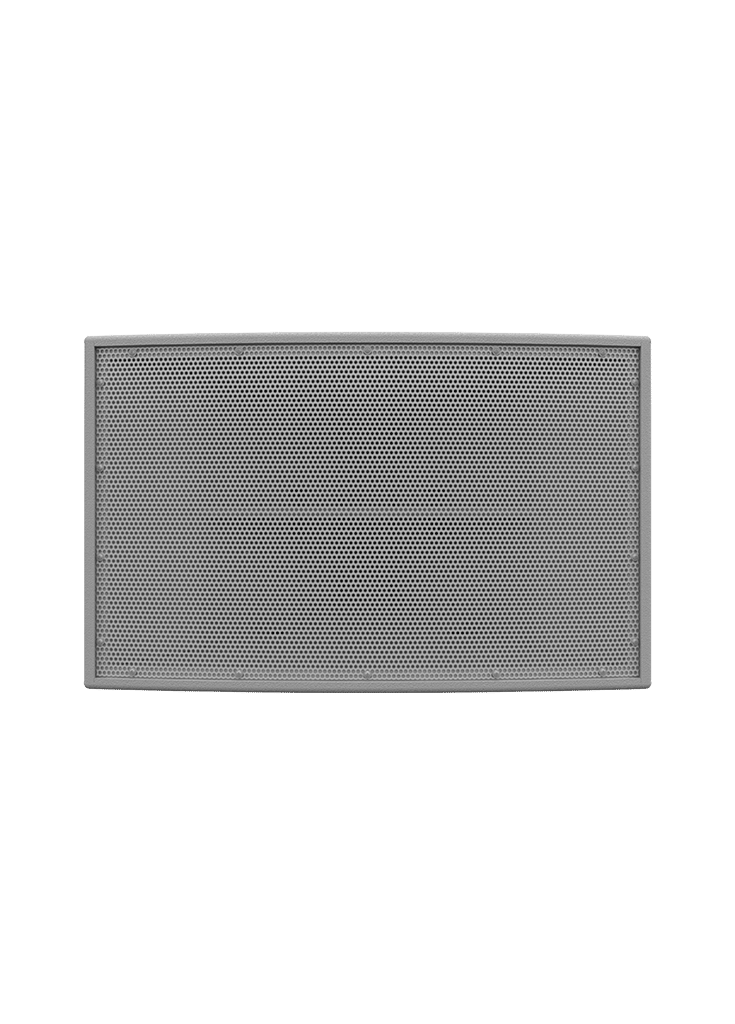

SH62
SH62
If you’re in search of high performance and long throw but want a small enclosure to do it, then look no further. This high-powered, full range loudspeaker is meant primarily for long throw applications, and the SH62 does so with unparalleled intelligibility at high volume thanks to the combination of the Synergy Horn™ and Paraline™ technologies. It also has impressive versatility and can be configured for passive and bi-amp modes.
Product Specifications
Coverage Pattern
60˚ horizontal
20˚ vertical
20˚ vertical
Operating Frequency Range
70 Hz – 18 kHz +/- 3 dB
50 Hz -20 kHz -10 dB
50 Hz -20 kHz -10 dB
Continuous Output
138 dB SPL
Peak Output
144 dB SPL
Sensitivity
105 dB SPL
(2.83 Volts into
rated Z, at 1 meter)
measured in
whole space
(2.83 Volts into
rated Z, at 1 meter)
measured in
whole space
Driver Complement
Low 2 x 15″
Mid 6 x 6″
High 2 x 1.4″
Mid 6 x 6″
High 2 x 1.4″
Dimensions
22.5 x 36 x 30 inches
58 x 92 x 76 cm
58 x 92 x 76 cm
Weight
235 lbs
106.5 Kg
106.5 Kg
Rated Impedance
4 Ohms
Power Rating
2000 Watts Cont.
8000 Watts Peak
8000 Watts Peak
