The sound of the legendary SH50 in a wider coverage pattern

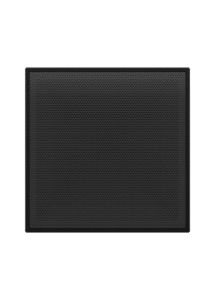

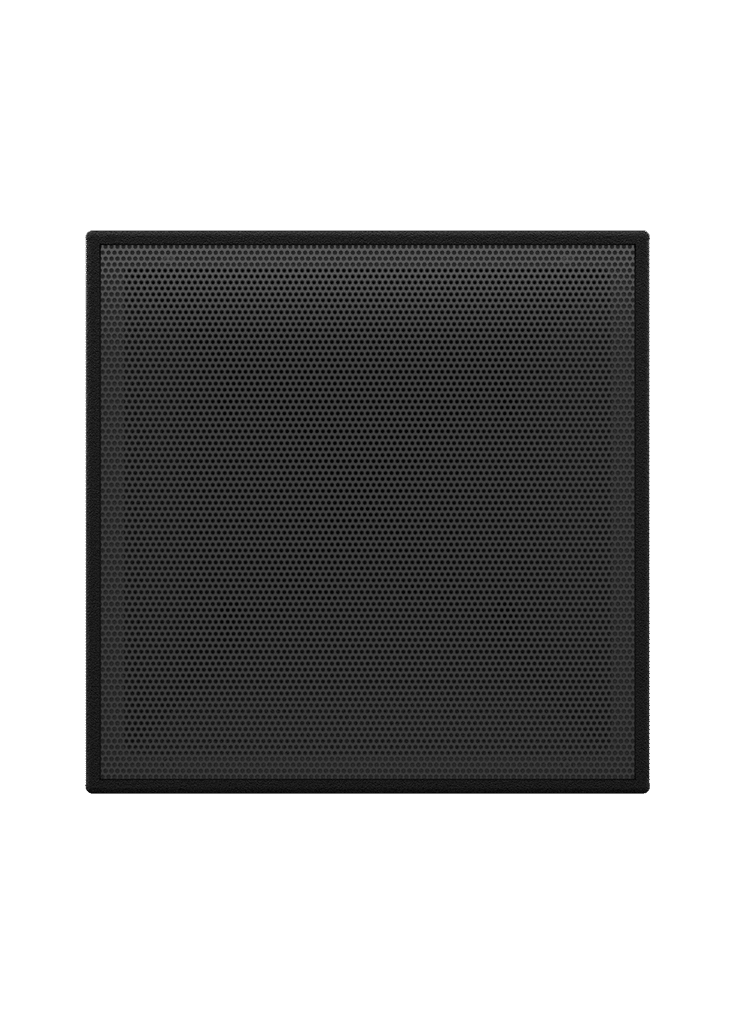

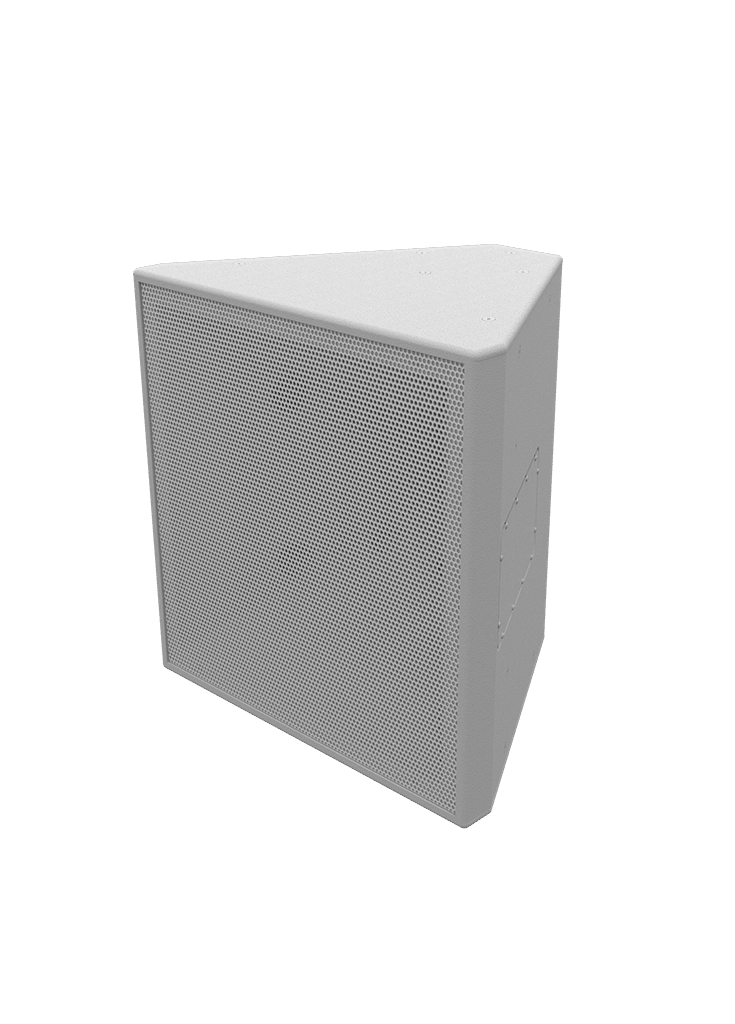

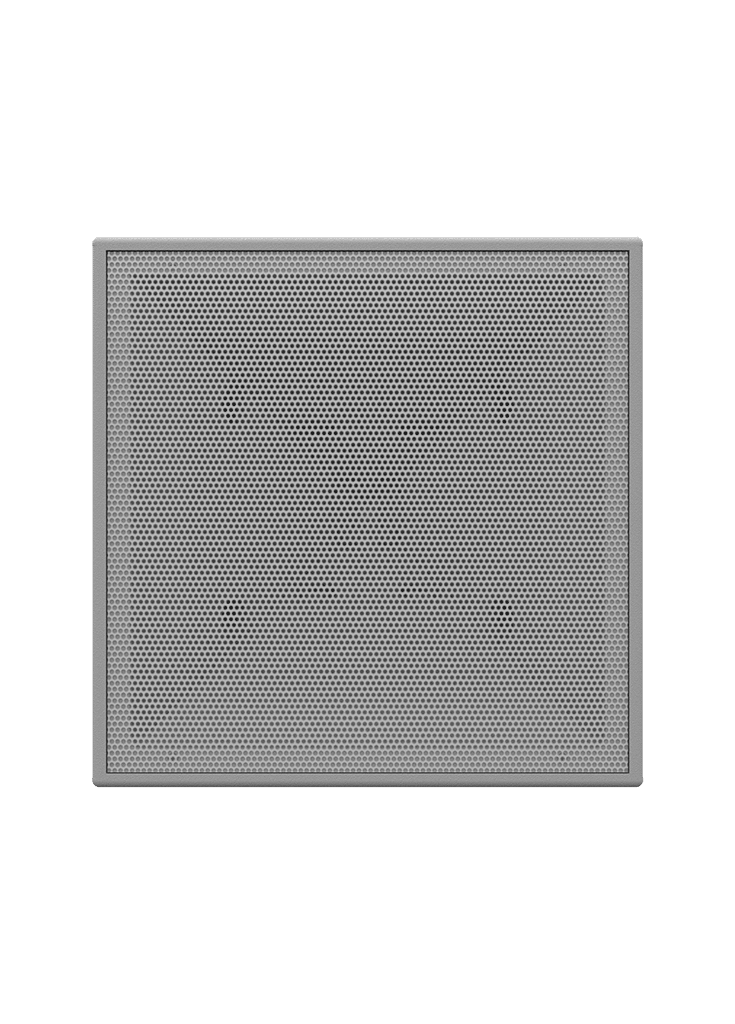

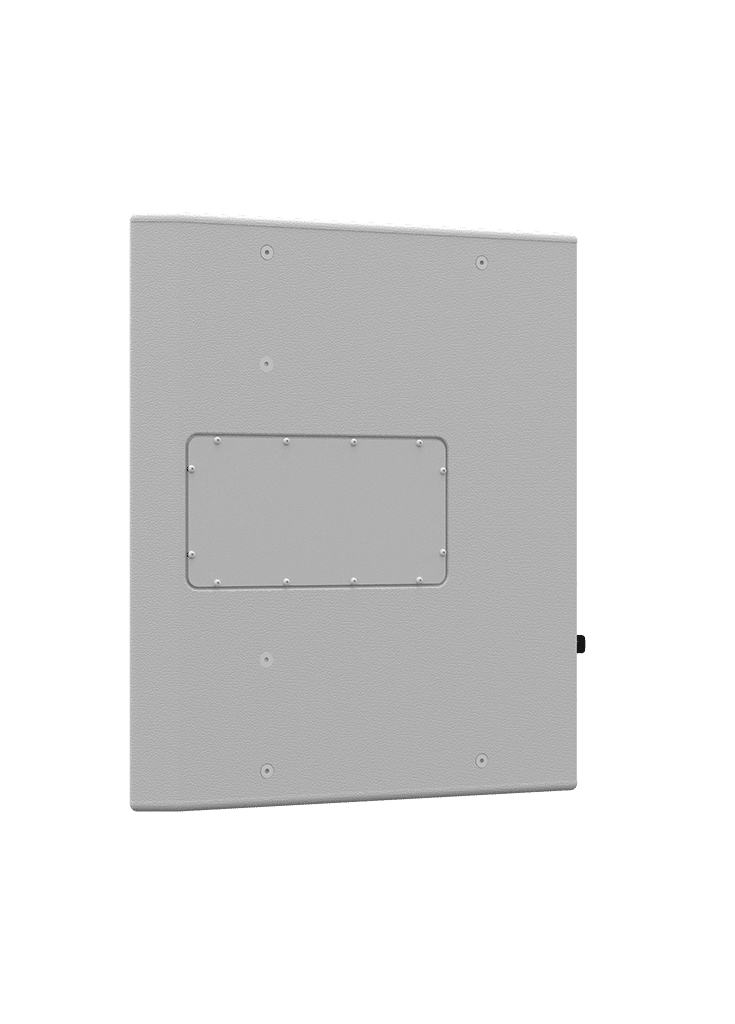

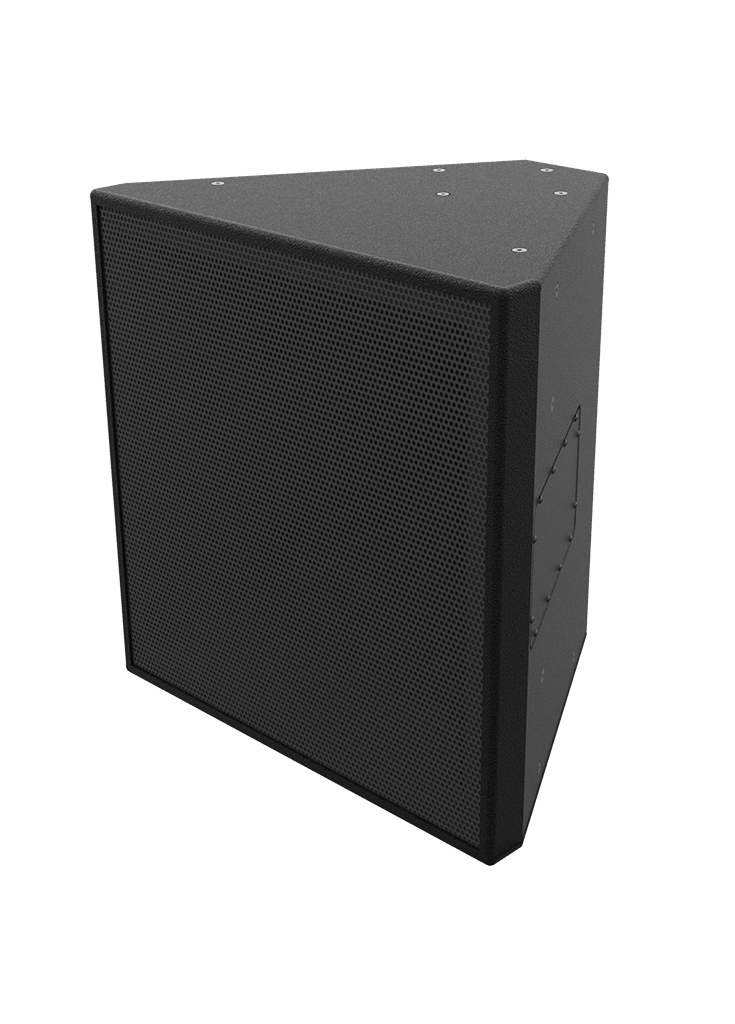

SH60

SH60

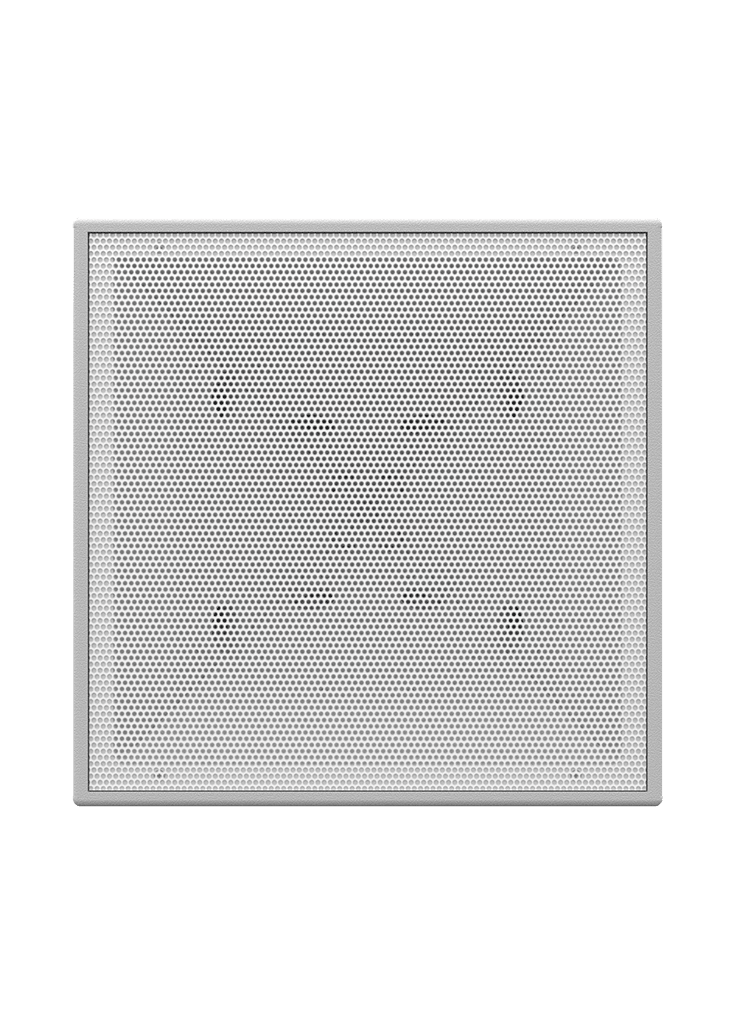

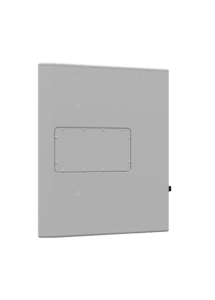

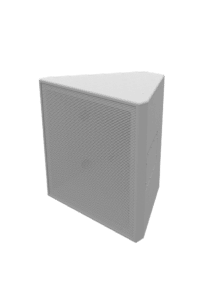

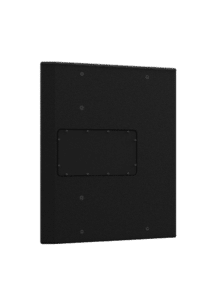

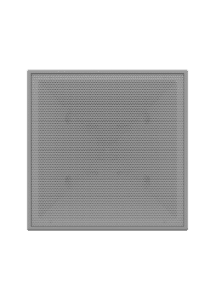

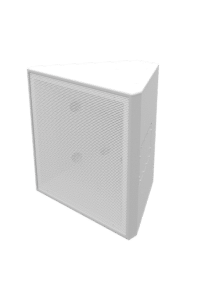

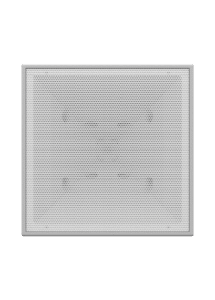

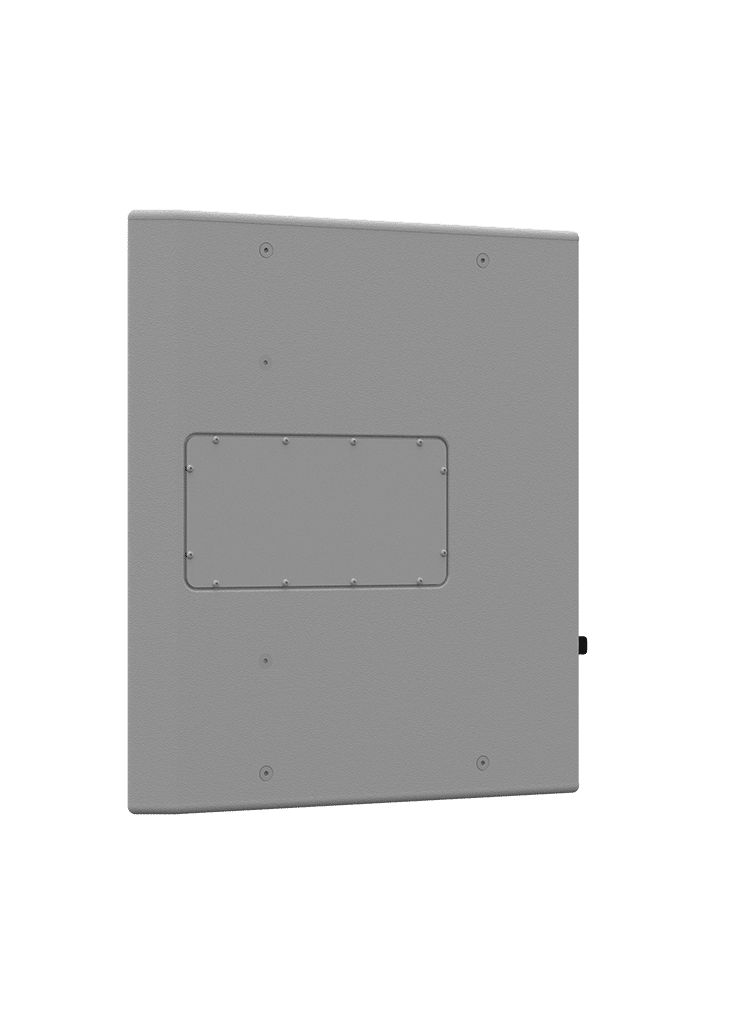

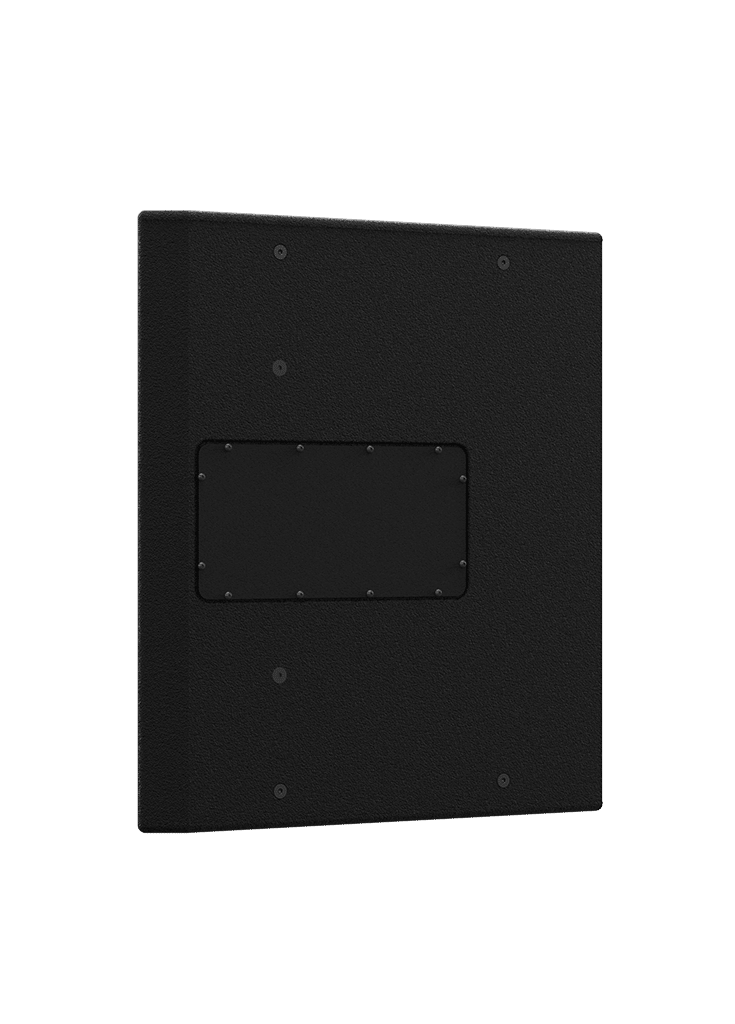

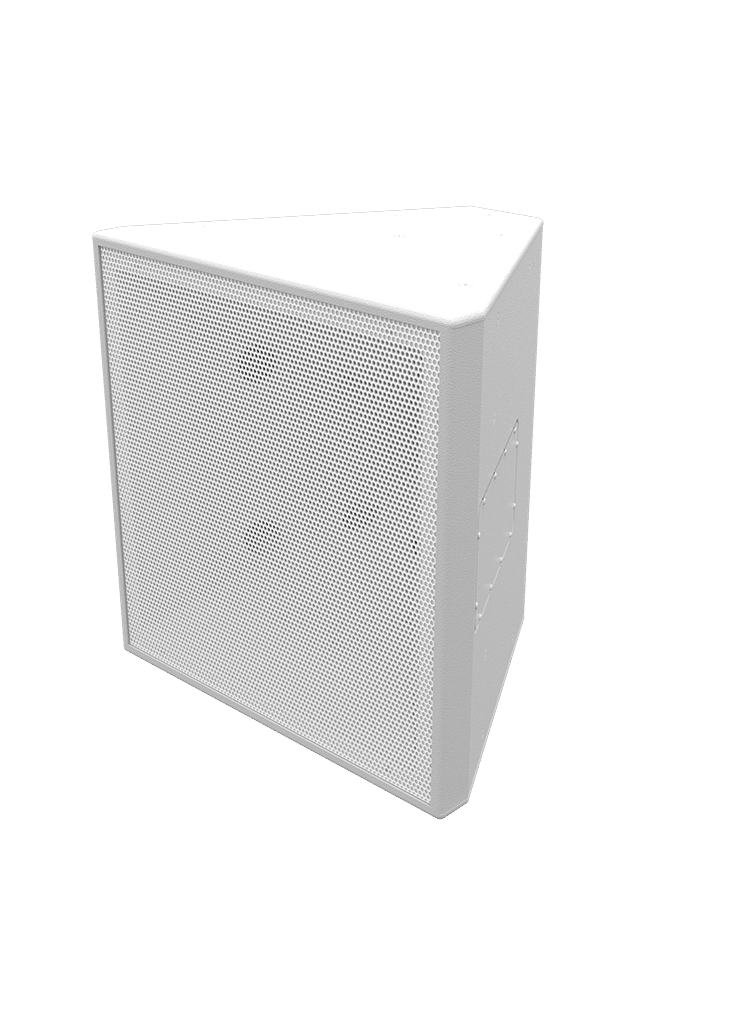

A 60-degree version of our flagship SH50 Synergy Horn™, the SH60 provides the same legendary sound, just with wider coverage. This loudspeaker features seamless arraying and true full range performance down to 50Hz, as well as a great low frequency pattern control and high output.

Product Specifications

Coverage Pattern
60˚ horizontal
60˚ vertical
Operating Frequency Range
48 Hz – 18 kHz +/- 3 dB
41 Hz – 24 kHz -10dB
Continuous Output
127 dB SPL
Peak Output
133 dB SPL
Sensitivity
100 dB SPL
(2.83 Volts into
rated Z, at 1 meter)
measured in whole space
Magnitude Response
48 Hz -18 kHz
Driver Complement
Low 2 x 12″
Mid 6 x 4″
High 1 x 1″
Dimensions
28 x 28 x 22 inches
Weight
127 lbs
Rated Impedance
4 Ohms
Power Rating
1000 Watts Cont.
4000 Watts Peak
Danley Products

SH Family of Products

Tom Danley’s patented Synergy Horn™ fundamentally changed the audio business.
