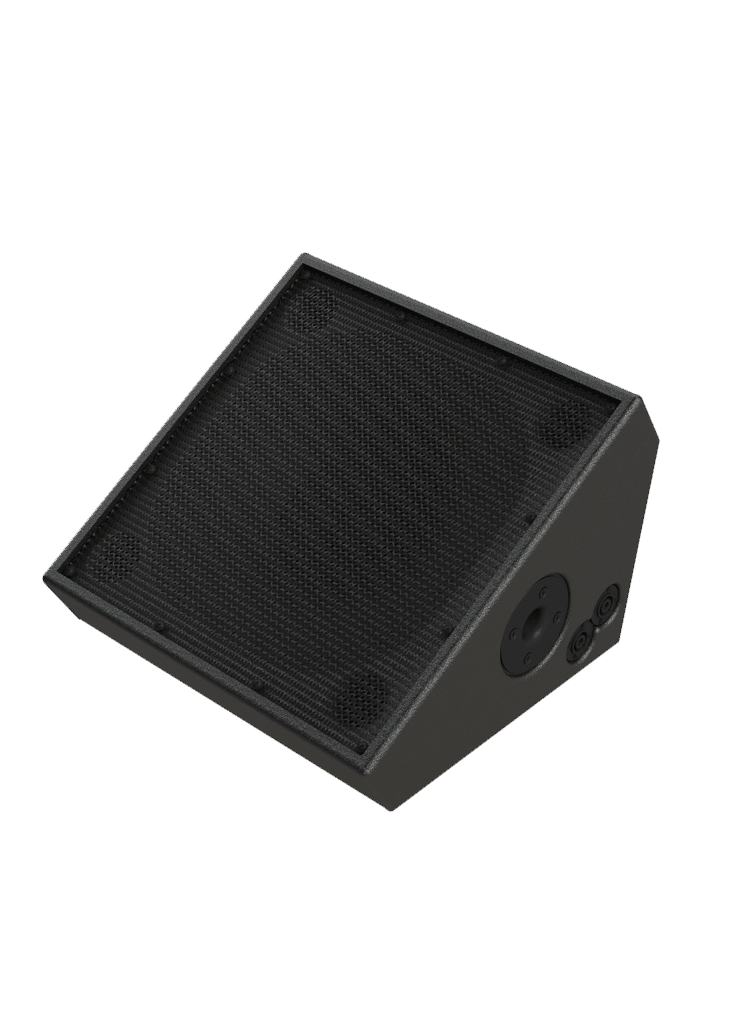

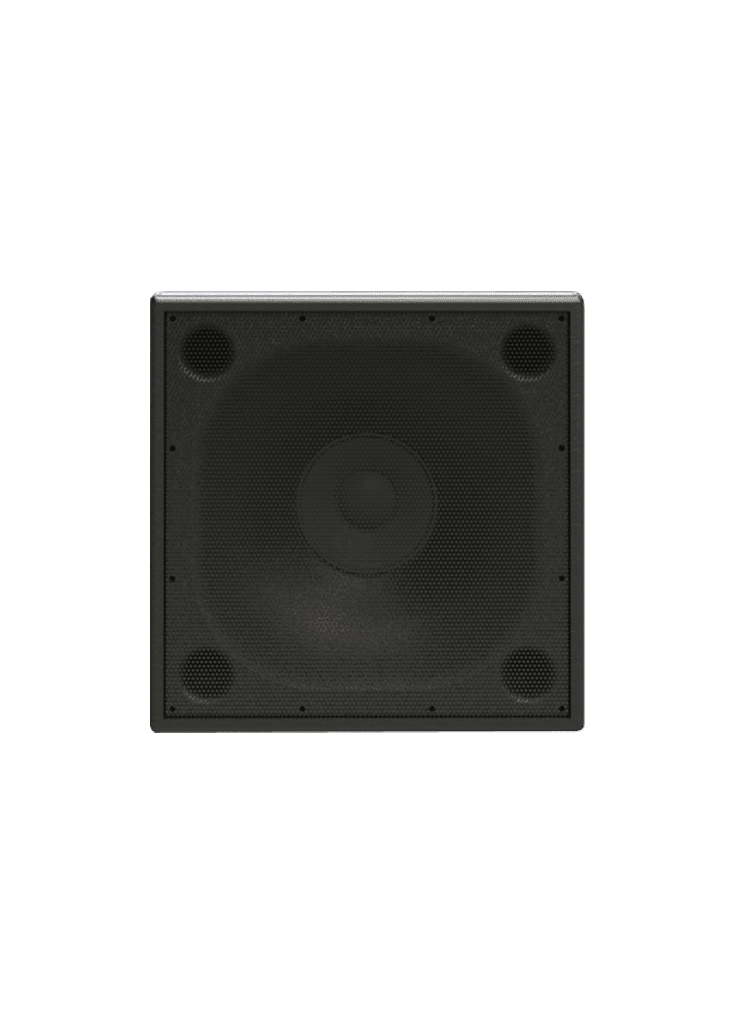

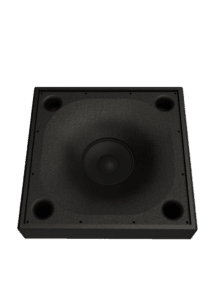

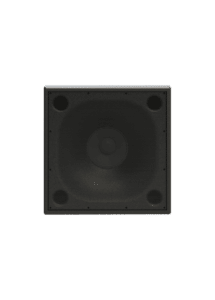

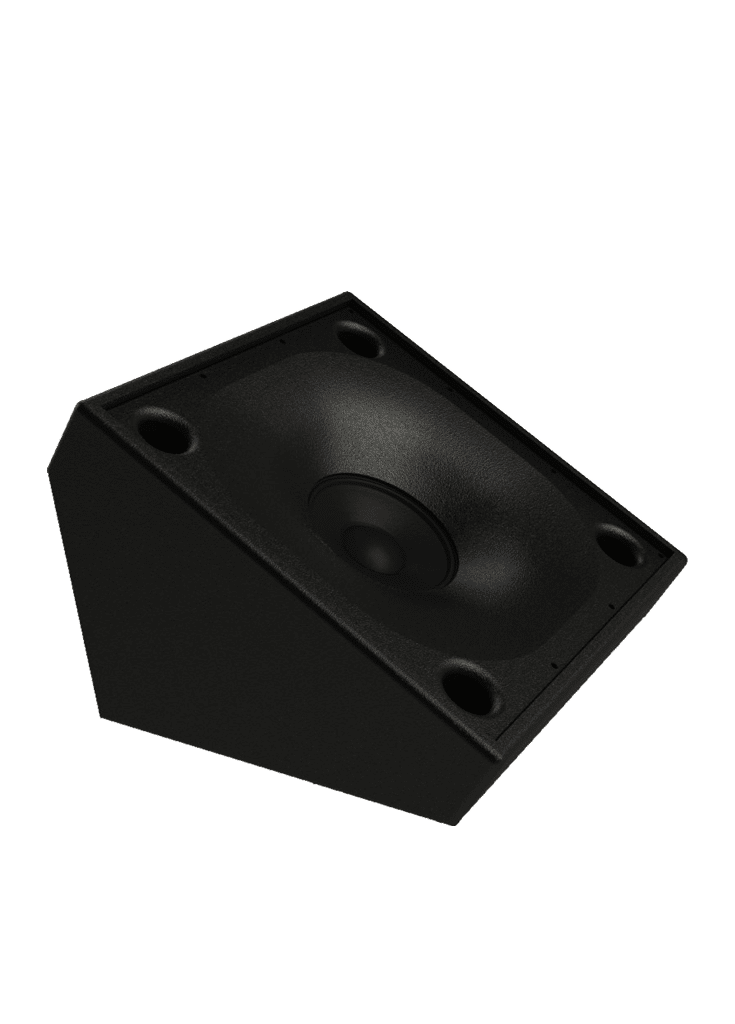

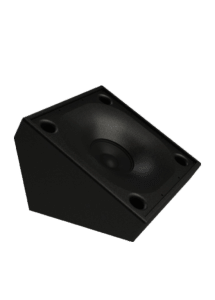

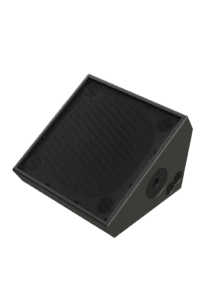

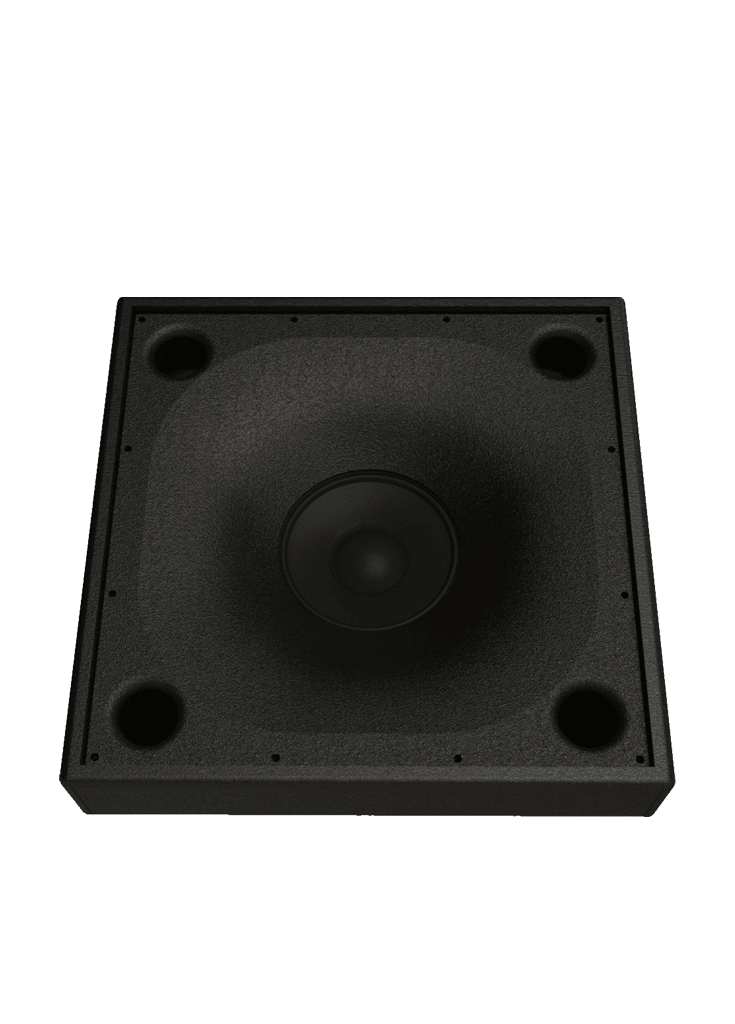

Low Profile Wedge Style Monitor

SM100M

SM100M

Combining accuracy, fidelity and economy, the SM100M is a wedge style monitor that offers wide dispersion with front to back rejection and high gain before feedback.

Product Specifications

Coverage Pattern
110˚ Conical
Operating Frequency Range
70 Hz – 20 KHz +/- 3dB
50 Hz – 24 Khz – 10dB
Continuous Output
120 dB SPL
Peak Output
126 dB SPL
Sensitivity
95 dB SPL
(2.83 Volts into
rated Z, at 1 meter)
measured in half space
Driver Complement
1 x 8″ coaxial
Dimensions
13.5 H x 20.7 W x 16 D inches
Weight
41 lbs
Rated Impedence
8 ohms
Power Rating
300 Watts Cont.
1200 Watts Peak
