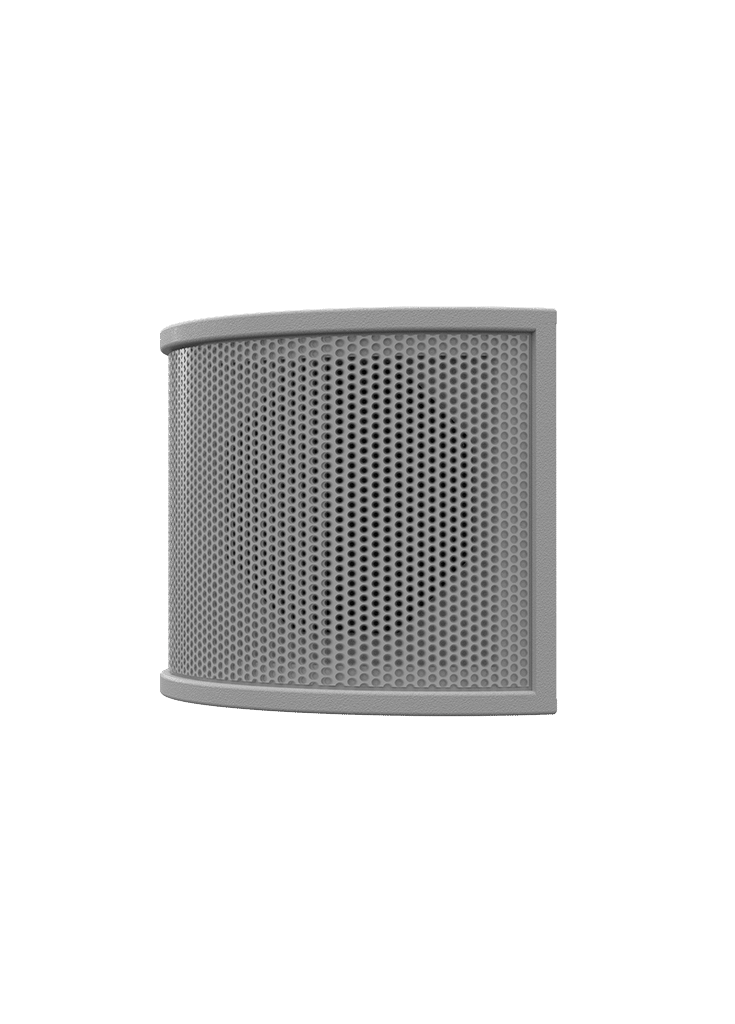

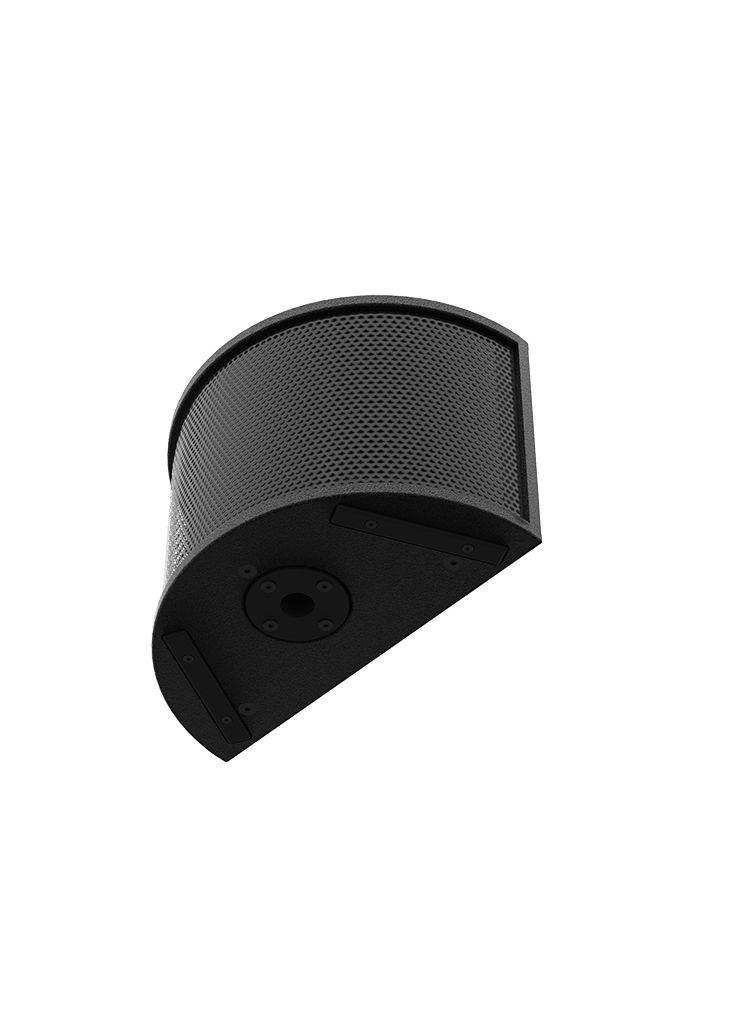

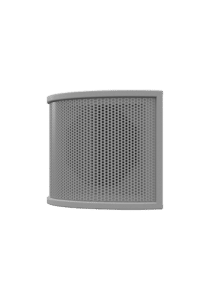

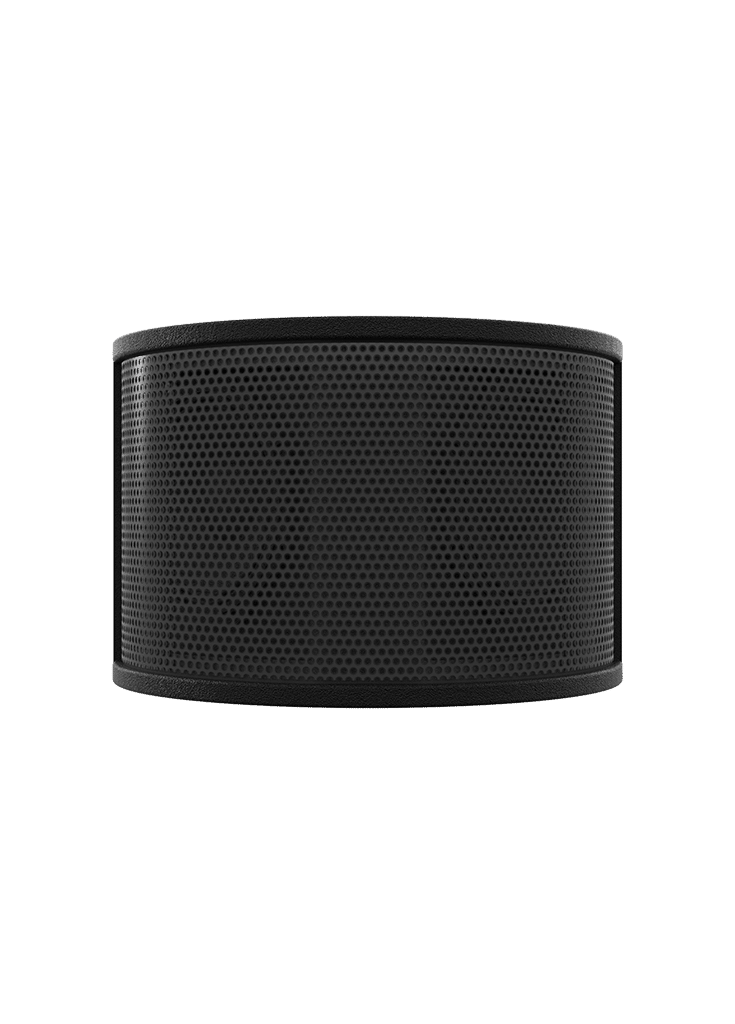

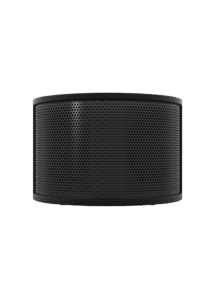

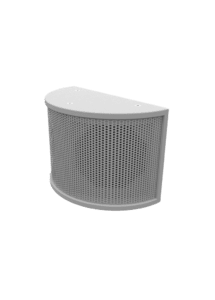

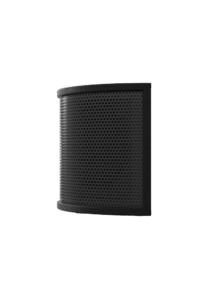

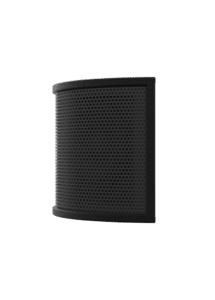

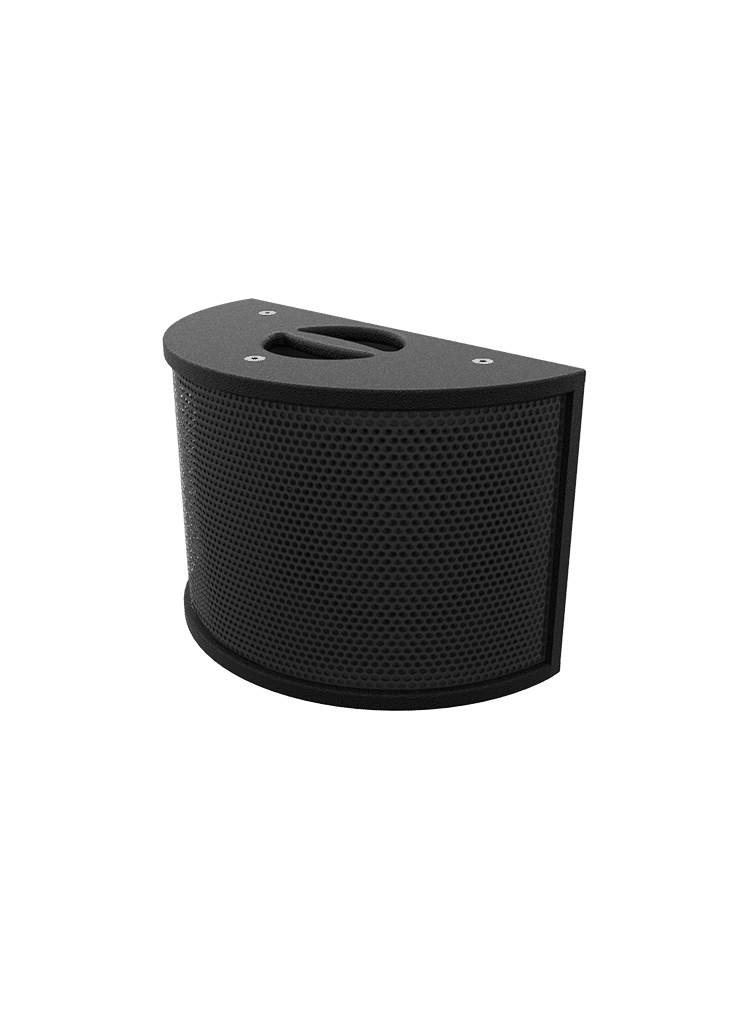

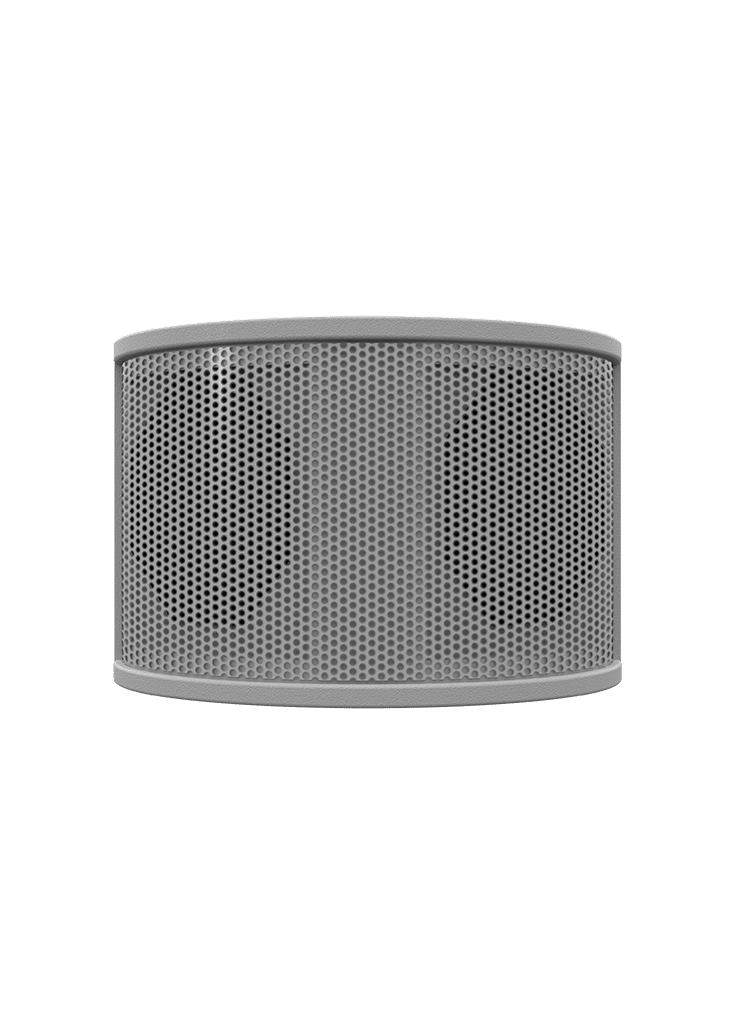

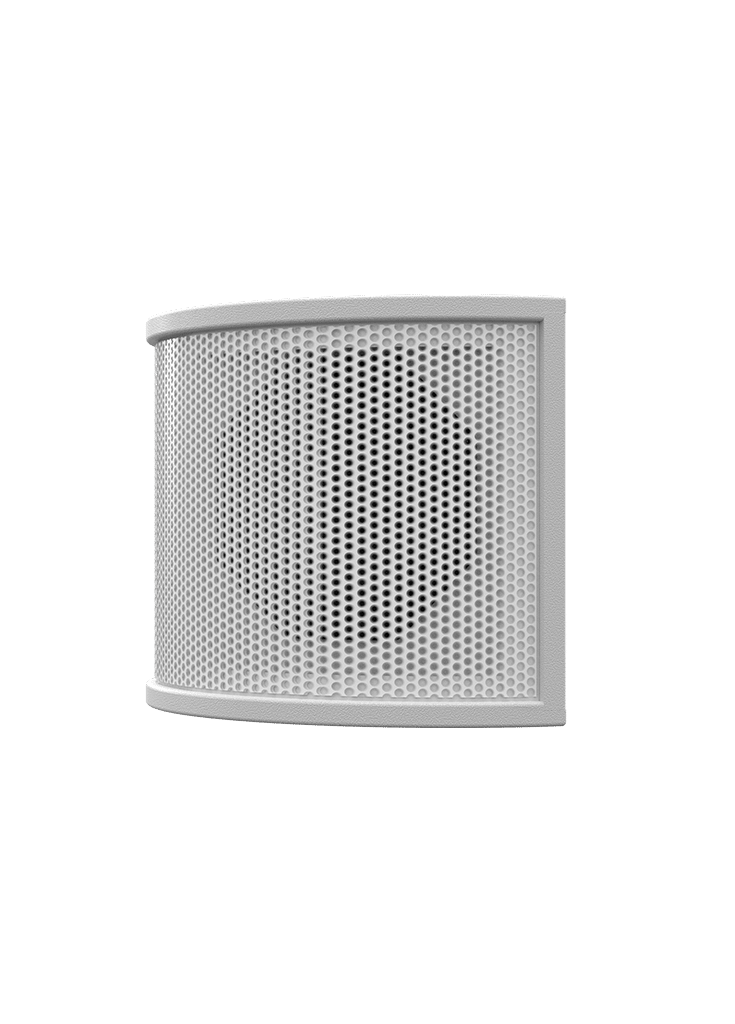

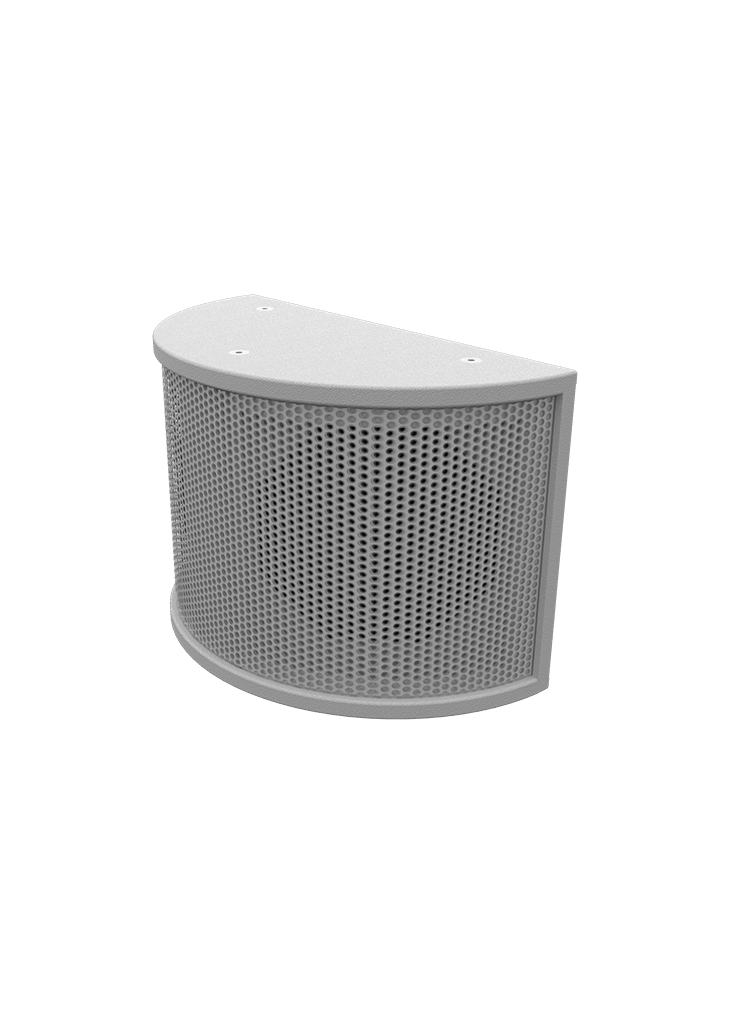

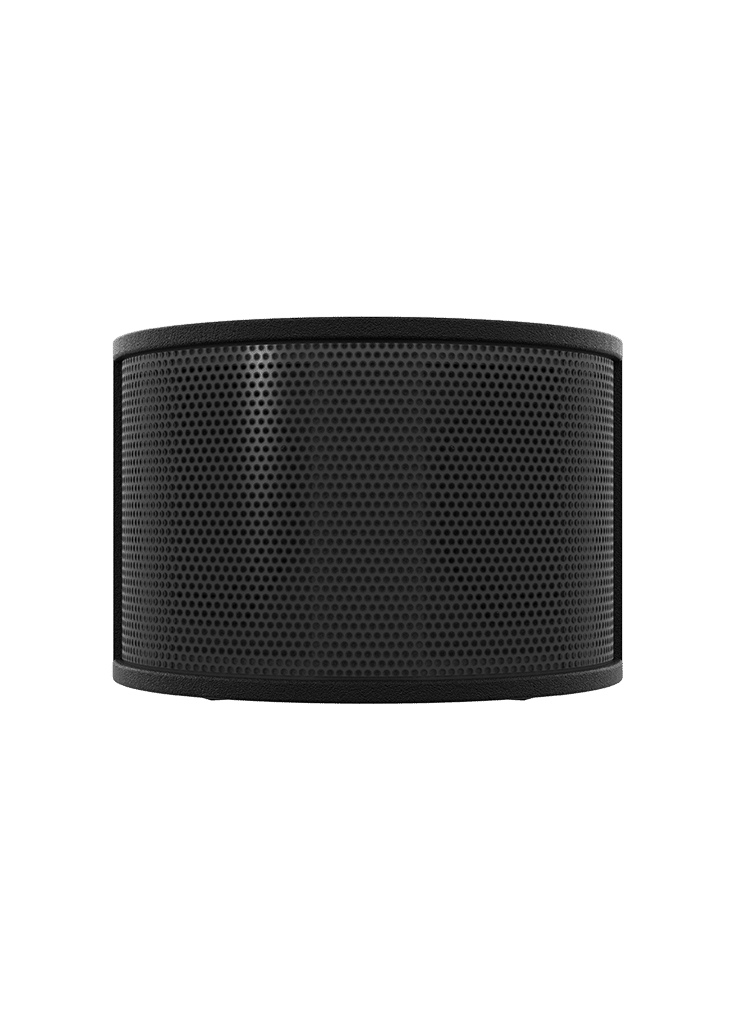

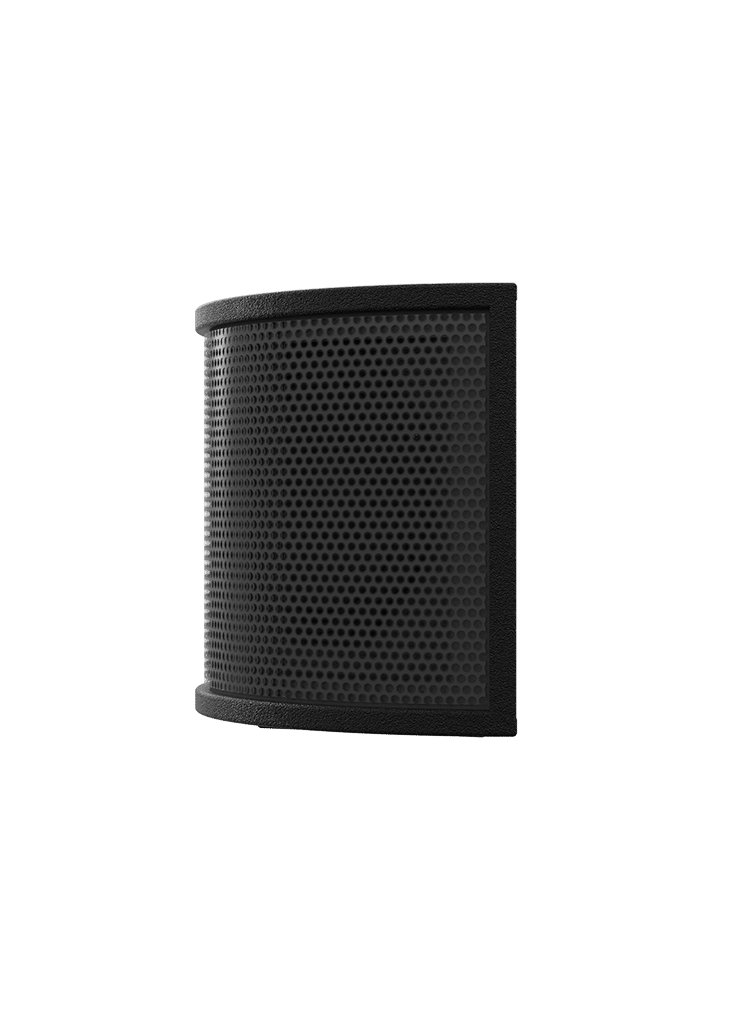

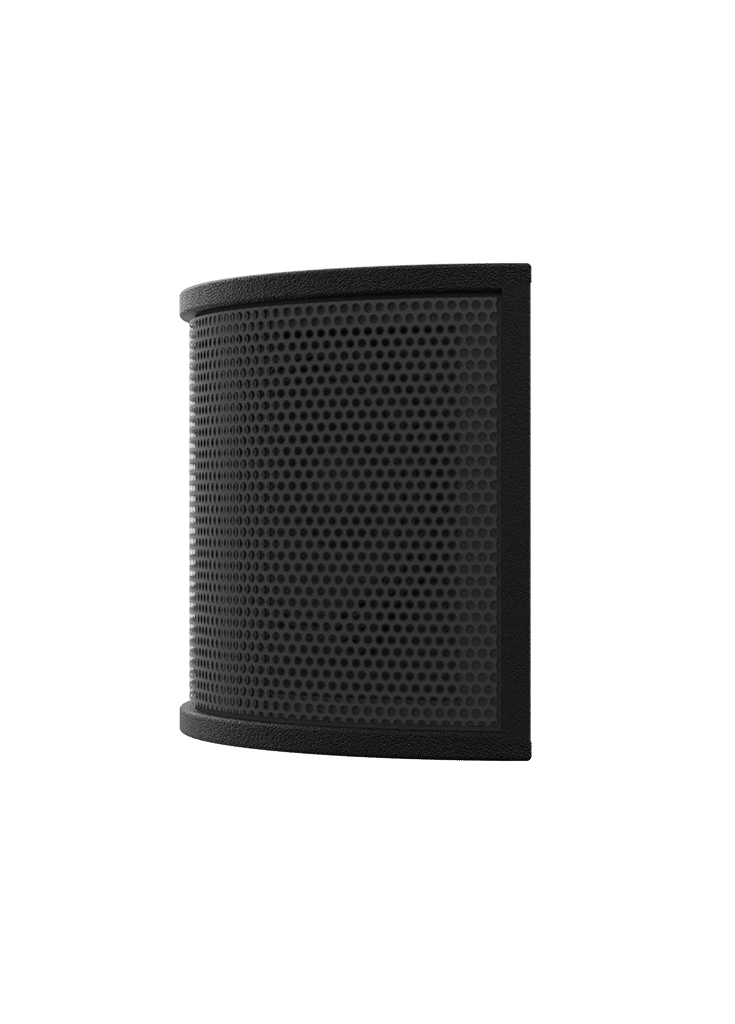

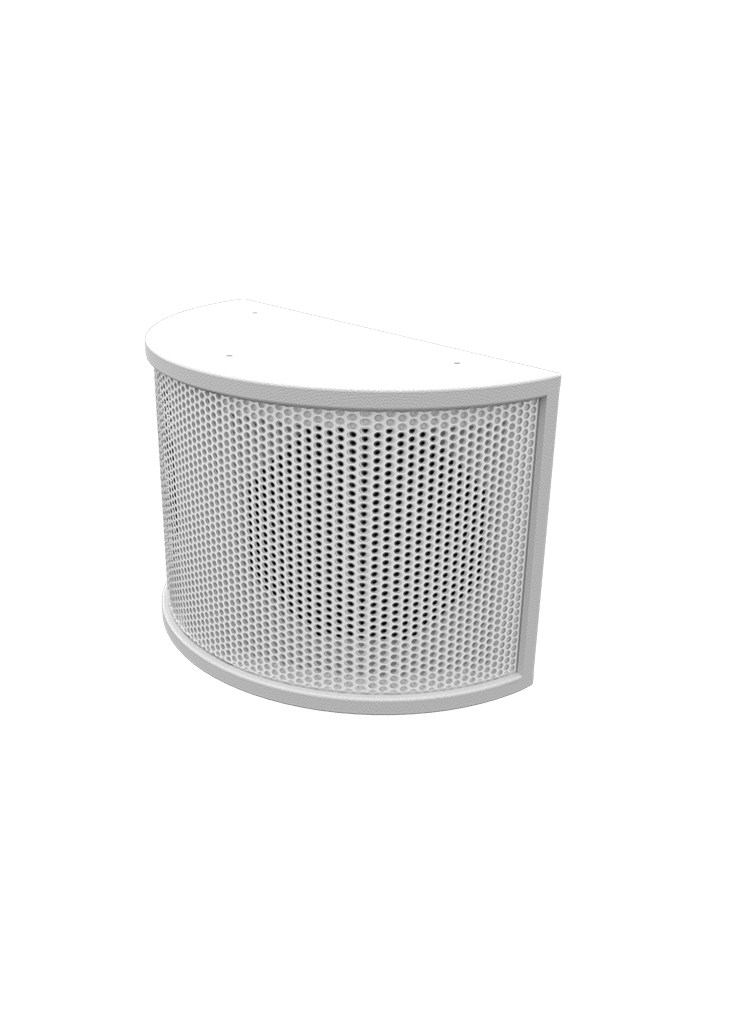

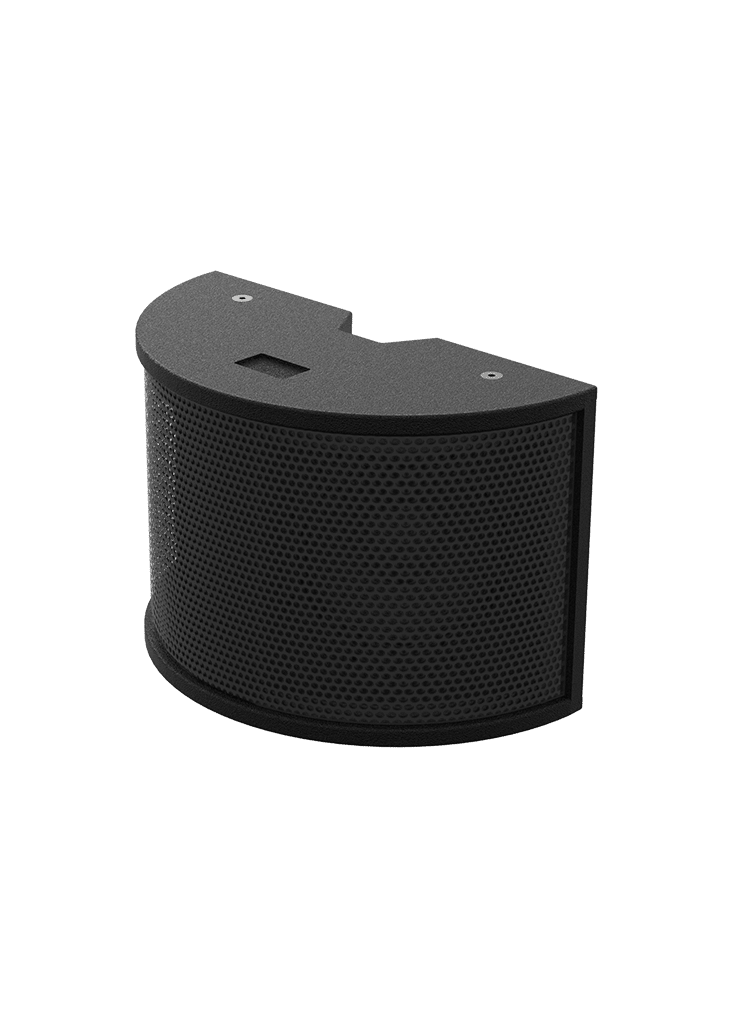

The Mini180 takes the 8” coaxial driver from our SHMini and utilizes a pair of them in a unique layout for a 180 degree wide x 90 degree vertical coverage pattern.  At home in theme parks and other various distributed system configurations the Mini180 is a very unique audio tool.

Product Specifications

Coverage Pattern
180° x 90°
Operating Frequency Range
149 Hz – 21 kHz +/- 3dB
87 Hz – 24 kHz – 10dB
Continuous Output
119 dB SPL
Peak Output
125 dB SPL
95 dB SPL (2.83 Volts into rated Z, at 1 meter) measured in half space
Driver Complement
2 x 8″ coaxial
12.5”H x 18.5”W x 9.5”D
45 Ibs
Rated Impedance
4 Ohms
Power Rating
500 W continuous,
2000 W peak
