J7-95
J7-95

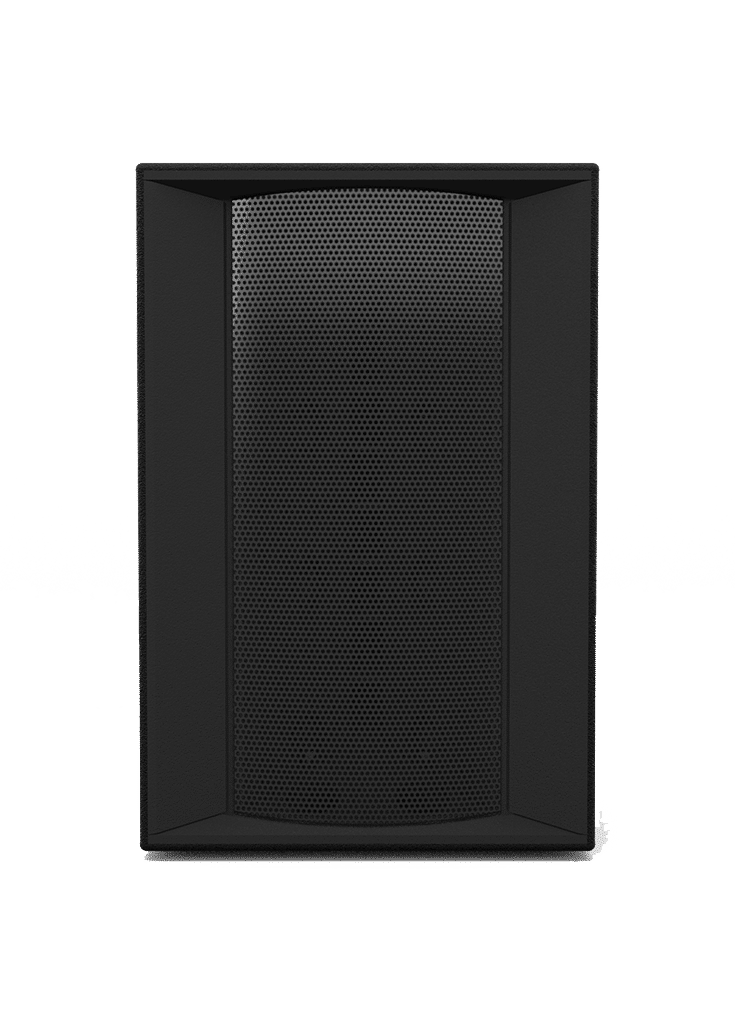

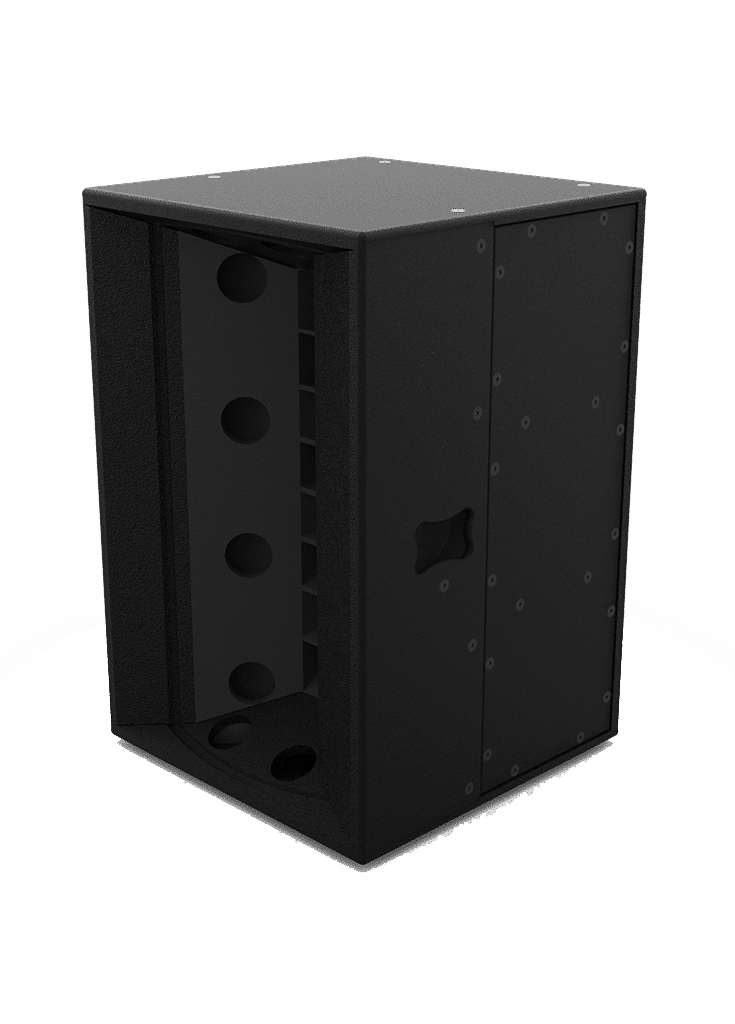

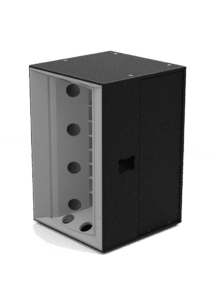

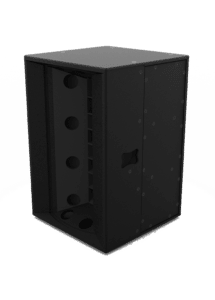

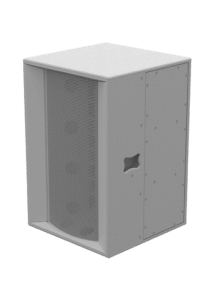

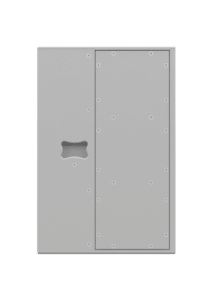

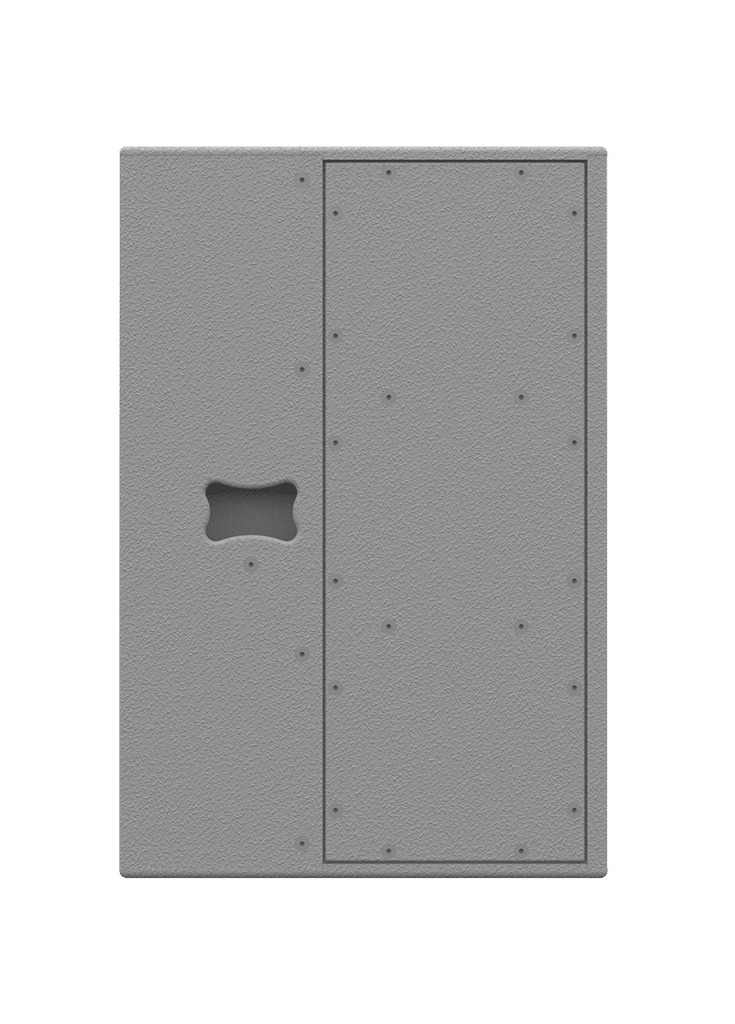

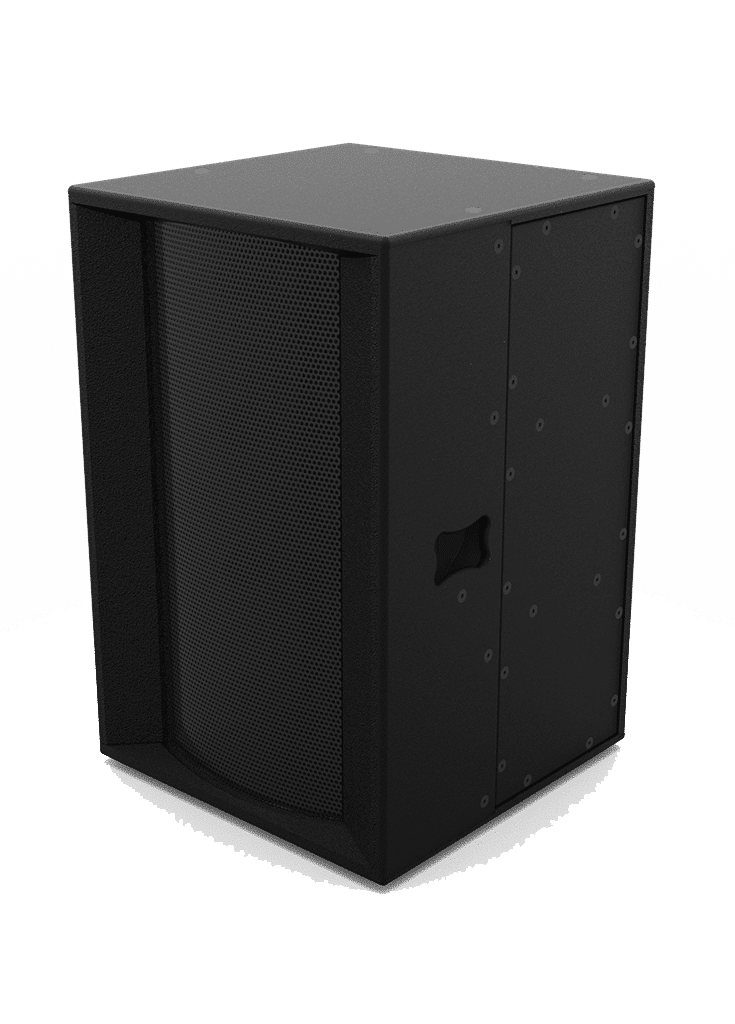

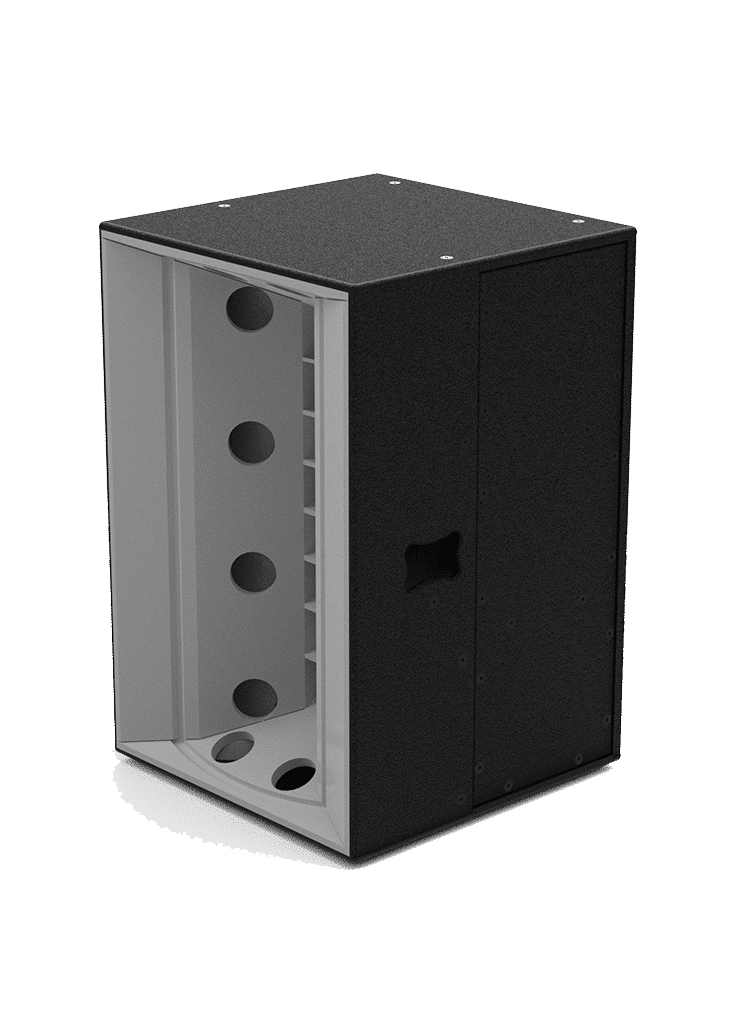

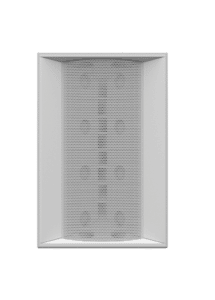

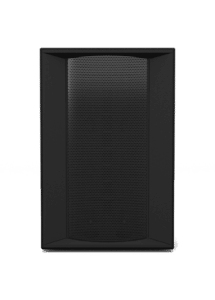

The J7-95 weighs in at 265 pounds and stands three feet tall – yet delivers the high output you would expect from all Jericho family members. True to the line, the J7 is a Synergy Horn™ with 18 drivers connected to a single horn through a fifth-generation combiner, resulting in excellent response in both magnitude and phase. The footprint, output, weight, and fidelity make the J7 the closest thing to a “utility” Jericho Horn that Danley has ever made, and thus its potential applications are incredibly diverse.
Product Specifications
Coverage Pattern
90 x 60 degrees
Operating Frequency Range
67 Hz – 17.5 kHz (-3 dB) | 55 Hz – 18.7 Khz (-10 dB)
Maximum Output
142.4 dB Z-Peak | 129.9 dB Z-Slow | 124.7 dB A-Slow
Sensitivity
Low 103 dBSPL, M/H 109 dB (measured as 28.3V @10m distance)
Rated Impedance
Mid/High-4 Ohm
Low-4 Ohm
Low-4 Ohm
Power Rating
Low 4200 W Cont. | 16,800 W Peak
M/H 2000 W Cont. | 8,000 W Peak
M/H 2000 W Cont. | 8,000 W Peak
Connections
BIAMP Mode
1x Neutrik NL4 Speakon Input
QUADAMP Mode
1x Neutrlik NL8 Speakon Input
J7-95-BIAMP-EW
2x 2 Conductor Lead-in Wire
J7-95-QUADAMP-EW
4x 2 Conductor Lead-in Wire
1x Neutrik NL4 Speakon Input
QUADAMP Mode
1x Neutrlik NL8 Speakon Input
J7-95-BIAMP-EW
2x 2 Conductor Lead-in Wire
J7-95-QUADAMP-EW
4x 2 Conductor Lead-in Wire
Mounting / Suspension Points
M10 rigging points
Dimensions
36 x 24 x 24 inches
Weight
265 Ibs
